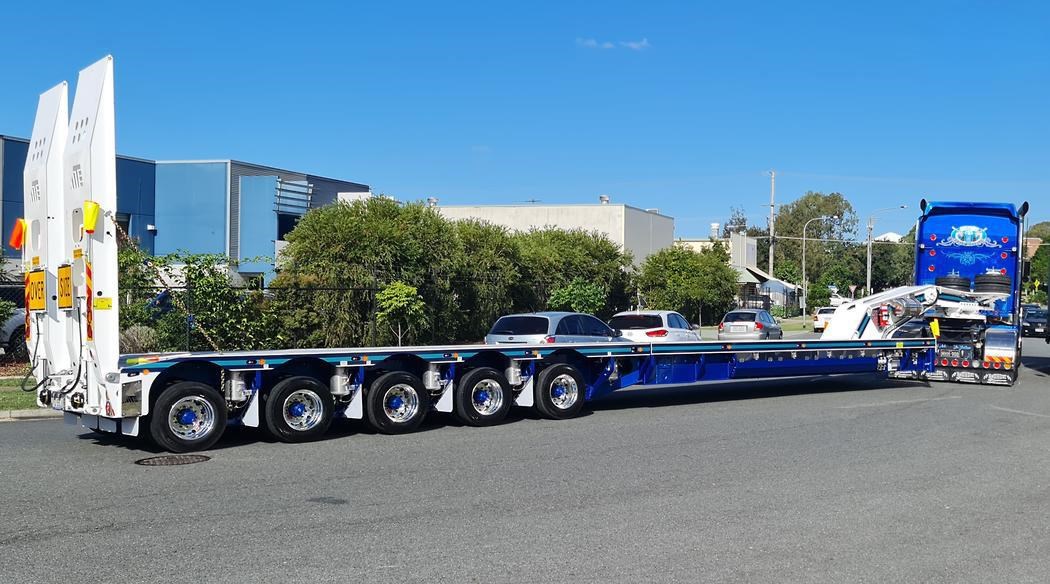

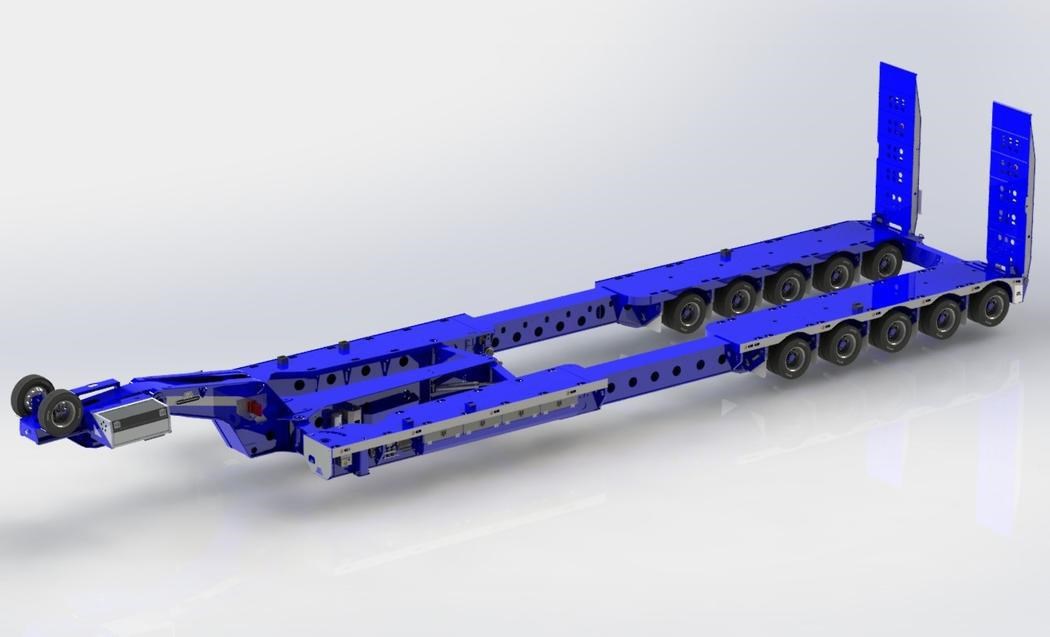

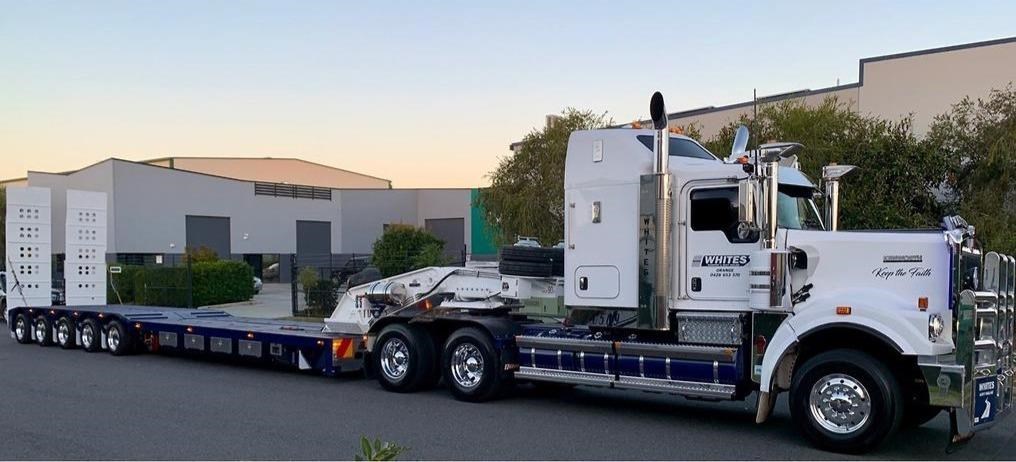

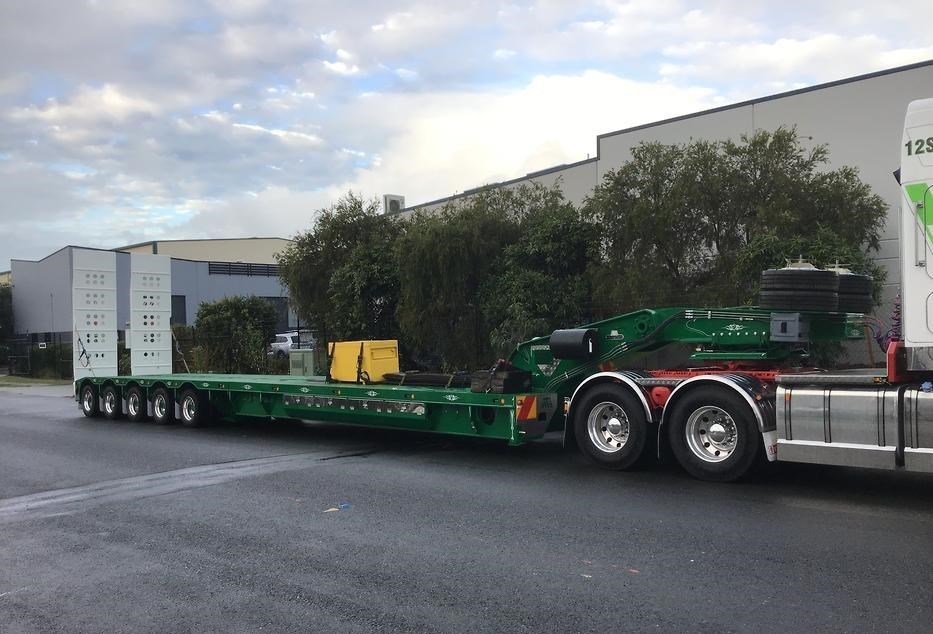

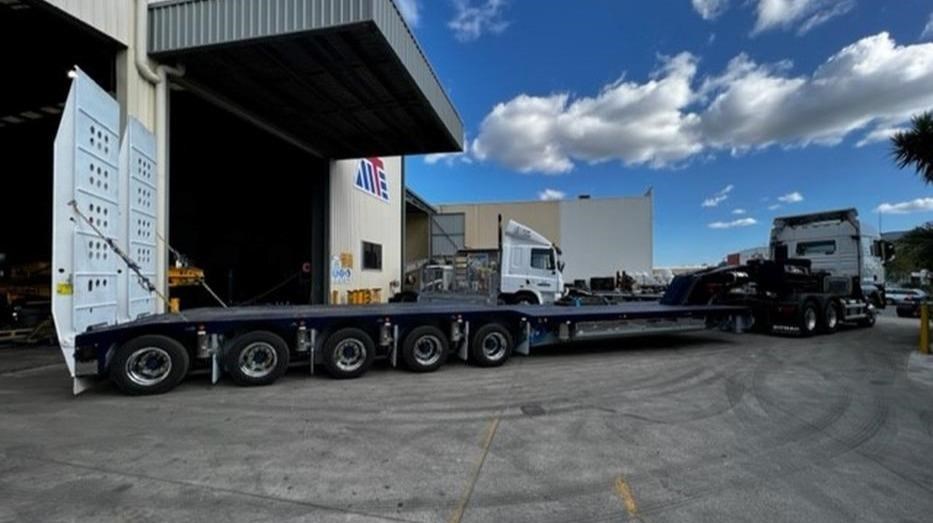

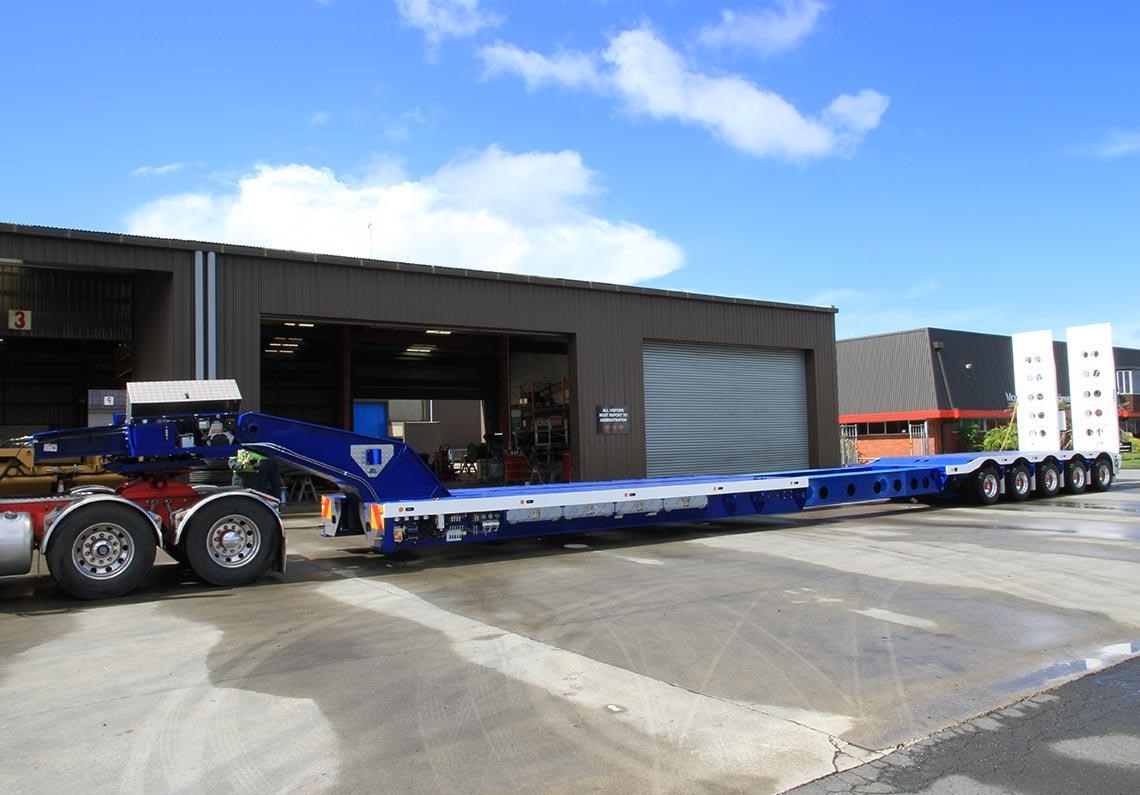

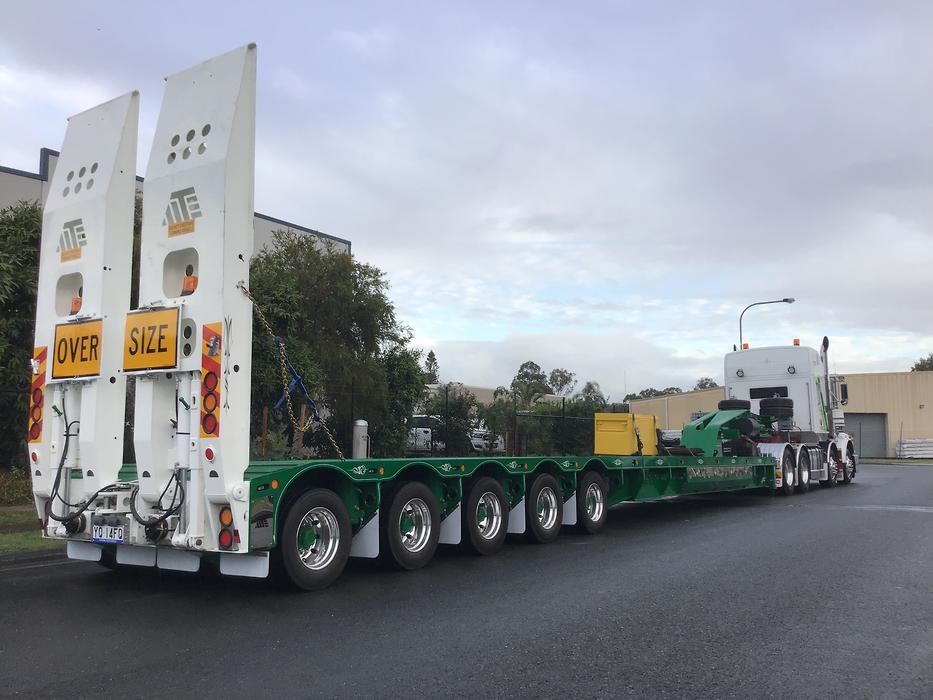

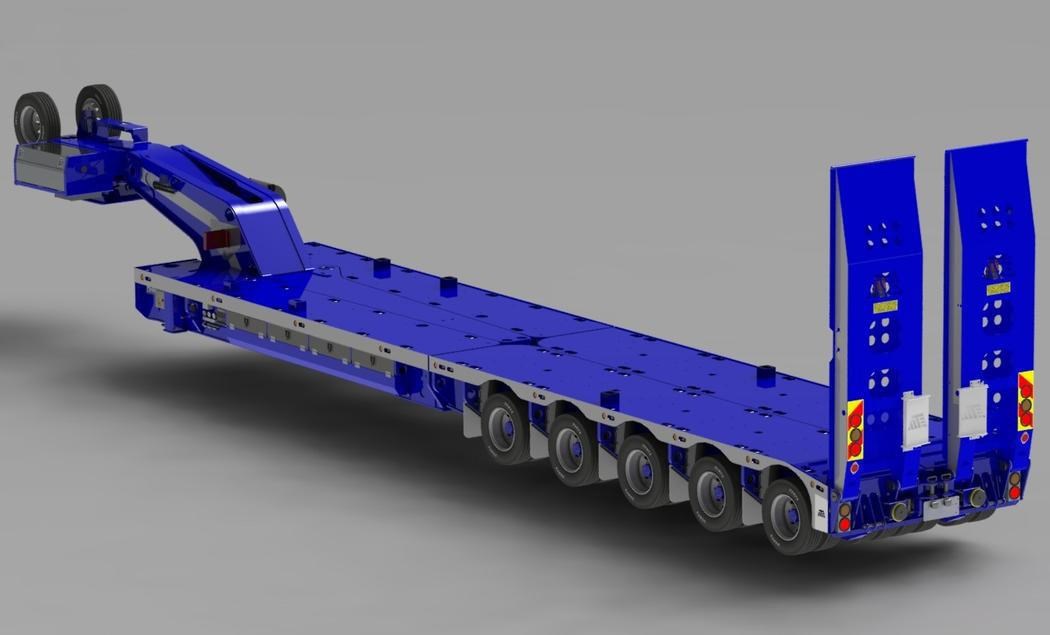

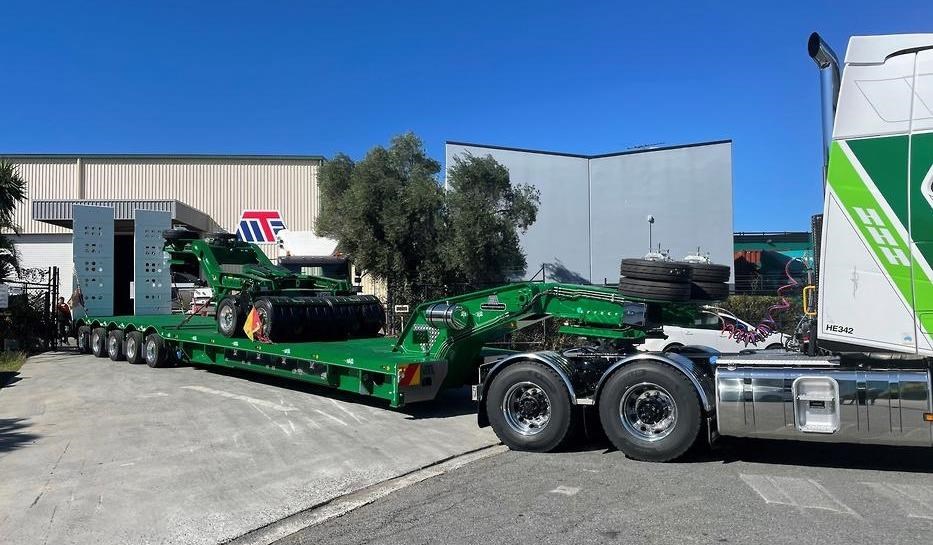

MTE 5 ROWS OF 8 LINKWING (MADE TO ORDER)

The Linkwing is our most popular trailer. With an 80 110 tonne GVW, hydraulic widening and hydraulic suspension its easy to see why. The Linkwing can raise, lower, widen its decks and has a internal hydraulic gooseneck. Fully customisable to meet your individual needs.*Specifications are approximate, subject to change and to be used as a guide only

STANDARD SPECIFICATIONS (APPROX)

Deck Height: 900mm
Deck Height: Widening: 2500mm closed - 4270mm open
Axles: MTE 17.5 Ten Stud 225 PCD
Axle Spacing: 220mm
Axle Retraction: Axle retraction of all axles to facilitate maintenance
Suspension: MTE Hydraulic Suspension Ball and Socket with low maintenance quick change rams
Brakes: 12-1/4" X 7-1/2" Brakes on outboard drums with self adjusting slack adjusters
Greasing: Manual Greasing System 8 points per suspension out to a manual greasing block
Tyres: 215/75R X 17.5"
Wheels: Steel Wheels
Spare Tyre Carriers: 2
Power Source: Truck or Powerpack
Lighting: LED Lights to ADR 4198 with 1 Rotating light in Ramp
Rub Plate: One position oscillating Rub Plate
Rub Plate Height: 1300mm
King Pin: 3-1/2" King Pin two position
Ramps: 3300mm x 1050mm hydraulic with run-flat ramp stays
Toolboxes: 2 open tool boxes on inside of trailer
Chain Bins: four lockable toolboxes
Link Pins : All new Design 150mm diameter front link pins - 100mm diameter rear link pins
Signage: "DO NOT OVER TAKE" and Sliding "OVERSIZE'
Landing Legs: Heavy Duty
Deck Material: Heavy Duty with two x wear straps on neck, 10mm thick deck and 70mm camber

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminium Wheels Machined Finish (saves 12.8kg/Wheel)
Wheels: Aluminium Wheels Polished Finish (saves 12.8kg/Wheel)
Tyres: Specific branded Tyres. (Please State)
Ramps: Double Fold Ramps 3700mm x 900mm, 1050mm x 3000mm, 4400mm x 900m
Greasing: Centralised Greasing- Brakes and Suspension, Centralised Greasing with timer- Brakes and Suspension
Remote Control: 12 function remote system for operating suspension & widening
Ship Locks: Ship-lock pockets for 20' and 40' containers & 4x double ended ship locks
Power Pack: 5.5 HP Diesel Power Pack Electric start with battery, 5.5 HP Petrol Power Pack with pull start only, 5.5 HP Petrol Power Pack Electric start with battery
Guages: Guages for load indication
Storage: 8x Lockable Toolboxes (4 on each side)
Water Tank: Stainless Steel Water Tank and Tap
Gooseneck: Hydraulically adjustable gooseneck external
Turntable: Sliding Turntable
Odometer: Hub Odometer
Extendable: 3 metre extendable option (extends in 500mm increments) (13.850mm OA deck length closed)
Extendable: 4 metre extendable option (extends in 500mm increments) (14.850mm OA deck length closed)
Drop Bed: 125mm Drop Bed Option (13.190mm OA Deck Length)
Air Hose Reel: Retractable Air Hose Reel

Please Contact us for more details on this trailer.

PRICE EXCLUSIVE OF GST
PRICE ON APPLICATION

Sandblasting, Painting & any Modifications can be made if required
