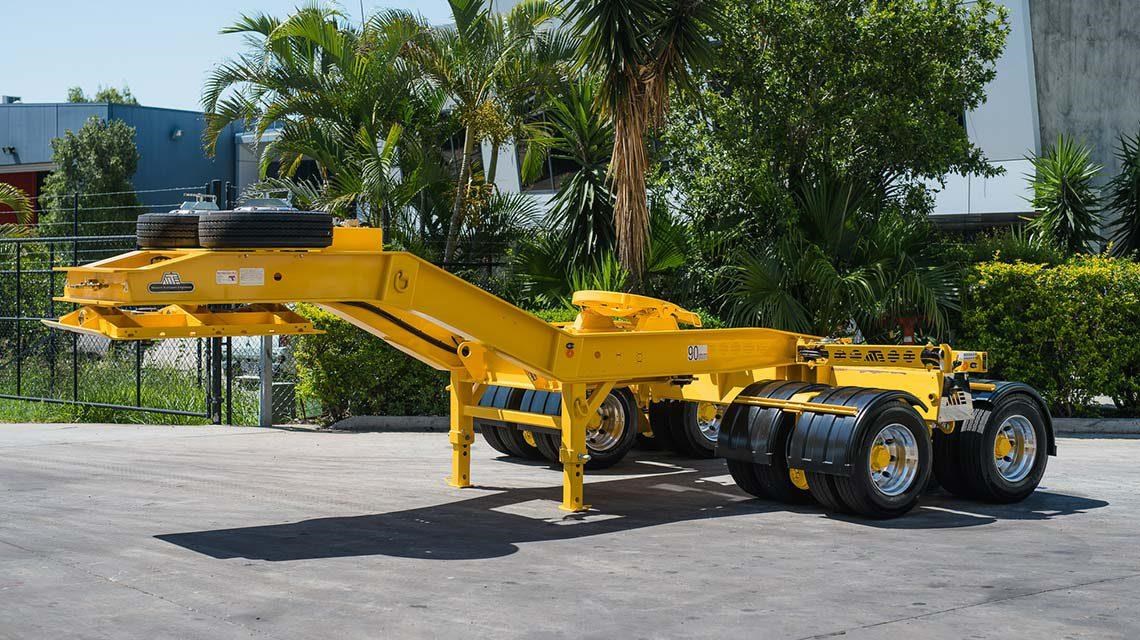

MTE 2 ROWS OF 8 DOLLY (MADE TO ORDER)

A Dolly is a mechanical vehicle which is coupled to a truck or trailer.

Generally, dollys transport trailers by connecting them to trucks or other trailers, forming multi-combination vehicles. The 2R4 Dolly is the lighter version of the 2R8 Dolly and can be coupled to a rows of 8 or widener.

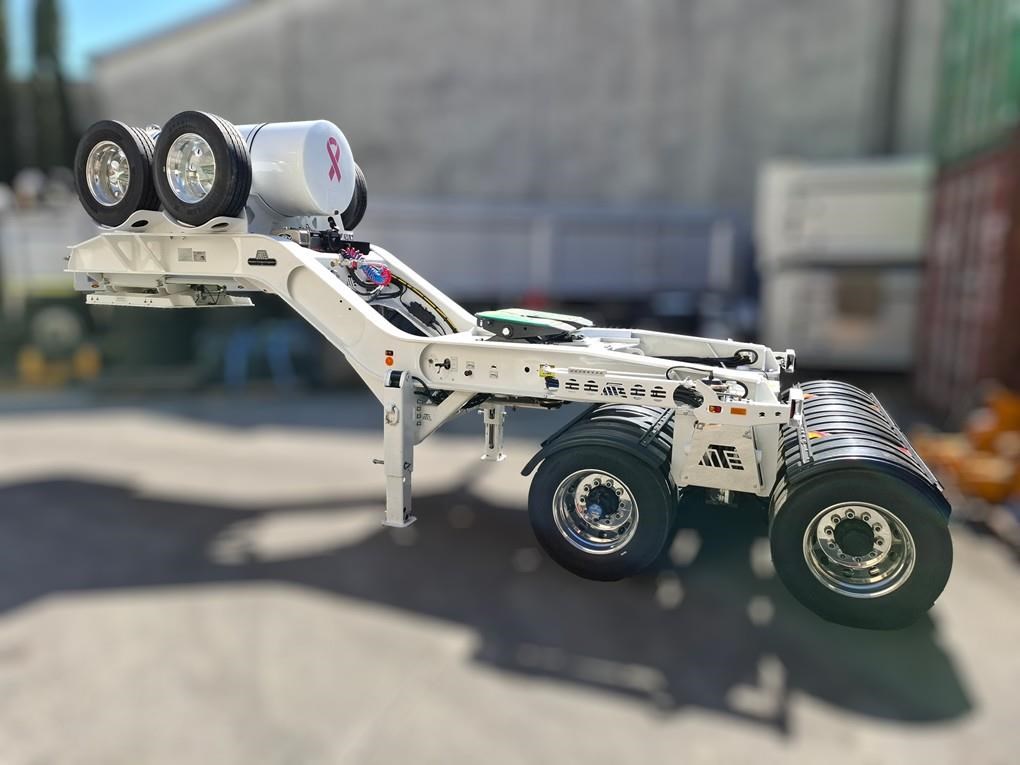

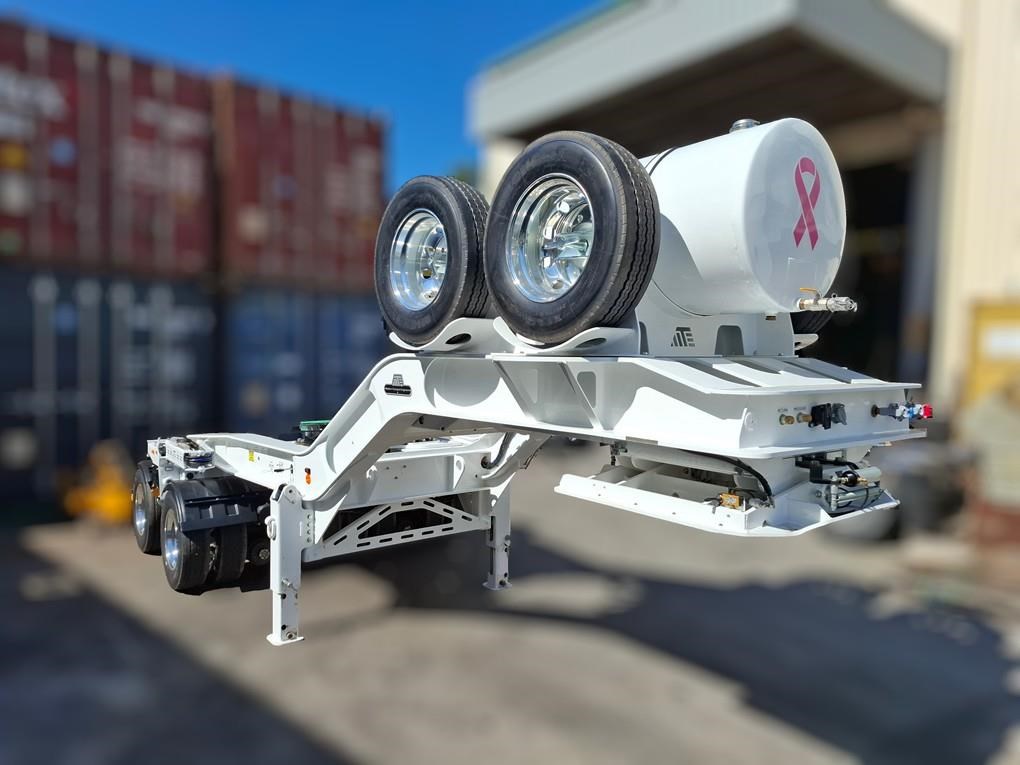

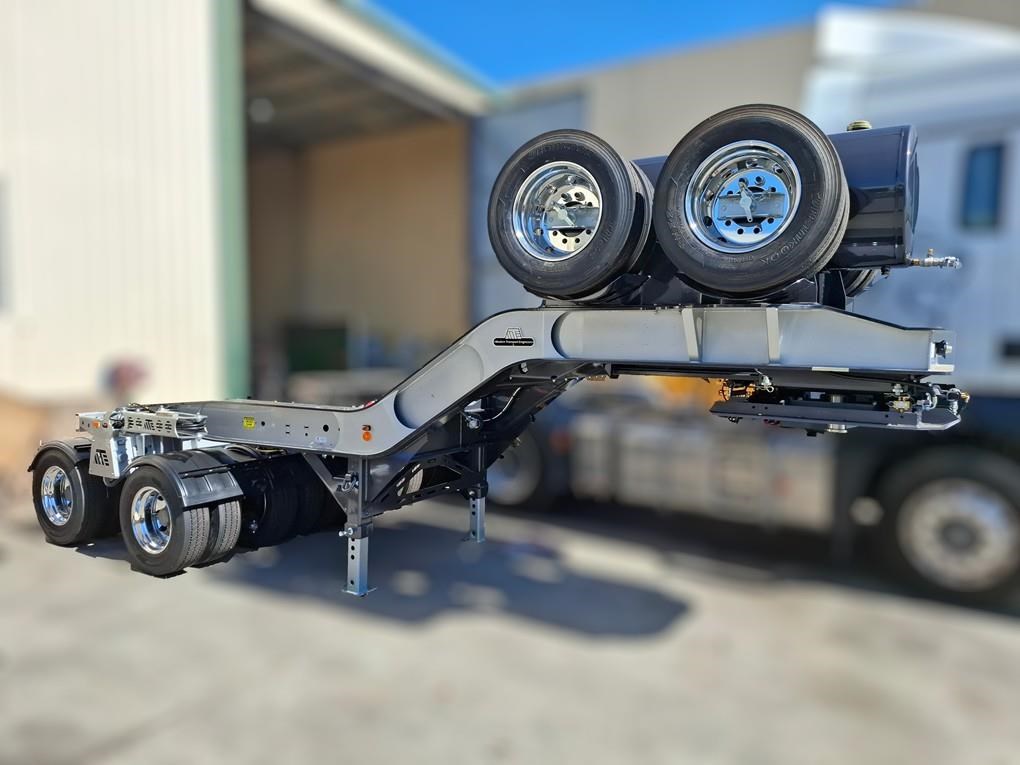

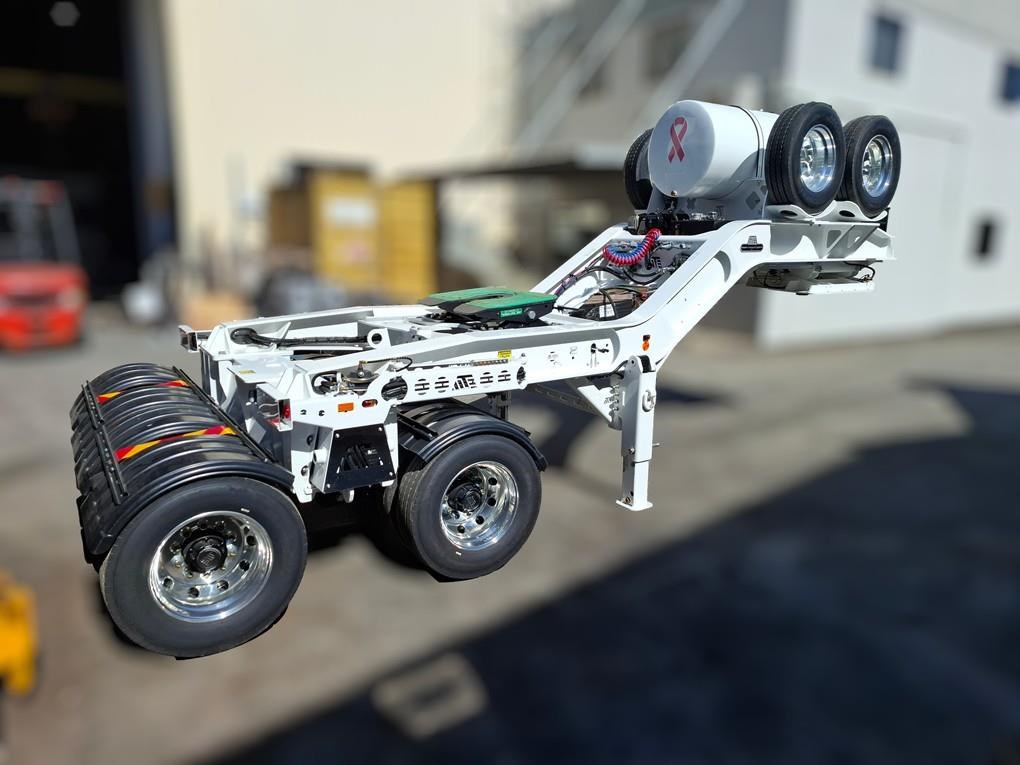

Our new dolly design features a bolt-on vertical tyre carrier with integrated tank brackets.

SPECIFICATIONS (APPROX)

Opening Width: Closed 2500mm - Open 4260mm
Axles: MTE Axles 17.5, Ten Stud, 225PCD Axles with Outboard Drums & 12-1/4 x 7-1/2" Brakes.
Suspension: Trunnion Suspension
Axle Spacing: 1250mm
Yard Release: Button
Tyres: 235 x 17.5"16 PLY
Wheels: Steel Wheels
Spare Tyres: 2
Power Source: Truck
Lighting: LED Lights to ADR
Rub Plate: Sliding and Oscilliating
Rub Plate Height: 1300mm

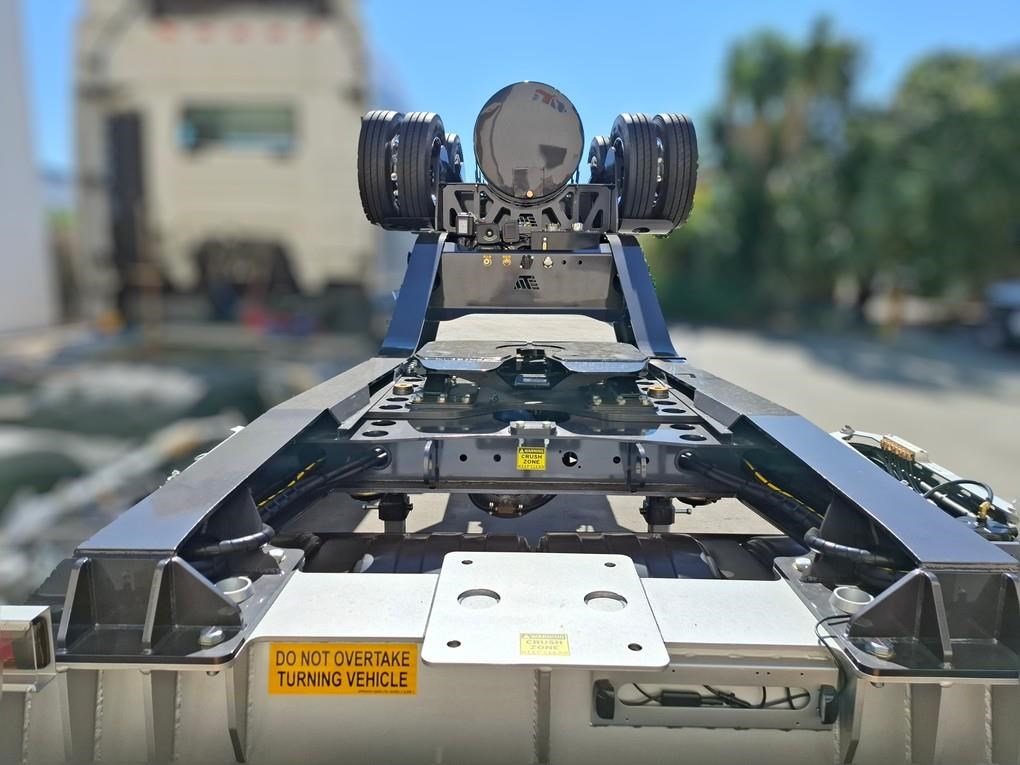

5TH Wheel: Semi Oscillating 3-1/2" 5th Wheel/Turntable on sliding plate
King Pin: MTE 3-1/2 drop in King Pin two position
Landing Legs: Heavy Duty

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminum Wheels Machined Finish (saves 12.8kg/wheel)
Wheels: Aluminum Wheels Polished Finish (saves 12.8kg/wheel)
Tyres: Specific branded tyres (please state)
Railing: Hand Rails on both side of Dolly
Power Pack: 5.5HP Diesel Power Pack, Electric Start with Battery with Tyre Carriers
Power Pack: 5.5HP Petrol Power Pack, Pull Start only with Tyre Carriers
Electrical: Air, Electrical lead and Hydraulic Hose
Water Tank: Plastic Water Tank and Tap
Water Tank: Stainless Water Tank and Tap
Rub Plate: Sliding Front Rub Plate
King Pin: MTE 50mm Drop in King Pin
Bolster: Bolster on Dolly Turntable
Bolster: Bolster Riser
Bolster: Bolster Cradle for supporting beams and super tee and hallow-core jaws
Ringfeder: 50mm Ringfeder and mount

Please Contact us more details on this trailer.

PRICE ON APPLICATION
PRICE EXCLUSIVE OF GST

Sandblasting, Painting & any Modifications can be made if required
