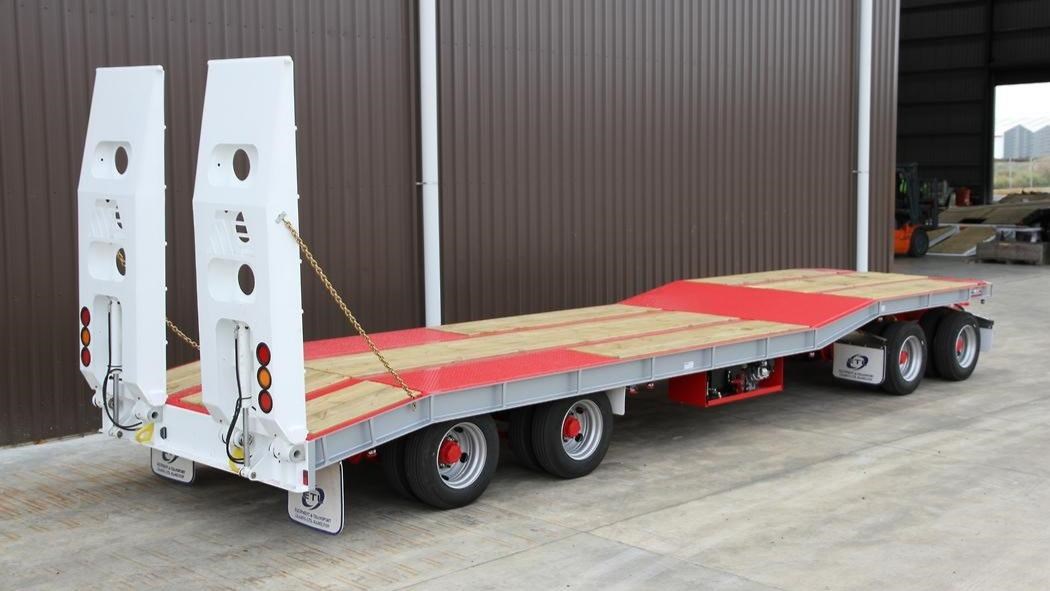

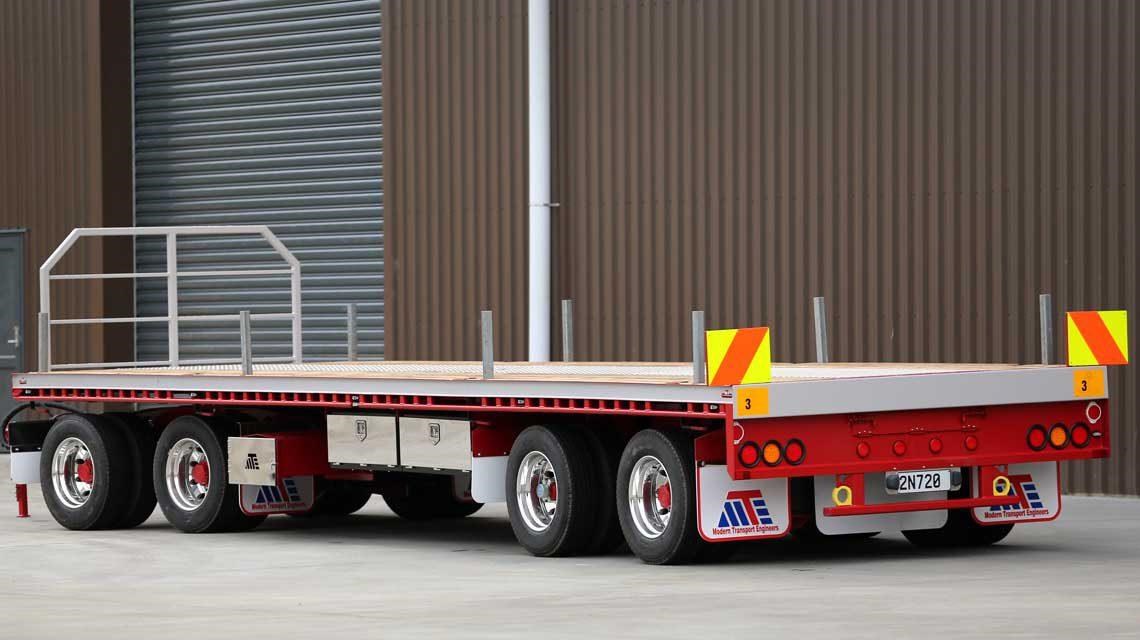

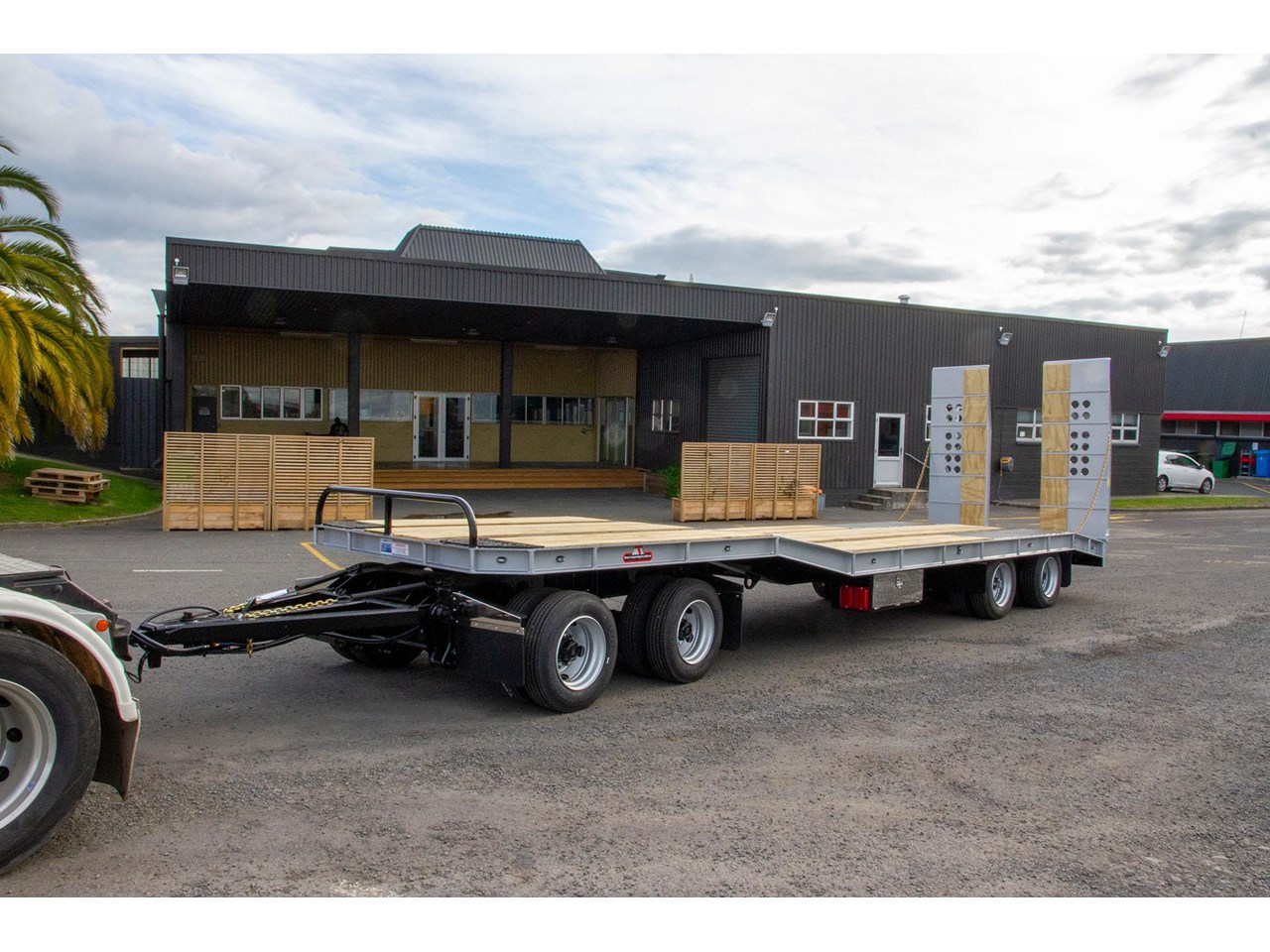

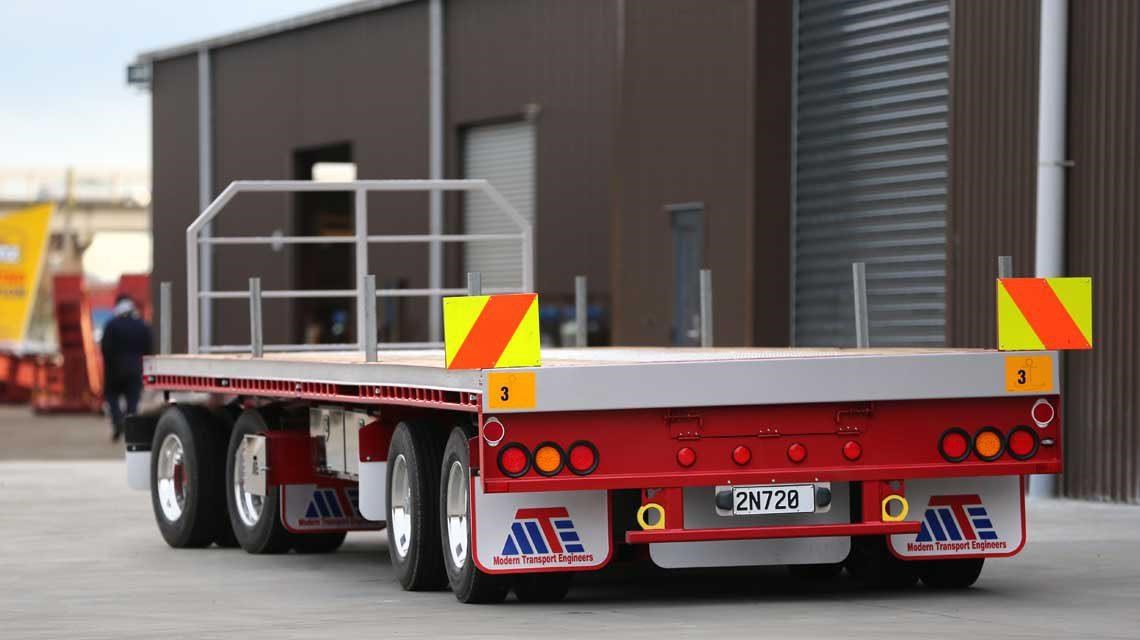

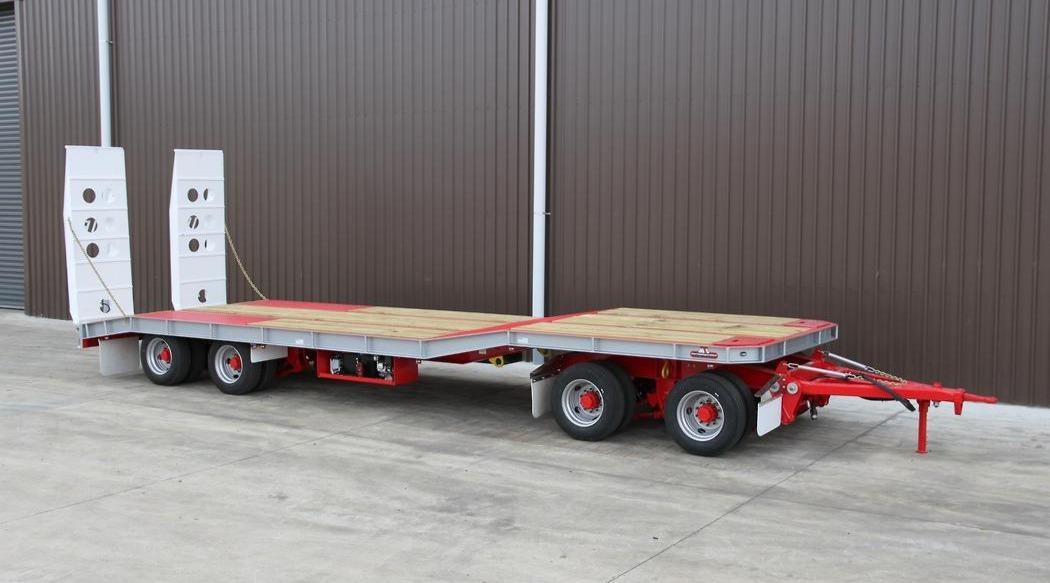

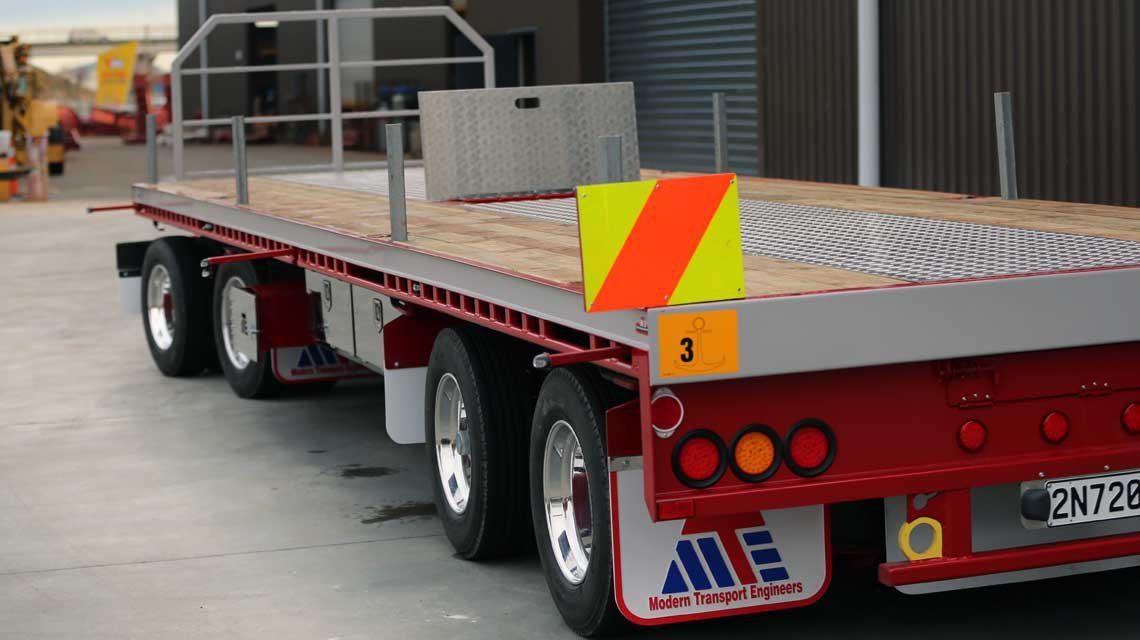

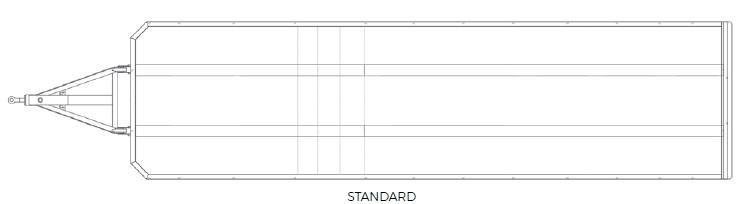

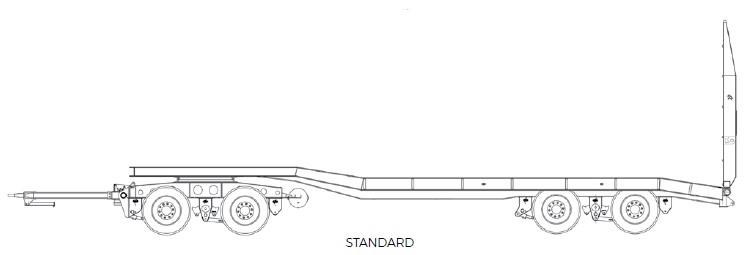

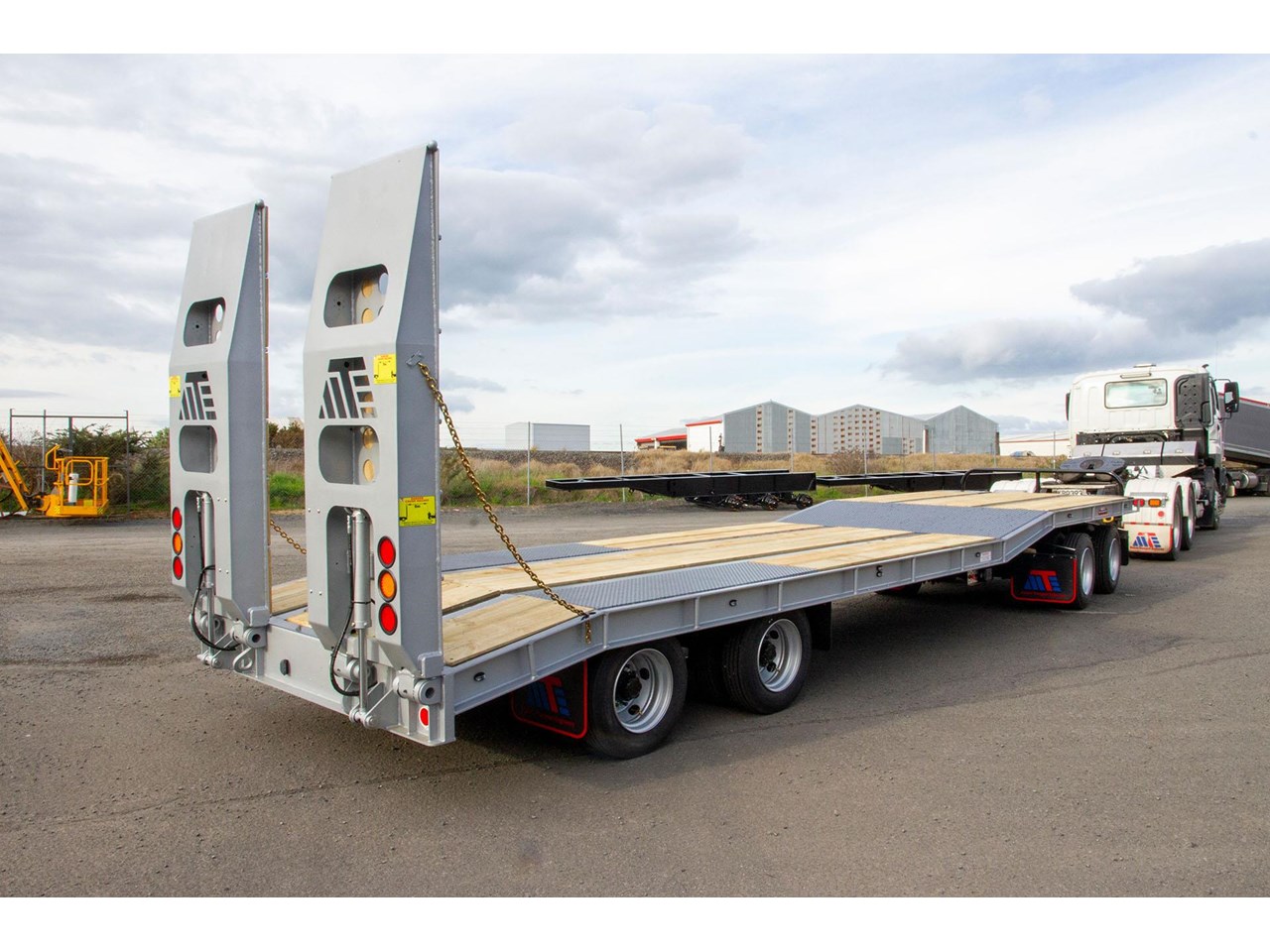

MTE 4 AXLE FLAT TOP LOW LOADER (MADE TO ORDER)

The 4 Axle Flat Top Low Loader is a medium sized tow behind solution for transporting machinery, with a GVW of up to 29,000kg it is a versatile option for most jobs. Optional air suspension is available.

STANDARD SPECIFICATIONS (APPROX)

Length: 11500mm
Width: 2490mm
Axles: 15" Ten Stud Axles
Suspension: 3 Leaf Suspension
Brakes: 12 1/4 x 71/2 brakes with outboard drums
Brakes: Sealco ABS
Tyres: 215 x 17.5
Wheels: Steel Wheels
Lighting: LED

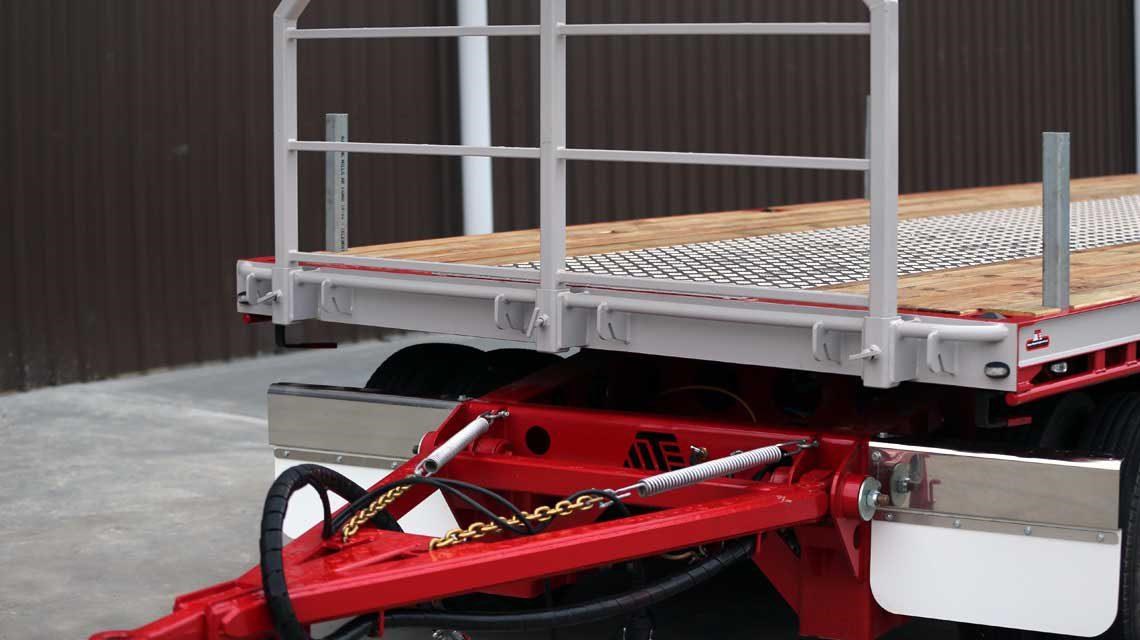

Tow Eye: 50mm tow eye
Ramps: 2.7mm x 860mm hydraulic ramps

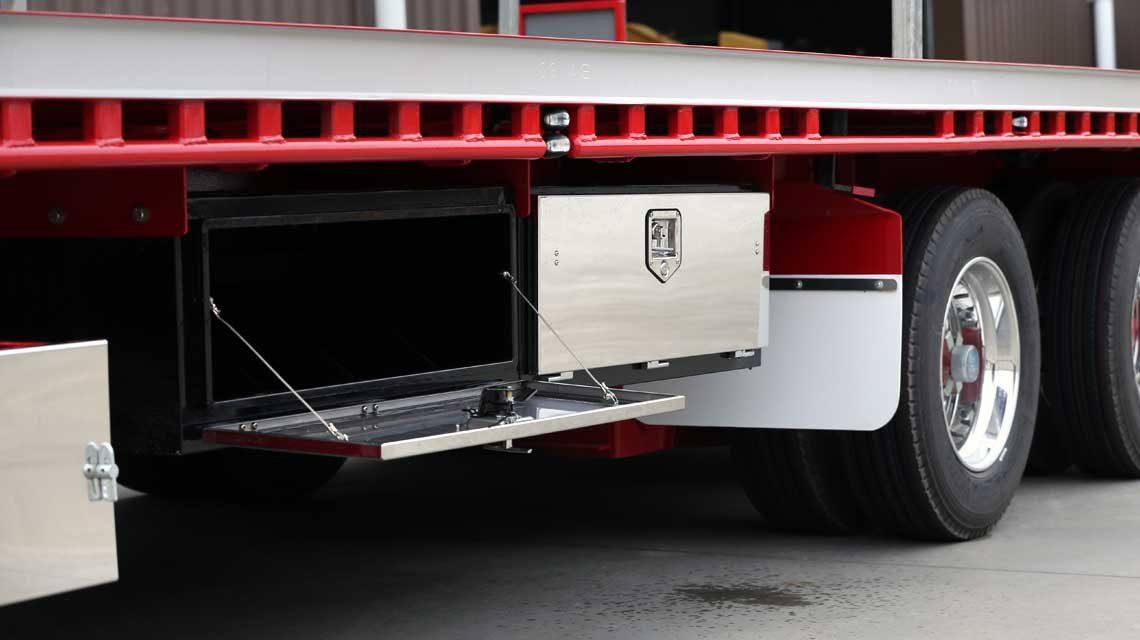

Toolboxes: Heavy Duty Toolbox
Deck Material: 5mm cheker plate deck
Mud Guards: Front guards and flaps on bogie
Tie Down Points: Certified lashing ties
Tie Down Points: 25mm NB pipe tie rail under deck
Water Tank: Plastic Water Tank and soap dispenser fitted

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminum Wheels Machined Finish (saves 12.8kg/wheel)
Wheels: Aluminium Wheels Polished Finish (saves 12.8kg/wheel)
Tyres: Specific branded tyres (please state)
Tyres: Extra spare tyre and steel wheel
Suspension: Air Suspension
Storage: Toolbox fitted

Please Contact us more details on this trailer.

PRICE ON APPLICATION
PRICE EXCLUSIVE OF GST

Sandblasting, Painting & any Modifications can be made if required
