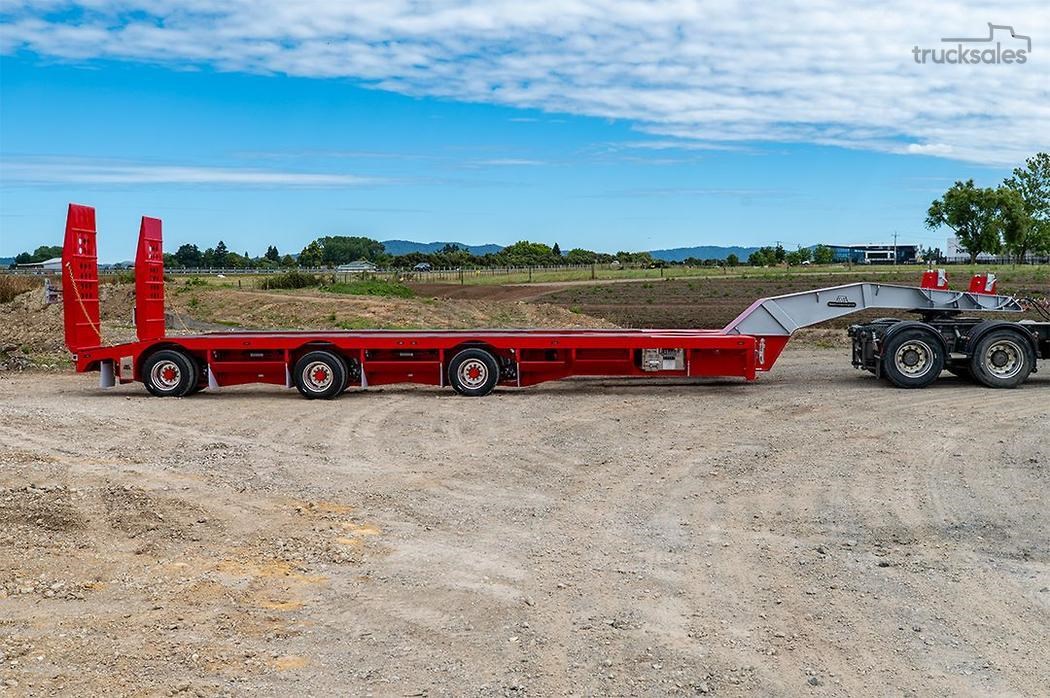

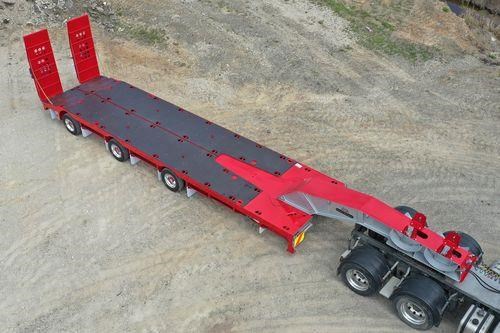

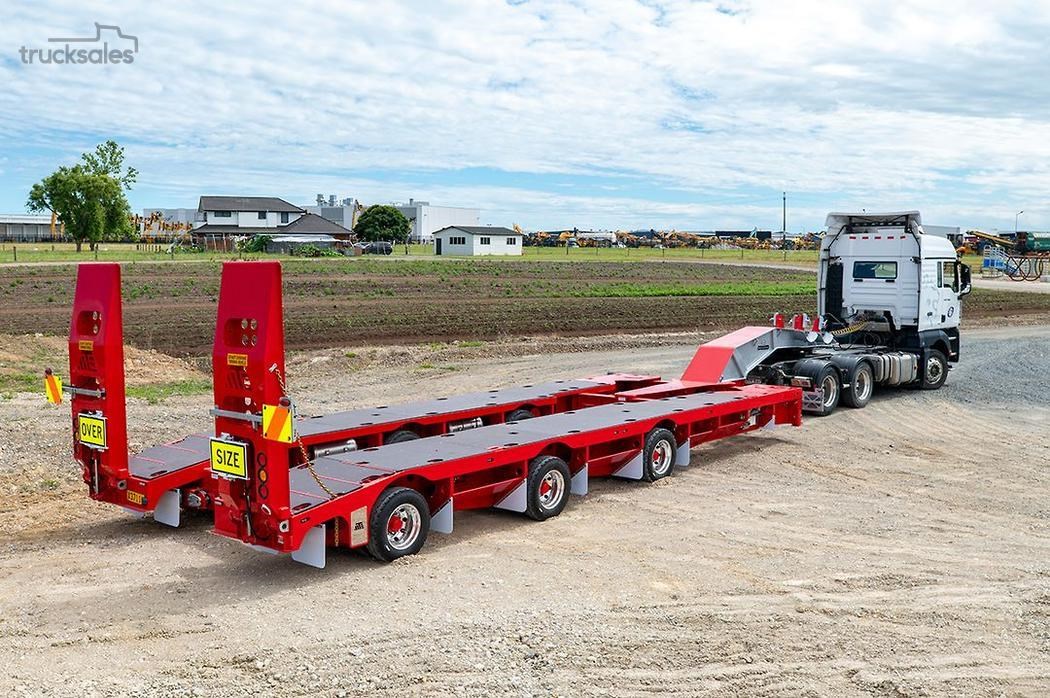

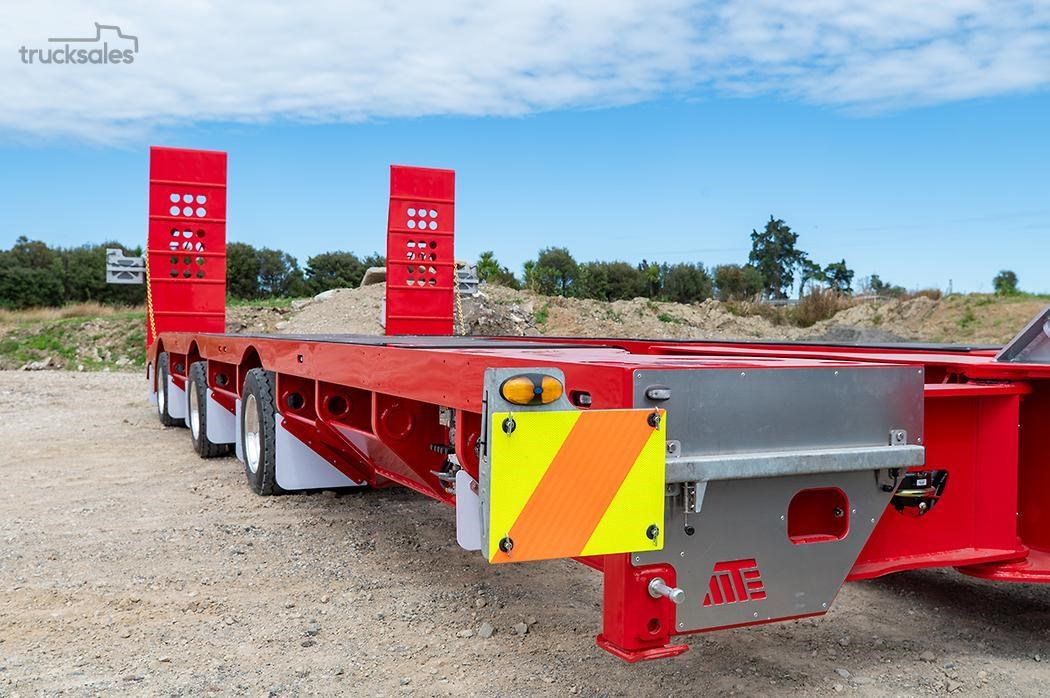

MTE 3 ROWS OF 8 LIGHTWEIGHT LINKWING (MADE TO ORDER)

The Light-Weight 3 Rows of 8 Linkwing is the lightest Linkwing available. specifically designed with increased manoeuvrability and payload capacity you can deliver to more places than ever before. The lightweight Linkwing saves on Tare weight which gives a capacity of up to 65,000kg GVM.

STANDARD SPECIFICATIONS (APPROX)

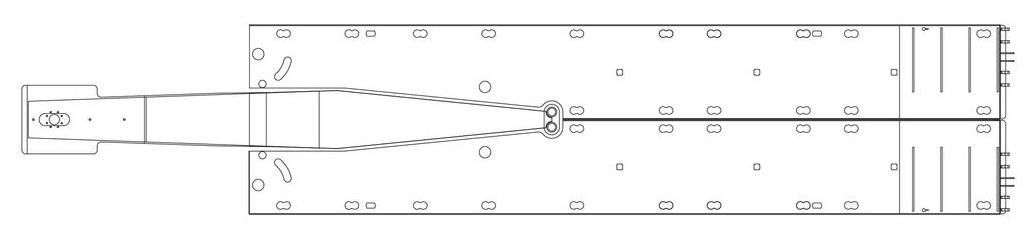

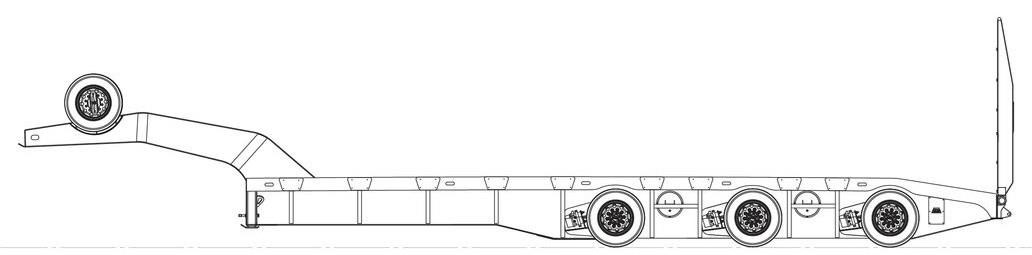

Deck Length: 11,3900mm
Deck Length (behind G/N): 10,300mm
Deck Height: 900mm

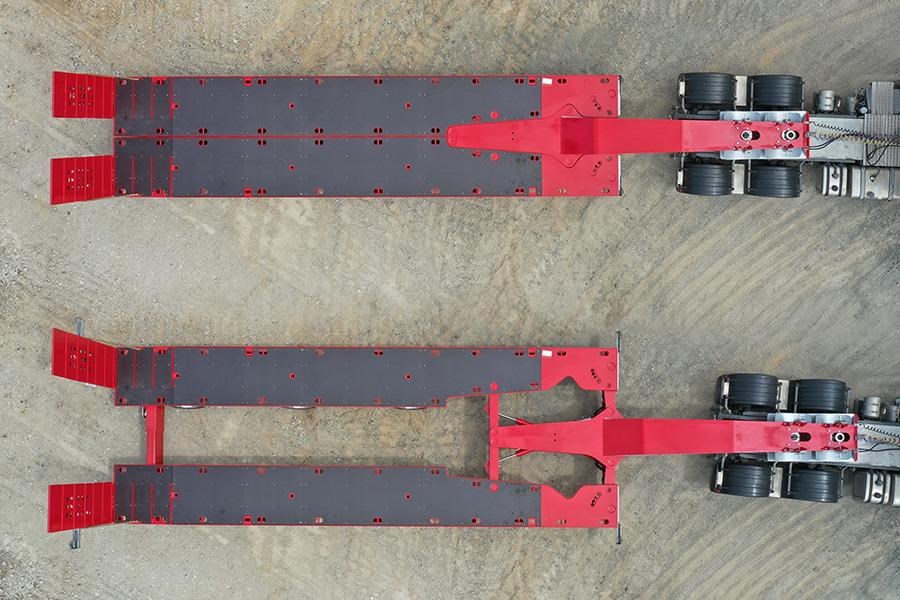

Widening: 2500mm Closed · 3700mm Open
Opening Widths: 2500mm, 3100mm, 3400mm, and 3700mm

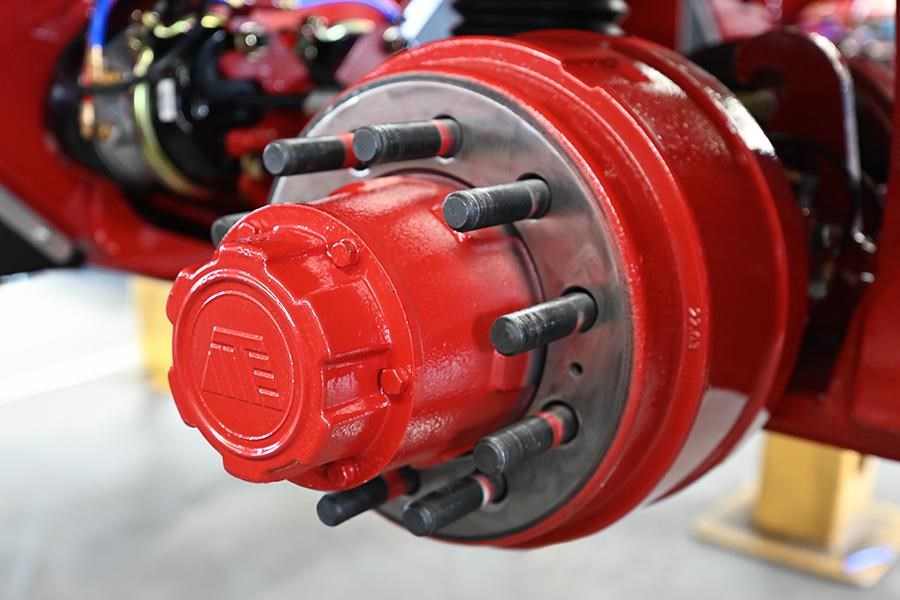

Axles: MTE 17.5 Ten stud 225 PCD
Axle Spacing: 1830mm 1830mm
Axle Retraction: Axle retraction to all axles to facilitate maintenance

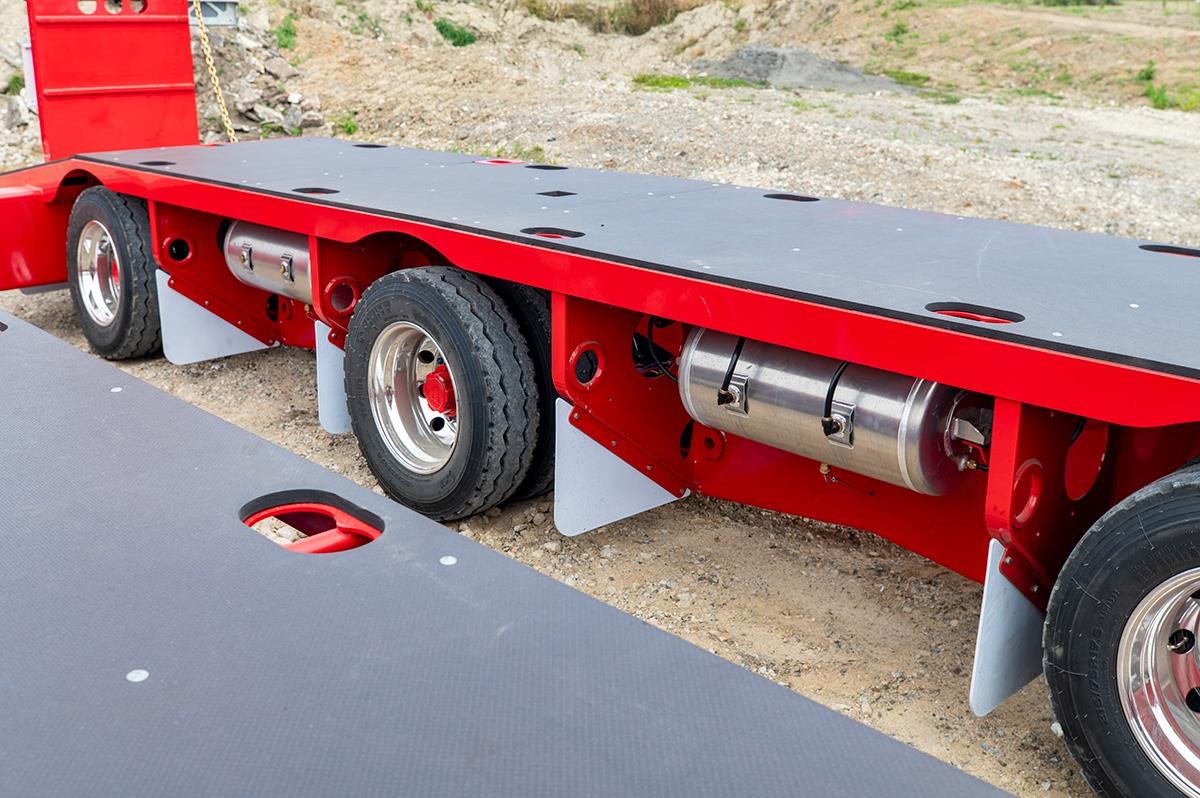

Suspension: MTE Hydraulic suspension with NEW low maintenance quick change rams
Brakes: 12-1/4 x 5-1/2 brakes on outboard drums
Tyres: 215/75R x 17.5
Wheels: Steel wheels
Spare Tyre Carriers: 2
Power Source: Truck
Lighting: HELLA LED lights to ADR 4198 with 1 rotating light in ramp
Rub Plate: One-position oscillating rub plate

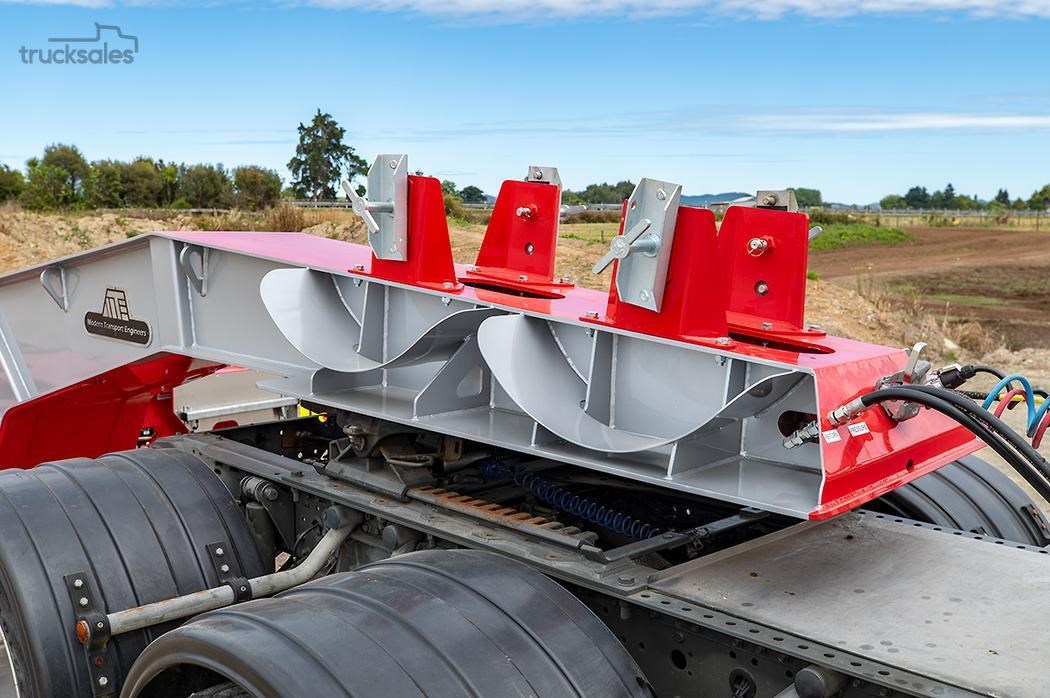

Gooseneck: Fixed Height
King Pin: 3-1/2 MTE drop-in king pin

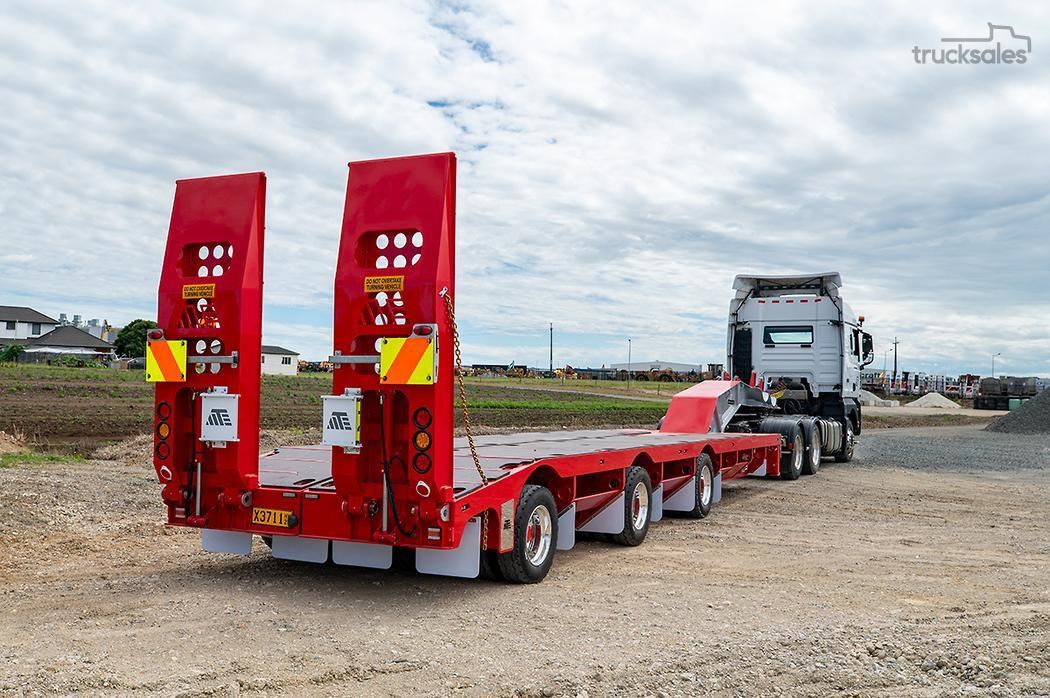

Ramps: 2400mm x 900 Hydraulic
Toolboxes: Two open toolboxes on each side of trailer
Chain Bins: Two chain bins on spine of trailer
Link Pins: 150mm diameter front link pins 100mm diameter near link pins
Signage: Do not overtake and sliding OVERSIZE
Landing Legs: Heavy duty
Deck Material: High Tensile 790mps steel construction with a fully enclosed deck

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminium wheels machined finish
Wheels: Aluminium wheels polished finish
Tyres: Specific branded Tyres (Please State)
Ramps: Double fold ramps 3700 x 900mm
Greasing: Centralised greasing brakes and suspension
Greasing: Centralised greasing with timer brakes and suspension
Greasing: Manual greasing system 8 points per suspension out to a manual block
Remote Control: 10 Function remote system for operating Gooseneck, Suspension & Widening
Ship Locks: Ship-lock pockets for 20 and 40 containers & 4 x double-ended ship locks
Power Pack: 5.5 HP Diesel power pack, electric start with battery
Power Pack: 5.5 HP Petrol power pack, pull start only
Power Pack: 5.5 HP Petrol power pack, electric start with battery
Gauges: Gauges for load indication
Storage: 6x Lockable toolboxes (3 on each side)
Water Tank: Stainless steel water tank and tap
Kingpin: MTE 50mm drop-in Kingpin
Odometer: Hub odometer
Signage: Folding OVERSIZE signs

Please Contact us more details on this trailer.

PRICE EXCLUSIVE OF GST
PRICE ON APPLICATION

Sandblasting, Painting & any Modifications can be made if required

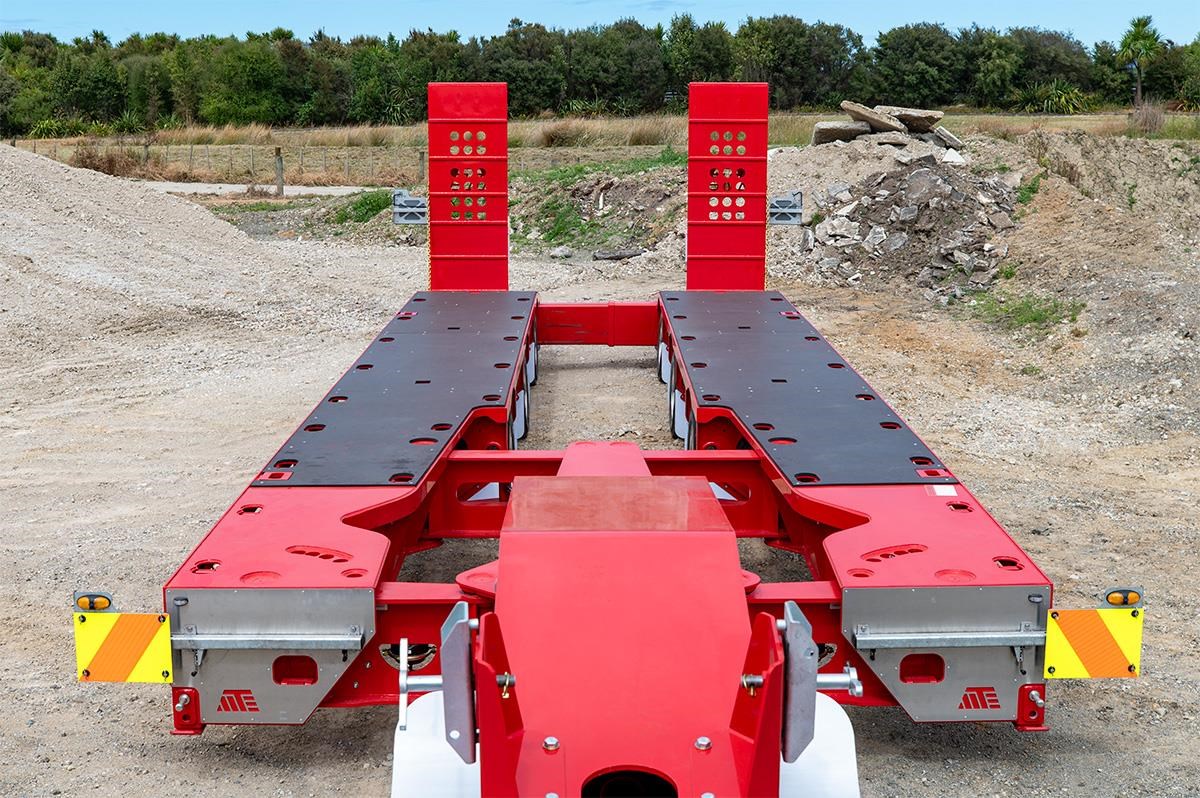

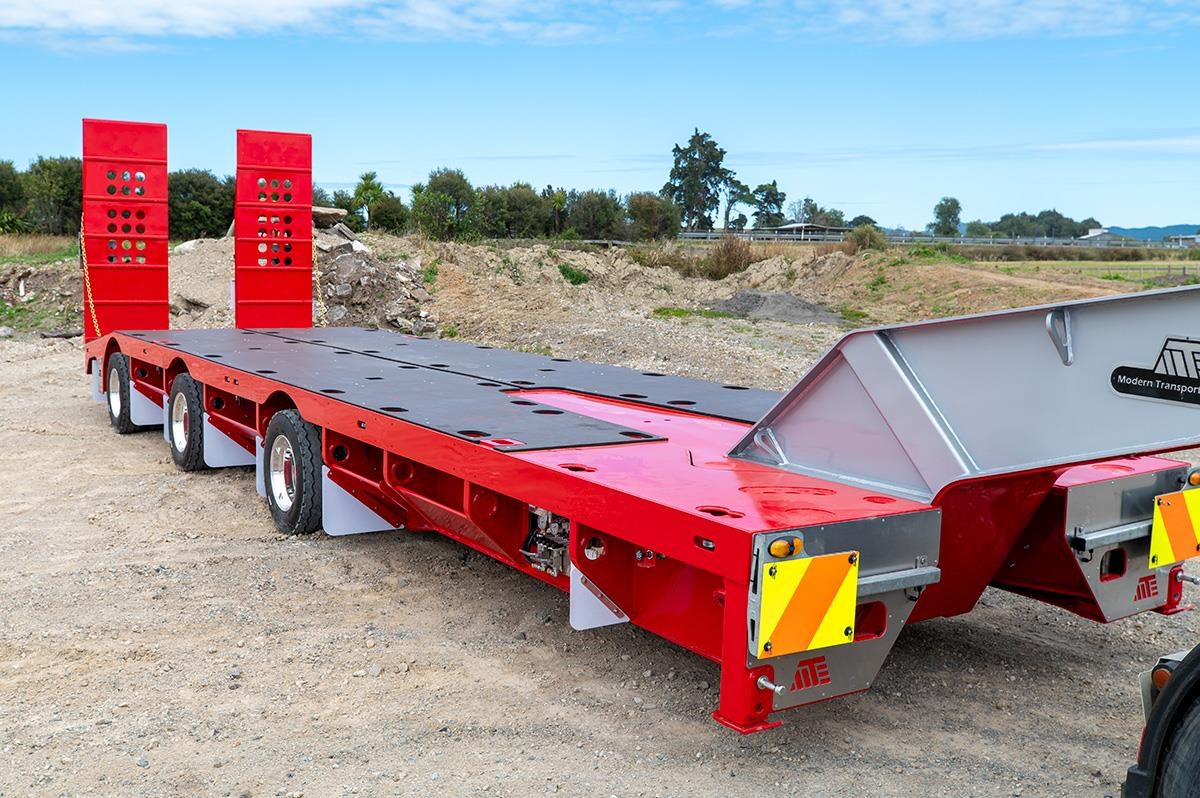

• Optional extras may be shown in photos. To be used as a guide only.
