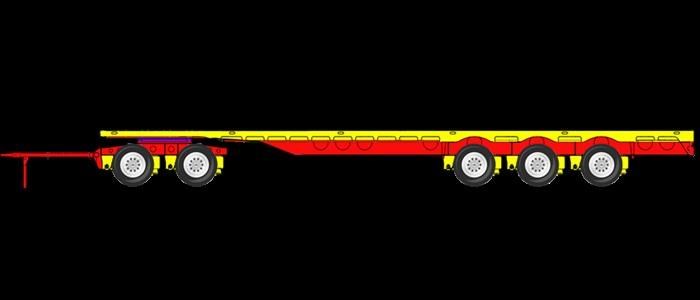

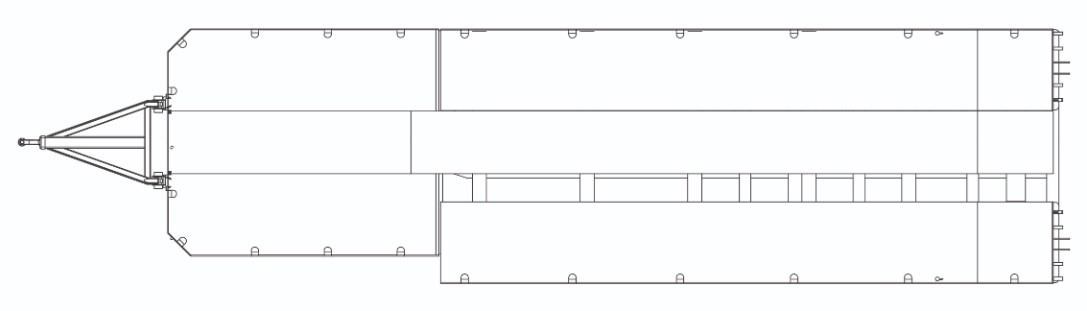

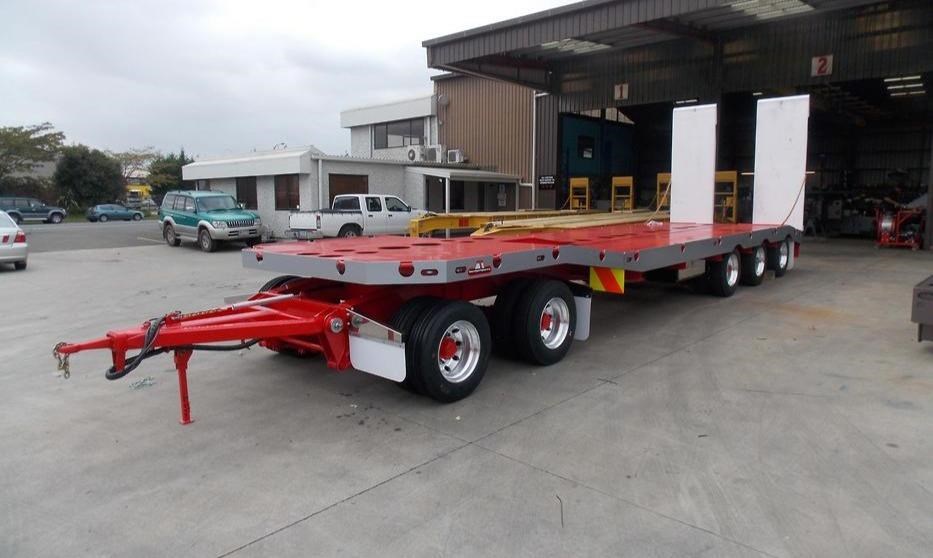

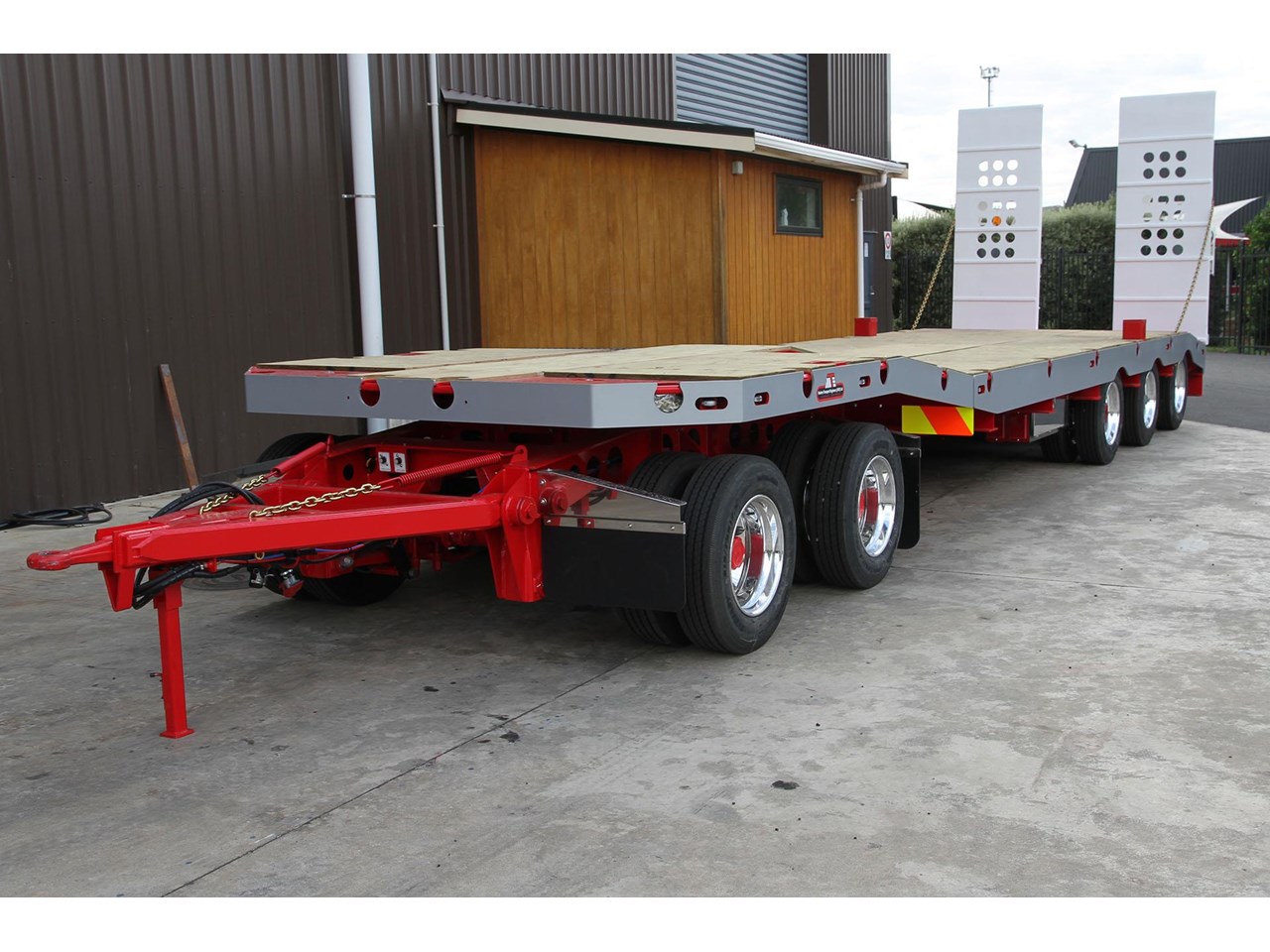

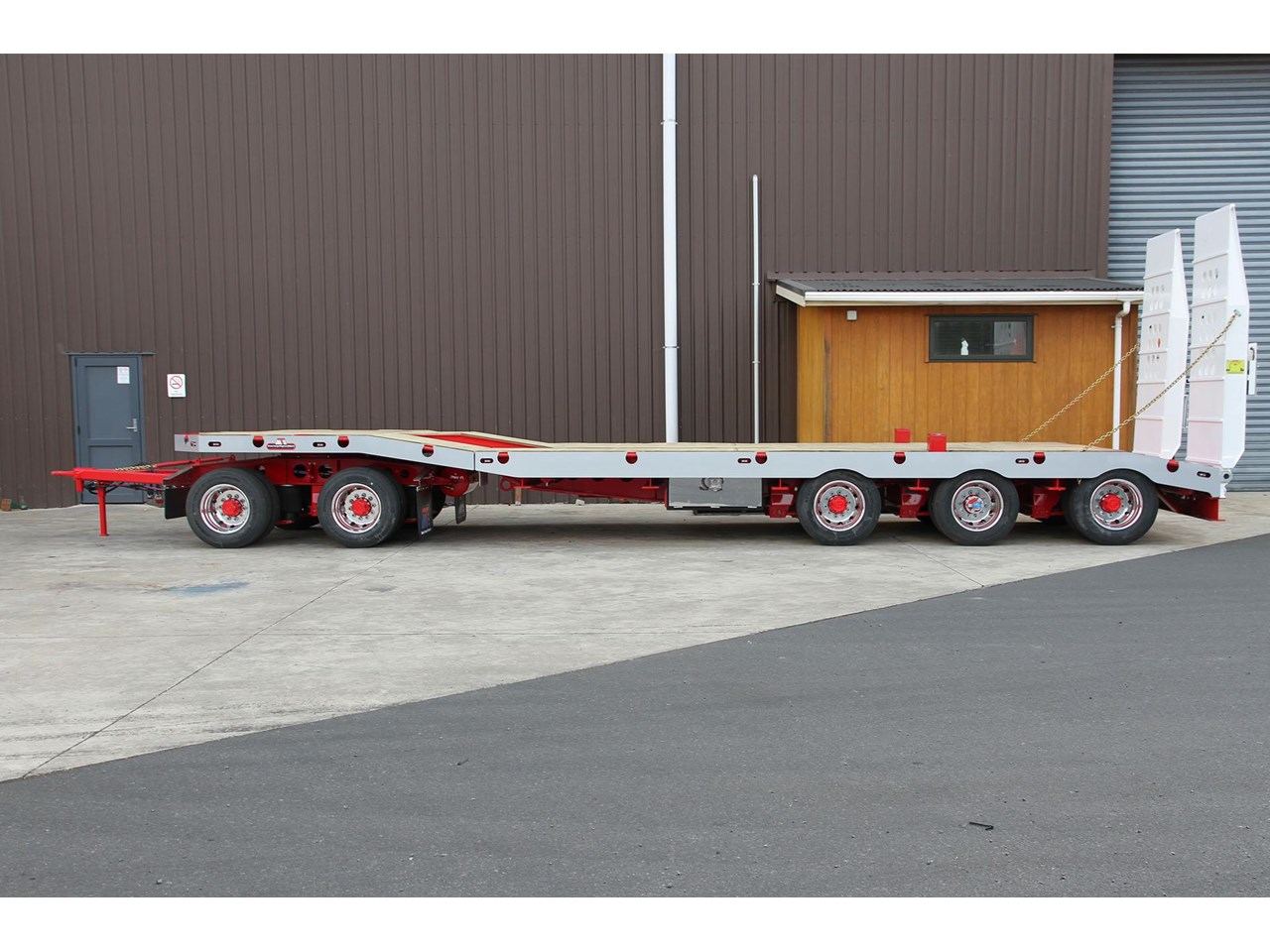

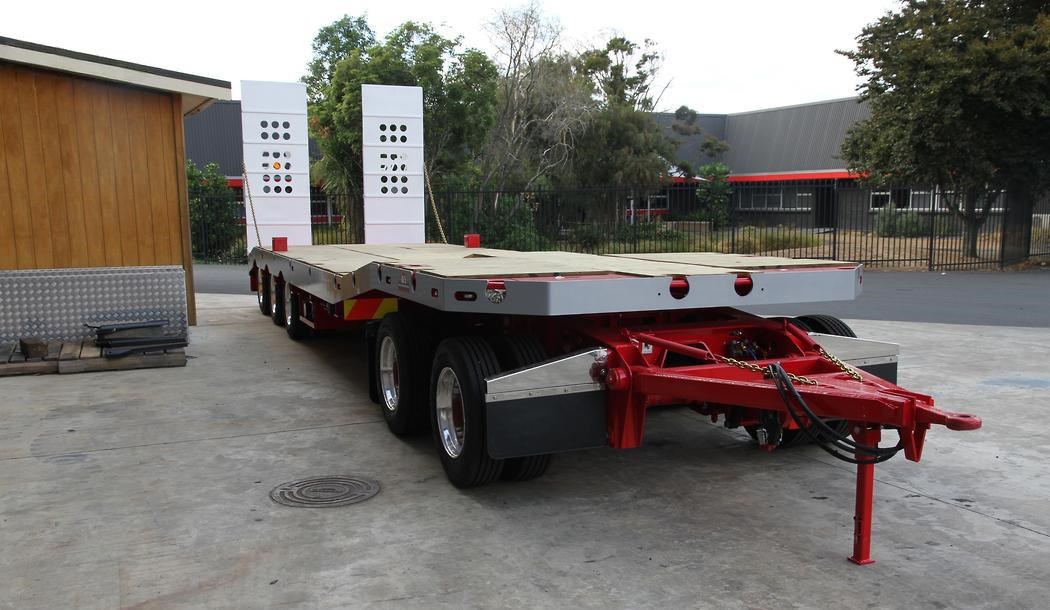

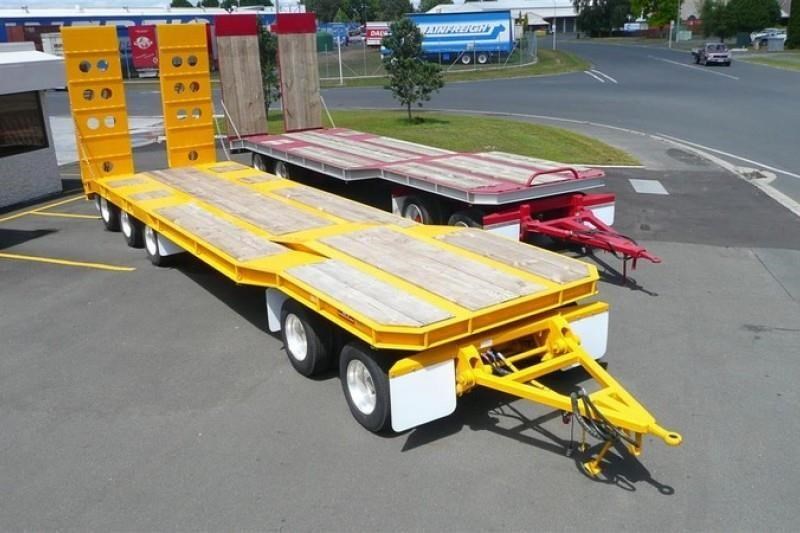

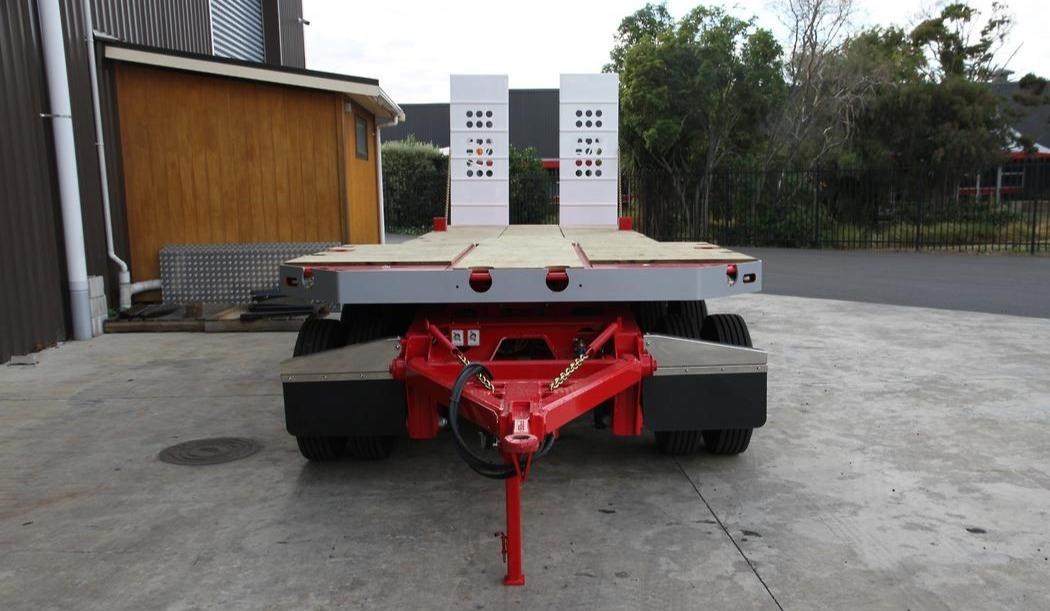

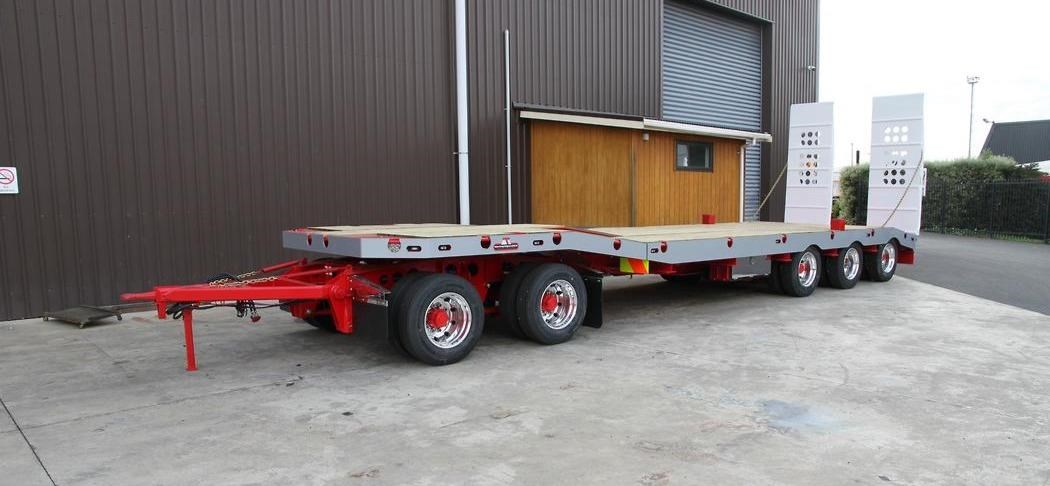

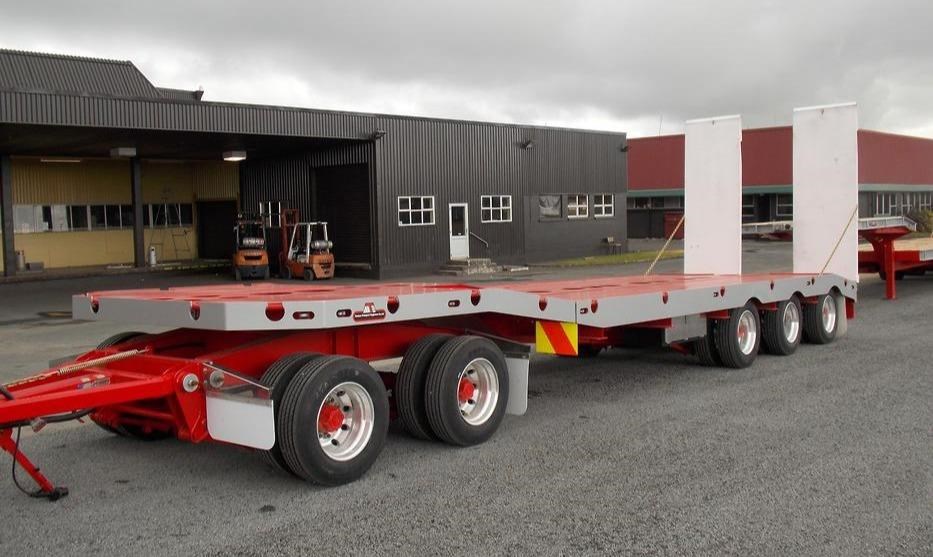

MTE 5 AXLE FLAT TOP LOW LOADER (MADE TO ORDER)

The 5 Axle Flat Top Low Loader is our largest tow behind solution for transporting machinery, with a GVW of 40,000kg it is a versatile option for most jobs. Optional air suspension is available.

SPECIFICATIONS (APPROX)

Width: 2490mm
Deck Length (overall): 12500mm
Axles: 15" Ten Stud Axles
Suspension: 3 Leaf Suspension
Brakes: 12 1/4 x 7 1/2 brakes with outboard drums
Brakes: sealco ABS
Tyres: 215 x 17.5
Wheels: Steel Wheels
Power Source: 24 volt power pack under deck LHS finished at front with 175 amp Anderson plug
Lighting: LED
Tow Eye: 50mm tow eye

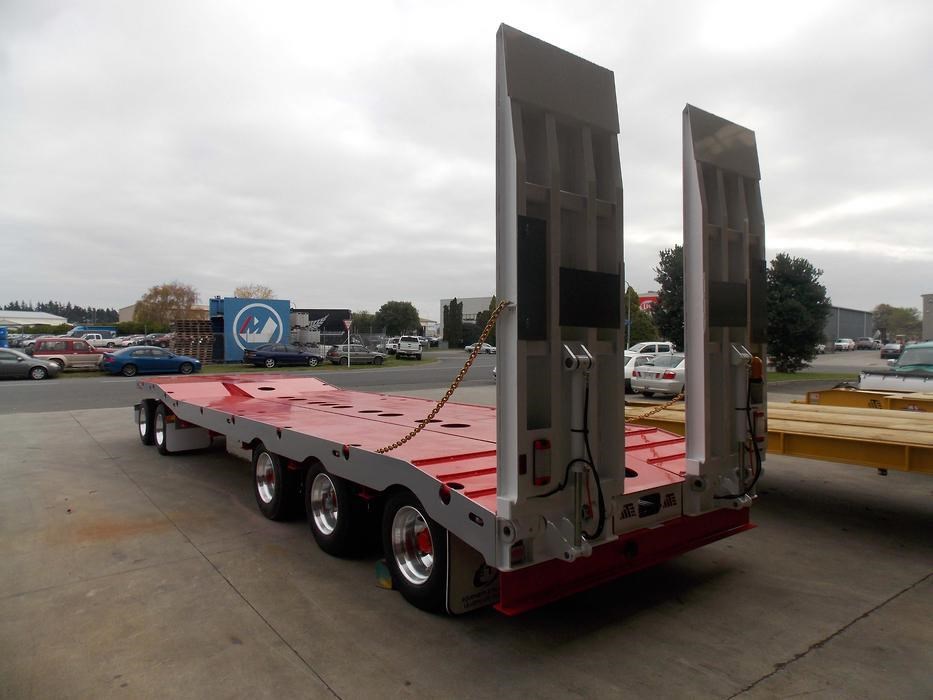

Ramps: 2.7m x 860mm hydraulic ramps
Toolboxes: Heavy Duty Toolbox
Deck Material: 5mm cheker plate deck
Mud Guards: Front guards and flaps on bogie
Tie Down Points: Certified Lashing ties
Tie Down Points: 25mm NB pipe tie rail under deck
Water Tank: Plastic Water tank and soap dispenser fitted

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminium Wheels Machined Finished (saves 12.8kg/wheel)
Wheels: Aluminium Wheels Polished Finished (saves 12.kg/wheel)
Tyres: Specific branded tyres (please state)
Tyres: Extra spare tyre and steel wheel
Ramps: Double fold ramps
Suspension: Air Suspension
Power Pack: 5HP Petrol Power Pack
Storage: Toolbox fitted

Please Contact us more details on this trailer.

PRICE EXCLUSIVE OF GST
PRICE ON APPLICATION

Sandblasting, Painting & any Modifications can be made if required.
