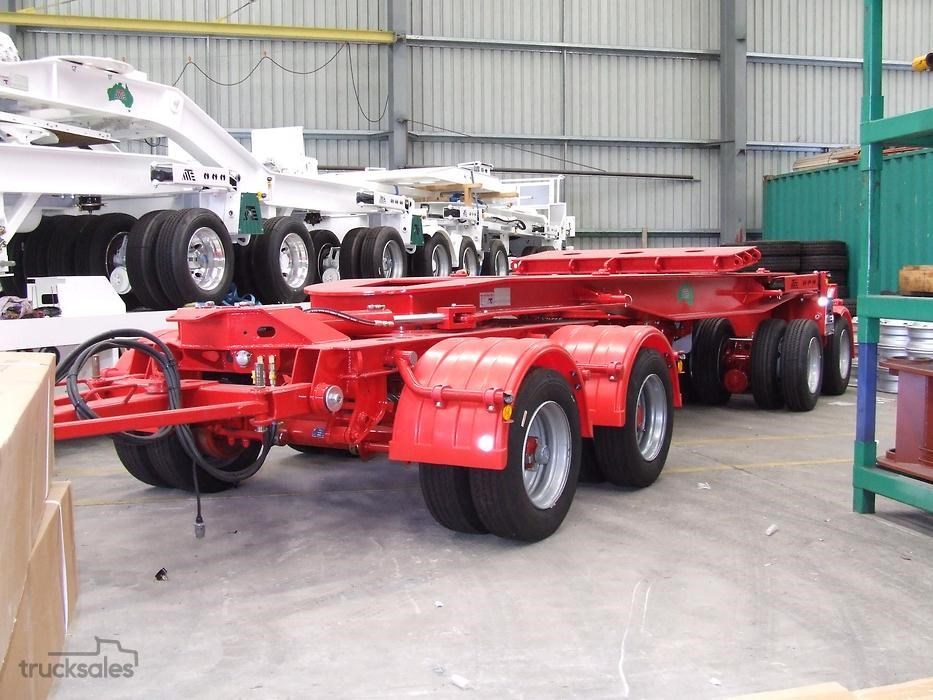

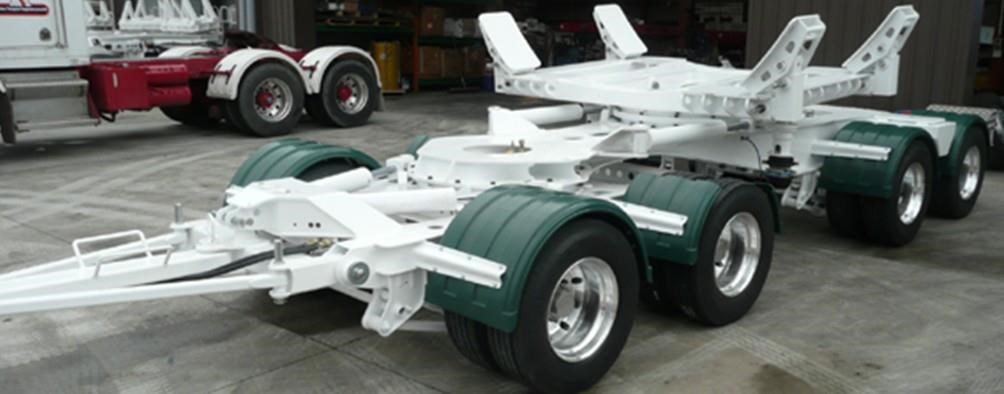

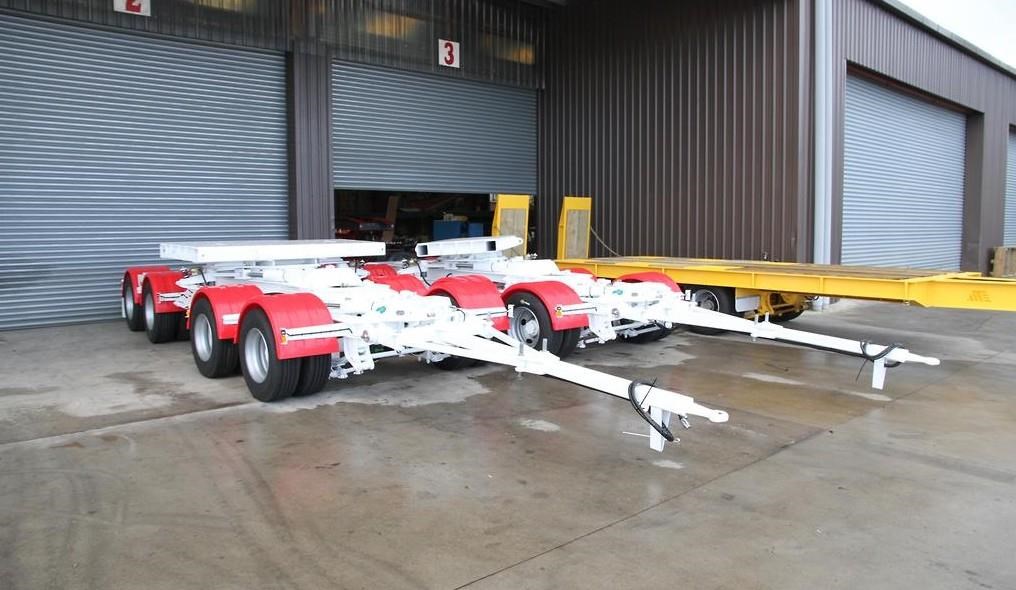

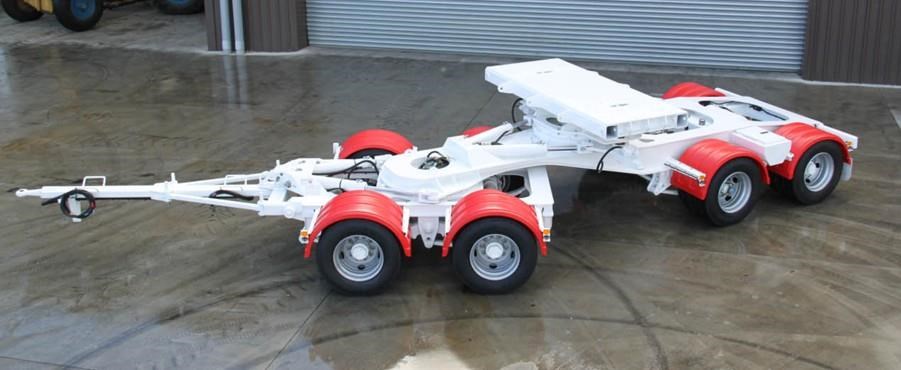

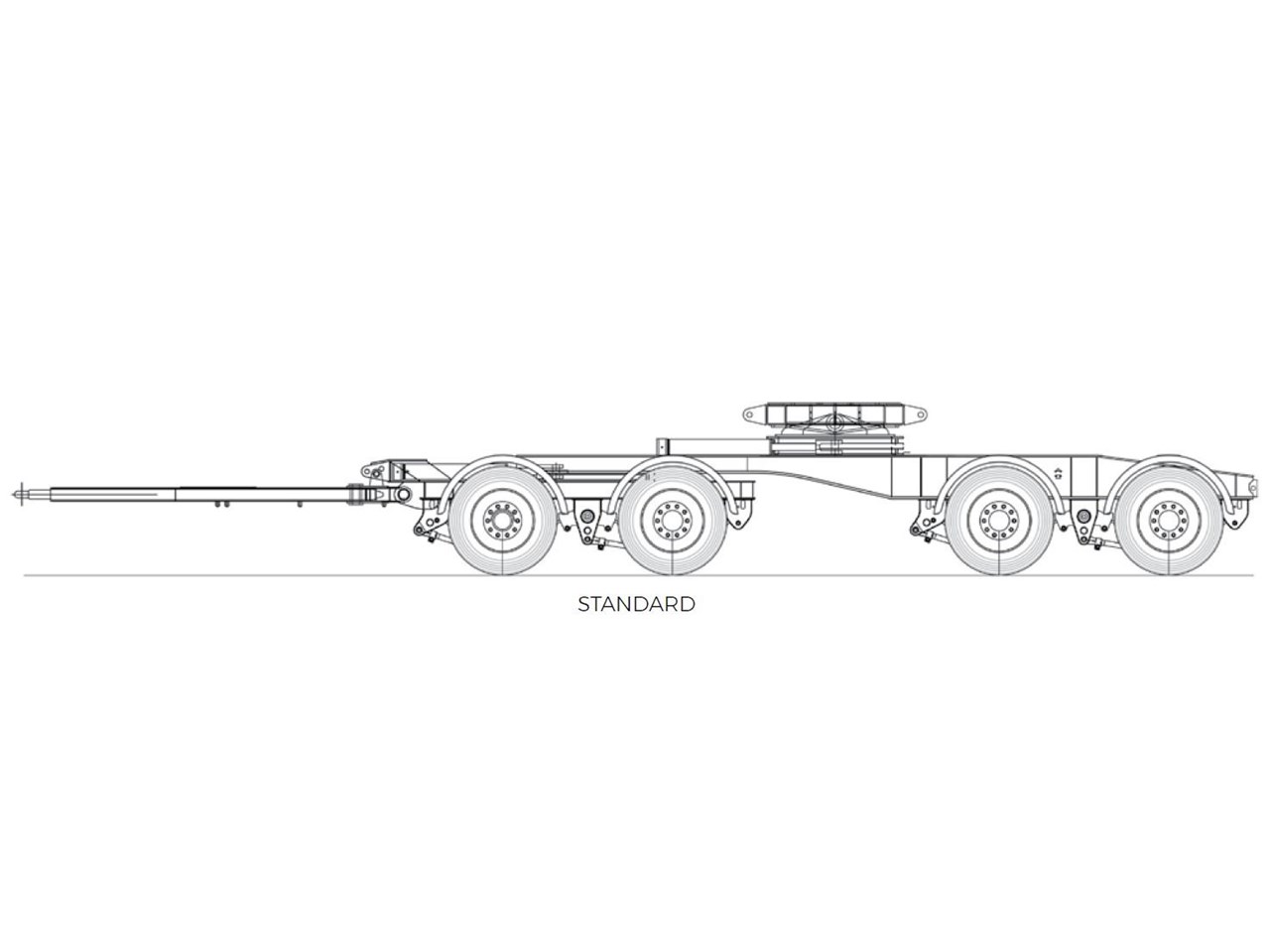

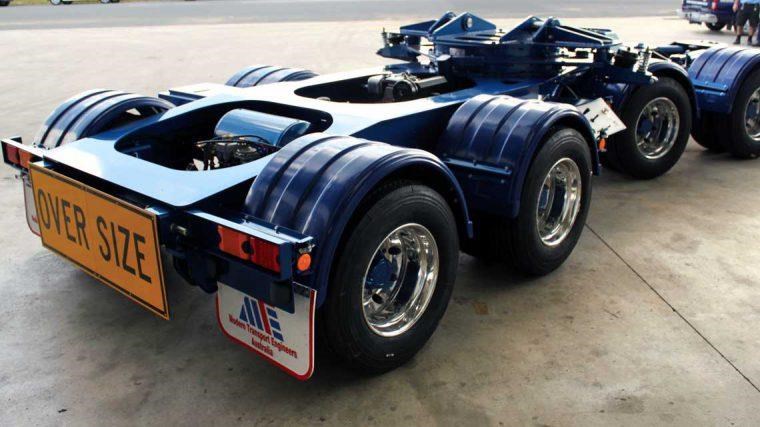

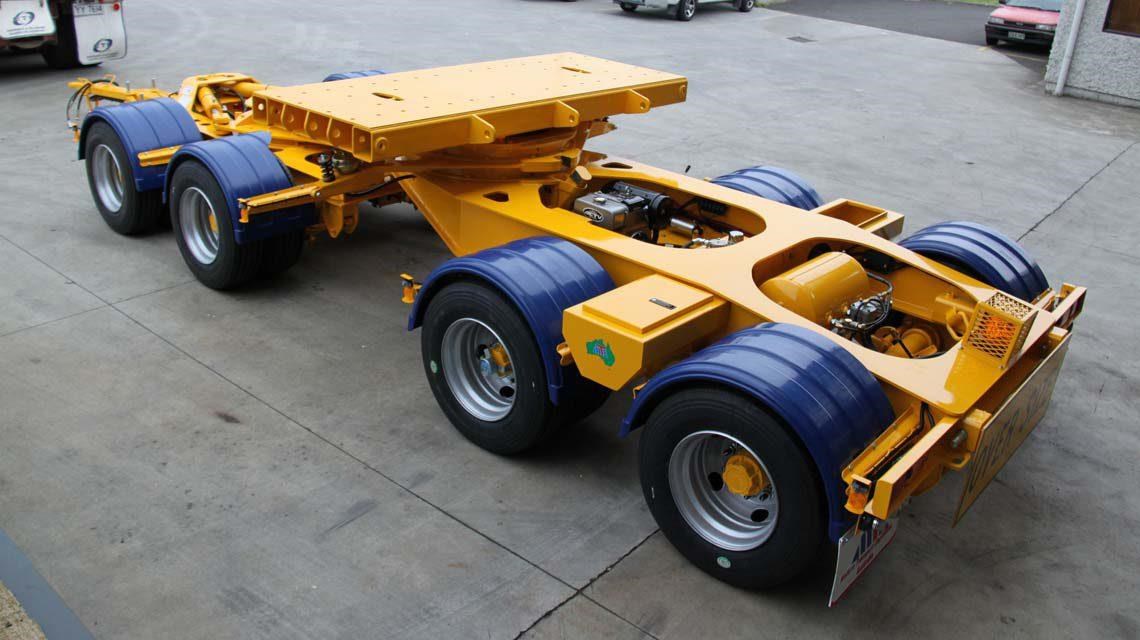

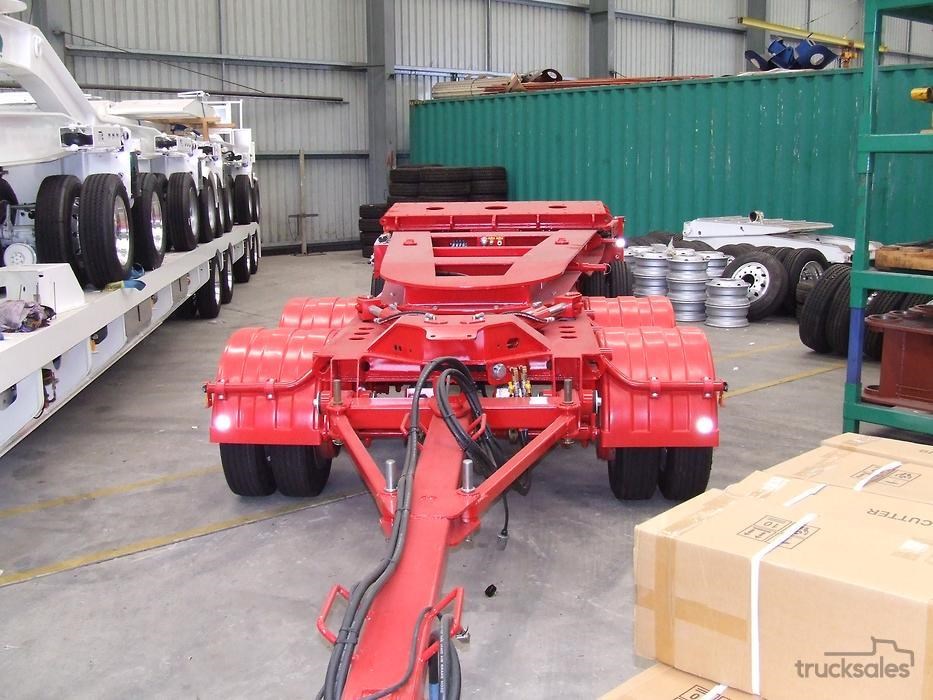

MTE 4 ROWS OF 4 JINKER (MADE TO ORDER)

A Jinker trailer is a trailer designed to transport long logs or other long pieces of material/blocks. A Jinker is generally mounted to a prime mover for transportation.

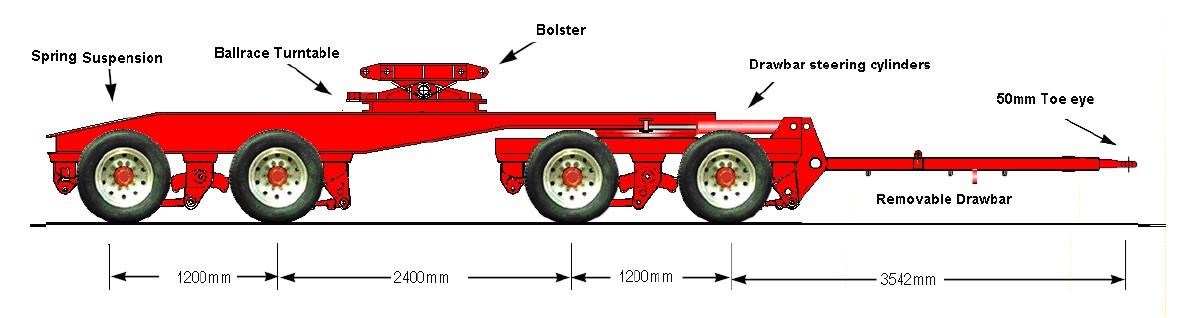

SPECIFICATIONS (APPROX)

Width: 2500mm
Axles: 17.5" Axles
Axle Spacing: 1250m
Suspension: Spring
Brakes: Outboard drums & ABS
Tyres: 235 x 17.5
Wheels: Steel Wheels
Lighting: Lights LED type and multi volt kit
Turntable: Double Heavy Duty Turntable

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminium Wheels Machined Finish (saves 12.8kg/wheel)
Wheels: Aluminium Wheels Machined Finish (saves 12.8kg/wheel)
Tyres: Specific Branded Tyres (please state)
Remote Control: Remote for Steering, Widening, Drawbar, Engine Start/Stop & Warning/Spot lights
Suspension: Air Suspension
Power Pack: 9HP Diesel Power Pack
Ball race: Second Ball race and air lock for 90 degree steering

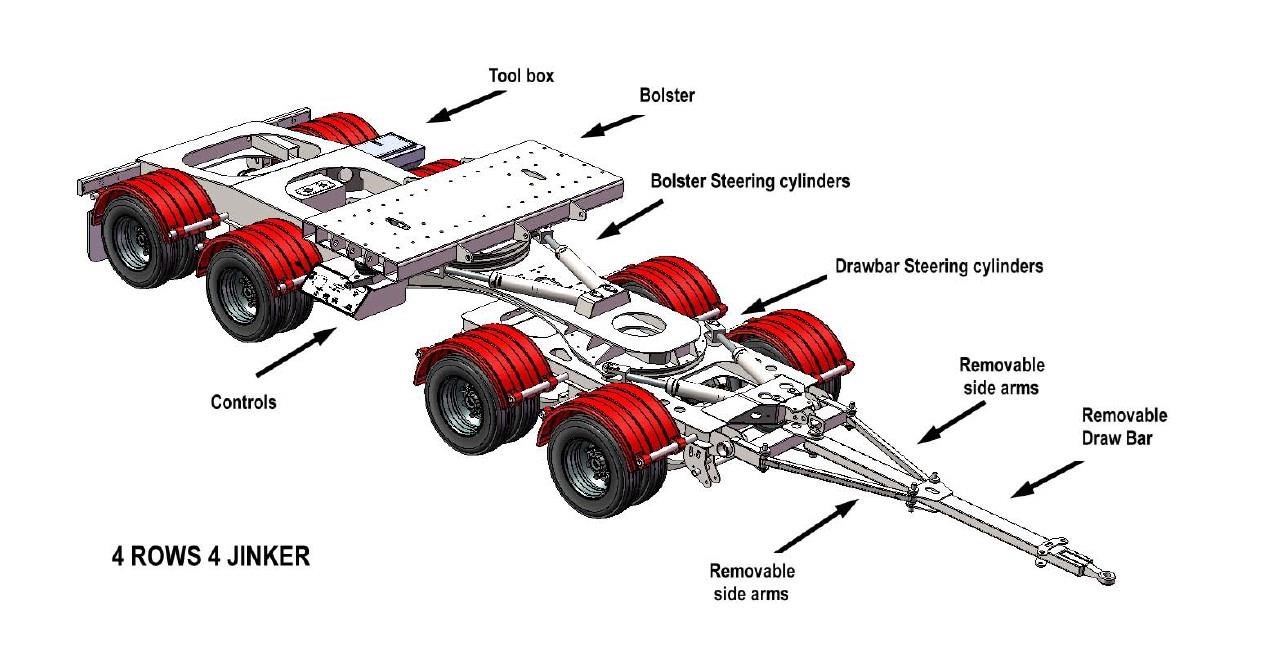

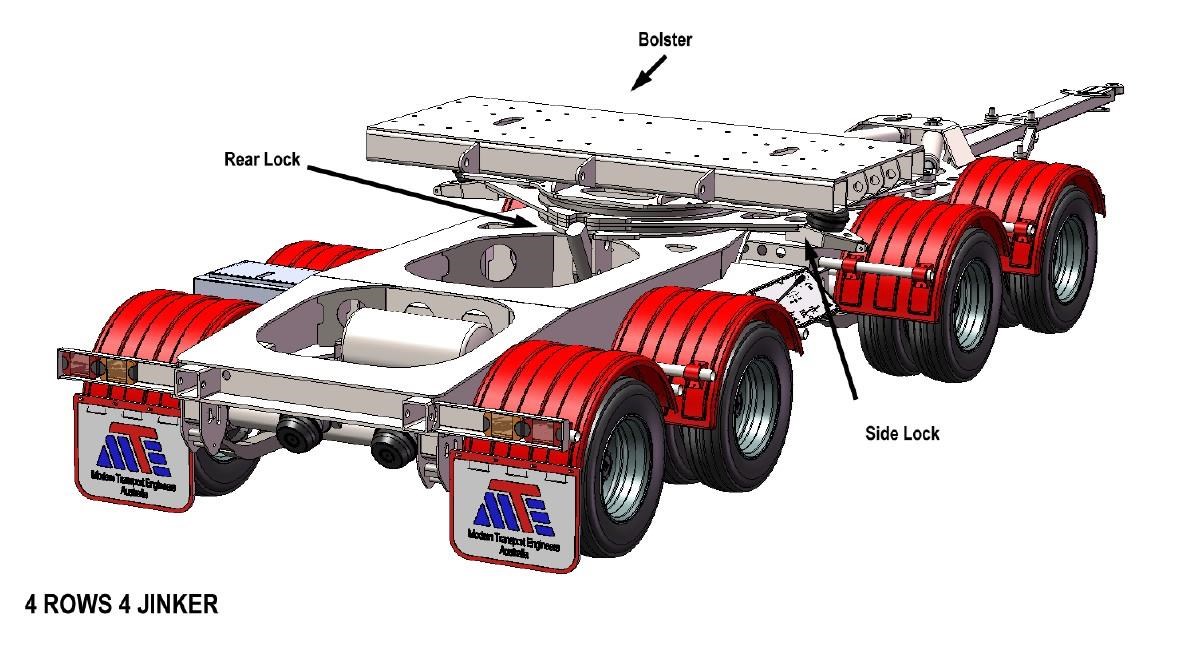

Bolster: Bolster for mounting frame
Bolster: Bolster for Jinker
Bolster: Bolster cradle for supporting beams with super tee & hollow-core jaws
Bolster: Bolster steering system includes 2 cylinders
Bolster: Trailer tower section bolster adjustable feet
Bolster: Truck Bolster Tower Section adjustable feet 90mm /P

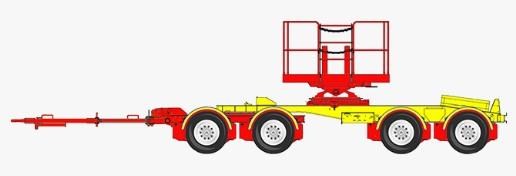

Bolster: Widening Man Platform on Bolster with removable safety rails and ladder on each side

Please Contact us more details on this trailer.

PRICE EXCLUSIVE OF GST
PRICE ON APPLICATION

Sandblasting, Painting & any Modifications can be made if required.
