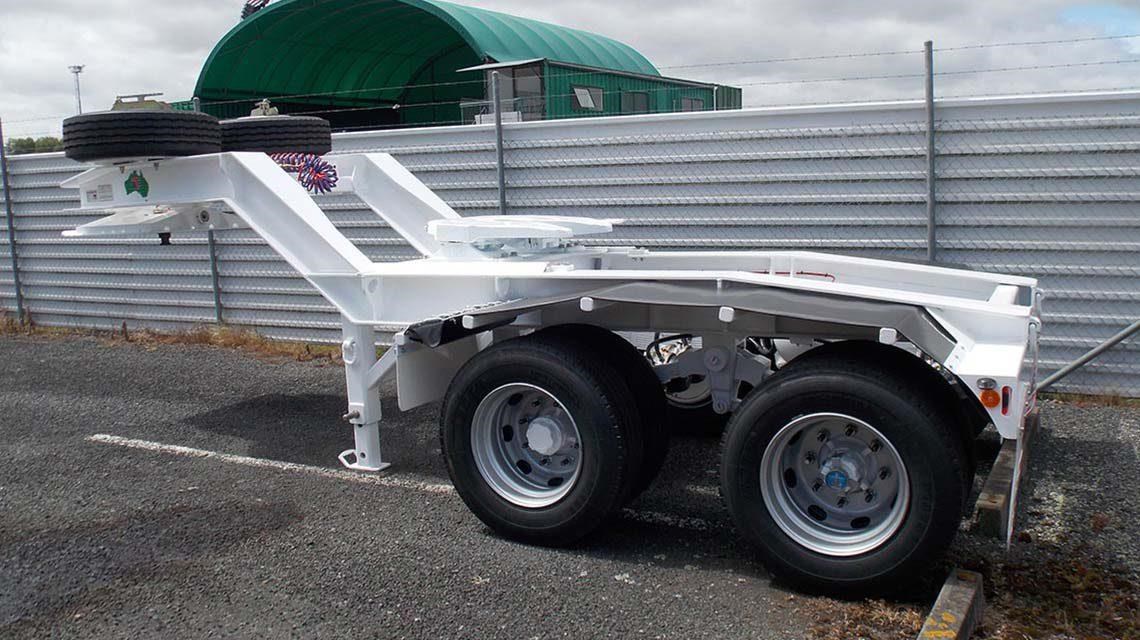

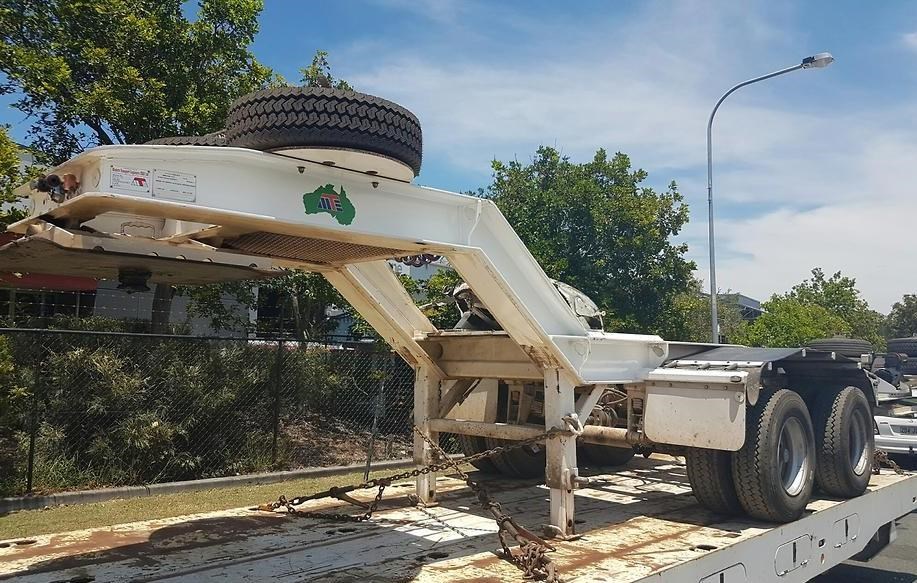

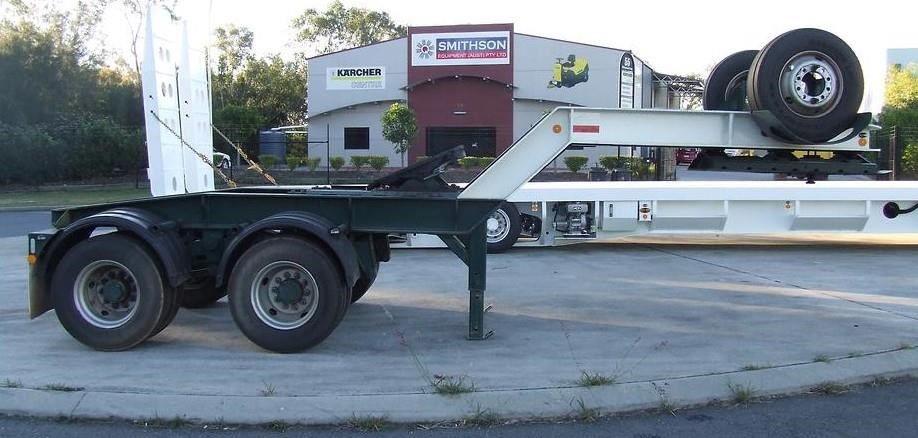

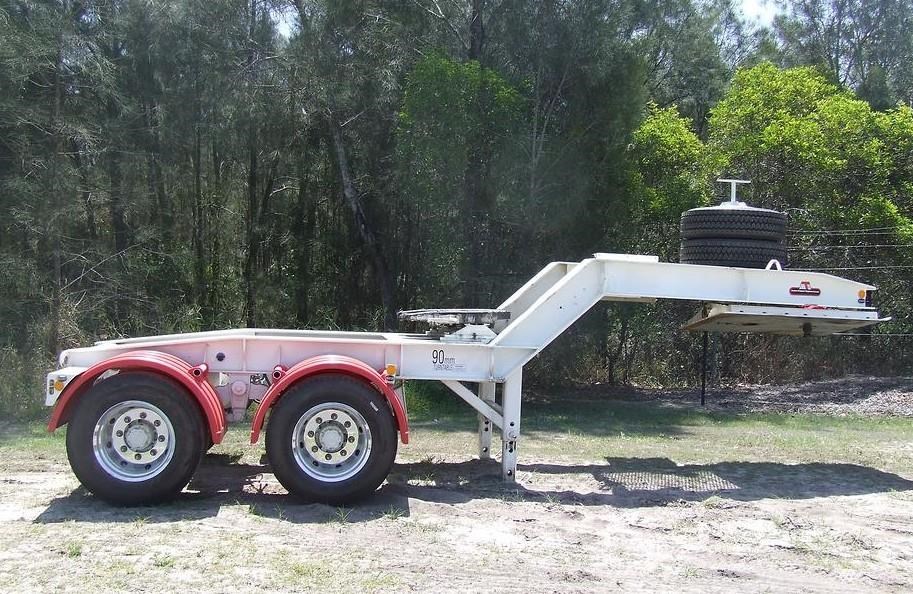

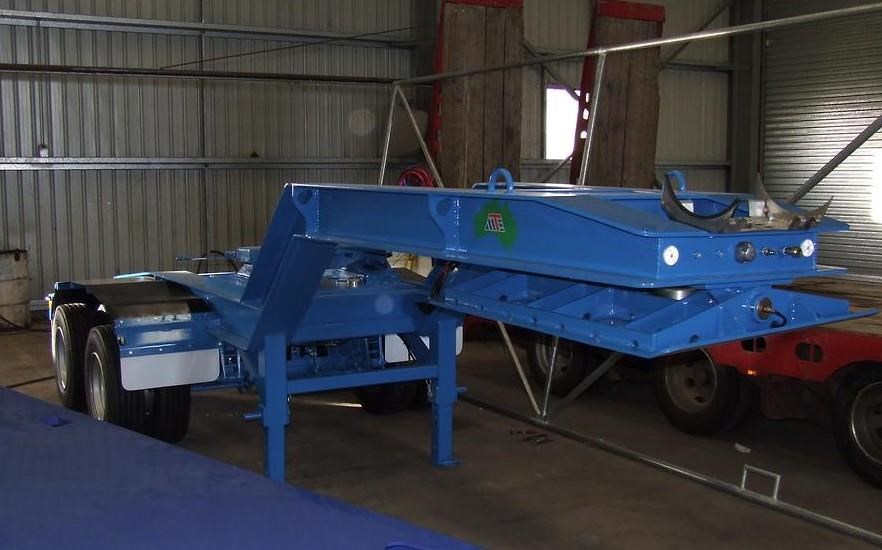

MTE 2 ROWS OF 4 DOLLY (MADE TO ORDER)

A Dolly is a mechanical vehicle which is coupled to a truck or trailer.

Generally, dollys transport trailers by connecting them to trucks or other trailers, forming multi-combination vehicles. The 2R4 Dolly is the lighter version of the 2R8 Dolly and can be coupled to a rows of 8 or widener.

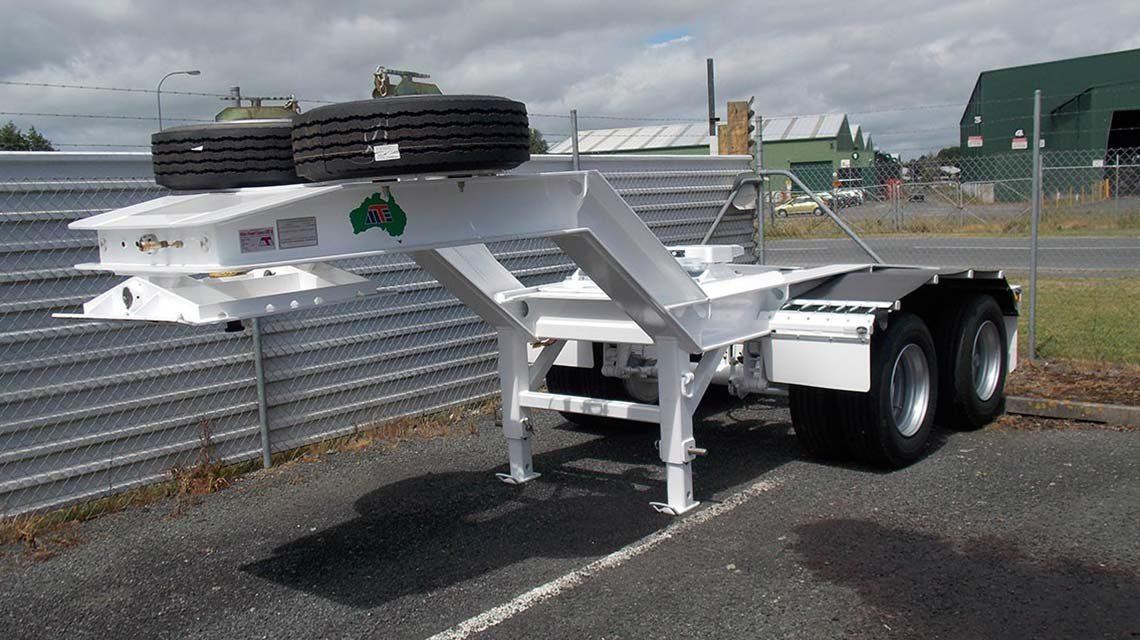

Our new dolly design features a bolt-on vertical tyre carrier with integrated tank brackets.

SPECIFICATIONS (APPROX)

GVM: 36.000kg
Width: 2500mm
Axles: MTE 17.5" Ten Stud 225 PCD
Suspension: MTE 8 Leaf Suspension
Brakes: 12-1/4 x 5-1/2" Brakes with outboard drums
Tyres: 235 x 17.5"18 PLY
Wheels: Steel Wheels
Spare Tyres: 2
Power Source: Truck
Lighting: LED Lights to ADR 4198
Rub Plate: Oscilliating
Rub Plate Height: 1300mm

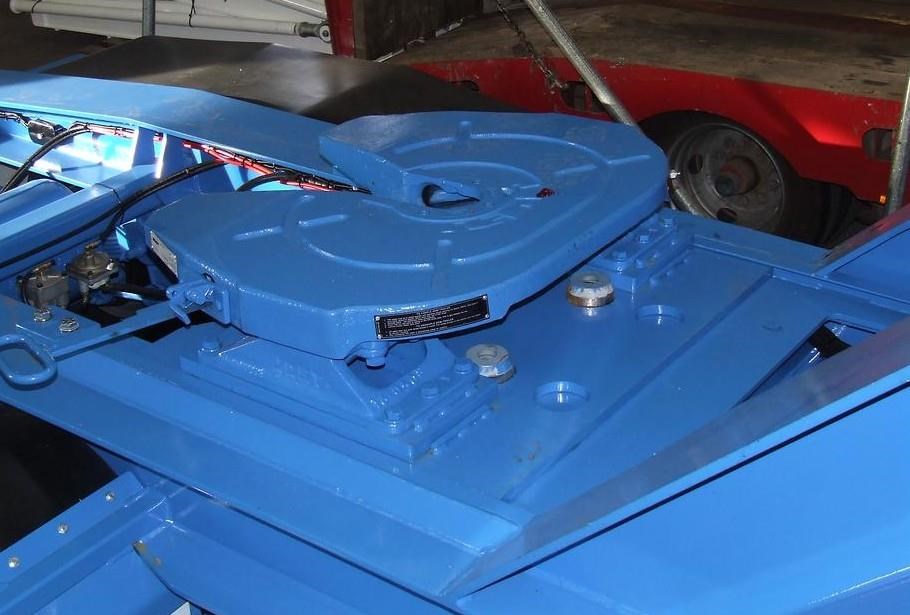

5TH Wheel: Semi Oscilliating
Turntable Height: 1300mm

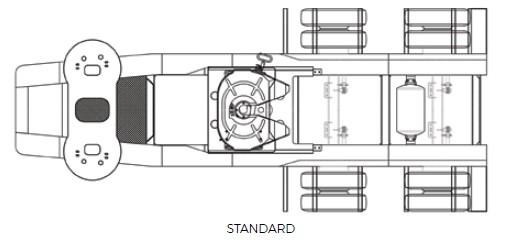

STANDARD SPECIFICATIONS (APPROX)

King Pin: 3-1/2" King Pin

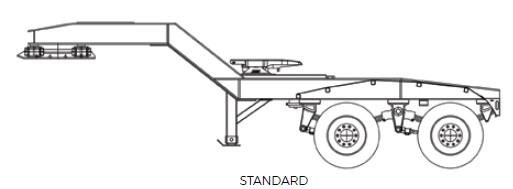

Landing Legs: Standard

OPTIONAL EXTRAS (APPROX)

Wheels: Aluminum Wheels Machined Finish (saves 12.8kg/wheel)
Wheels: Aluminum Wheels Polished Finish (saves 12.8kg/wheel)
Tyres: Specific branded tyres (please state)
Tyres: 9.5R 17.5 Tyres in Lieu of 235 x 17.5
Axles: 19.5" axles and 265 x 19.5" tyres
Suspension: Air Suspension
Railing: Sliding rail
Power Pack: 5.5HP Petrol Power Pack 2000PSI mounted under gooseneck bottom deck
Power Pack: 5.5HP Diesel Power Pack 2000PSI mounted under gooseneck bottom deck
Electrical: Air, Electrical lead and Hydraulic Hose
Water Tank: Plastic Water Tank Fitted
Yard Release: Yard Release Dual System

Please Contact us more details on this trailer.

PRICE ON APPLICATION
PRICE EXCLUSIVE OF GST

Sandblasting, Painting & any Modifications can be made if required
