Features
| Title | HAFCO METALMASTER BM23A |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | BM23A |
| Sale Price | $8,850 GST Exclusive |
| Listing Type | New |
| Stock Number | 931404 |
| RefCode | TA1266290 |
Description

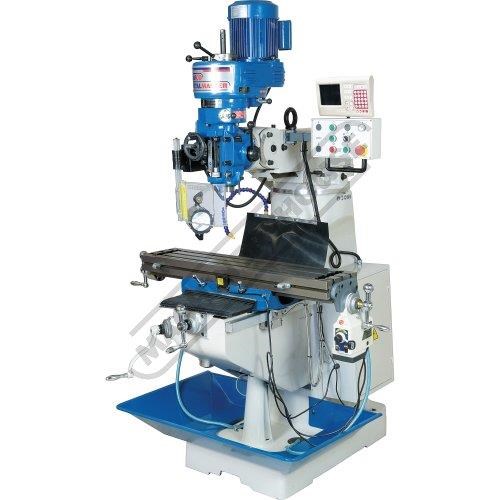

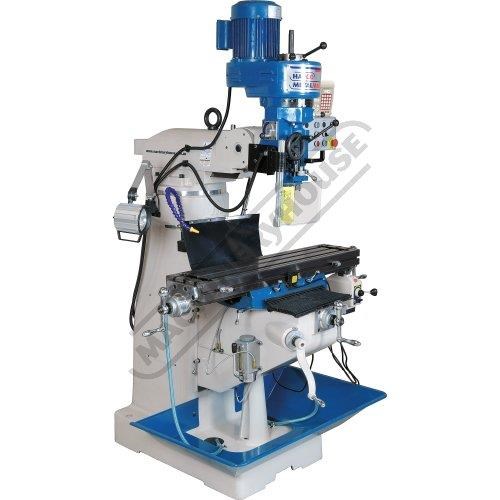

BM-23A Industrial Turret Milling Machine Table Travel: (X) - 585mm (Y) - 295mm (Z) - 400mm Includes

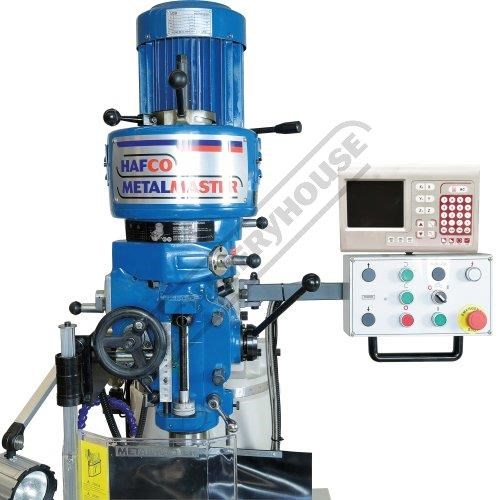

HAFCO-METALMASTER BM-23A Industrial Turret Milling Machine Table Travel: (X) - 585mm (Y) - 295mm (Z) - 400mm Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M595D
Features:

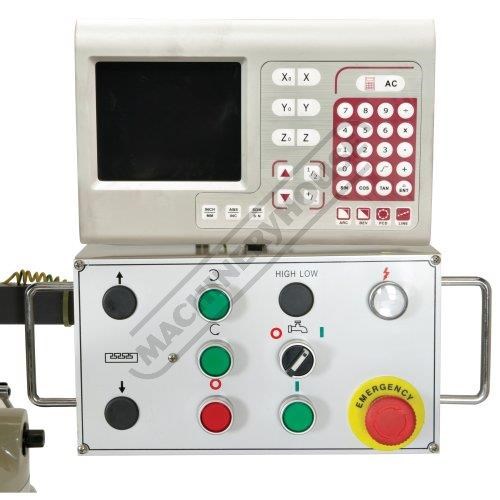

3-Axis digital readout counter fitted with 2-Axis X & Y scales only

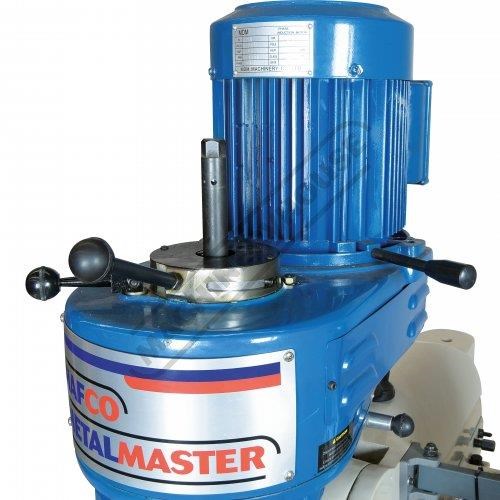

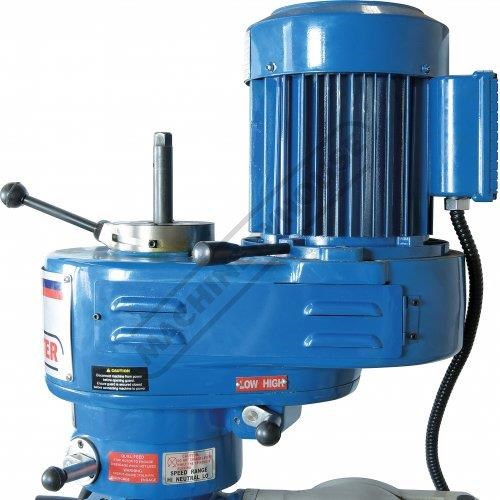

3hp 240V motor 8-speeds V-belt drive system
NT30 Spindle taper with a chrome & ground quill

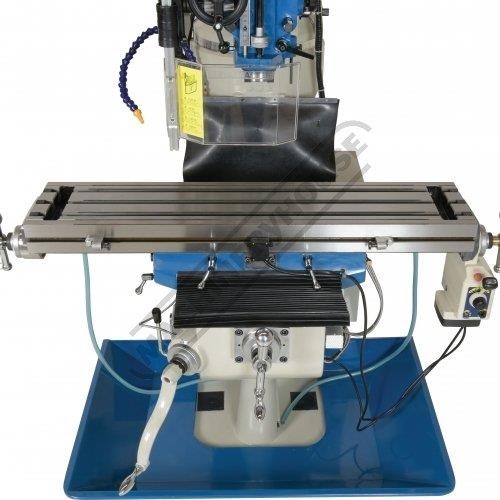

Hardened & ground work table & slide-ways
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation

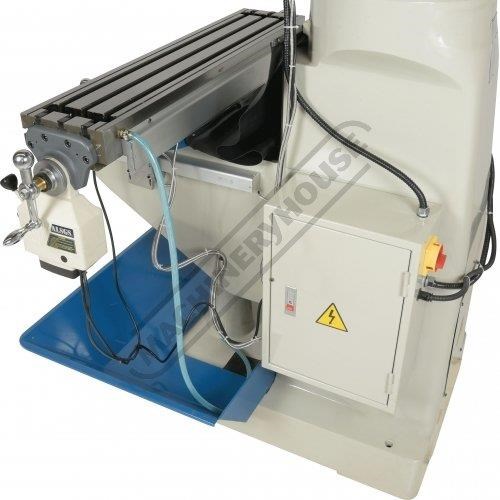

Quality electrics & overload protection in an easy access enclosure

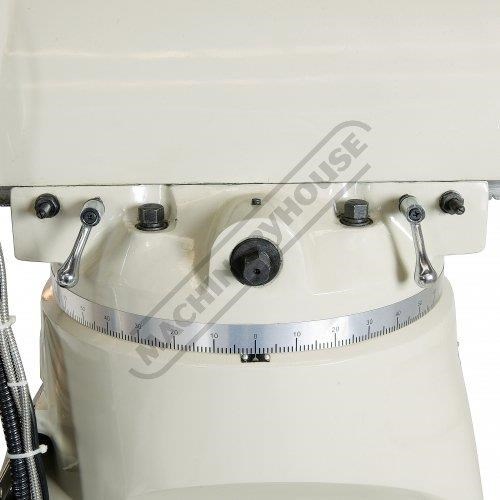

Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

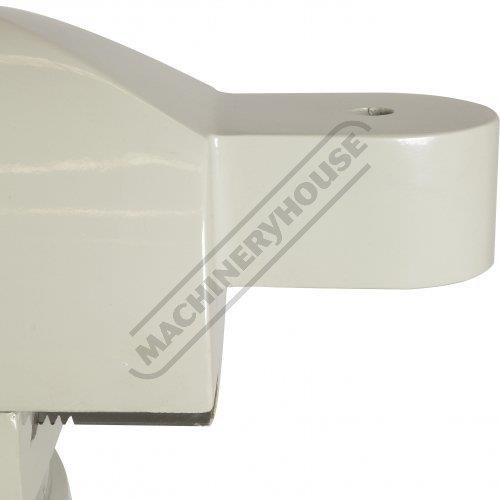

The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

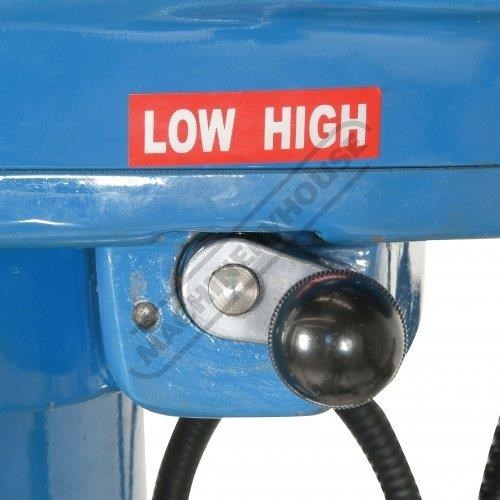

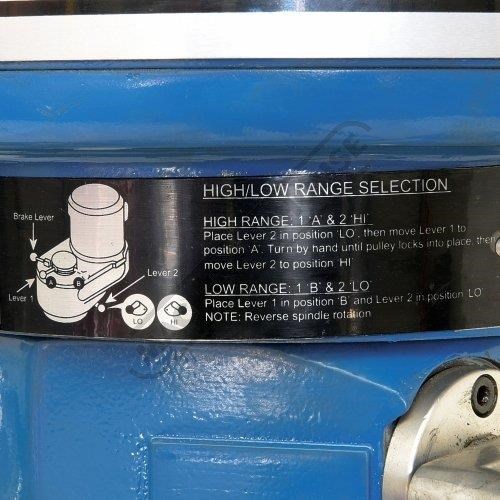

High / neutral and low gear selection lever to maximise torque
X-Axis power-feed with adjustable micro switch feed stops
Metric dial graduations @ 0.02mm for X Y & Z-Axis

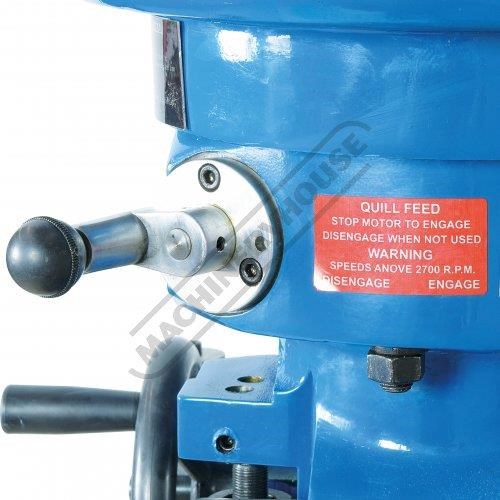

Automatic quill feed 0.04 0.08 0.15mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir

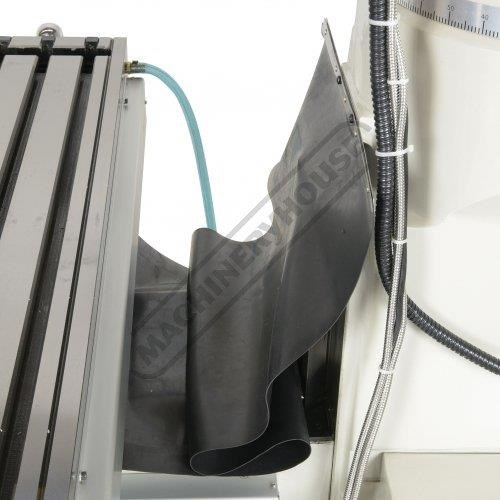

Slideway covers Y & Z-Axis

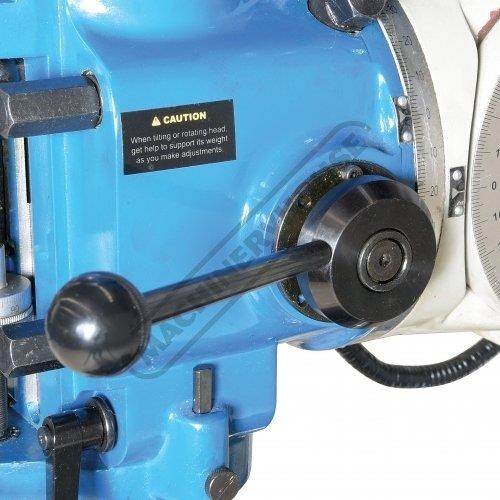

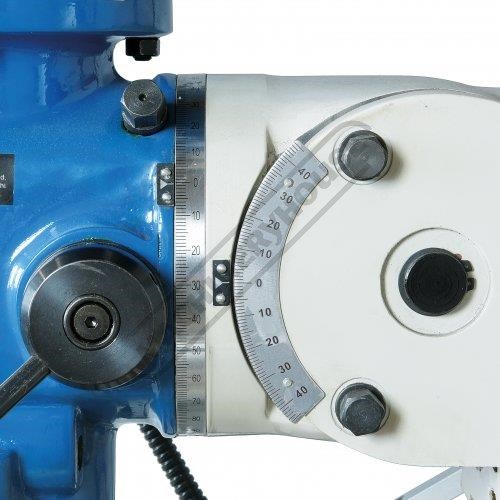

Mill head tilts to ±45º forward and back

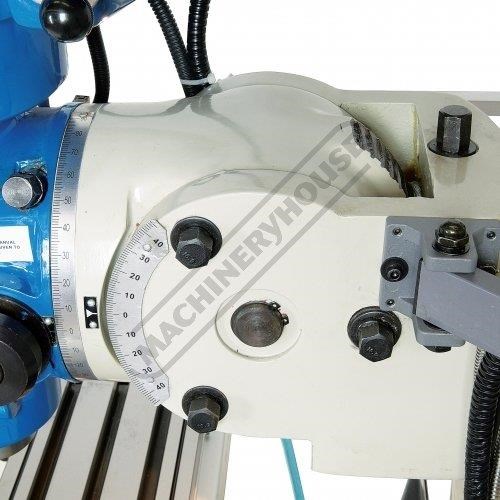

Mill head tilts to ±90º left and right
Coolant system with flexible hose

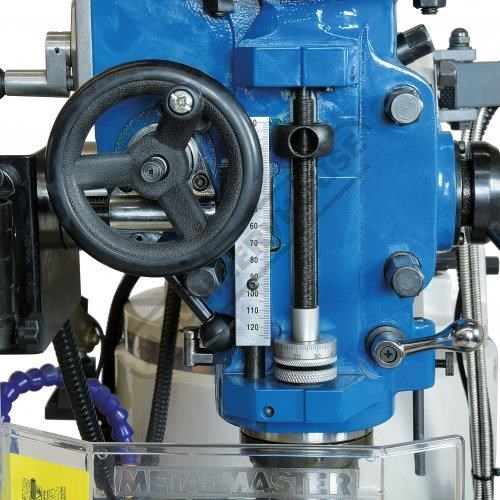

Manual quick action quill lever
Mechanical spindle brake
Tool box and manual
Includes:
- 3-Axis digital readout counter fitted with X & Y scales only
- One-shot oil lubrication pump and reservoir

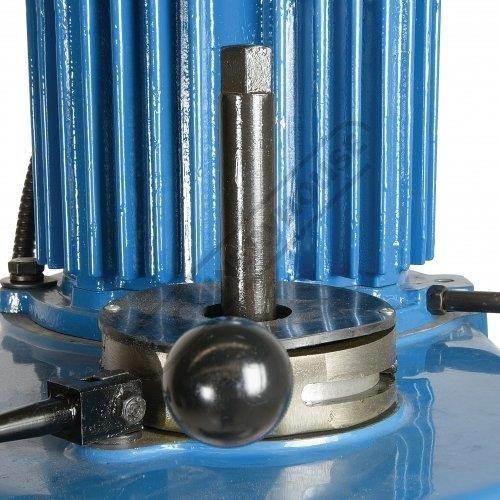

- Drawbar M12 thread
- Coolant system
- Slideway covers
- X-Axis power-feed
- Halogen light
- Safety cutter guard
- Swarf tray
Specifications:
ORDER CODE: M595D
MODEL: BM-23A
Digital Readout: 3-Axis Counter, X, Y Scales
Type: Vertical
Table Size (mm): 1066 x 230
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 585
Cross Travel (Y-Axis) (mm): 295
Vertical Travel (Z-Axis) (mm): 400
Type of Slides: Dovetail
Ram Travel (mm): 420
Spindle to Table (mm): 480
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 545
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.15
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Optional
Table T-Slot Size (inch / mm): 16
Work Table Load Capacity (kg): 250

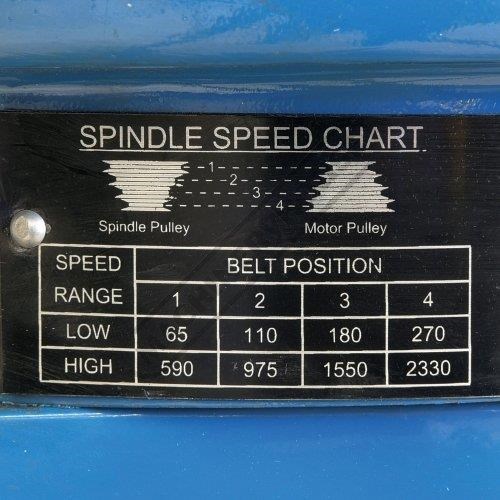

Spindle Speeds Vertical (No./ rpm): 8 (65 - 2330)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 1150
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M595D'
