Features
| Title | HAFCO METALMASTER BM-1600 |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | BM-1600 |
| Sale Price | $29,450 GST Exclusive |
| Listing Type | New |
| Stock Number | 1184839 |
| RefCode | TA1294821 |
Description
BM-1600 Heavy Duty Universal Milling Machine Table Travel: (X) - 1310mm (Y) - 300mm (Z) - 410mm Incl
HAFCO-METALMASTER BM-1600 Heavy Duty Universal Milling Machine Table Travel: (X) - 1310mm (Y) - 300mm (Z) - 410mm Includes Digital Readout System & Servo Controlled X, Y & Z-Axis Feed System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M638D

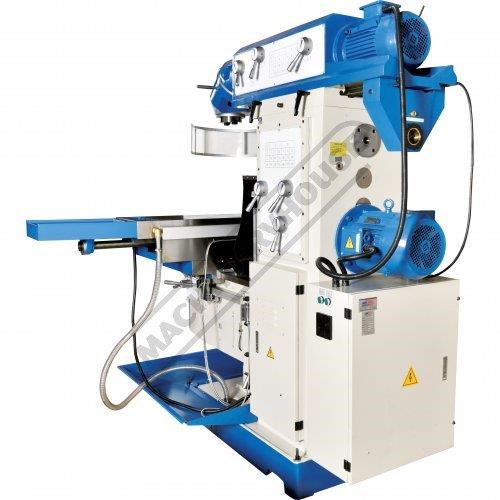

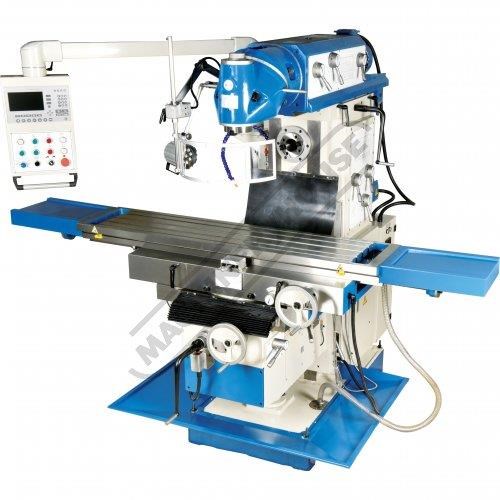

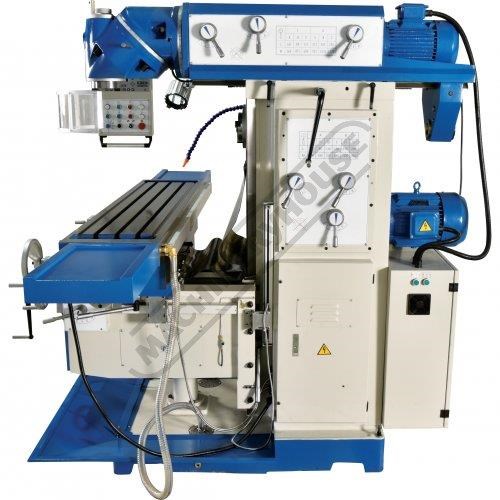

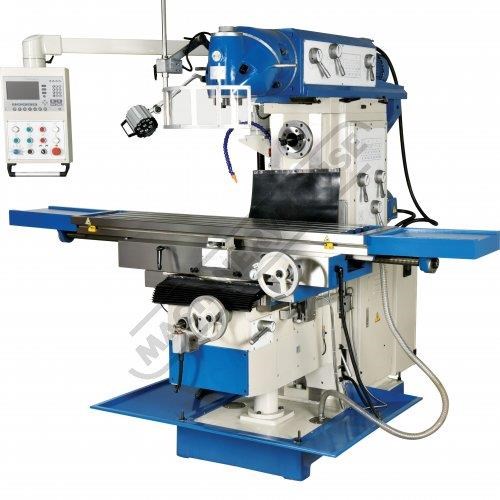

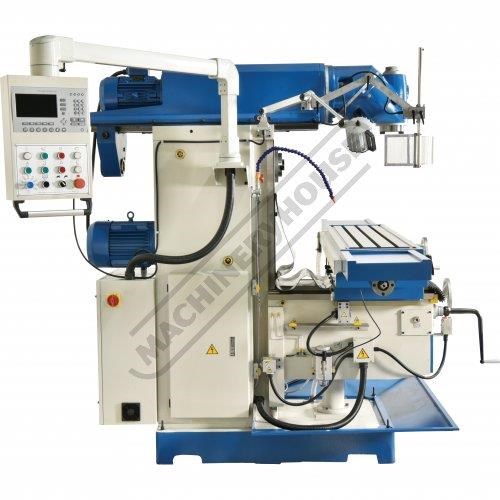

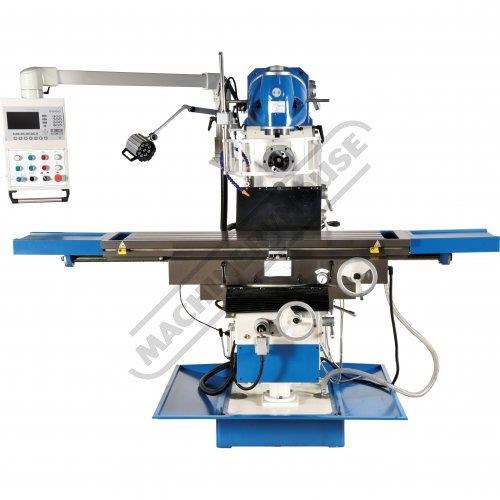

The BM-1600 universal milling machine features a solid, heavy cast iron construction, making this model ideal for heavy machining of oversize workpieces.
The servo-controlled feed system ensures constant torque when removing metal under extreme load. All this is combining with and extra-large hardened & ground working table with long travels to match.
Features:

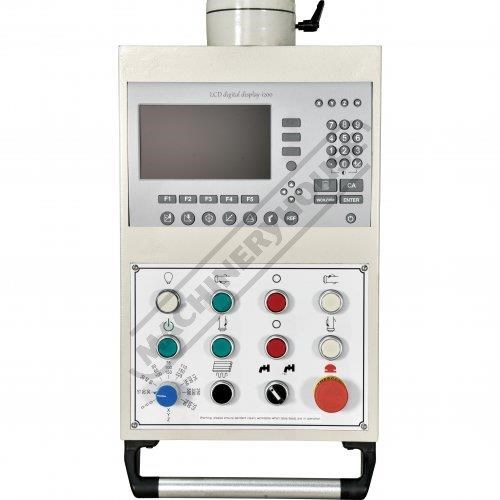

3-Axis digital readout fitted

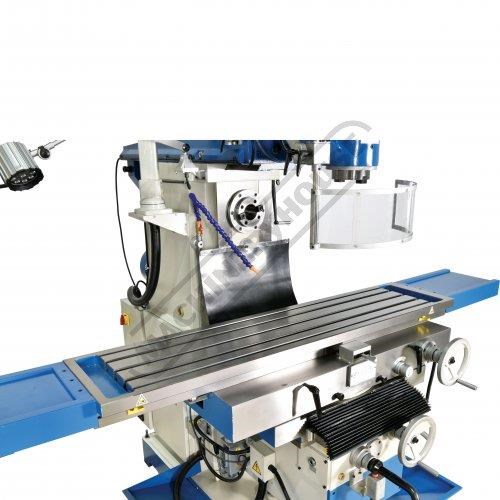

Large 1600 x 360mm slotted work table

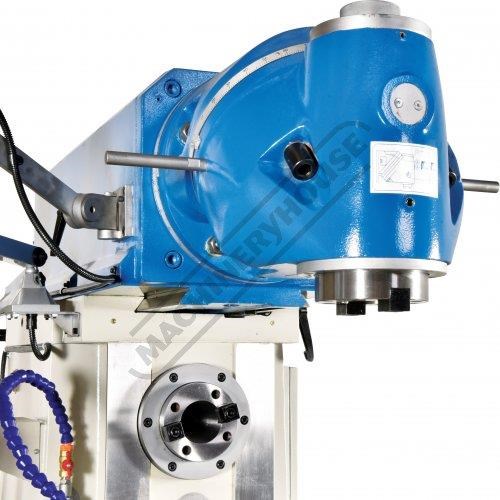

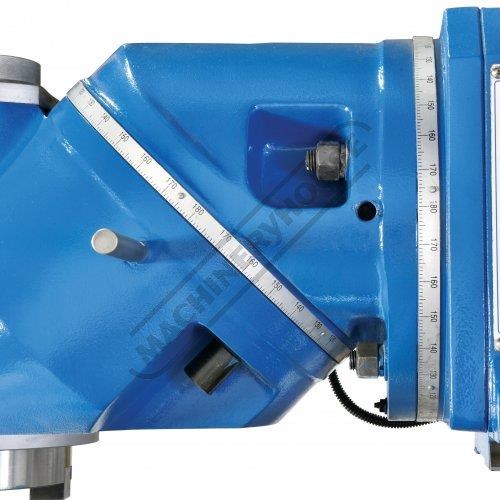

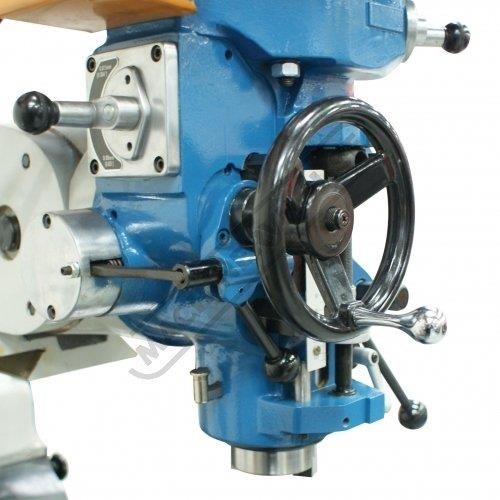

NT50 universal head swivels 360º & tilts vertical to horizontal position
Servo controlled feed motors on X Y & Z-Axis ensures constant torque
Rigid torsion-proof construction dovetail guide X & Z-Axis & wide square guides Y-Axis
Robust transmission with hardened and ground gears & slide-ways
Hardened & ground work table & all X Y & Z-Axis slideways
Swivel table left & right with graduated scale
Oil lubrication pump and reservoir
High grade casting for additional strength & minimal deformation

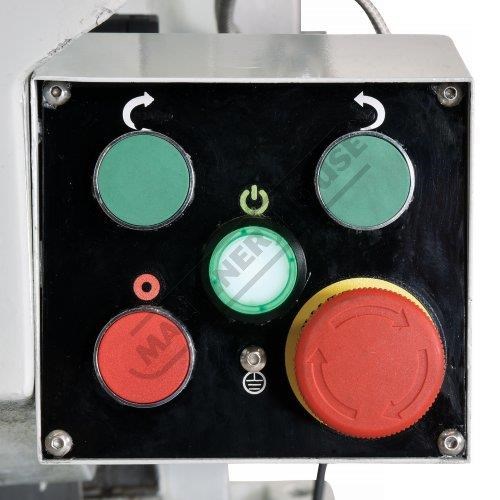

Quality electrics & overload protection in an easy access enclosure
Table trays each end of work table
Slide-way cover Y & Z-Axis
Includes:
- 3-Axis digital readout fitted

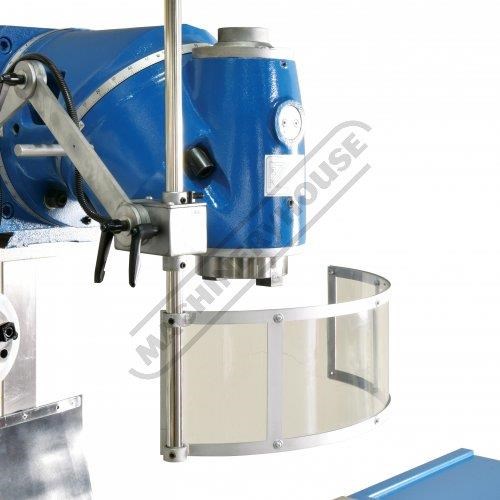

- Safety cutter guard
- Coolant system
- LED light

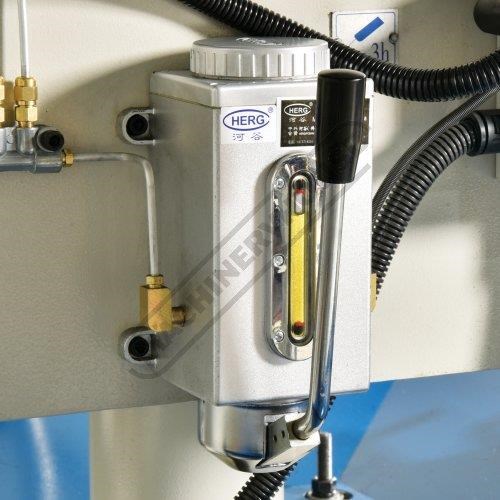

- One-shot oil lubrication pump and reservoir
- Base swarf tray

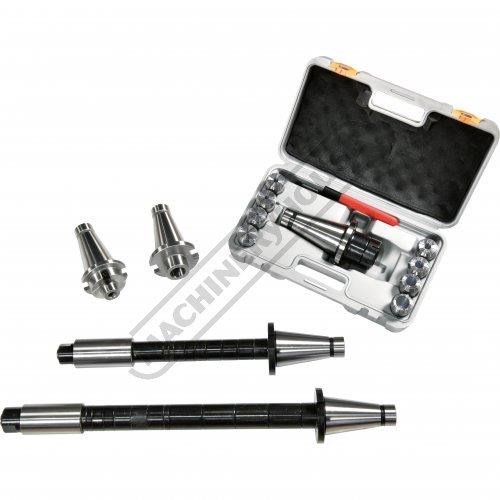

- NT50 x ER40 Collet Chuck Set with 8 Collets
- NT50 x 40mm Face Mill Arbour
- NT50 x 4MT Adaptor
- NT50 x 27mm Horizontal Arbour
- NT50 x 32mm Horizontal Arbour
- M24 drawbar for Universal Head Spindle
- M24 drawbar for Horizontal Spindle
Specifications:
ORDER CODE: M638D
MODEL: BM-1600
Digital Readout: 3-Axis Digital Readout
Type: Universal Head
Table Size (mm): 1600 x 360
Column Type: Dovetail
Spindle Taper - Vertical: NT50
Spindle Taper - Horizontal: NT50
Longitudinal Travel (X-Axis) (mm): 1310
Cross Travel (Y-Axis) (mm): 300
Vertical Travel (Z-Axis) (mm): 410
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 45 - 745
Spindle to Table (mm): 150 - 560
Spindle to Base: ~
Spindle Travel / Diameter (mm): ~
Throat Depth (max.) (mm): ~
Tilting Head (Left ~ Right): 360º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): 30 - 750
Power Feed - Cross (Y-Axis) (mm/min): 20 - 500
Power Feed - Vertical (Z-Axis) (mm/min): 15 - 375
Table T-Slot Size (inch / mm): 18
Work Table Load Capacity (kg): 400

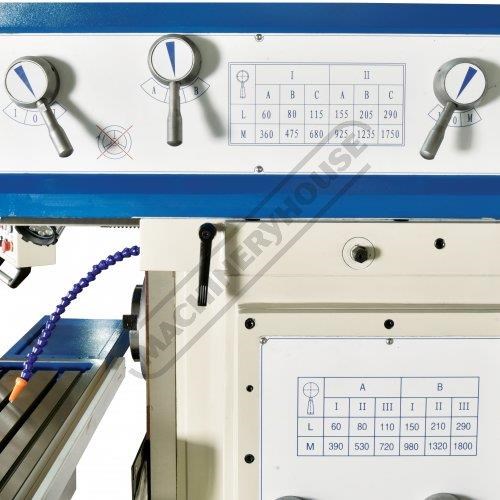

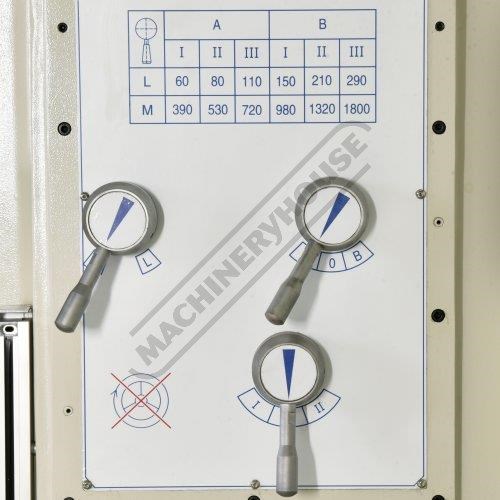

Spindle Speeds Vertical (No./ rpm): 12 / 60 - 1750
Spindle Speeds Horizontal (No./ rpm): 12 / 60 - 1800
Spindle Speeds - Universal Head: 27 (30 - 2050)
Motor Power - Vertical Spindle (kW / hp): 4 / 5.5
Motor Power - Horizontal Spindle (kW / hp): 5.5 / 7.5
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 4500
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M638D'
