Contact Seller
Features
| Title | HAFCO METALMASTER BM-63VE |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | BM-63VE |
| Sale Price | $16,250 GST Exclusive |
| Listing Type | New |
| Stock Number | 355923 |
| RefCode | TA1269459 |
Description

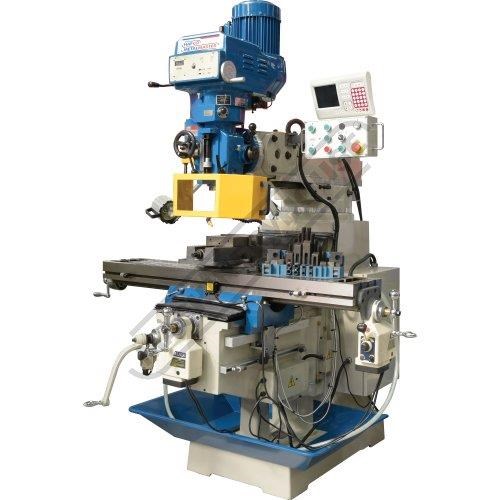

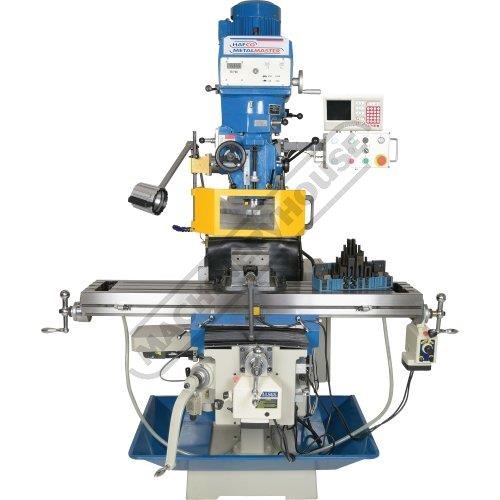

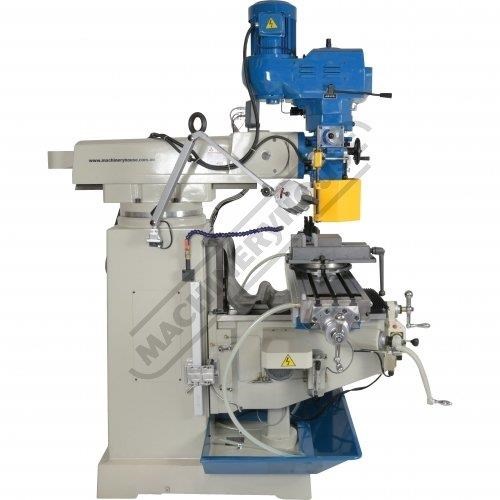

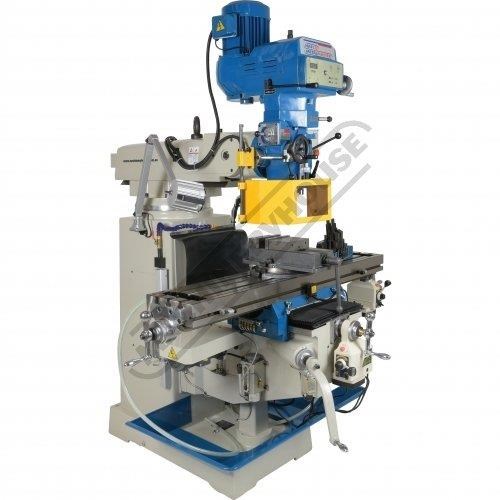

BM-63VE Industrial Turret Milling Machine Table Travel: (X) - 890mm (Y) - 400mm (Z) - 400mm Includes
HAFCO-METALMASTER BM-63VE Industrial Turret Milling Machine Table Travel: (X) - 890mm (Y) - 400mm (Z) - 400mm Includes Ballscrews X & Y Axis, Digital Readout System, Machine Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M599D
Quality product representing excellent value
Features:

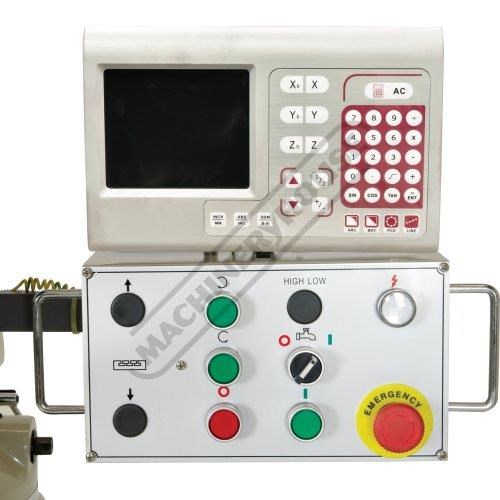

3 Axis digital readout fitted
5HP 415V motor with mechanical variable speed system
NT40 Spindle taper with a 105mm chrome & ground quill
Hardened ballscrew X & Y-Axis providing smooth and accurate operation

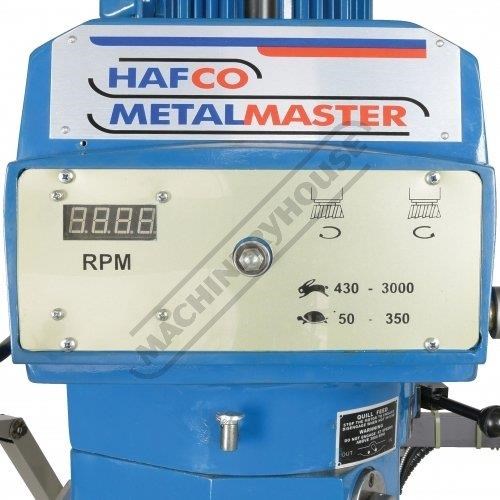

Digital speed readout display for accurate cutter speed
Hardened & ground work table & slide-ways
Square construction slides for Y & Z-Axis to maximise rigidity
Powered elevating motor for Z-Axis
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure

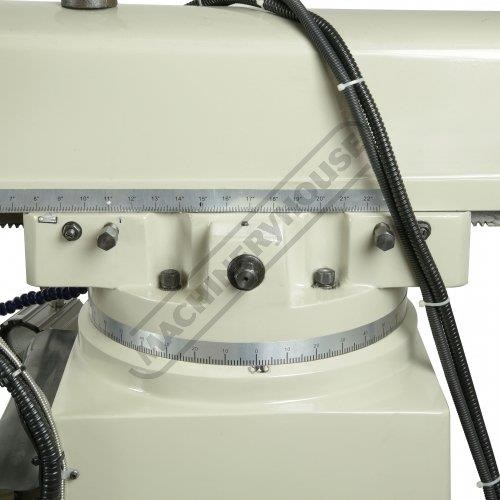

Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

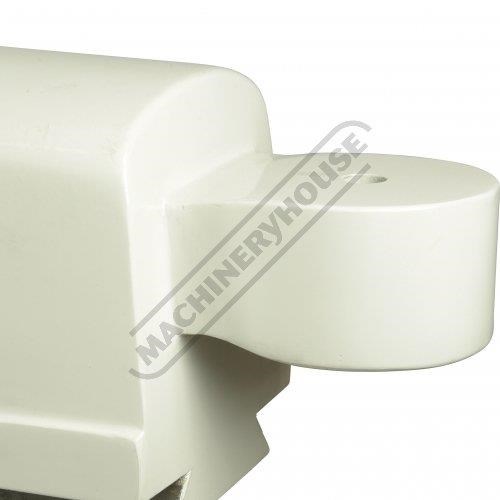

The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

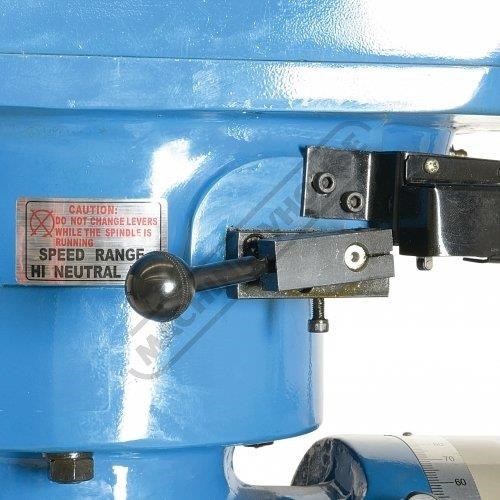

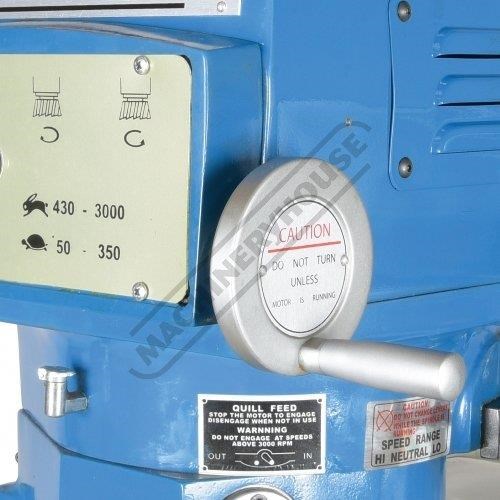

High / neutral and low gear selection lever to maximise torque

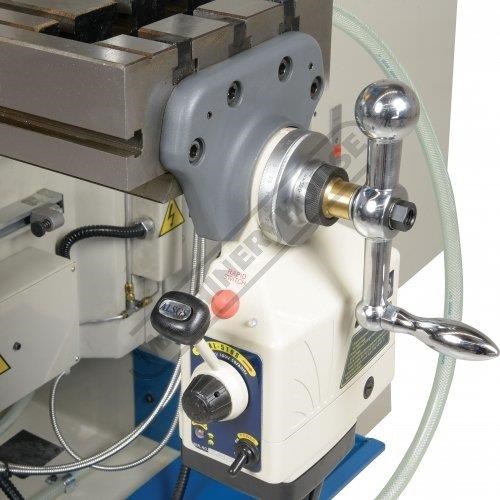

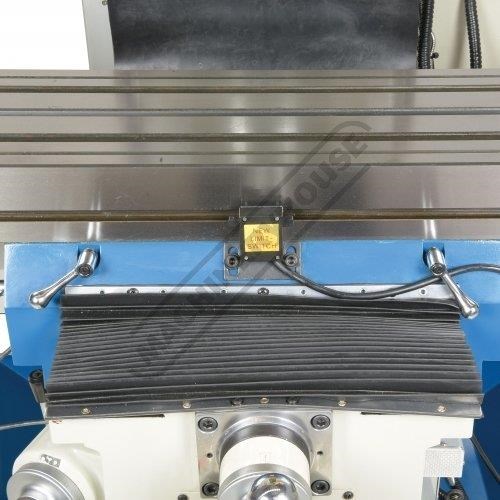

X & Y-Axis power-feed with adjustable micro switch feed stops
Micro switch on the manual knee handle for additional operator safety
Metric dial graduations @ 0.02mm for X Y & Z-Axis

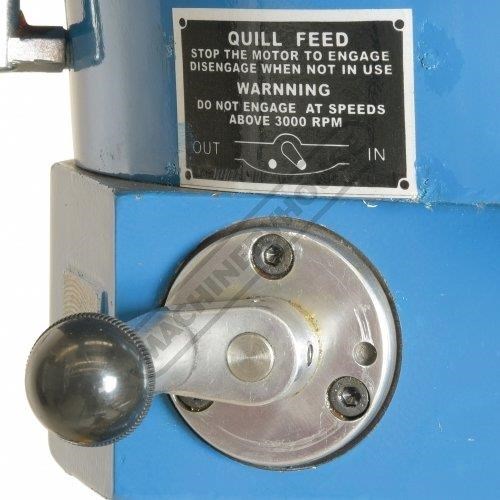

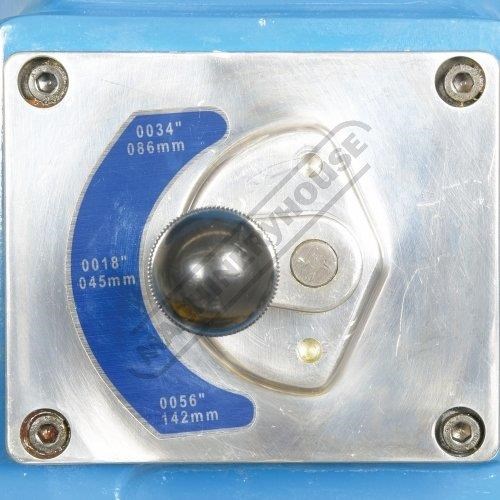

Automatic quill feed 0.04 0.08 0.15mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir
Slide-way covers Y & Z-Axis

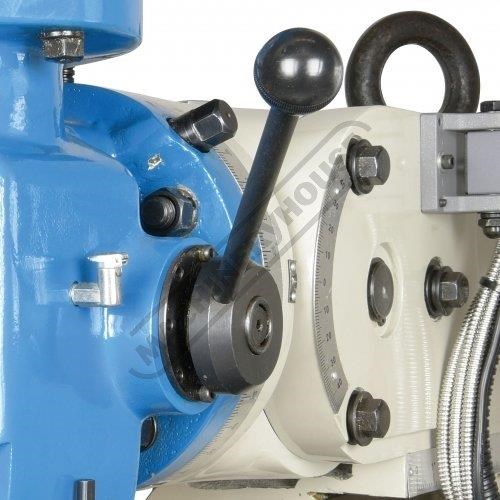

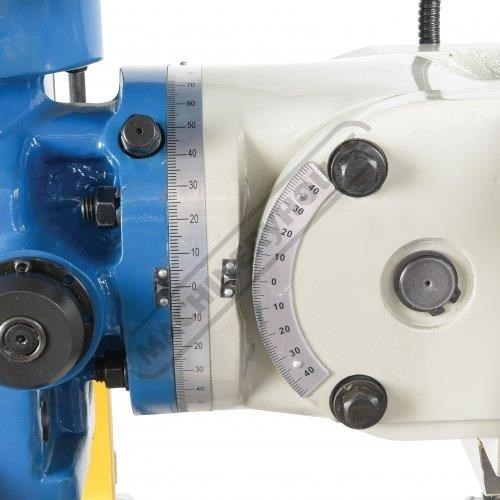

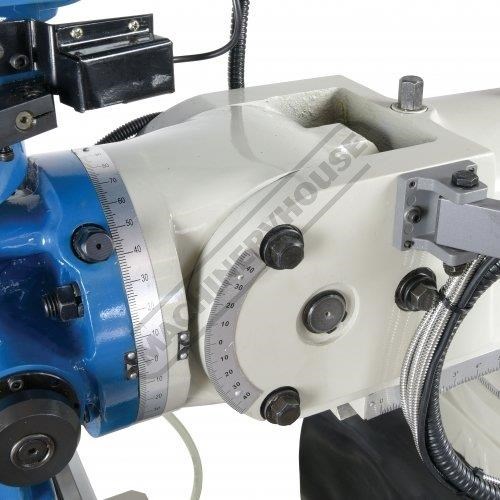

Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right

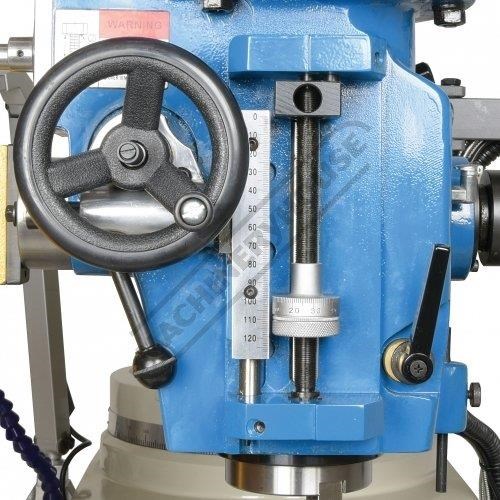

Manual quick action quill lever

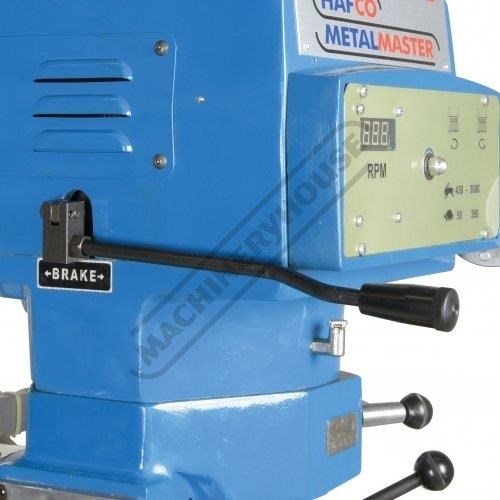

Mechanical spindle brake
Tool box and manual
Includes:
- 3 Axis digital readout fitted
- Hardened ballscrew X & Y-Axis
- Digital speed readout display
- One-shot oil lubrication pump and reservoir
- X & Y-Axis power-feed
- Z-Axis powered elevating motor
- Machine vice 160mm
- Clamp kit set
- Drawbar M16 thread
- Coolant system
- Slideway covers
- Safety cutter guard
- Halogen light
- Swarf tray
- Drawbar M16 thread
Specifications:
ORDER CODE: M599D
MODEL: BM-63VE
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1370 x 254
Column Type: ~
Spindle Taper - Vertical: NT40
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 890
Cross Travel (Y-Axis) (mm): 400
Vertical Travel (Z-Axis) (mm): 400
Type of Slides: Dovetail (X), Square (Y&Z)
Ram Travel (mm): 550
Spindle to Table (mm): 450
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 105
Throat Depth (max.) (mm): 740
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.15
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): 20 - 2000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 16
Work Table Load Capacity (kg): 400
Spindle Speeds Vertical (No./ rpm): Variable (50 - 3550)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 3.75 / 5
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1555
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M599D'
