DOOSAN VCF850/850L
Finance Estimate
Get my Online Quote »
* # View disclaimer
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300
STRATTON (1300 787 288).
Finance Estimate
Get my Online Quote »
* # View disclaimer
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300
STRATTON (1300 787 288).
Contact Seller
Features
| Title | DOOSAN VCF850/850L |
| Type | Engineering - Fabrication |
| Sub Type | Machining Centres CNC |
| Make | DOOSAN |
| Model | VCF850/850L |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | 296638 |
| RefCode | TA1267562 |
Description

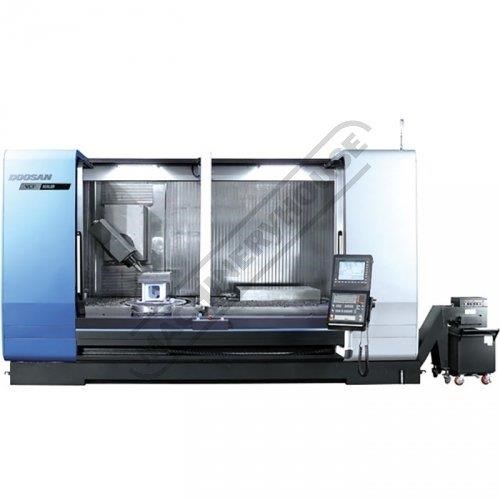

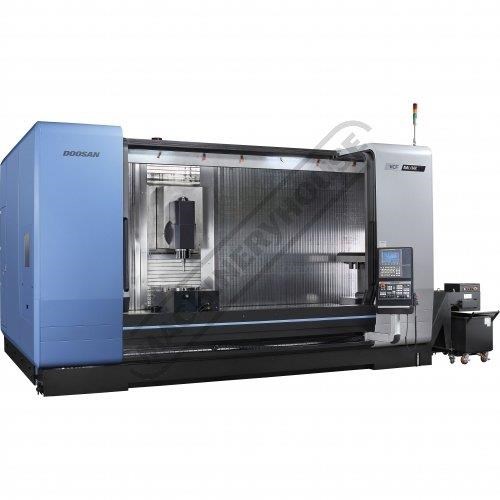

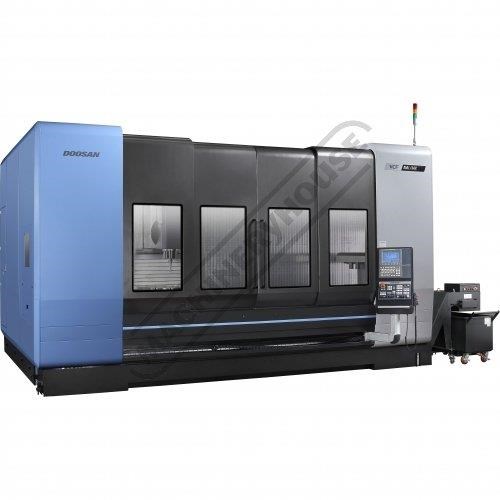

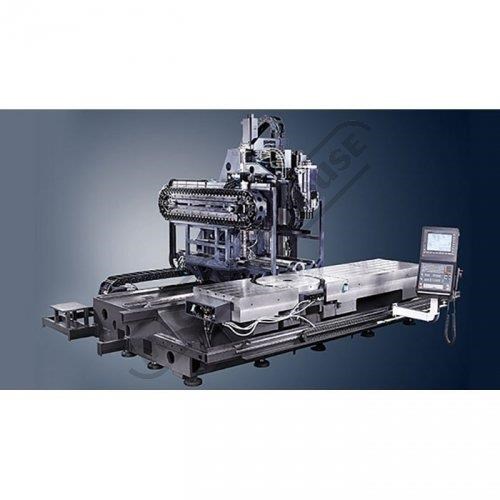

VCF850/850L Multi Purpose Machining Centre Series Details
DN SOLUTIONS VCF850/850L Multi Purpose Machining Centre Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8014
Features:
Built In Spindle Motor
Spindle Oil Cooler
Portable MPG
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide
Specifications:
ORDER CODE: I8014
MODEL: VCF850/850L
X Travel (mm): 2000/3000
Y Travel (mm): 850
Z Travel (mm): 800
B Travel (deg): 220 (+110 -110)
C Travel (deg): 360
Table Size (mm): 2500/3500 x 870
Rotary Table Size (mm): 500/800
Table Capacity (kg): 3500
Spindle - Table (mm): 100-900 (3 Axis)
Spindle - Table (mm): -40-760 (5 Axis Vertical)
Spindle - Table (mm): 295-1095 (5 Axis Horiz)
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000-18,000
Spindle Motor (kW): 22-32
Rapid Traverse (m/min): 40
Guideways: Roller LMG
Tool Arm Type (No.): 30/60
Control: Doosan Fanuc I Series /
Control: Fanuc 31i /
Control: Heidenhain TNC 640
Programming: EZI Guide I Conversational
Programming: / Heidenhain

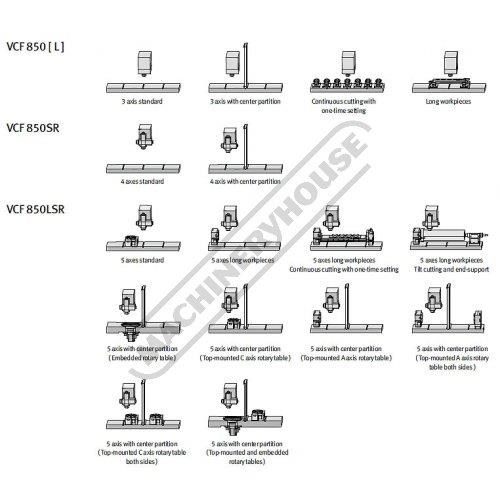

Axis Motion: 3, 4 or 5 Axis Simultaneous
To Purchase Online Please Visit The Machineryhouse Website & Search For 'I8014'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
