Features
| Title | DOOSAN VCF850/850L |
| Type | Engineering - Fabrication |
| Sub Type | Machining Centres CNC |
| Make | DOOSAN |
| Model | VCF850/850L |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | 300844 |
| RefCode | TA1267559 |
Description

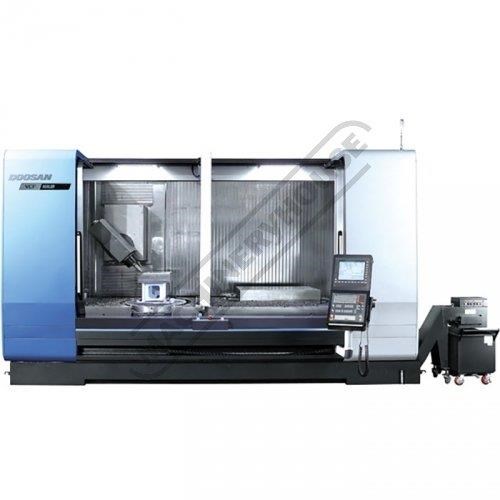

VCF850/850L Multi Purpose Machining Centre Series Details
DN SOLUTIONS VCF850/850L Multi Purpose Machining Centre Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8014A
Features:
Built In Spindle Motor
Spindle Oil Cooler
Portable MPG
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide
Specifications:
ORDER CODE: I8014A
MODEL: VCF850/850L
X Travel (mm): 2000/3000
Y Travel (mm): 850
Z Travel (mm): 800
A Travel (deg): ~
B Travel (deg): ~
C Travel (deg): 360
Table Size (mm): ~
MAX Workpiece Height (mm): 2500/3500 x 870
Table Capacity (kg): 3500
Spindle - Table (mm): 100-900 (3 Axis)
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000-18,000
Spindle Motor (kW): 22-32
Rapid Traverse (m/min): 40
Guideways: Roller LMG
Tool Change: 30/60 Tool Arm Type
Control: Fanuc 31i /
Control: Heidenhain TNC 640
Control: EZI Guide I Conversational
Control: / Heidenhain
Control: 3, 4 or 5 Axis Simultaneous
To Purchase Online Please Visit The Machineryhouse Website & Search For 'I8014A'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
DN SOLUTIONS VCF850/850L Multi Purpose Machining Centre Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8014A
Features:
Built In Spindle Motor
Spindle Oil Cooler
Portable MPG
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide
Specifications:
ORDER CODE: I8014A
MODEL: VCF850/850L
X Travel (mm): 2000/3000
Y Travel (mm): 850
Z Travel (mm): 800
A Travel (deg): ~
B Travel (deg): ~
C Travel (deg): 360
Table Size (mm): ~
MAX Workpiece Height (mm): 2500/3500 x 870
Table Capacity (kg): 3500
Spindle - Table (mm): 100-900 (3 Axis)
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000-18,000
Spindle Motor (kW): 22-32
Rapid Traverse (m/min): 40
Guideways: Roller LMG
Tool Change: 30/60 Tool Arm Type
Control: Fanuc 31i /
Control: Heidenhain TNC 640
Control: EZI Guide I Conversational
Control: / Heidenhain
Control: 3, 4 or 5 Axis Simultaneous
To Purchase Online Please Visit The Machineryhouse Website & Search For 'I8014A'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
