DOOSAN DNM 6700L

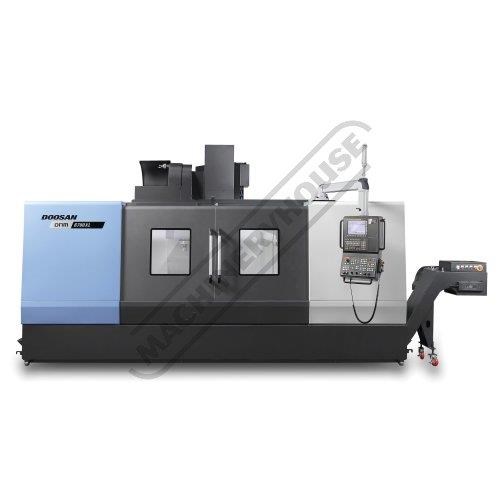

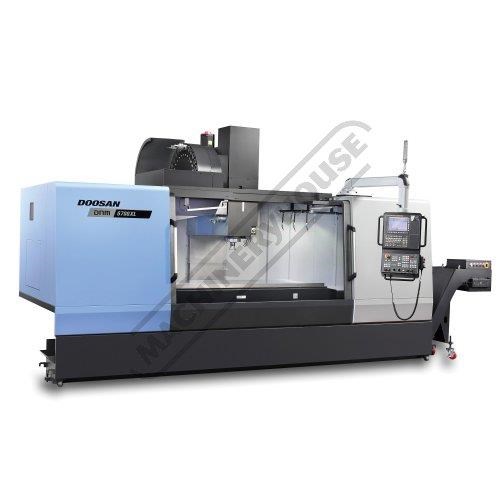

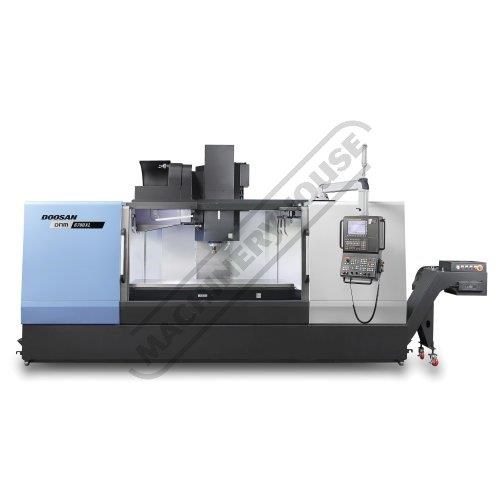

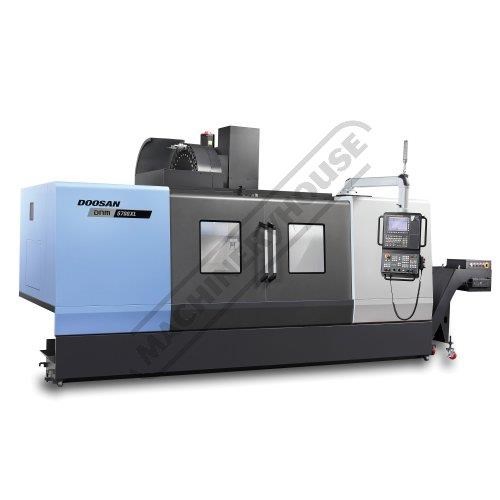

DNM 6700L CNC Vertical Machining Centre

DN SOLUTIONS DNM 6700L CNC Vertical Machining Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M8460

Basic Specifications
- 1500, 670, 625mm X, Y, Z travels
- 1600 x 670mm table size
- 1300kg table load capacity
- 36, 36, 30m/min X, Y, Z rapid feed rates
- 150 - 775mm spindle to table
- 12,000 rpm spindle speed
- 18.5kW spindle power
- 118Nm spindle torque
- BT40 spindle taper
- Dual contact (Big Plus) spindle nose

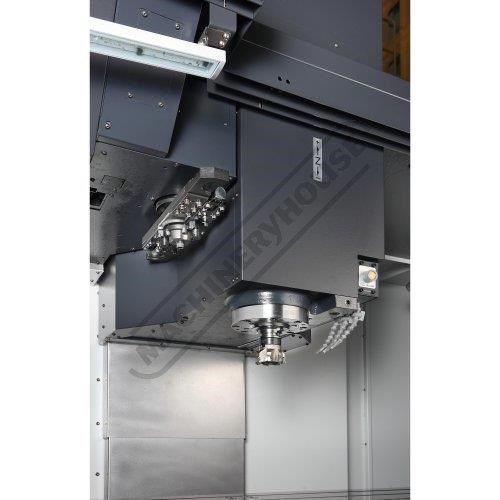

Main Spindle
- 12,000 rpm heavy duty spindle
- 18.5kW Fanuc direct drive spindle motor
- Air blast through spindle
- Spindle oil cooler
- Spindle air curtain

Axis Motors & Drives
- Fanuc Servo Drive Amplifiers
- Fanuc high Torque direct coupled AC Digital servo motors
- Fanuc absolute position encoders (No Axes limit switches required)
- Highly rigid, precision, wide span roller linear guideways

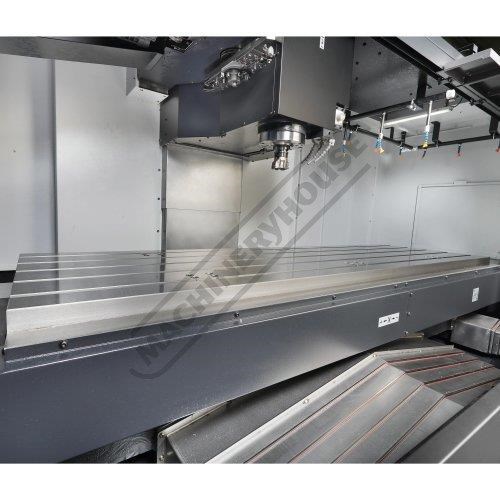

- Fully supported table eliminating overhang
- Large diameter pretensioned precision reciprocating ballscrews
- Automatic lubrication equipment

Tool Changer

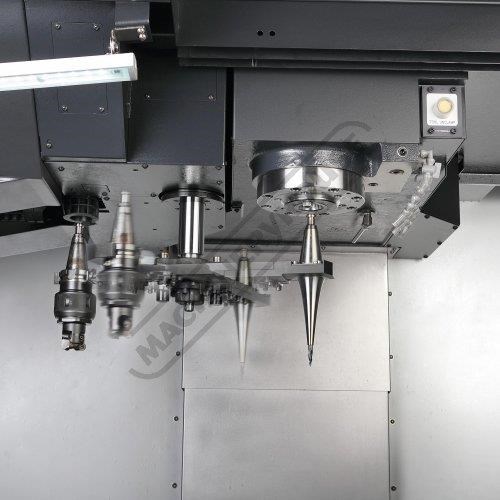

- High-speed arm type automatic tool changer 1.3 second tool to tool

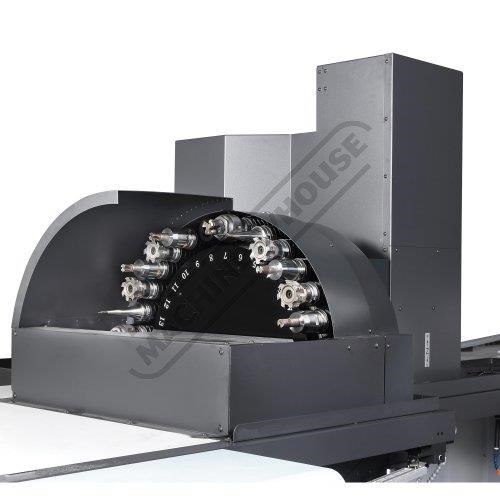

- 30 tool bi-directional magazine
- Side mount fully enclosed tool magazine


Coolant System
- Flood coolant
- Box type screen filter
- High pressure through spindle coolant 20 bar x 20 l/min
- Fully enclosed chip & coolant shield
- 380L coolant tank & chip pan

Electrical
- Door safety interlock switch
- Heat exchanger for electrical cabinet
- Line filter
- Transformer

Swarf Removal

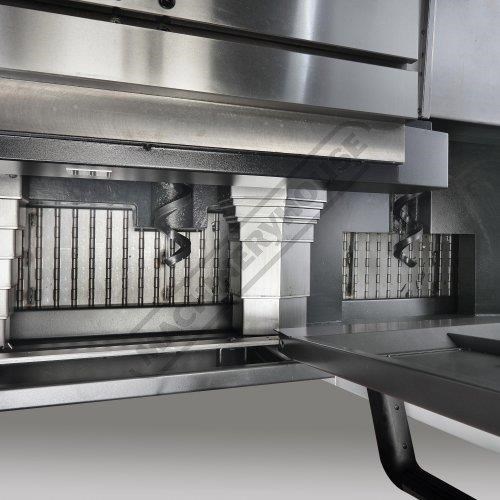

- Twin screw type internal chip conveyors
- Link type External chip conveyor

Operation
- Remote MPG (Portable Hand Wheel)
- Control panel with > 90° swivel
- 3 tier operation patrol lamp
- Work light
- Operating & maintenance manuals
- Electrical schematics
- Tool box

CNC Control
- Doosan Fanuc I Series (0i-Pus) CNC Controller
- Ezi Guide i Conversational software
- Fanuc 15" Colour LCD
- Rigid-synchronised tapping
- Helical interpolation
- Artificial intelligence contour control (AICC - 200 Block)
- Fine surface machining function
- Custom Macro B
- USB & PCMCIA Card Slot
- Ethernet Interface
- RS232 Interface
- Doosan Easy operation package including:
- Graphical tool table
- Self diagnostic ATC recovery
- Onboard G & M code assistance
- + more

Automation
- Control prepared to accept Rotary Table - 4th Axis

Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine

Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:


Specifications:
ORDER CODE: M8460
MODEL: DNM 6700L
MODEL: ~
X Travel (mm): 1500
Y Travel (mm): 670
Z Travel (mm): 625
Table Size (mm): 1600x670
Table Capacity (kg): 1300
Spindle - Table (mm): 150-775
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000
Spindle Motor (kW): 18.5
Rapid Traverse (m/min): 36/36/30
Guideways: Roller LMG
Tool Arm Type (No.): 30
Control: Doosan Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
