TOOLMASTER TRT-4

TRT-4 Tilting Rotary Table Ø100mm

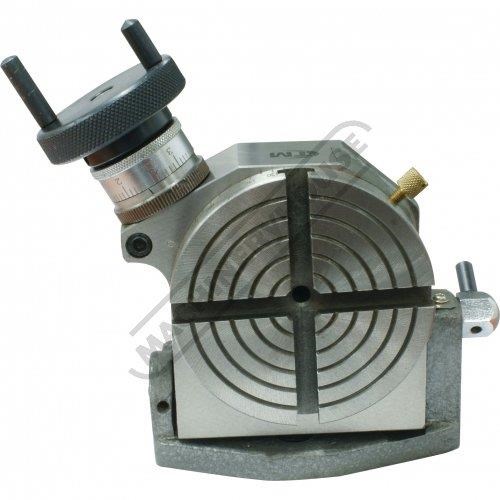

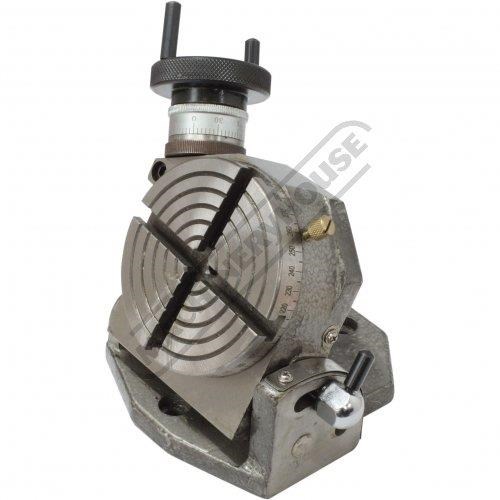

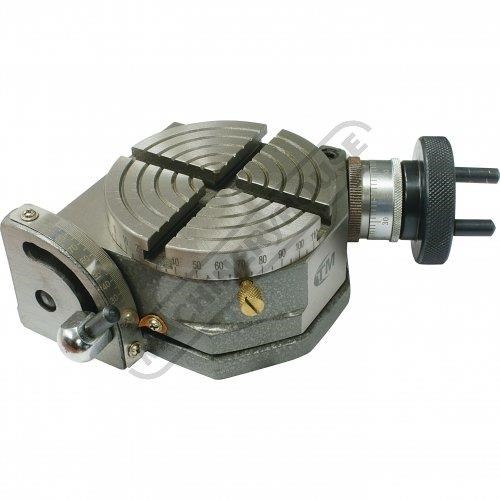

TOOLMASTER TRT-4 Tilting Rotary Table Ø100mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R0014

Features:

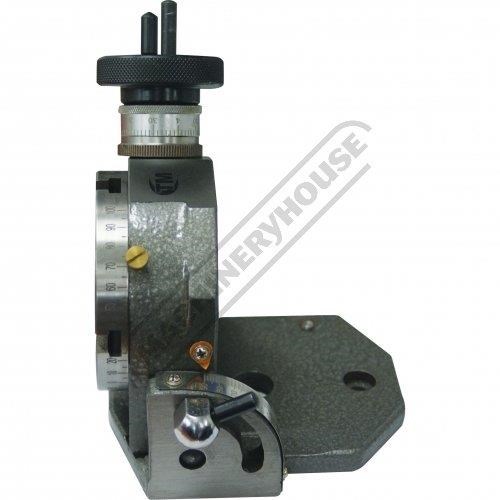

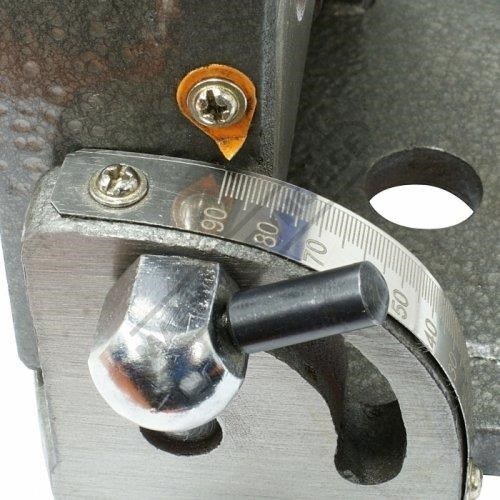

Tilting range 0-90º horizontal to vertical graduated in 1º

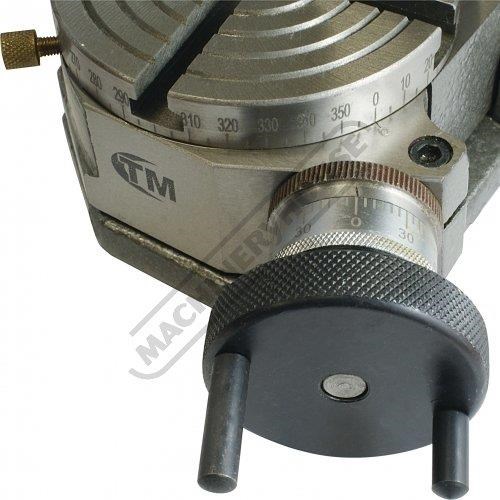

Graduations: 0-360º in 5º increments

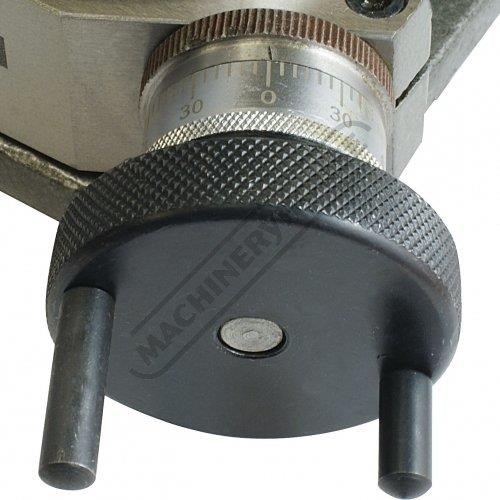

Handle graduations: 0-10º in 5' divisions
66mm height from flat position
36-1 ratio


Specifications:
ORDER CODE: R0014
MODEL: TRT-4
Size (mm): 100
A (mm): ~
B (mm): ~
C (mm): ~
D (mm): Ø100
E (mm): ~
F (mm): ~
H (mm): ~
L (mm): ~
M (MT): ~
P (mm): ~
d (lowercase) (mm): ~
h (lowercase) (mm): ~

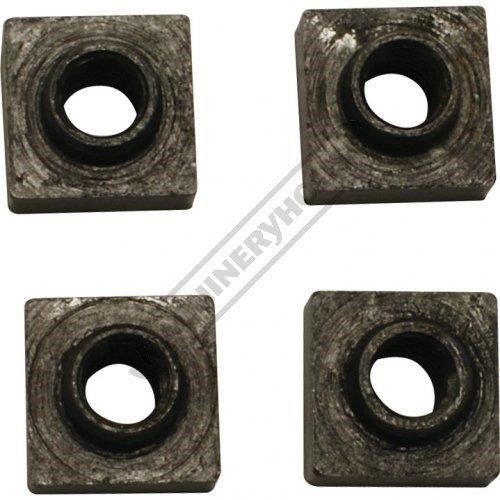

T-Slot Size (mm): 8
Worm Ratio: 36:1


To Purchase Online Please Visit The Machineryhouse Website & Search For 'R0014'
