TOOLMASTER BC-2K

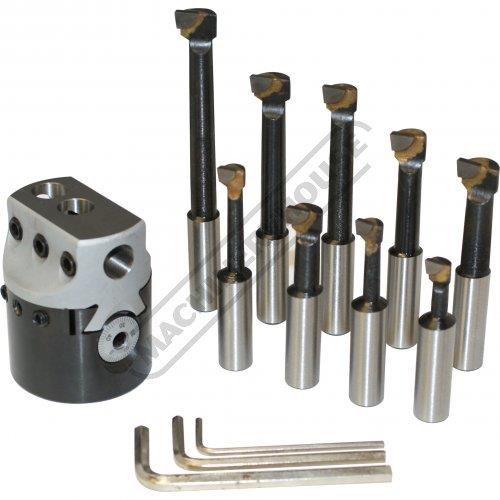

BC-2K Precision Boring Head Kit Ø50mm Head Requires Spindle Arbor To Suit Machine

TOOLMASTER BC-2K Precision Boring Head Kit Ø50mm Head Requires Spindle Arbor To Suit Machine
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M182

This precision boring head features two vertical holes and one cross hole for securely holding boring bars. It allows precise adjustment of the boring bar at a right angle to the spindle axis, enabling accurate positioning for boring holes with diameters ranging from 10mm to 100mm. The hardened and ground direct-reading adjustment screw features a satin chrome dial face, providing 0.01mm precise adjustments with excellent visibility. Perfect for professionals seeking reliability in metalworking, this boring head delivers exceptional results.
Note: Arbor sold separately.

Features:
Wide range of boring diameters and depths
Boring diameter 10mm - 100mm
Calibrated micro adjusting screw via a hexagon key.
1-1/2`` x 18TPI threaded body to mount optional arbors
Accepts 12mm diameter boring bars

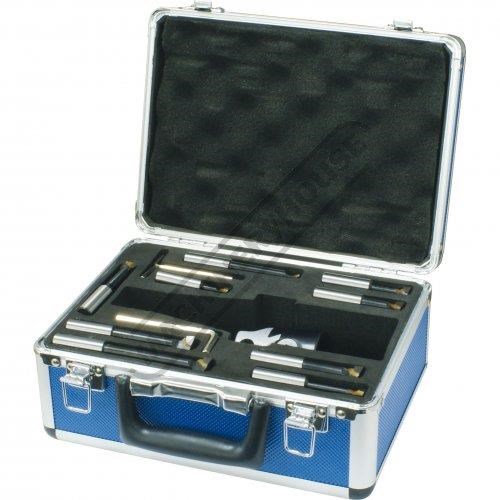

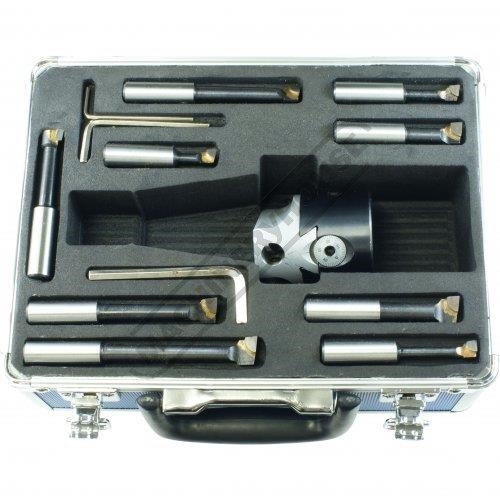

Includes boring bars and aluminium foam padded case for protection


Specifications:
ORDER CODE: M182
MODEL: BC-2K
Type: Boring
D (mm): 50
H (mm): 62
d (lowercase) (mm): 12
W (mm): ~
h (lowercase) (mm): ~
Cross Hole Diameter (mm): ~
Centre Distance Between Holes (mm): 15
Micro Adjustment Travel (mm): 15
Nett Weight (kg): 1.2


To Purchase Online Please Visit The Machineryhouse Website & Search For 'M182'
