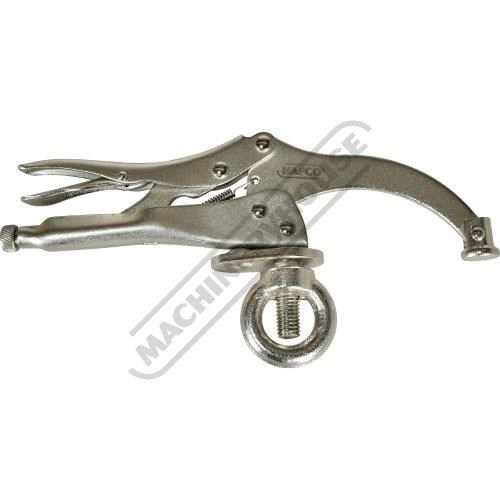

VGP9 228mm Muliti-Purpose Locking Clamp M12 Thread with Eye Nut 75mm Throat x 80mm Opening

HAFCO VGP9 228mm Muliti-Purpose Locking Clamp M12 Thread with Eye Nut 75mm Throat x 80mm Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C103

This is a very useful clamp, offering rapid deployment on simple jobs. This vice grip style locking clamp suits a wide variety of different tasks as it features a deep throat and wide jaw opening. The jaw pads swivel to allow even, parallel clamping on drilling press tables and is finished with chrome plating to resist corrosion. The handle features a knurled nut which adjusts the jaw opening and hence the applied pressure. Once adjusted, the pliers retain the setting for repetitive use. The lower handle has a quick release lever that unlocks the jaws.

Features:

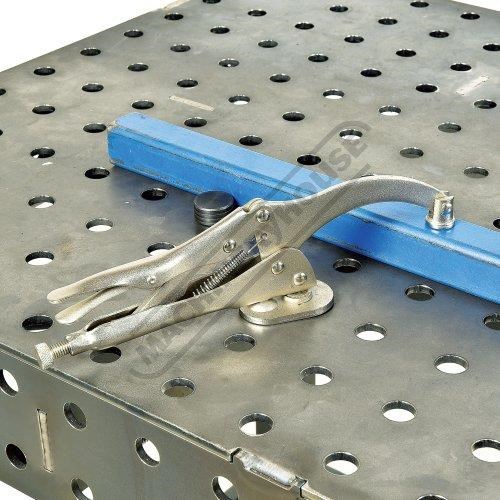

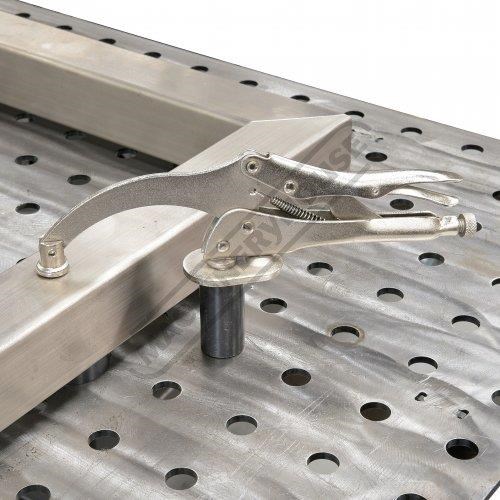

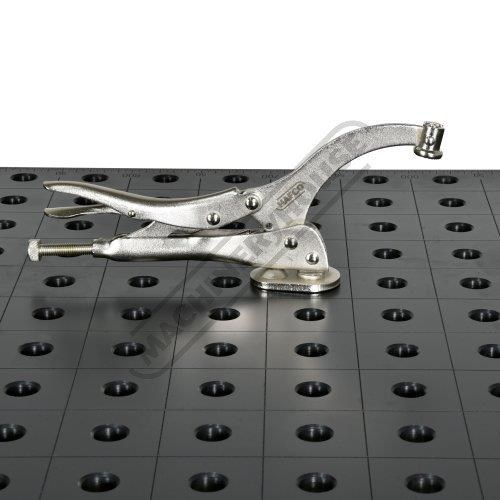

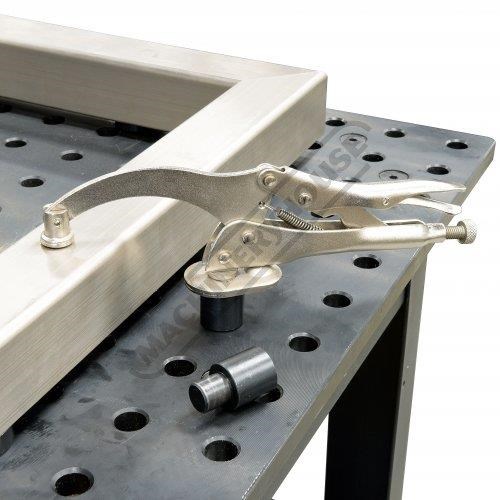

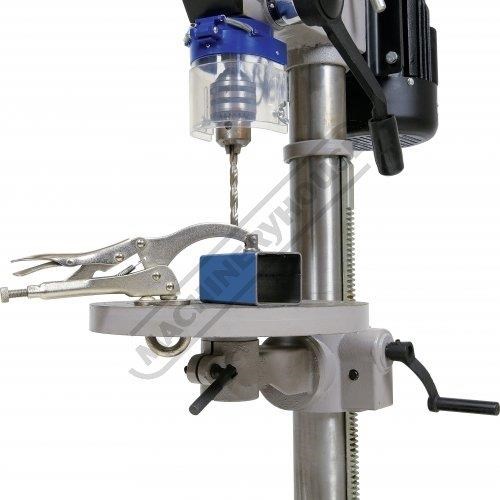

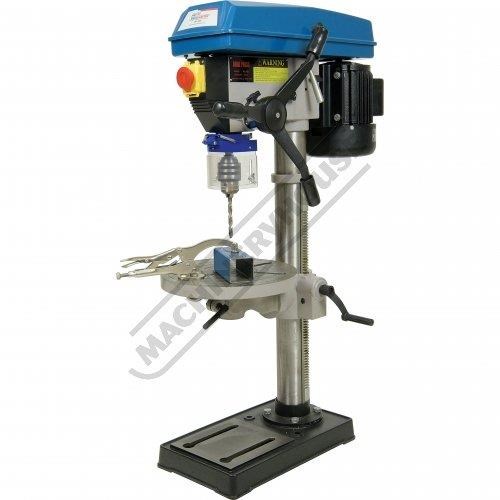

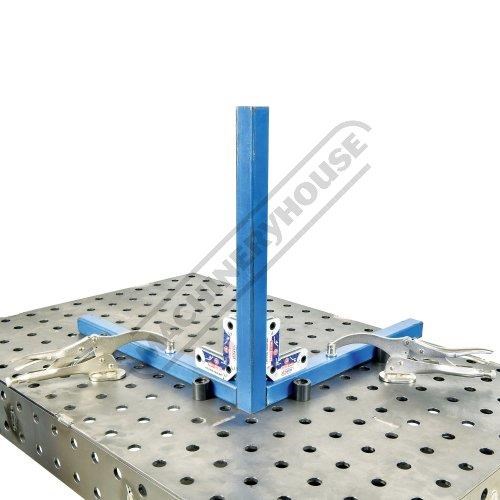

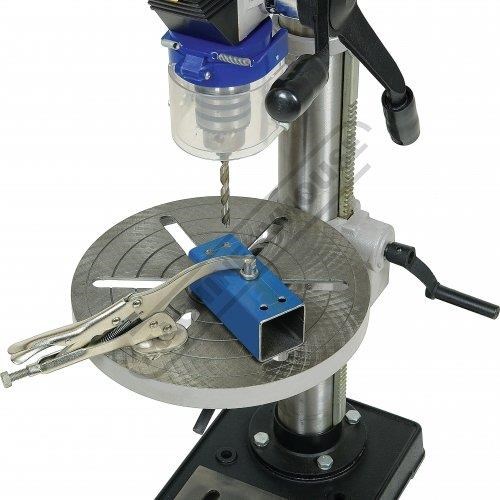

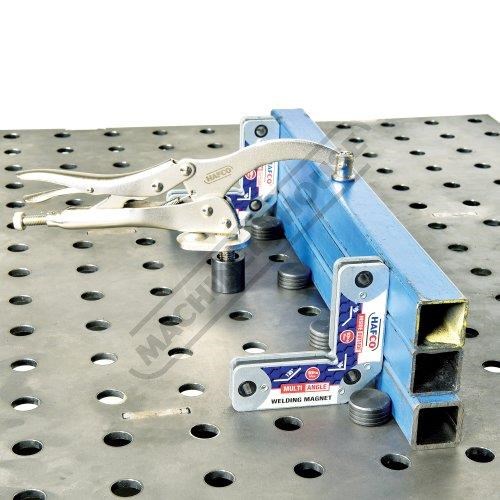

Suitable for drill press table and welding fixture tables
Knurled nut adjusts the jaw opening and clamping pressure
Hardened alloy steel with chrome plating
Quick release lever to unlock the jaw
Swiveling jaw pad for parallel clamping
80mm maximum jaw height opening
75mm throat depth


Specifications:
ORDER CODE: C103
Model: VGP9
Overall Size (mm): 228
Throat Depth (T) (mm): 75
Jaw Opening (O) (mm): 80
Centre Throat Distance (C) (mm): 93
Thread (mm): M12
