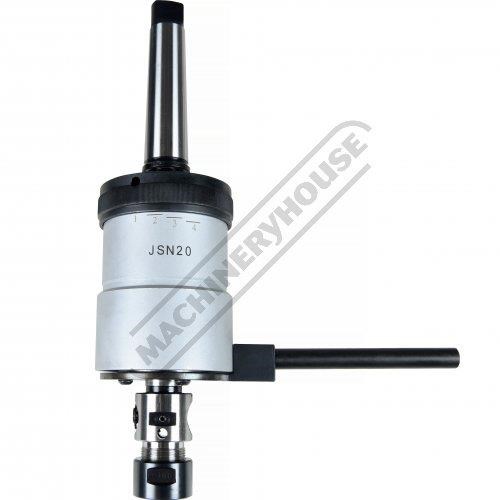

TOOLMASTER T4-MT4

T4-MT4 Reversible Tapping Chuck - Adjustable Clutch Include 3MT & 4MT Arbours M8 - M20

TOOLMASTER T4-MT4 Reversible Tapping Chuck - Adjustable Clutch Include 3MT & 4MT Arbours M8 - M20
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T005

Features:
Pre-select torque drive to prevent tap breakage and allow for blind hole tapping
Tension and compression feature compensates between rate of feed applied and thread pitch
Suitable for right and left hand vertical and horizontal tapping
Fast tap reversal. Re-entry cushioning eliminates cross threading

Clutch Torque Setting:
1 - 12 Nm
2 - 20 Nm
3 - 60 Nm
4 - 110 Nm

Please Note: M20 tap requires a 14mm Shank

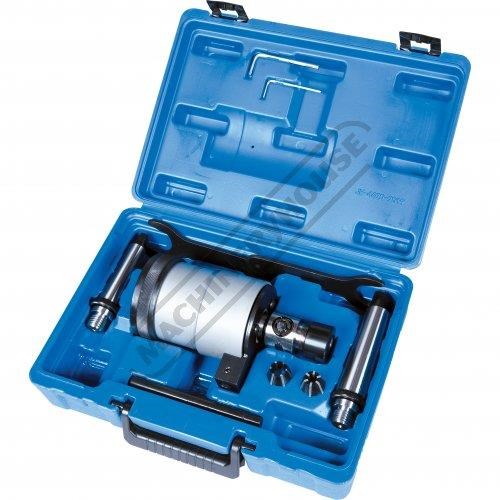

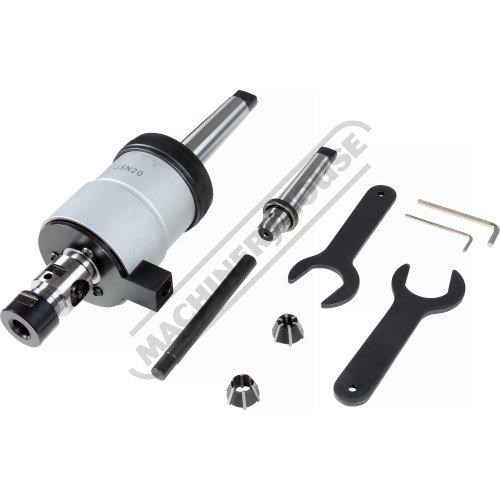

Includes:
- MT3 & MT4 arbors - threaded end
- 2 x Collet chuck spanners
- 2 x Rubber flex collets
- 2 x allen keys



Specifications:
ORDER CODE: T005
MODEL: T4-MT4
Arbor Mount: Threaded
Taper (MT): 3 & 4
Tapping Range (mm): 8 - 20
Tapping Shank Size (mm): 6.3 - 14
D (mm): 90
D1 (mm): 38
L (mm): 195
L1 (mm): 134
A (mm): 62
B (mm): 20
Nett Weight (kg): 6.8


To Purchase Online Please Visit The Machineryhouse Website & Search For 'T005'
