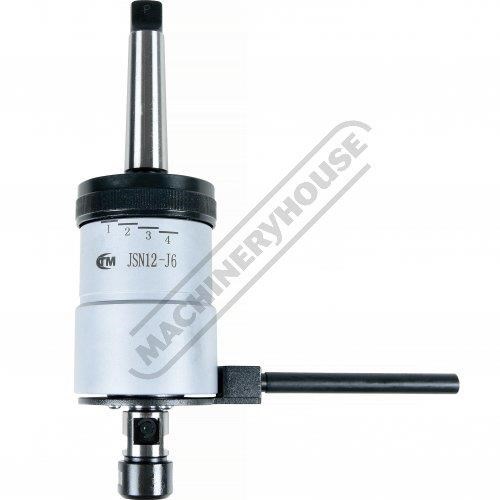

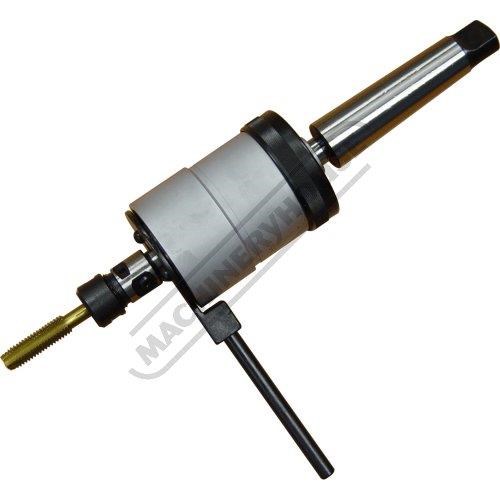

TOOLMASTER T3-MT3

T3-MT3 Reversible Tapping Chuck - Adjustable Clutch Include 3MT & 4MT Arbours M5 - M12

TOOLMASTER T3-MT3 Reversible Tapping Chuck - Adjustable Clutch Include 3MT & 4MT Arbours M5 - M12
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T004

Features:
Pre-select torque drive to prevent tap breakage and allow for blind hole tapping
Tension and compression feature compensates between rate of feed applied and thread pitch
Suitable for right and left hand vertical and horizontal tapping
Fast tap reversal. Re-entry cushioning eliminates cross threading

Clutch Torque Setting:
1 - 5 Nm
2 - 20 Nm
3 - 50 Nm
4 - 75 Nm

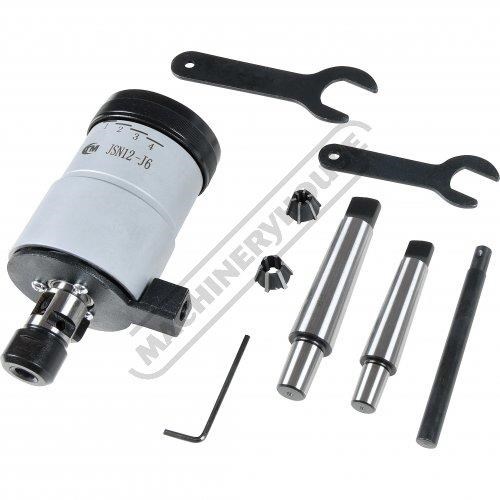

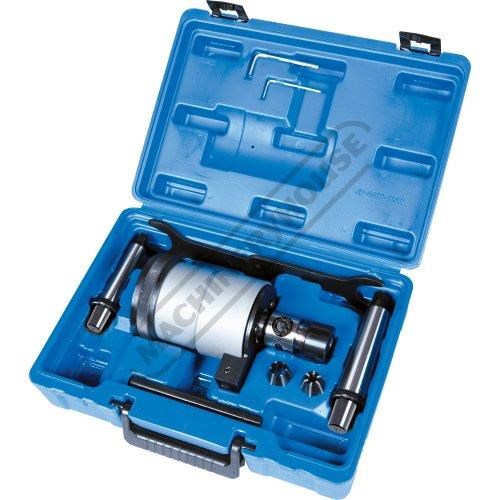

Includes:
- MT3 & MT4 x JT6 arbors
- 2 x Collet chuck spanners
- 2 x Rubber flex collets
- 2 x allen keys



Specifications:
ORDER CODE: T004
MODEL: T3-MT3
Arbor Mount: JT6
Taper (MT): 3 & 4
Tapping Range (mm): 5 - 12
Tapping Shank Size (mm): 3.5 - 10
D (mm): 75
D1 (mm): 28
L (mm): 150
L1 (mm): 105
A (mm): 45
B (mm): 12
Nett Weight (kg): 4.2
