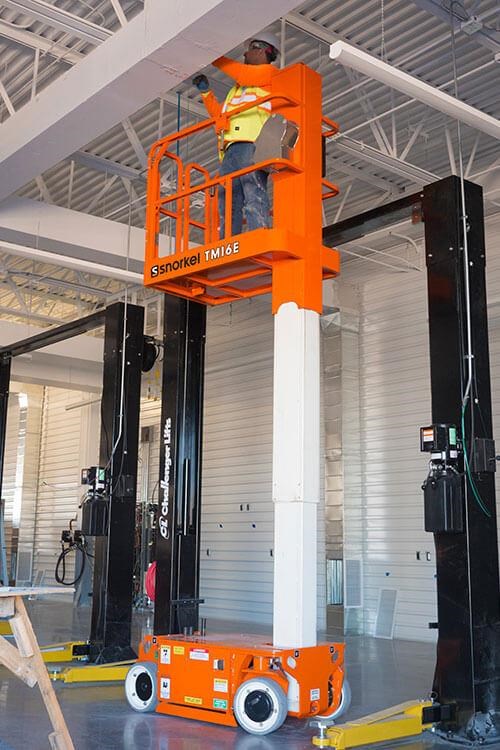

SNORKEL TM16E

Snorkel TM16E Self-Propelled Telescopic Mast Lifts Max. Working Height: 6.87m Overall Width: 0.76m Platform Capacity: 227kg Weight: 1,105kg The Snorkel TM16E delivers the tallest working height in Snorkel's line of self-propelled telescopic mast lifts. Featuring an electric drive system, this mast lift offers longer duty cycles on the job. Smooth proportional controls allows for precise positioning where needed most. STANDARD FEATURES Roll-out deck extension Proportional controls Saloon-door style entry gates Descent & tilt alarms Emergency lowering at chassis controls Non-marking rubber tyres Crane lift points Horn 2 persons indoor Selectable motion alarm Integrated battery charger 110V 20A Hour meter & on-board diagnostics display 2 year parts & labour, 5 year structural warranty Specifications Max Working Height: 6.87m Max Platform Height: 4.87m Platform Size (Stowed): 0.68m x 0.99m Platform Size (Extended): 0.68m x 1.5m Extension Deck Length: 0.51m Overall Width: 0.76m Overall Length: 1.37m Stowed Height: 1.98m Ground Clearance: 76mm Platform Capacity (SWL): 227kg Max Drive Height: 4.87m Max Wind Speed: 0m/s Max Drive Speed (Stowed): 4.0km/h Max Drive Speed (Elevated): 0.6km/h Raise/Lower Time: 12.5/10.5sec Gradeability: 25% Max Operating Slope (Side to Side): 1.5º Max Operating Slope (Front to Back): 1.5º Inside Turning Radius: 0m Outside Turning Radius: 1.4m Tyres: 323mm Non-marking rubber Parking Brake: 2 wheel, spring applied, electric release Drive System: Dual DC motors Controls: Proportional Power Source: 24V 220Ah batteries Battery Charger: 20 amp Weight: 1,105kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
