SNORKEL AB80J

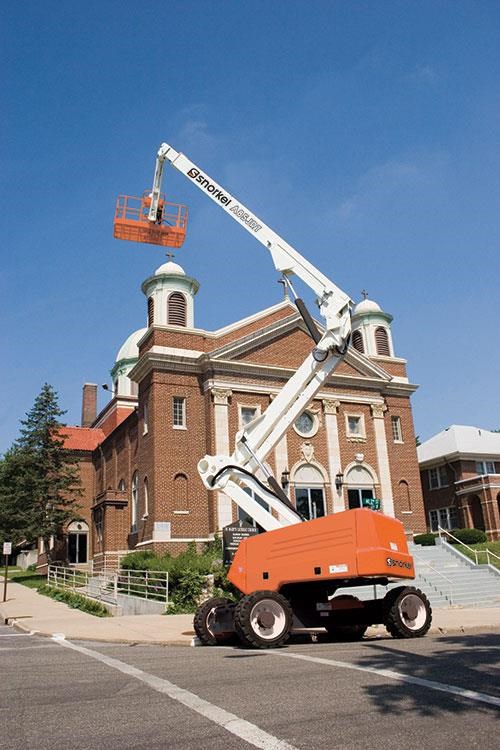

Snorkel AB80J Articulated Boom Lift Max. Working Height: 26.3m Max. Working Outreach: 18.1m Platform Capacity: 227kg Weight: 16,692kg The Snorkel AB80J is the ultimate diesel articulated boom lift. Capable of lifting 227kg to a working height of 26.4m, the AB80J delivers excellent aerial maneuverability with 'up and over' capabilities and a jib boom. In addition, the AB85J has impressive rough terrain performance, boasting both 4 wheel drive and 4 wheel steer, including crab steer. STANDARD FEATURES Snorkel Guard™ secondary guarding system Hydraulic platform rotation Four wheel drive, steer and crab steer Foam filled lug tires Proportional drive, lift & swing, extend & rotate Drive motion alarm Flashing amber light Horn Dual lanyard attachment points Power line to platform 3.5° tilt alarm 2 year parts & labor, 5 year structural warranty Specifications: Max Working Height: 26.3m Max Platform Height: 24.3m Max Working Outreach: 18.1m Clearance Height at Max. Outreach: 8.5m Platform Size: 2.44m x 0.91m Overall Width: 2.6m Overall Length: 9.8m Stowed Height: 3.0m Ground Clearance: 330mm Platform Capacity (SWL): 227kg Max Drive Height: 24.3m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 4.8km/h Max Drive Speed (elevated): 1.0km/h Jib Length: 1.5m Jib Arc: 140° (+70°/-70°) Jib Rotation: n/a Platform Rotation: 150° Raise/Lower Time: 240/240 sec Tailswing: 0.89m Turret Rotation: 360° continuous Gradeability: 30% Inside Turning Radius: 2.4m Outside Turning Radius: 4.7m Tyres: 15 x 625 loader lug foam filled Controls: Proportional joystick Drive System: 4 wheel drive Power Source: Kubota V2403 48kW/65hp diesel - Tier 4 Final Weight: 16,692kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
