SNORKEL TB86J

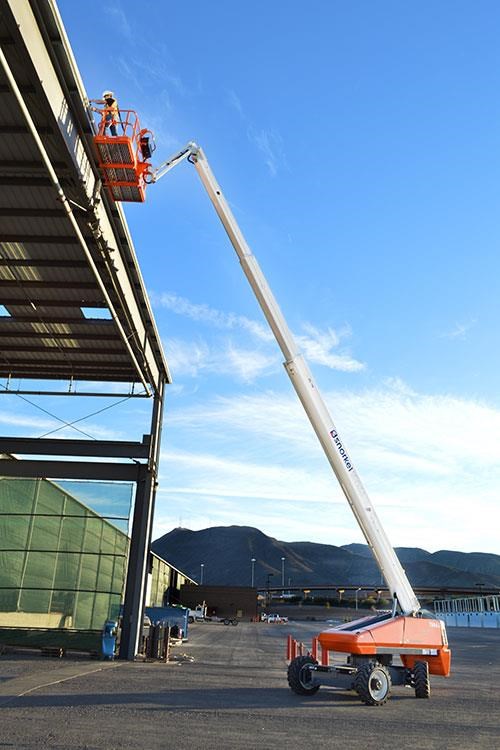

Snorkel TB86J Telescopic Boom Lift Max. Working Height: 28.2m Max. Working Outreach: 23.9m Platform Capacity: 227kg Weight: 17,549kg The Snorkel TB86J is a heavy-duty diesel telescopic boom lift, featuring a job boom for additional flexibility. Equipped with powerful 4 wheel drive and 4 wheel steer, the TB86J is ideal for construction applications and rough terrain jobsites. STANDARD FEATURES Snorkel Guard™ secondary guarding system 4-wheel drive, steer and crab steer Hydraulic platform rotation 360º continuous turntable rotation Drive motion alarm Flashing amber light Foam filled lug tires Proportional drive, boom lift, swing & extend Rheostat control for jib & platform level Power line to platform 3.5º tilt alarm Tri-entry platform Dual lanyard attachment points Hour meter & on-board diagnostics display Horn 2 year parts & labor, 5 year structural warranty Specifications: Max Working Height: 28.2m Max Platform Height: 26.2m Max Working Outreach: 23.9m Platform Size: 2.44m x 0.91m Overall Width: 2.6m Overall Length: 12.9m Stowed Height: 2.9m Ground Clearance: 330mm Platform Capacity (SWL): 227kg Max Drive Height: 26.2m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 4.8km/h Max Drive Speed (elevated): 1.0km/h Jib Length: 2.0m Jib Arc: 135° (+70°/-65°) Platform Rotation: 150° Turret Rotation: 360° continuous Tailswing: 1.9m Raise/Lower Time: 70/65 sec Gradeability: 40% Inside Turning Radius: 2.4m Outside Turning Radius: 4.7m Tyres: 15 x 625 foam filled lug Controls: Proportional joystick Drive System: 4 wheel drive Power Source: Kubota V2403 48kW/59hp diesel - Tier 4 Final Weight: 17,549kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
