SNORKEL TB126J

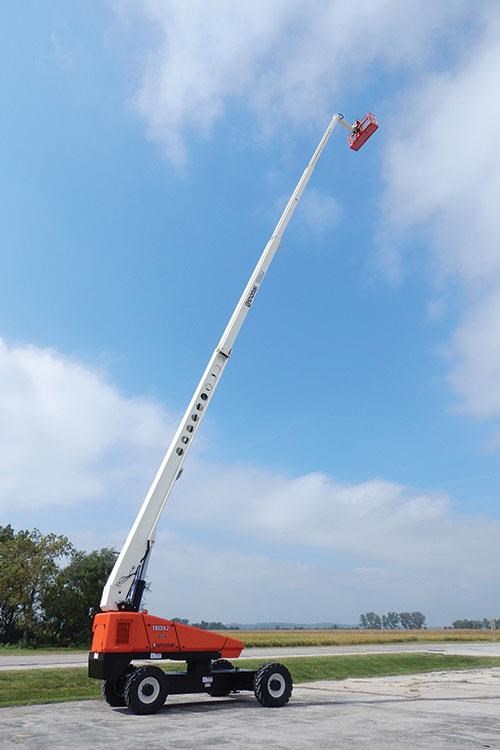

Snorkel TB126J Telescopic Boom Lift Max. Working Height: 40.4m Max. Working Outreach: 19.2m Platform Capacity: 227kg Weight: 19,000kg The Snorkel TB126J is the largest telescopic boom lift in the Snorkel product range. Designed to lift 227kg to a working height of 40.4m, it is equipped with a jib boom for added flexibility, high performance 4 wheel drive, a hydraulic powered extending rear axle and an envelope management system. STANDARD FEATURES Snorkel Guard™ secondary guarding system 2.0m 135º jib 4-wheel drive, braking & fixed front steering Hydraulic platform rotation 360º continuous turntable rotation Hydraulic extended rear axles w/ boom interlocks Built-in jack for raising chassis Flashing amber light Proportional drive, boom lift, swing, extend + jib (if equipped) Dual lanyard attachment points Foam filled tires Power line to platform 3.5º tilt & cut out 2 year parts & labor, 5 year structural warranty Max Working Height: 40.4m Max Platform Height: 38.4m Max Working Outreach: 19.2m Platform Size: 2.44m x 0.91m Overall Width: 2.6m Operational Width: 3.9m Stowed Length: 13.6m Stowed Height: 3.2m Ground Clearance: 330mm Platform Capacity (SWL): 227kg Max Drive Height: 38.4m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 4.6km/h Max Drive Speed (elevated): 0.24km/h Jib Length: 2.0m Jib Arc: 135° (+70°/-65°) Platform Rotation: 180° Turret Rotation: 360° continuous Tailswing (axles retracted): 2.04m Tailswing (axles extended): 1.38m Raise/Lower Time: 208/215 seconds Gradeability: 30% Inside Turning Radius: 5.8m Outside Turning Radius: 10.1m Tyres: 445-65 D22.5 foam-filled lug Controls: Proportional joystick Drive System: 4 wheel drive Power Source: Kubota V2403 48kW/59hp diesel - Tier 4 Final Weight: 19,000kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
