SNORKEL A46JE

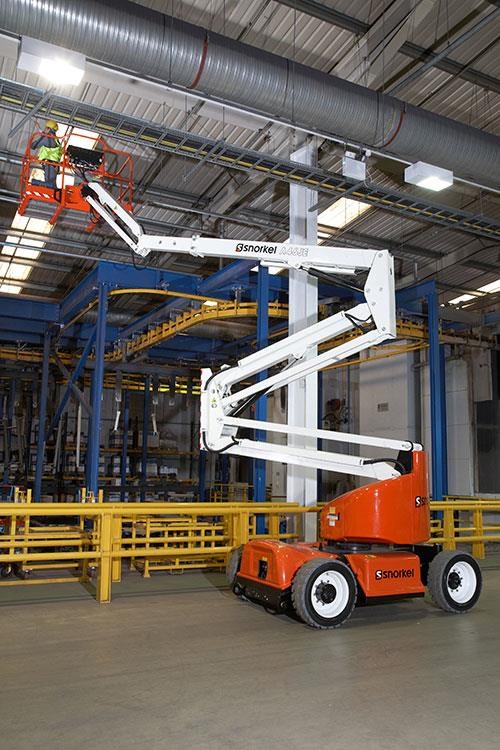

Snorkel A46JE Articulated Boom Lift Max. Working Height: 16.3m Max. Working Outreach: 7.35m Platform Capacity: 227kg Weight: 6,664kg The Snorkel A46JE is a class-leading electric articulated boom lift which can lift 227kg to a working height of 16.0m. This high performance boom delivers a superb working envelope, with the added flexibility of a jib boom. Compact dimensions, tight turning radius and zero tailswing makes this the ideal boom lift for working in tight spaces. STANDARD FEATURES Snorkel Guard™ secondary guarding system Multi-function proportional controls Zero tailswing Tri-entry platform Non-marking tires Power line to platform Hour meter & on-board diagnostics display Tilt alarm Horn Battery charge indicator Drive motion alarm Flashing amber light Platform overload system 2 year parts & labor, 5 year structural warranty Specifications: Max Working Height: 16.0m Max Platform Height: 14.0m Max Working Outreach: 7.35m Clearance Height at Max. Outreach: 7.46m Platform Size: 1.0m x 1.83m Overall Width: 1.7m Overall Length: 5.6m Stowed Height: 2.0m Ground Clearance: 152mm Platform Capacity (SWL): 227kg Max Drive Height: 14.0m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 5.1km/h Max Drive Speed (elevated): 0.8km/h Jib Length: 1.5m Jib Arc: 140° Platform Rotation: 160° Turret Rotation: 360° non-continuous Tailswing: 0m Raise/Lower Time: 99/92 seconds Gradeability: 30% Inside Turning Radius: 0.6m Outside Turning Radius: 3.0m Tyres: Non-marking IN240/55D 17.5 Controls: Proportional Drive System: 2 wheel drive Power Source: 8 x 6V 360Ah batteries Weight: 6,664kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
