SNORKEL A38E

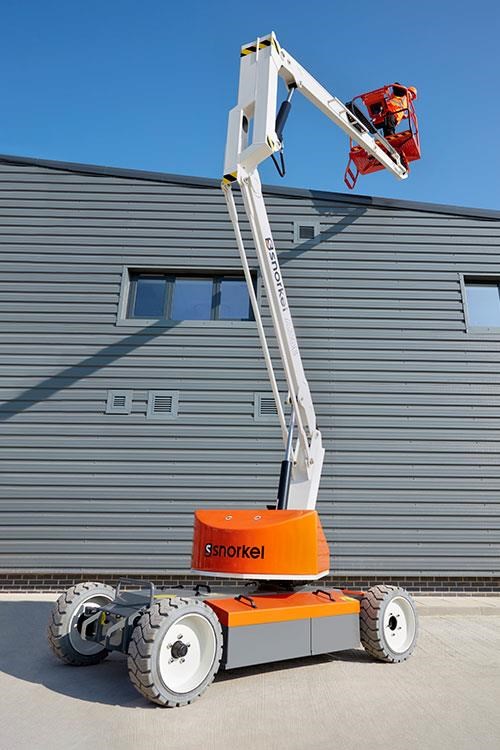

Snorkel A38E Articulated Boom Lift Max. Working Height: 13.5m Max. Working Outreach: 6.1m Platform Capacity: 215kg Weight: 3,880kg The class-leading Snorkel A38E is a lightweight, durable and reliable electric articled boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility. STANDARD FEATURES Snorkel Guard™ secondary guarding system Proportional controls Hydraulic platform rotation Minimal front boom overhang Ultra-tight inside turning radius 3.5º tilt alarm Direct DC drive Non-marking tires Platform overload system Integrated battery charger 90-240V 25A 50/60Hz Hour meter & on-board diagnostics display Horn Flashing amber light Drive motion alarm Power line to platform 2 year parts & labor, 5 year structural warranty Specifications: Max Working Height: 13.5m Max Platform Height: 11.5m Max Working Outreach: 6.1m Clearance Height at Max. Outreach: 5.4m Platform Size: 0.69m x 1.11m Overall Width: 1.5m Overall Length: 4.1m Stowed Height: 2.0m Ground Clearance: 120mm Platform Capacity (SWL): 215kg Max Drive Height: 11.5m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 4.0km/h Max Drive Speed (elevated) Forward: 0.5km/h Max Drive Speed (elevated) Reverse: 0.4 km/h Platform Rotation: 90º (+45º/-45º) Turret Rotation: 360° non-continuous Tailswing (riser boom elevated): 0m Tailswing (riser boom stowed): 1.4m Raise/Lower Time: 83/68 sec Gradeability: 36% Inside Turning Radius: 1.12m Outside Turning Radius: 2.4m Tyres: 22 x 9 16 non-marking rubber Controls: Proportional Drive System: Direct drive DC Power Source: 8 x 6V, 220Ah batteries Weight: 3,880kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
