SNORKEL 660SJ

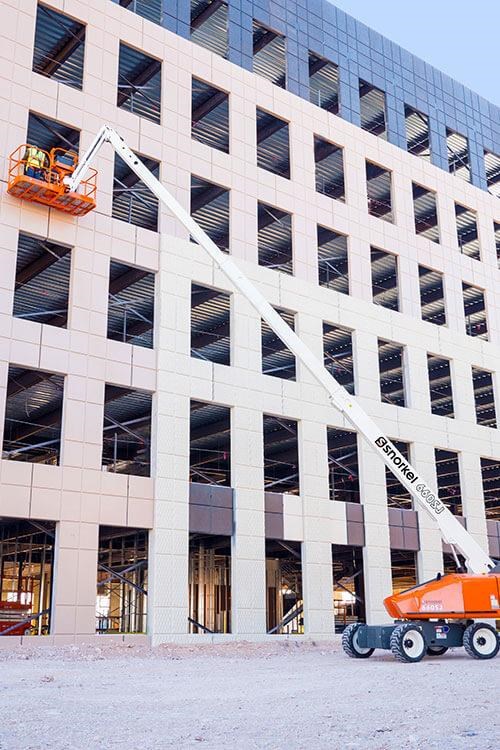

Snorkel 660SJ Telescopic Boom Lift Max. Working Height: 22.0m Max. Working Outreach: 17.7m Platform Capacity: 272kg Weight: 12,982kg The new Snorkel 660SJ is the largest of the new Snorkel diesel mid-size telescopic boom lift family, featuring powerful constant four wheel drive and a fixed axle for excellent rough terrain performance. Equipped with Snorkel's new removeable tri-entry platform designed for fast replacement, and a 2.0m jib boom, this all-steel lift features Snorkel Guard™ secondary guarding system as standard. Ideal for construction and industrial applications. STANDARD FEATURES Snorkel Guard™ secondary guarding system 1.67m 135º jib Oscillating axle (203mm of oscillation) Hydraulic platform rotation Hydraulic oil cooler Four wheel drive All proportional controls Swing-out engine tray Hour meter & on-board diagnostics display Power line to platform 5° tilt alarm & cut out Tilt alarm & cut out DC emergency operation Tri-entry platform Flashing amber light Platform overload system 2 year parts & labor, 5 year structural warranty Specifications: Max Working Height: 22.0m Max Platform Height: 20.0m Max Working Outreach: 17.7m Platform Size: 2.44m x 0.91m Overall Width: 2.46m Transport Length: 8.3m Overall Length: 10.1m Transport Width: 2.24m Transport Height: 2.9m Stowed Height: 2.51m Ground Clearance: 340mm Platform Capacity - Unrestricted: 272kg Platform Capacity - Restricted: 454kg Max Drive Height: 20.0m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 5.6km/h Max Drive Speed (elevated): 0.96km/h Jib Length: 1.67m Jib Arc: 135º (+70º/-65º) Platform Rotation: 150° Turret Rotation: 360° continuous Tailswing: 1.2m Raise/Lower Time: 50 / 50 sec Gradeability: 45% Inside Turning Radius: 3.06m Outside Turning Radius: 5.21m Tyres: 355/55 D625 foam filled lug Controls: Proportional drive, raise, slew, extend, jib & platform rotate Drive System: 4 wheel drive Power Source: Cummins 65hp (47.8kW) turbo diesel, Deutz T4F, Stage V Auxiliary Power Unit: 12V DC Weight: 12,982kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
