SNORKEL 660SJ

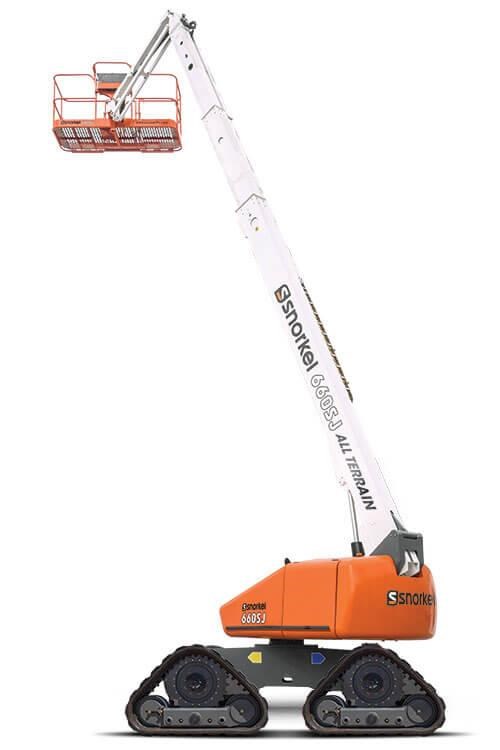

Snorkel 660SJ All Terrain Telescopic Boom Lift Max. Working Height: 22.1m Max. horizontal reach: 17.8m Platform Capacity: 272kg Weight: 13,750kg The Snorkel 660SJ All Terrain telescopic boom lift offers enhanced traction. Turf-friendly independent rubber tracks can traverse uneven terrain without sinking into loose sediment, soft soil, sand, snow and mud. Designed with full-time active oscillating axle, the 660SJ All Terrain delivers smooth performance and low ground pressure on sensitive environments. STANDARD FEATURES Snorkel Guard™ secondary guarding system 1.67m 135º jib Oscillating axle (203mm of oscillation) Hydraulic platform rotation Hydraulic oil cooler 4-track drive All proportional controls Swing-out engine tray Motion alarm Horn Hour meter & on-board diagnostics display Power line to platform 5º tilt alarm & cut out Hour meter & on-board diagnostics display DC emergency operation Tri-entry platform Flashing amber light Platform overload system 2 year parts & labor, 5 year structural warranty Specifications: Max Working Height: 22.1m Max Platform Height: 20.1m Max Horizontal Outreach: 17.8m Platform Size: 2.44m x 0.91m Overall Width: 2.46m Transport Width: 2.24m Transport Length: 8.3m Overall Length: 10.1m Transport Height: 3.0m Stowed Height: 2.61m Ground Clearance: 444mm Platform Capacity - Unrestricted: 272kg Platform Capacity - Restricted: 454kg Max Drive Height: 20.1m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 5.6km/h Max Drive Speed (elevated): 0.96km/h Jib Length: 1.67m Jib Arc: 135° (+70°/-65°) Platform Rotation: 150° Superstructure Rotation (continuous): 360° Tailswing: 1.2m Raise/Lower Time: 50 / 50 sec Gradeability: 45% Inside Turning Radius: 5.94m Outside Turning Radius: 8.38m Tyres: Independent rubber tracks Controls: Proportional drive, raise, slew, extend, jib & platform rotate Drive System: 4 track drive Power Source: Deutz 2.9L 55kW/74hp - Stage V Auxiliary Power Unit: 12V DC Weight: 13,750kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
