Features
| Title | OPTIMUM TU-2506V-20M |
| Type | Engineering - Fabrication |
| Sub Type | Lathes |
| Make | OPTIMUM |
| Model | TU-2506V-20M |
| Sale Price | $2,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 675956 |
| RefCode | TA1267175 |
Description
TU-2506V-20M Opti-Turn Lathe & Mill Drill Combination Package Deal 250 x 550mm Included BF-20AV Mill
OPTIMUM TU-2506V-20M Opti-Turn Lathe & Mill Drill Combination Package Deal 250 x 550mm Included BF-20AV Mill Head
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K147

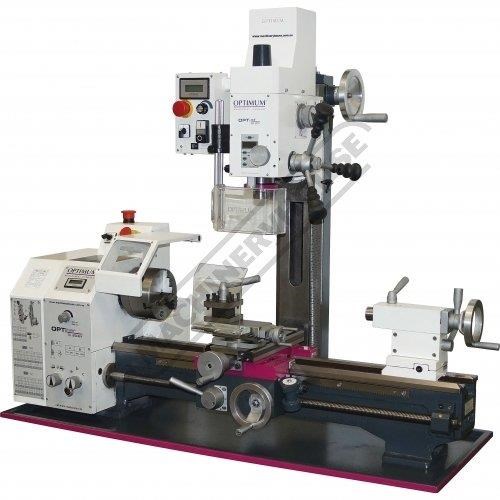

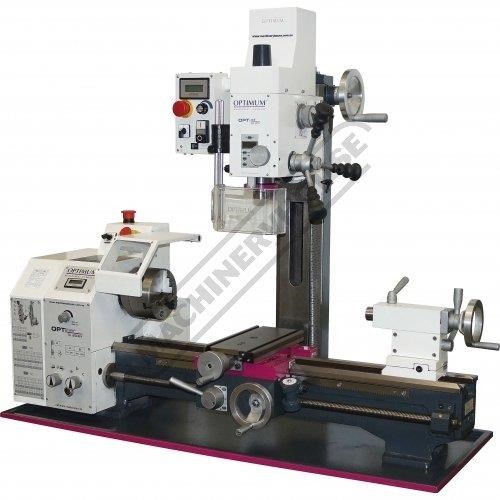

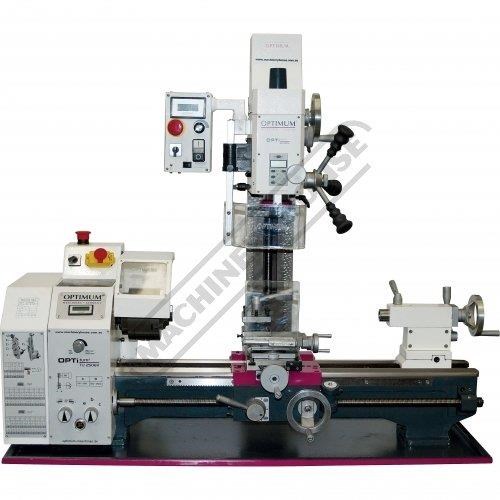

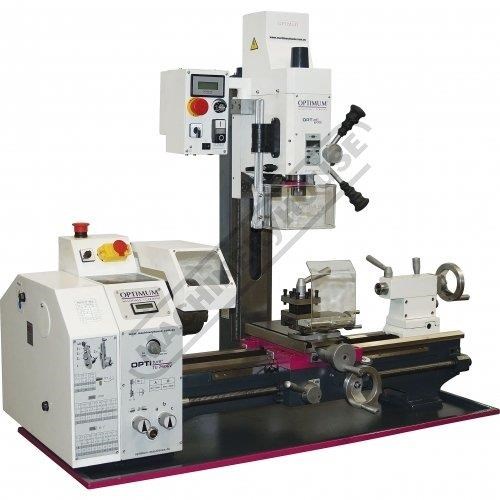

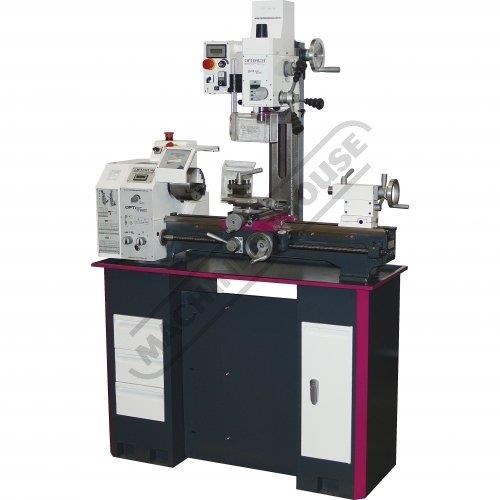

TU-2506V-20M Combination Lathe & Mill-Drill consist of TU-2506V bench lathe & BF-20AV mill head
A variable speed Lathe & Mill-Drill combination machine of very modern design with many convenient facilities has greater capacity due to the larger milling drilling head model BF-20AV. In addition the mill head also incorporates a digital readout display ideal for the enthusiastic model engineer or with limited space in the work shop. A very rigid cast iron bed with ground slide-ways gives a high level of precision.

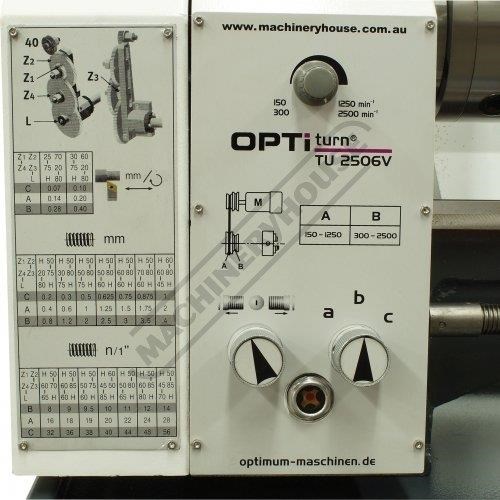

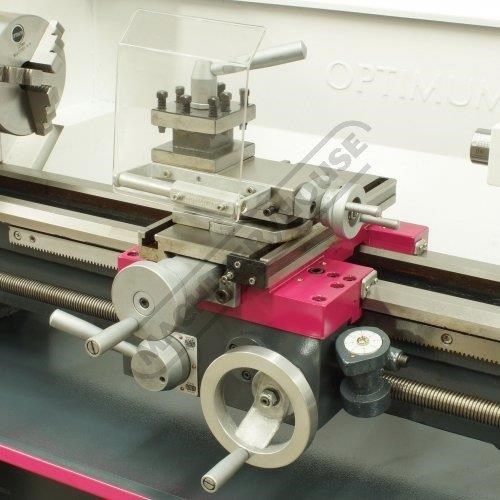

Featuring as standard on the lathe is a longitudinal power feed, quick lock tailstock, both metric and imperial thread cutting capability and also including a milling & drilling head to turn this machine into a very versatile & capable small all round machine. This machine is suitable for bench mounting, but recommended the addition of the optional stand so not to take up valuable bench space. We are sure this machine will please the model engineer or the serious enthusiast.
Features:

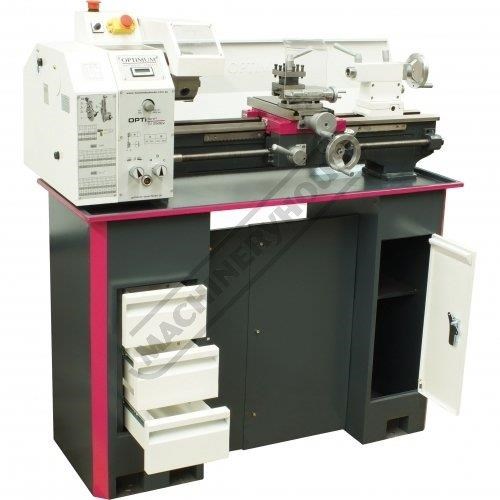

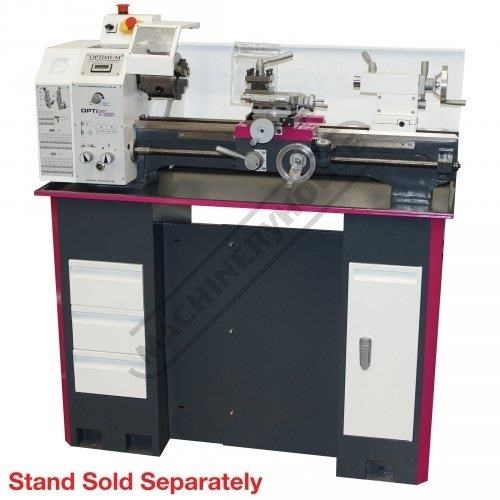

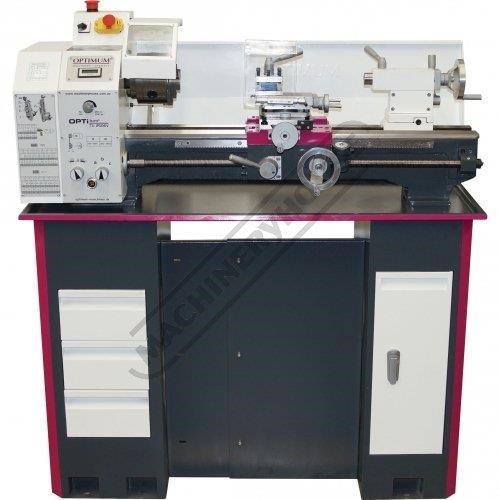

LATHE: TU-2506V
Ideal for small workshops

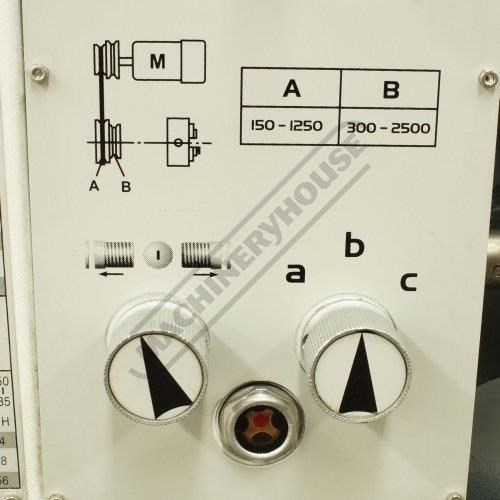

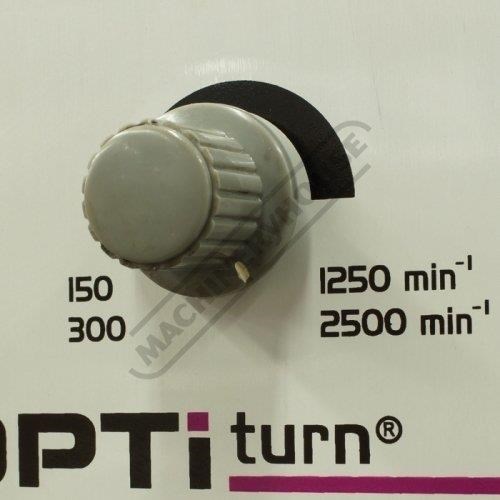

Electronic infinitely variable speed 150-2500rpm

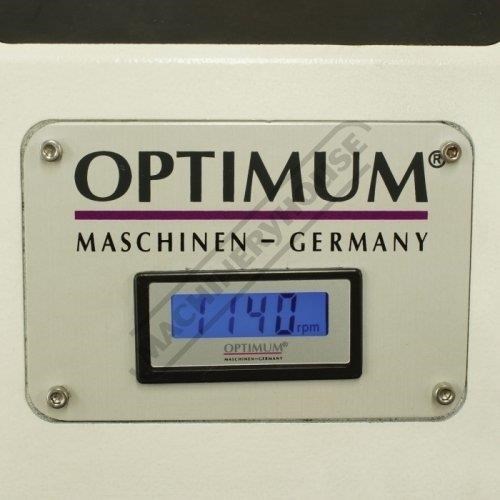

Easy to read digital readout speed display
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm

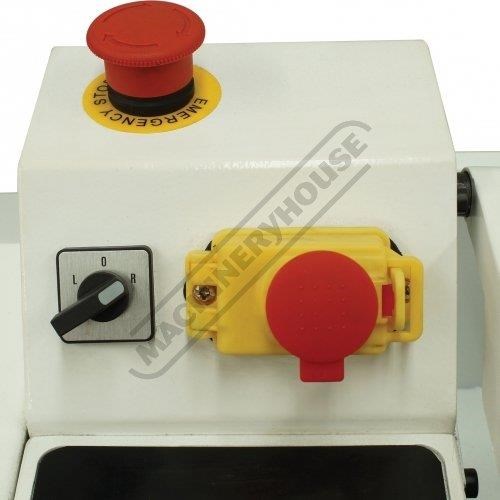

Forward & reverse spindle direction switch

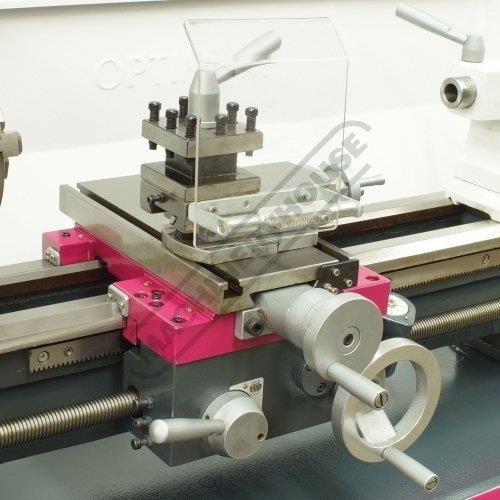

Automatic longitudinal feed

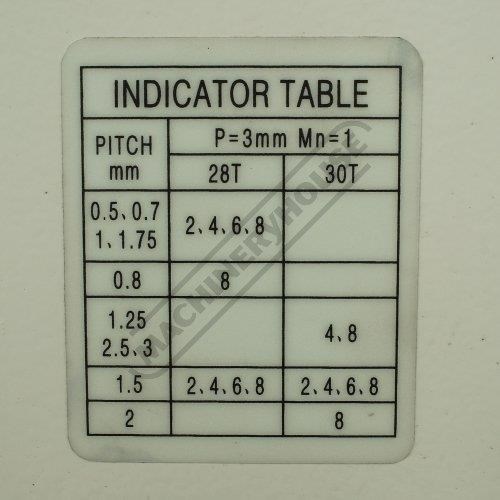

Metric & Imperial thread cutting
Enclosed feed and threading gearbox
MILL: BF-20AV
Electronic infinitely variable speed
3MT spindle taper
Dovetail vertical Z-Axis
Digital readout speed display
Work light mounted underneath mill head
Digital depth display with zero reset for quill
Tilting head to ± 90° from vertical
2 speed gearbox (high / low) drive
Forward and reverse spindle switch
Scale collars for all Axis are adjustable
Adjustable dovetail slideway on Z-Axis
Adjustable drill length stop
Metric dial graduations
Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment.
Includes:
- LATHE: TU-2506V

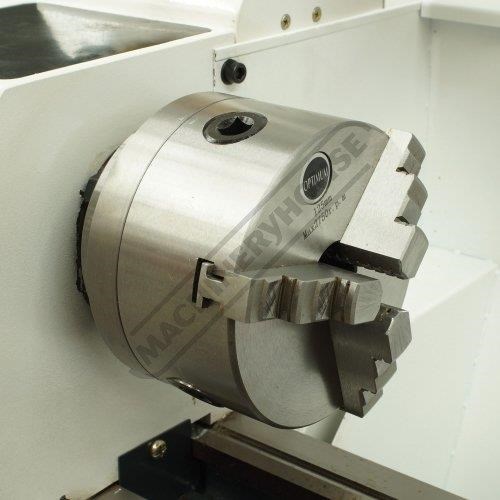

- 125mm 3-jaw chuck
- Change gears for metric & Imperial thread cutting

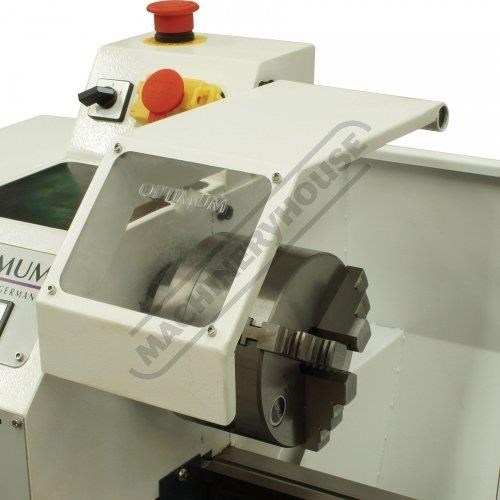

- Chuck guard

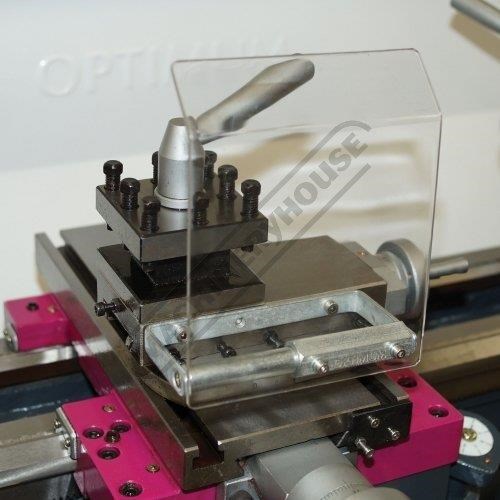

- Toolpost guard
- Dead Centre
- 3-jaw chuck with reversible jaws
- Swarf tray
- Rear splash guard
-
- MILL: BF-20AV
- 3MT x JT6 drill chuck arbor
- Safety cutter guard
- Bracket kit for optional digital readout.
Specifications:
ORDER CODE: K147
MODEL: TU-2506V-20M
KIT Includes: TU-2506V & BF-20AV
Lathe Specifications: LATHE SPECIFICATIONS
Tool Height To Suit (mm): 12
Distance Between Centres (mm): 550
Swing Over Bed (mm): 250
Swing Over Cross Slide (mm): 150
Centre Height (mm): 125
Spindle Bore (mm): 26
Spindle Nose Type: Fixed
Bed Width (mm): 135
Headstock Taper (MT): 4
Tailstock Taper (MT): 2
Cross Slide Travel (mm): 110
Compound Slide Travel (mm): 70
Leadscrew: Metric
Longitudinal Feed (Z-Axis) (mm/rev): 0.07 - 0.4
Cross Feed (X-Axis): ~
Metric Thread Range (mm): 0.2 - 3.5
Imperial Thread Range (TPI): 8 - 56
Three Jaw Chuck Size (mm): 125
Four Jaw Chuck Size: Optional
Spindle Speeds (No. / rpm): Variable (150 - 2500)
Motor Power - Lathe (kW / hp): 1.2 / 1.6
Voltage / Amperage - Lathe (V / amp): 240 / 10
Mill Specifications: MILL SPECIFICATIONS
Spindle Taper (MT): 3
Column Type: Dovetail
Swivel Head (Left ~ Right) (± Deg): ±90
Vertical Travel (Z-Axis) (mm): 280
Drilling Capacity (mm): 16
End Milling Capacity (mm): 20
Face Milling Capacity (mm): 63
Spindle Speeds Vertical (No. / rpm): Variable (90-3000)
Motor Power - Mill (kW / hp): 0.85 / 1.13
Voltage / Amperage - Mill (V / amp): 240 / 10
Nett Weight (kg): 259
To Purchase Online Please Visit The Machineryhouse Website & Search For 'K147'
