Contact Seller
Features
| Title | OPTIMUM TU-3008G |
| Type | Engineering - Fabrication |
| Sub Type | Lathes |
| Make | OPTIMUM |
| Model | TU-3008G |
| Sale Price | $4,390 GST Exclusive |
| Listing Type | New |
| Stock Number | 421691 |
| RefCode | TA1266600 |
Description

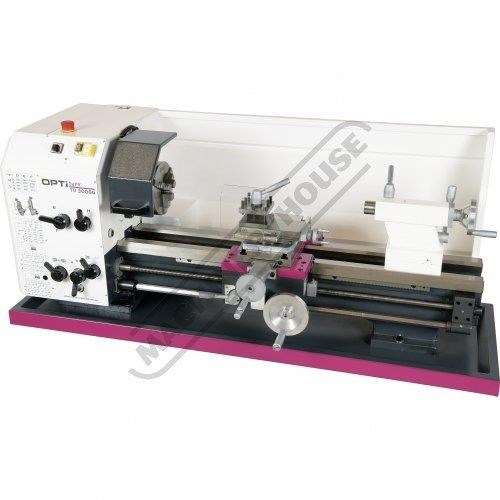

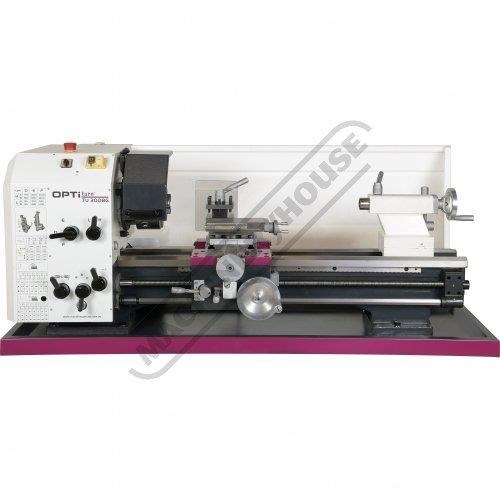

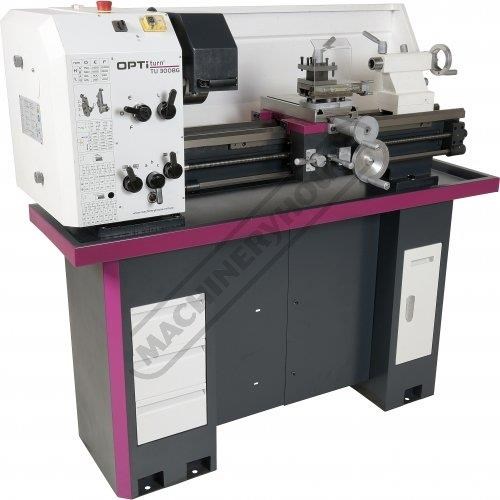

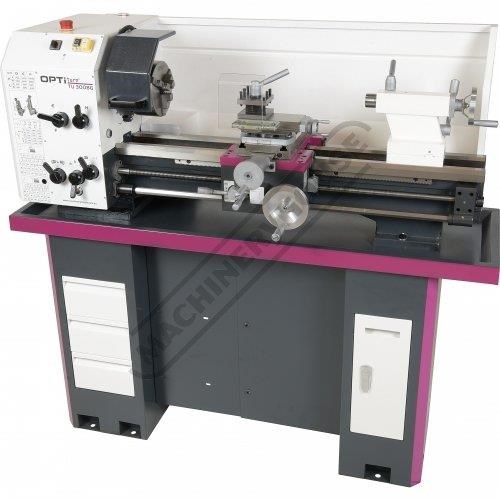

TU-3008G Opti-Turn Bench Lathe Package Deal Ø300 x 700mm Turning Capacity - Ø38mm Spindle Bore 12 Ge
OPTIMUM TU-3008G Opti-Turn Bench Lathe Package Deal Ø300 x 700mm Turning Capacity - Ø38mm Spindle Bore 12 Geared Head Speeds 125 ~ 2400rpm & Includes Stand & Turning Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K0012
This new TU-3008G model geared head lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid 180mm cast iron bed width, induction hardened and ground slideways gives a high level of precision turning. The lathe capacity is 700mm between the centres and 300mm swing over the bed and with a generous 38mm spindle bore allowing larger stock to be placed through the headstock. The workhorse that drives this lathe has an upgraded powerful 2hp (1.5kW) motor providing smooth running.
Other very useful features included are cross and longitudinal power feeds that's not normally found of small conventional lathes, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-56 tpi or 0.2-3.5mm pitch. Also included are a 4-way indexing tool post with 16mm tool shank capacity, fine adjustment on the tailstock for taper turning and the rear splash guard. A 160mm 3-jaw chuck with reverse jaws is also supplied. There are many additional options available including a milling head (BF-16AV) or (BF-20AV) to turn this machine into a very capable all round machining centre.
Features:

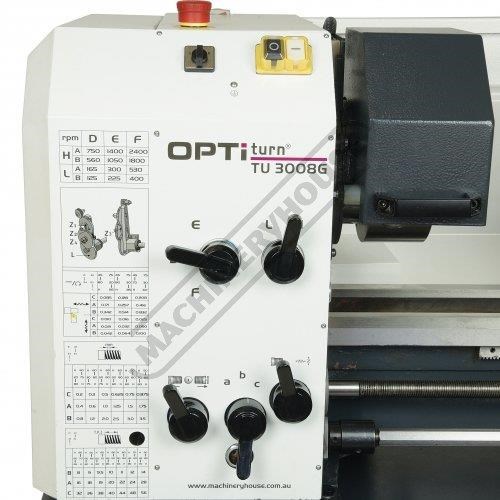

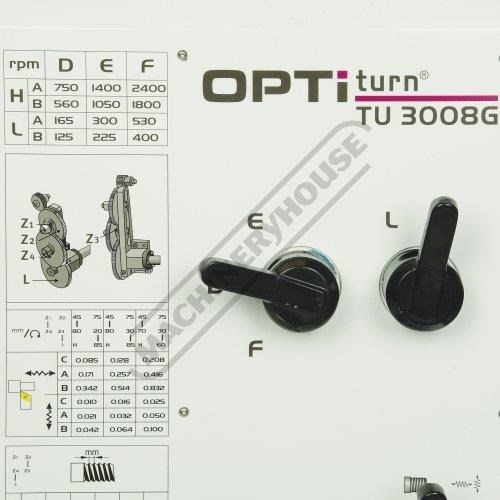

Geared headstock for quick change of 12 spindle speeds 125-2400rpm
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways

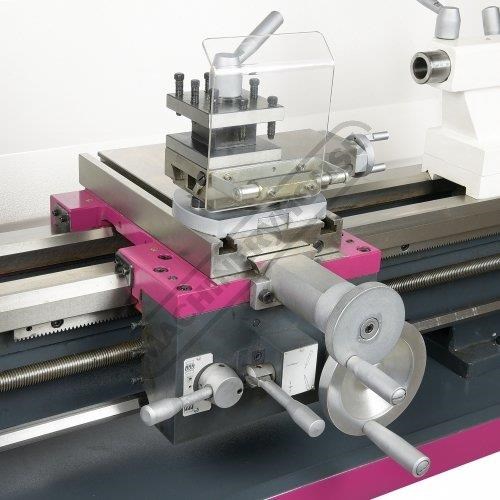

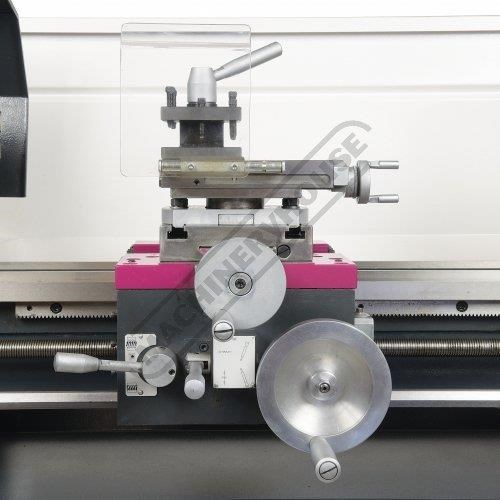

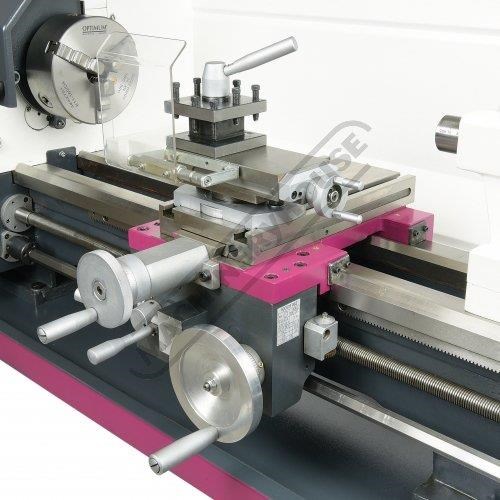

Automatic cross & longitudinal power feeds
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm

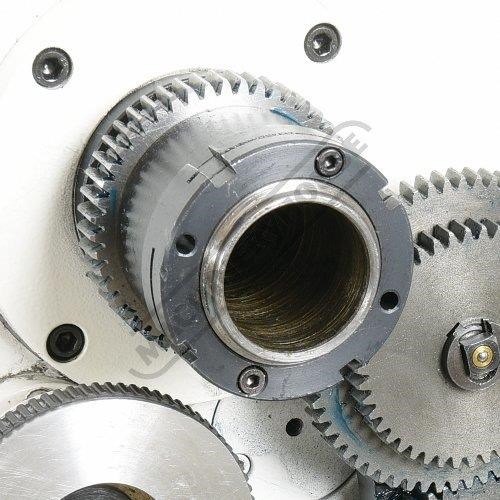

D1-4 camlock spindle for quick chuck changes

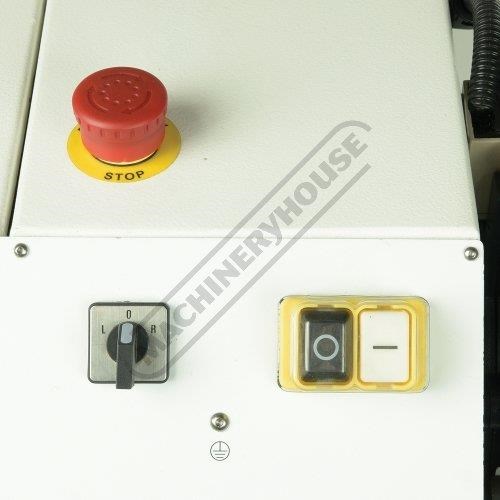

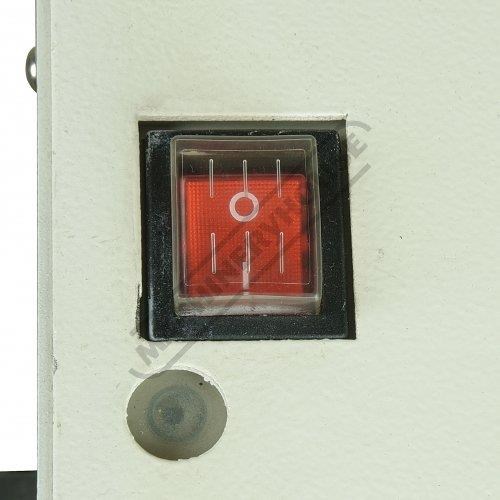

Forward & reverse spindle direction switch
Oils sight glass on head-stock & gearbox

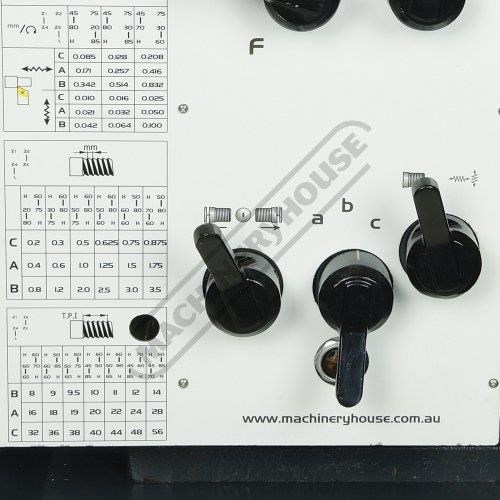

Change gears for metric and imperial thread cutting
Enclosed feed and threading gearbox
Belt cover with tamper proof safety micro switch

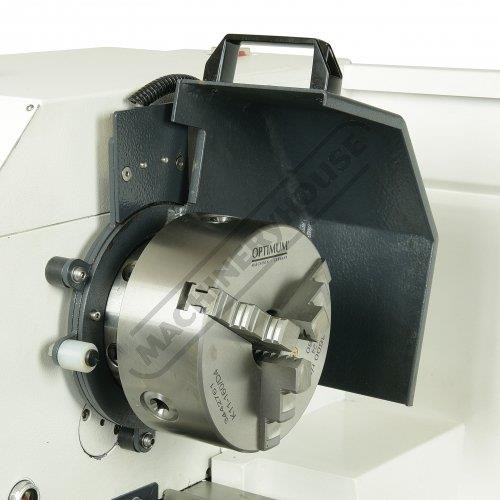

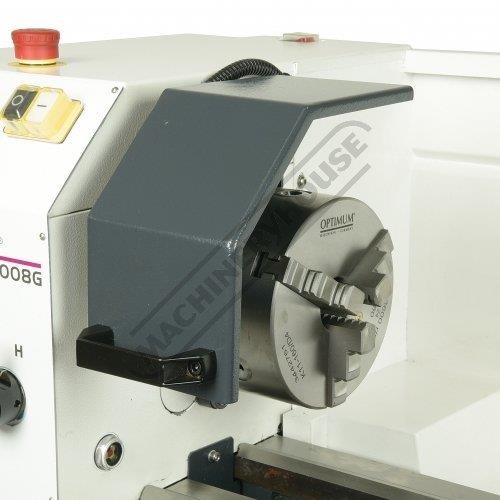

Heavy duty rotating safety chuck guard with micro switch

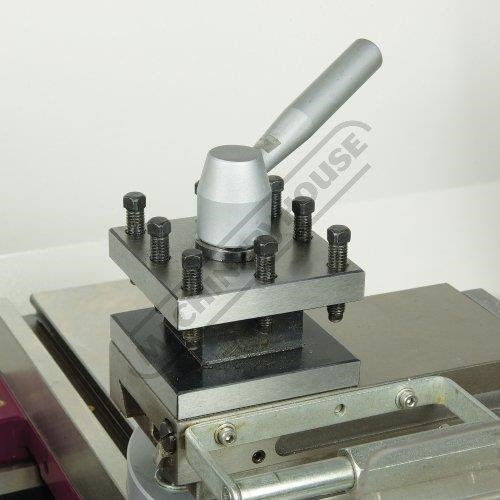

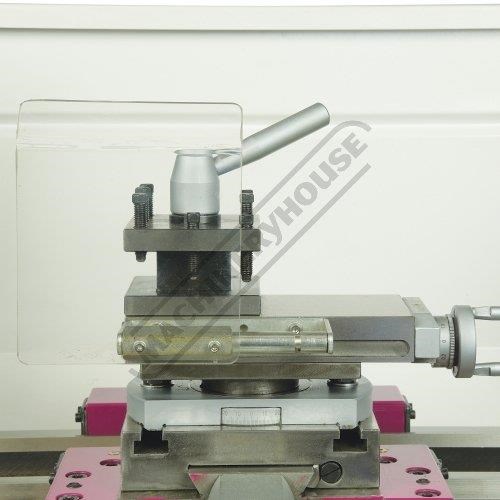

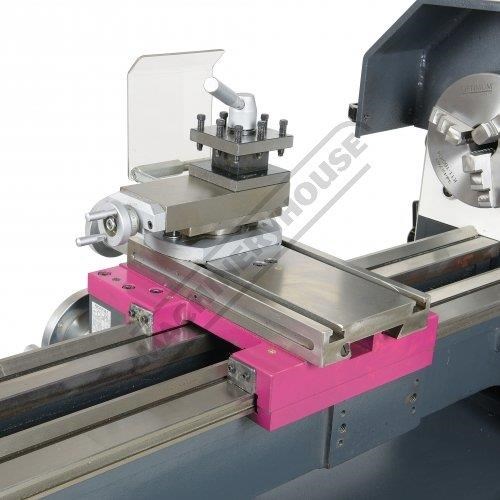

Sliding tool post safety guard
Cross slide & bed length are designed to fit Optimum DRO scales

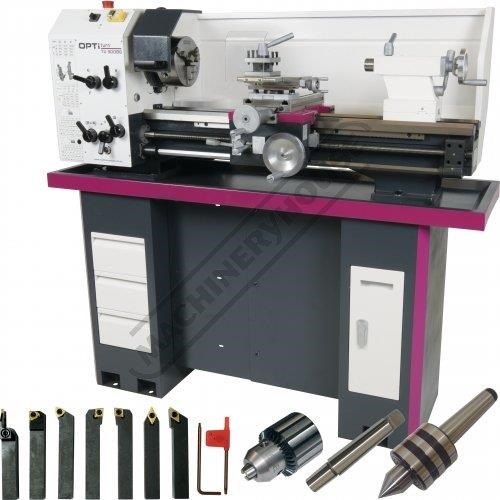

Includes:
- TU-3008G - Opti-Turn Bench Lathe (L691)
- ST-2506V Lathe Stand (L690)
- 7 piece - Lathe Turning Tool Kit - Insert Type (L0077)
- Heavy Duty - Drill Chuck - Keyed Type (C290)
- 3MT x JT3 - Drill Chuck Arbor (D443A)
- 3MT Live Centre (C052)
- Change gears for metric & Imperial thread cutting
- Chuck guard
- Toolpost guard
- 2 dead centres

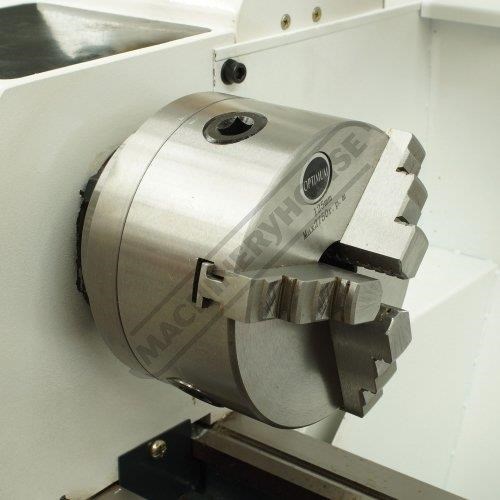

- 3-jaw chuck with reversible jaws
- Swarf drip tray
- Rear splash guard
Specifications:
ORDER CODE: k0012
MODEL: TU-3008G - Package Deal
Swing Over Bed (mm): 300
Distance Between Centres (mm): 700
Spindle Bore (mm): 38
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 190
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 16
Centre Height (mm): 150
Spindle Nose Size or Type: D1-4
Bed Width (mm): 180
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 150
Compound Slide Travel (mm): 65
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.01 ~0.10
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.085 - 0.83
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 18 (0.2 - 3.5)
Imperial Thread Steps & TPI (No. / TPI): 21 (8 - 56``)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): Optional
Spindle Steps / Speeds (No. / rpm): 12 (125 - 2400)
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 365
To Purchase Online Please Visit The Machineryhouse Website & Search For 'K0012'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
