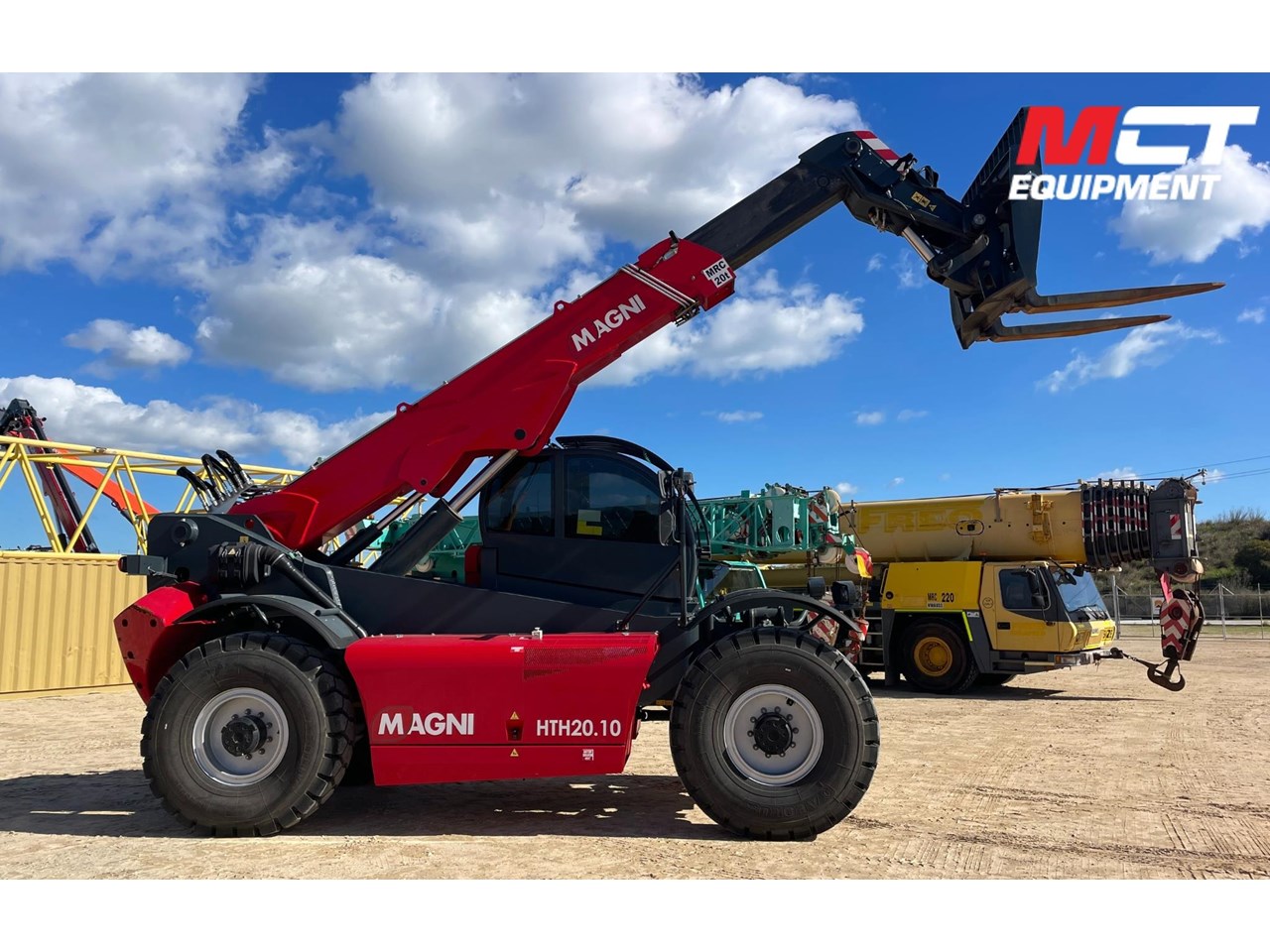

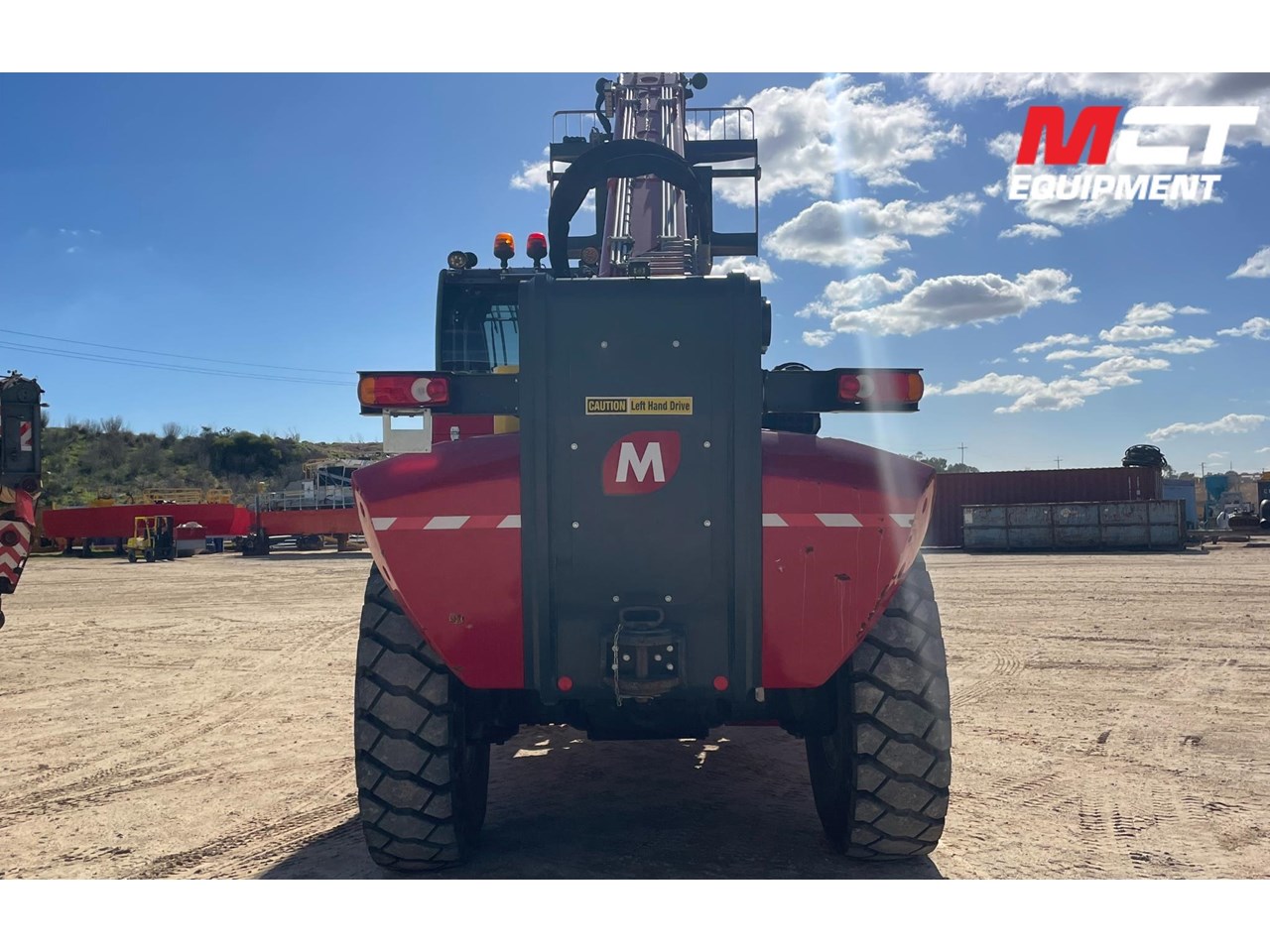

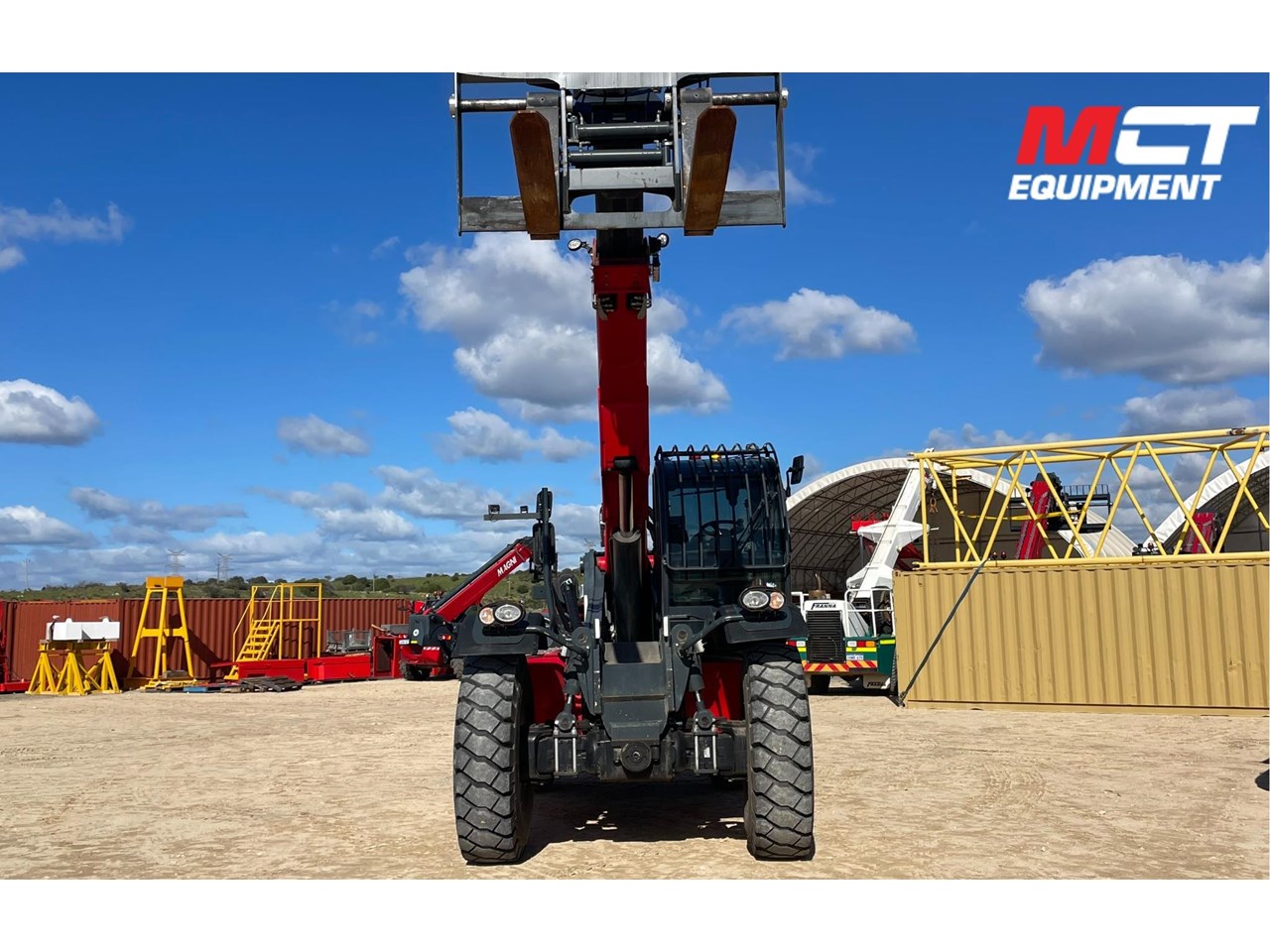

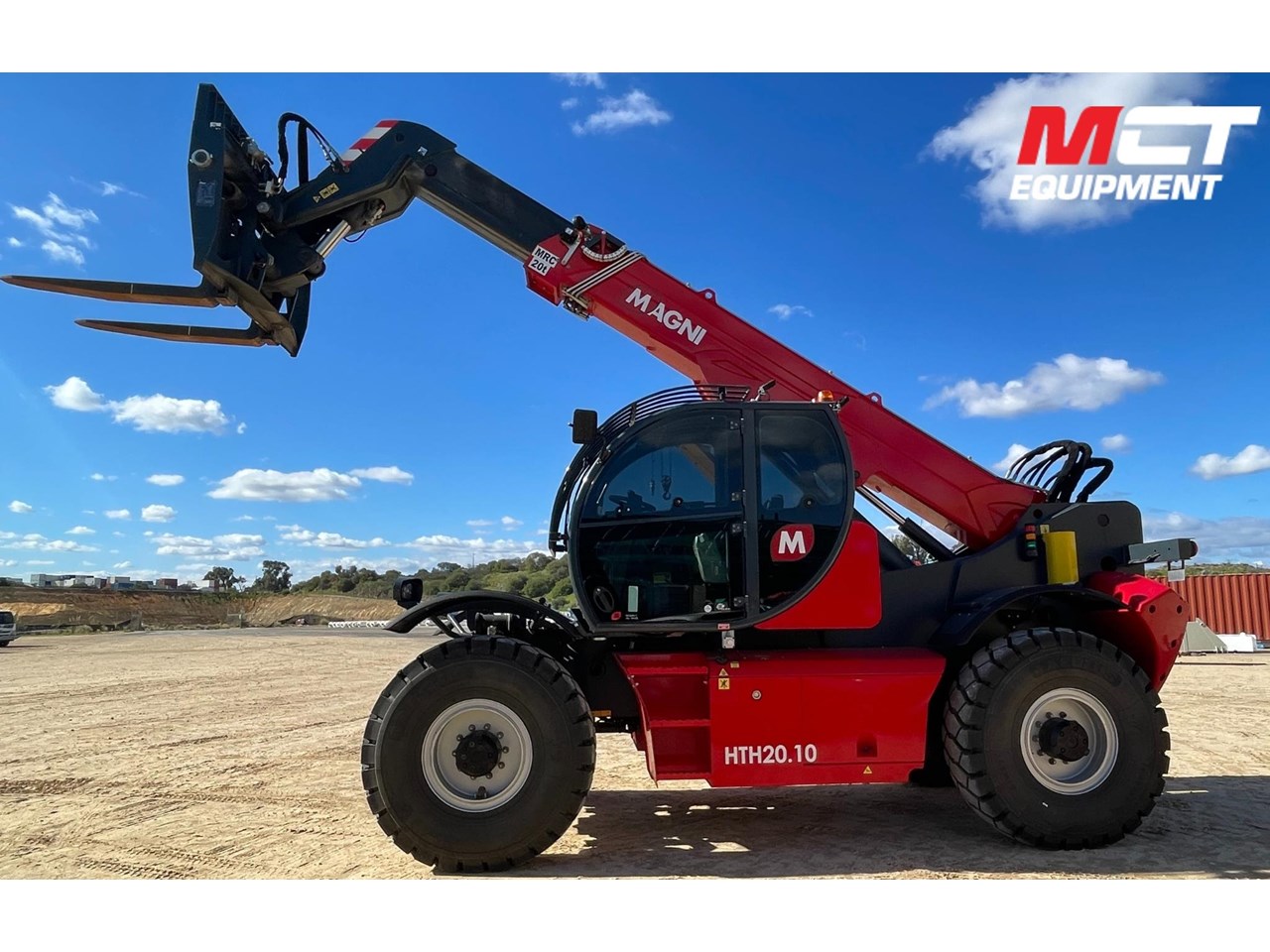

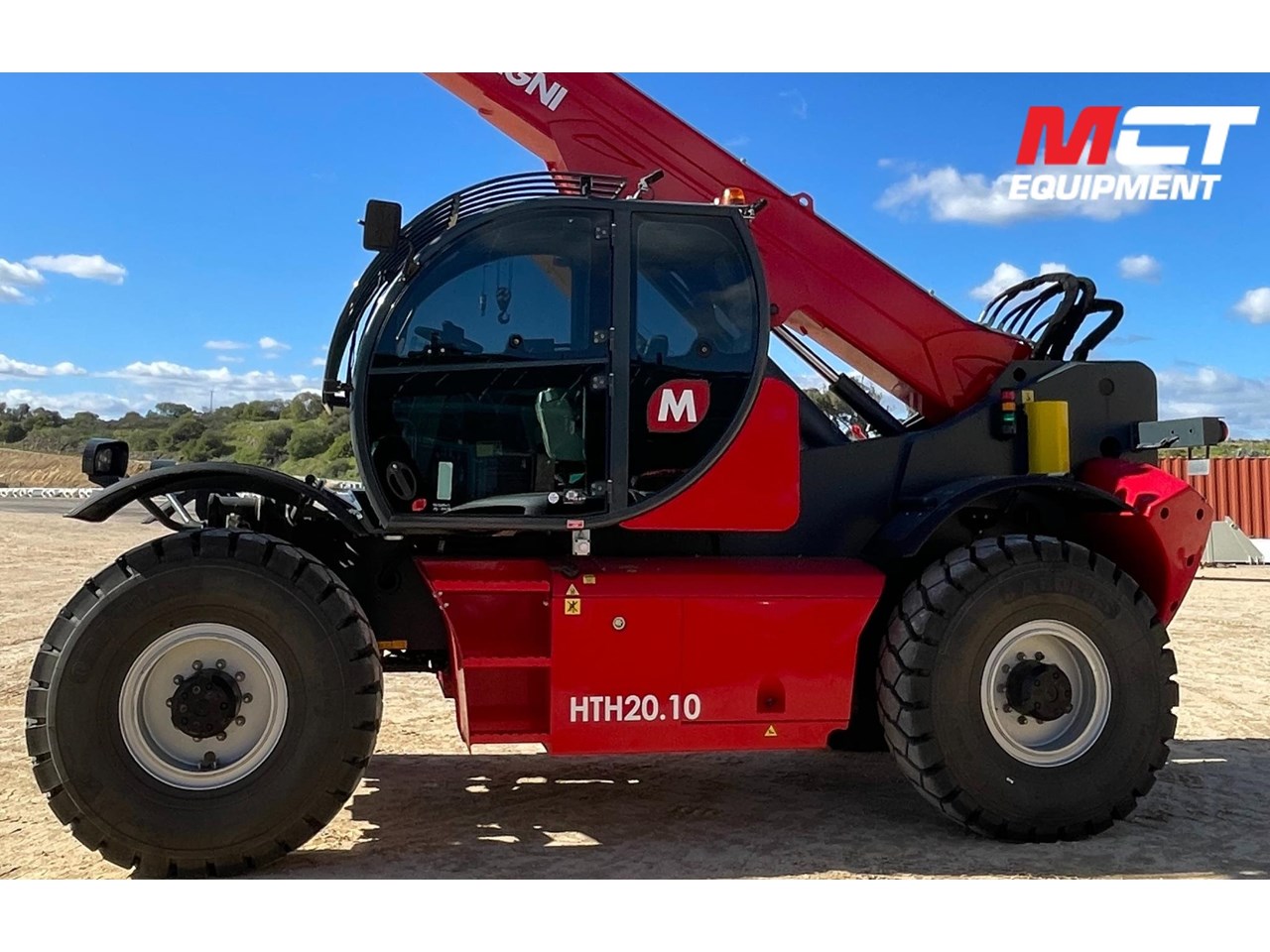

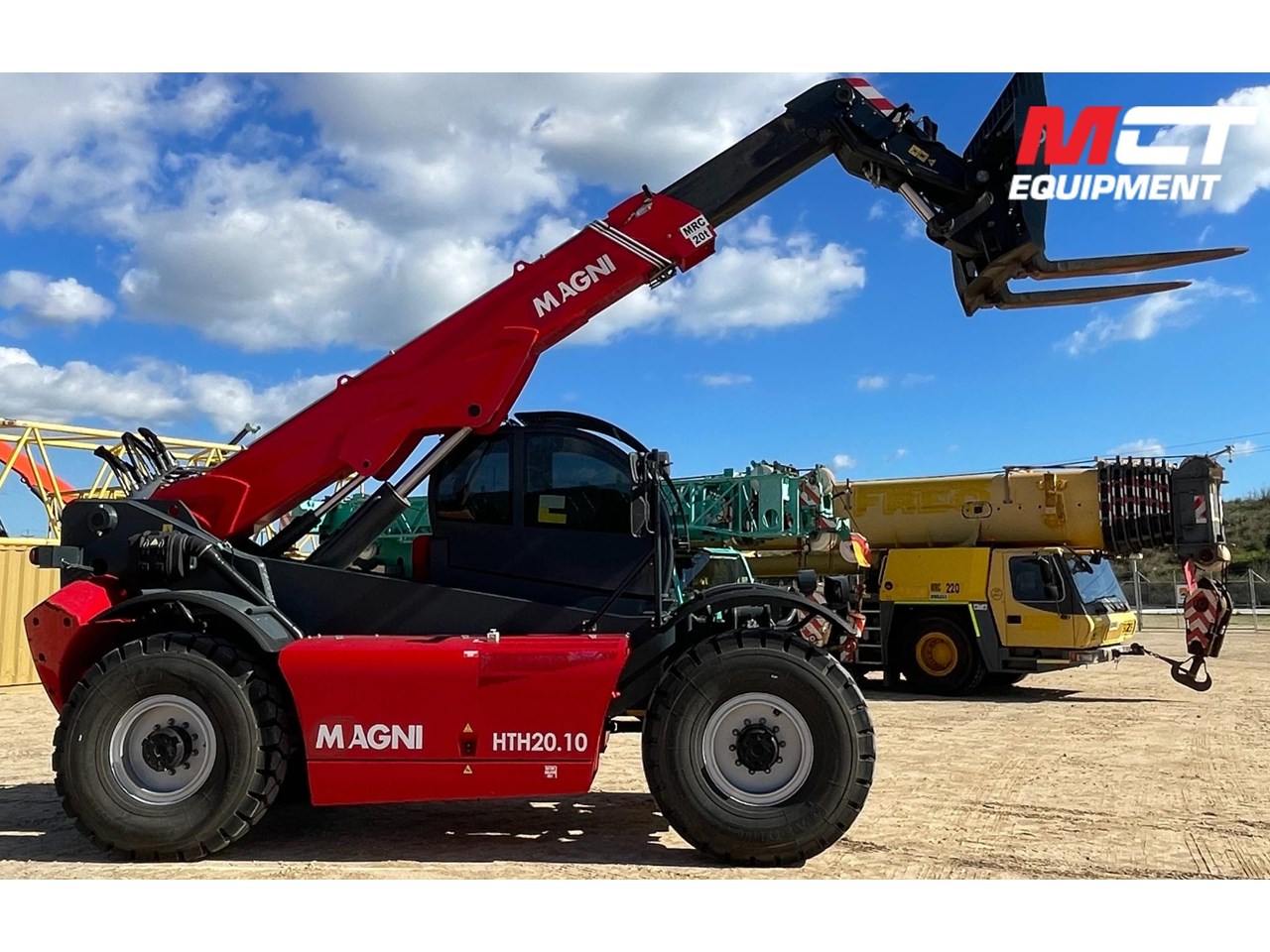

2022 MAGNI HTH 20.10

The HTH 20.10 telescopic handler is ideal for moving large, bulky loads in complete safety.

Able to lift up to 20 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

Specifications:
o Lifting capacity: 19,999 kg
o Capacity at maximum height: 15,000 kg
o Lifting height: 9.70 m
o Reach: 5.10 m

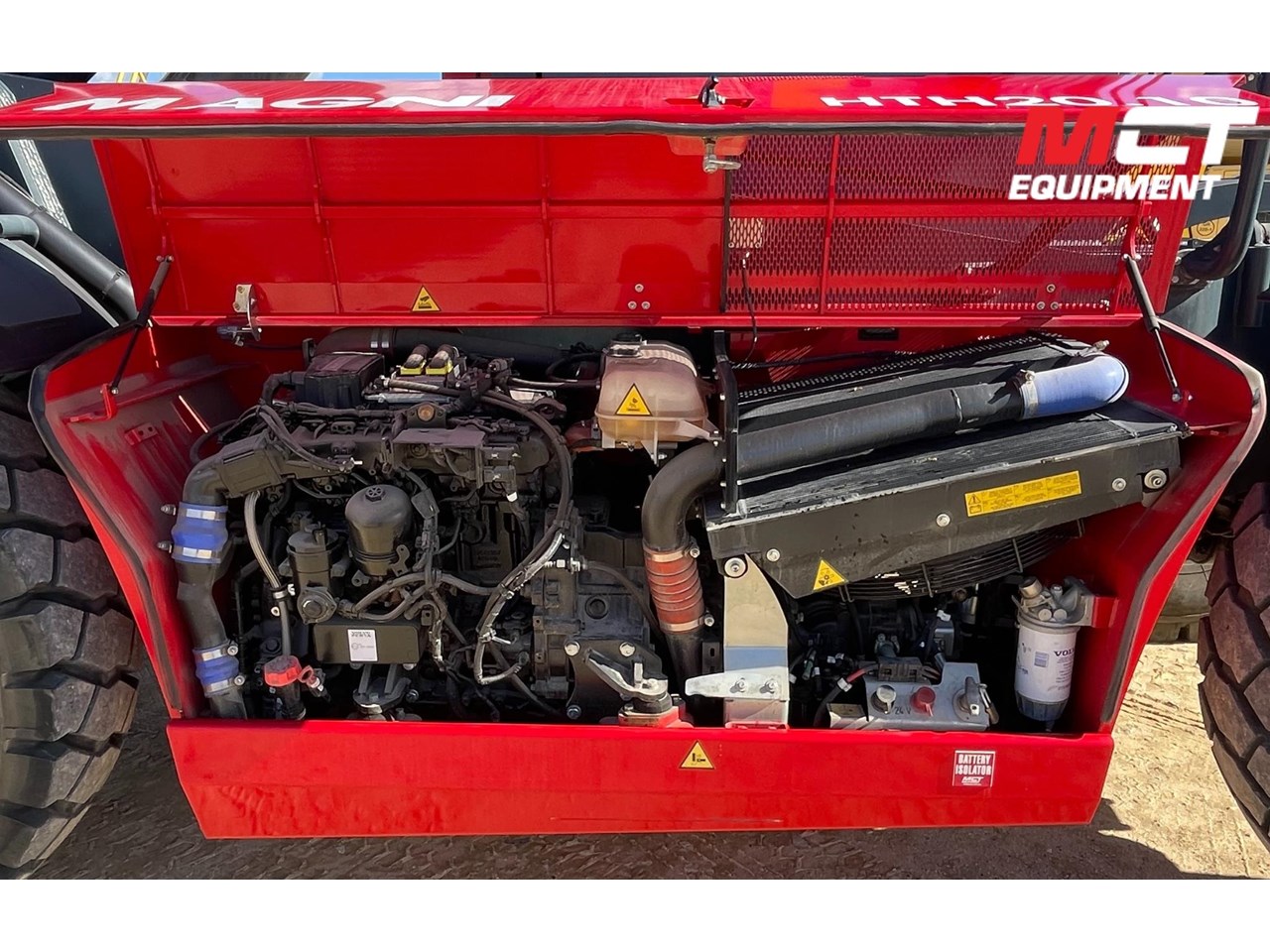

o Engine: Volvo TAD552 VE - Stage IIIA
o Rated power: 160 kW (218 hp) 2.300 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.13 m
o Width: 2.55 m
o Ground clearance: 400 mm
o Unladen weight: 24,000 kg
o Travel speed: 25 km/h

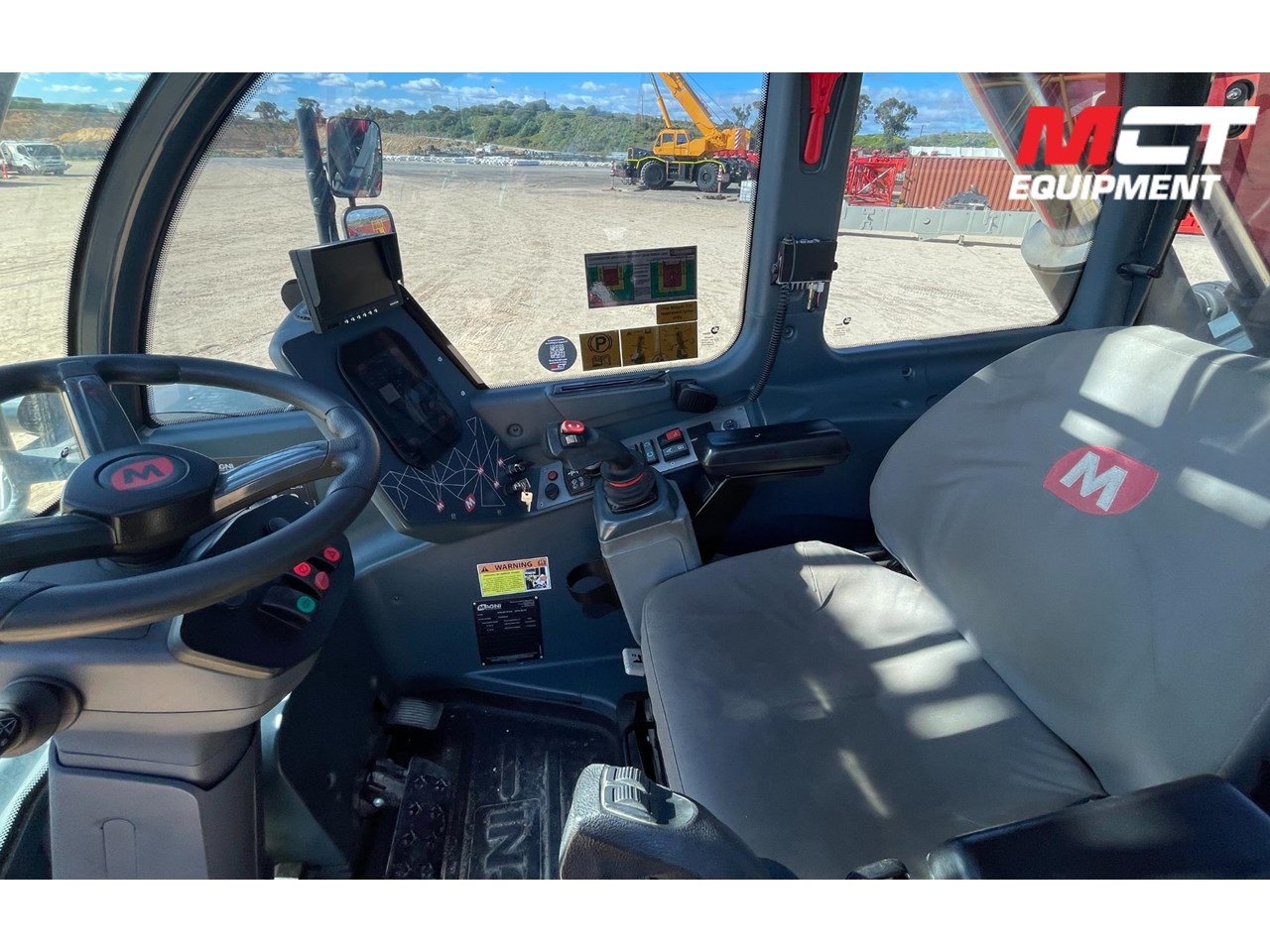

o Climate control as standard: Yes
o Automatic accessory recognition: Yes
o Reversable fan drive: Yes
o Year: 2022
o Hours: 360
o 20T Fork Positioning Carriage
o Hook
o Mine Spec
