Contact Seller
Features
| Title | LFSS DPM-K 1570-150 |
| Type | Engineering - Fabrication |
| Sub Type | Press Brakes |
| Make | LFSS |
| Model | DPM-K 1570-150 |
| Sale Price | $21,500 GST Exclusive |
| Listing Type | New |
| Stock Number | 1184840 |
| RefCode | TA1294820 |
Description

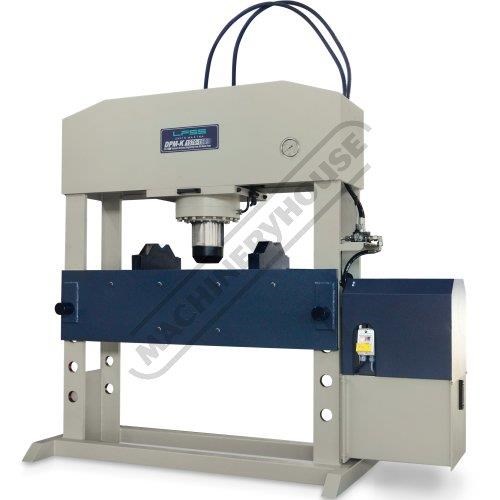

DPM-K 1570-150 Industrial Motorised Hydraulic Press with Movable Head - 150 Tonne 300mm Ram Stroke &
LFSS DPM-K 1570-150 Industrial Motorised Hydraulic Press with Movable Head - 150 Tonne 300mm Ram Stroke & 800mm Height From Ram To Table Includes Movable Cylinder Ram, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P138M
The LFSS DPM-K1570 150 Tonne electric hydraulic press features a sliding cylinder which can be moved from side to side allowing for those offset pressing jobs.
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well as all general pressing applications.
Features:
Heavy duty steel welded frame
Movable cylinder ram (left-right) allows operator to reposition the cylinder for off centre work
1570mm width between front posts
Dual-speed joystick control (fast approach slow bend)
Pressure gauge fitted for easy control of pressing operations
Heavy duty worktable with 5 adjustable positions
Worktable can be adjusted using the provided chain system which works in conjunction with the hydraulic ram
Safety overload valve
Safety contactor switch with overload protection
Built to CE regulations
Includes:
- Pair bending plates
- Table lifting and lowering chains
- Hydraulic oil
Specifications:
ORDER CODE: P138M
MODEL: DPM-K1570
Pressing Capacity (Tonne): 150
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 1570
Width Between Side Posts (mm): 360
Table Top Opening - (Front to Back) (mm): 425
Ram To Table (Max.) (mm): 800
Cylinder Stroke (mm): 300
Ram Diameter (mm): Ø280
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 11 / 15
Voltage (V): 415
Floor Space (W x D x H) (mm): 2660 x 1050 x 2480
Nett Weight (kg): 2100
To Purchase Online Please Visit The Machineryhouse Website & Search For 'P138M'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
