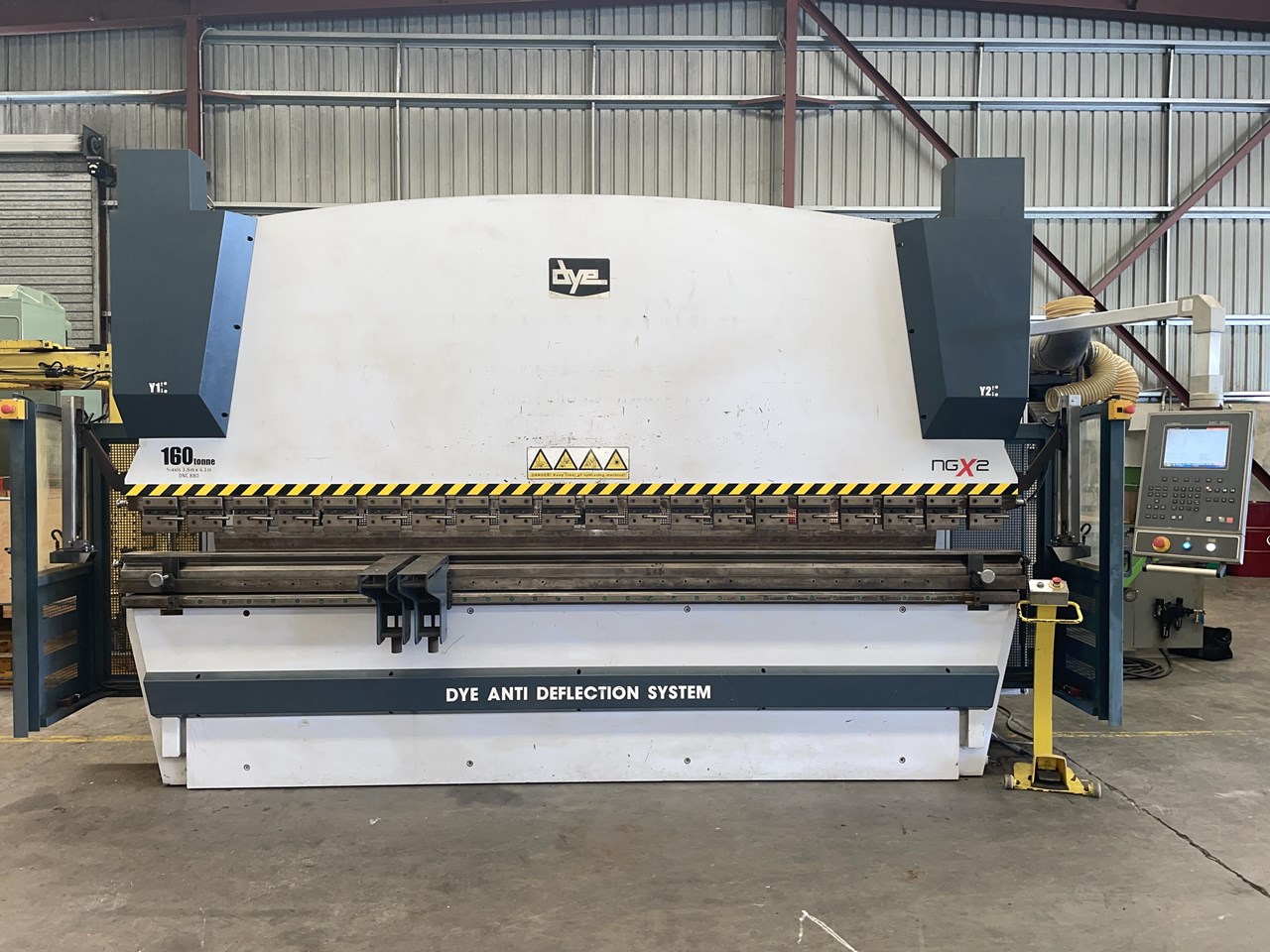

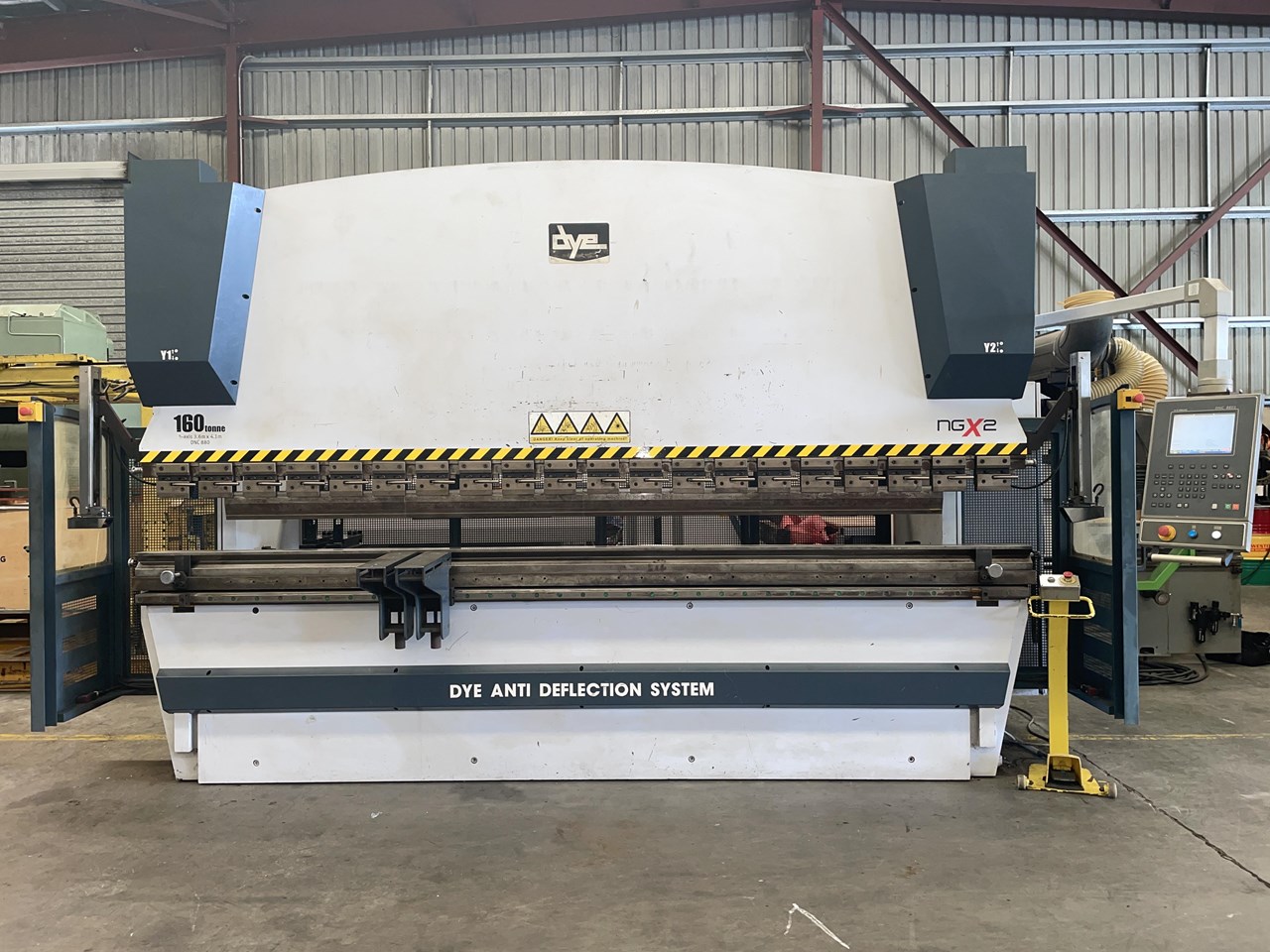

DYE PRE OWNED DYE NGX2 160 TONNE X 4.1M (5 AXES) CNC PRESS BRAKE

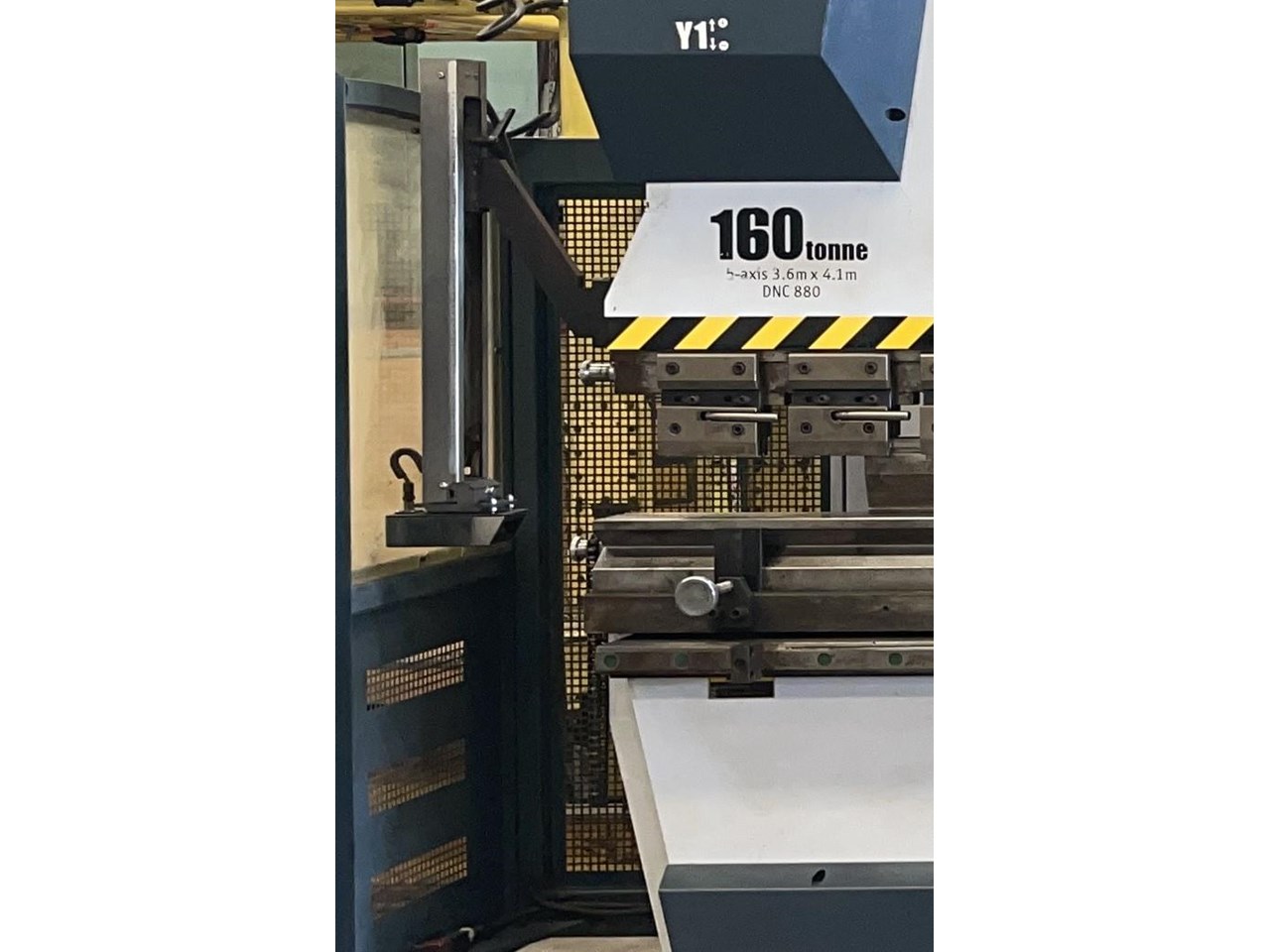

Pre-owned Dye NGX2 160 tonne x 3.6 x 4.1m, 5 axes, CNC press brake.

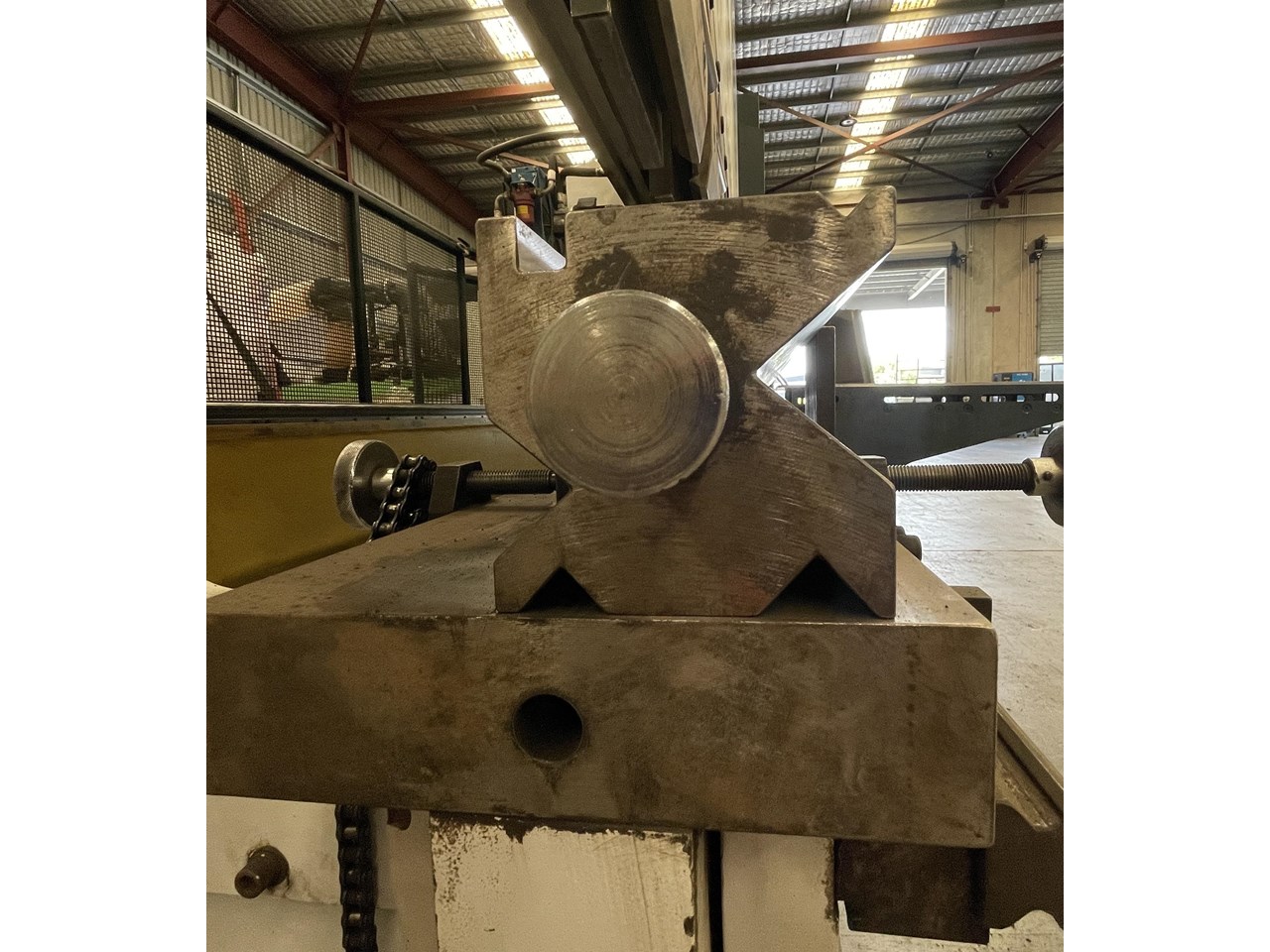

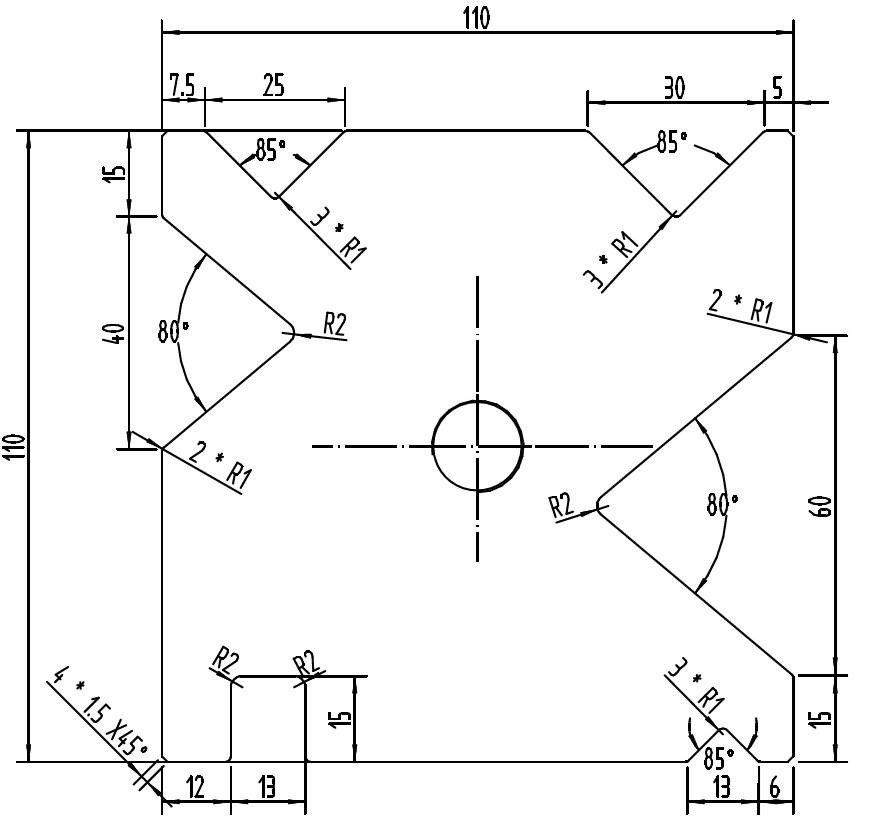

Includes full length multi vee block and Ferrari top tooling.

Fully Synchronised CNC Press brake in great condition.

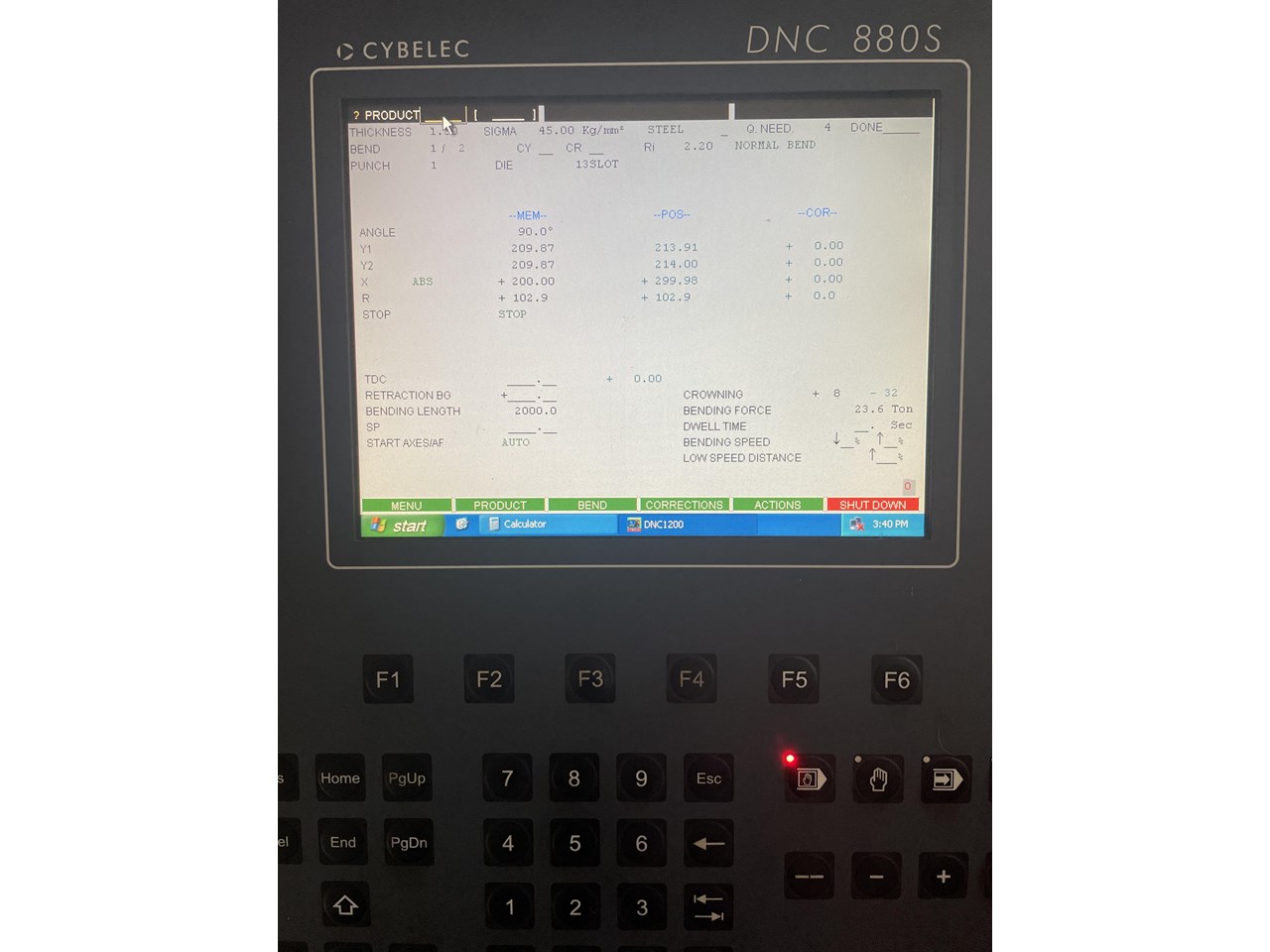

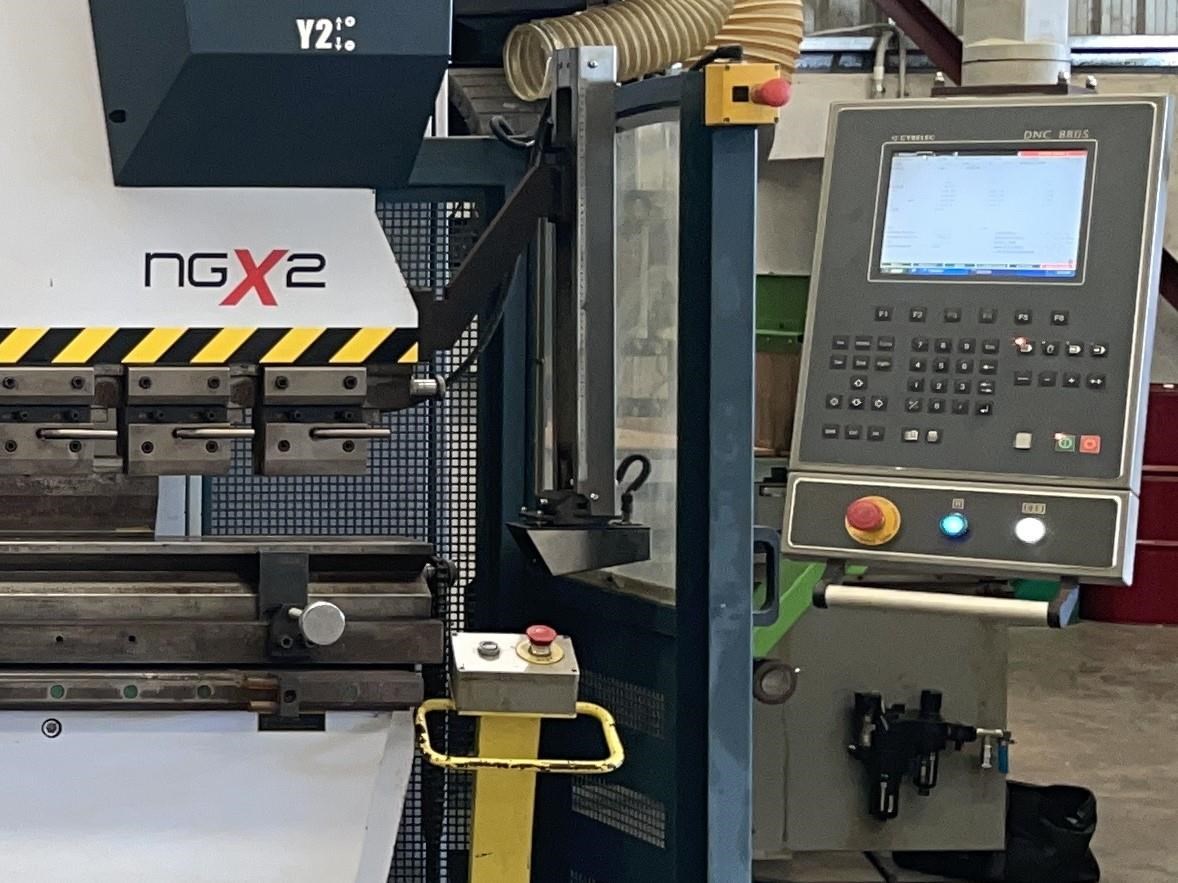

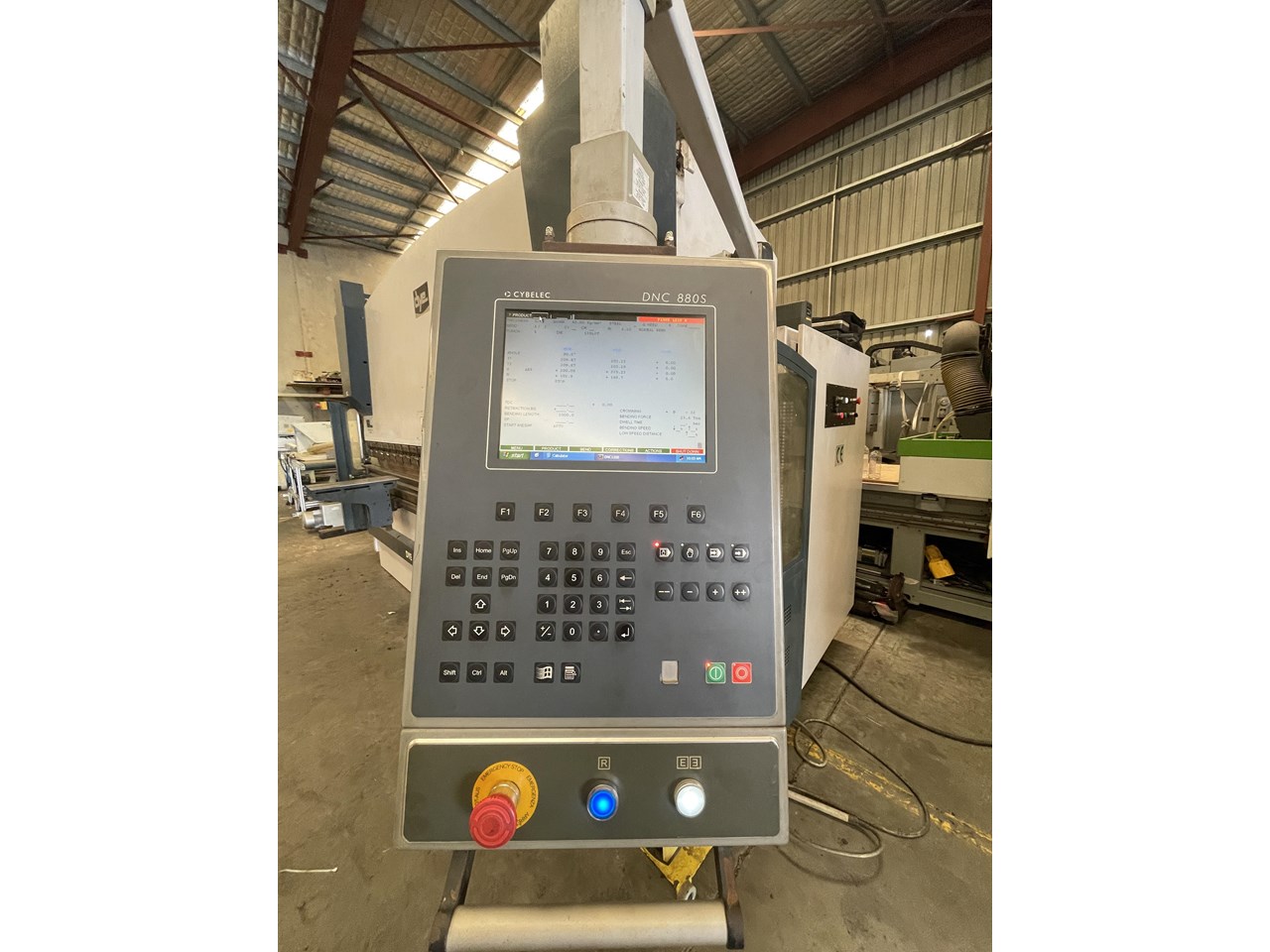

Complete with Swiss Cybelec DNC880S 2D controller. ADS Hydraulic crowning, XR axis back gauge with two manual Z probes.

Machine can be configured to 60mm quick change bolster system for Euro bottom tooling in lieu of table top and multi vee block at buyers expense for parts and setup. Please inquire if interested.

Intermediate beams with quick release lever clamps for top tooling.

Features include:
Front linear track mounted sheet support arms

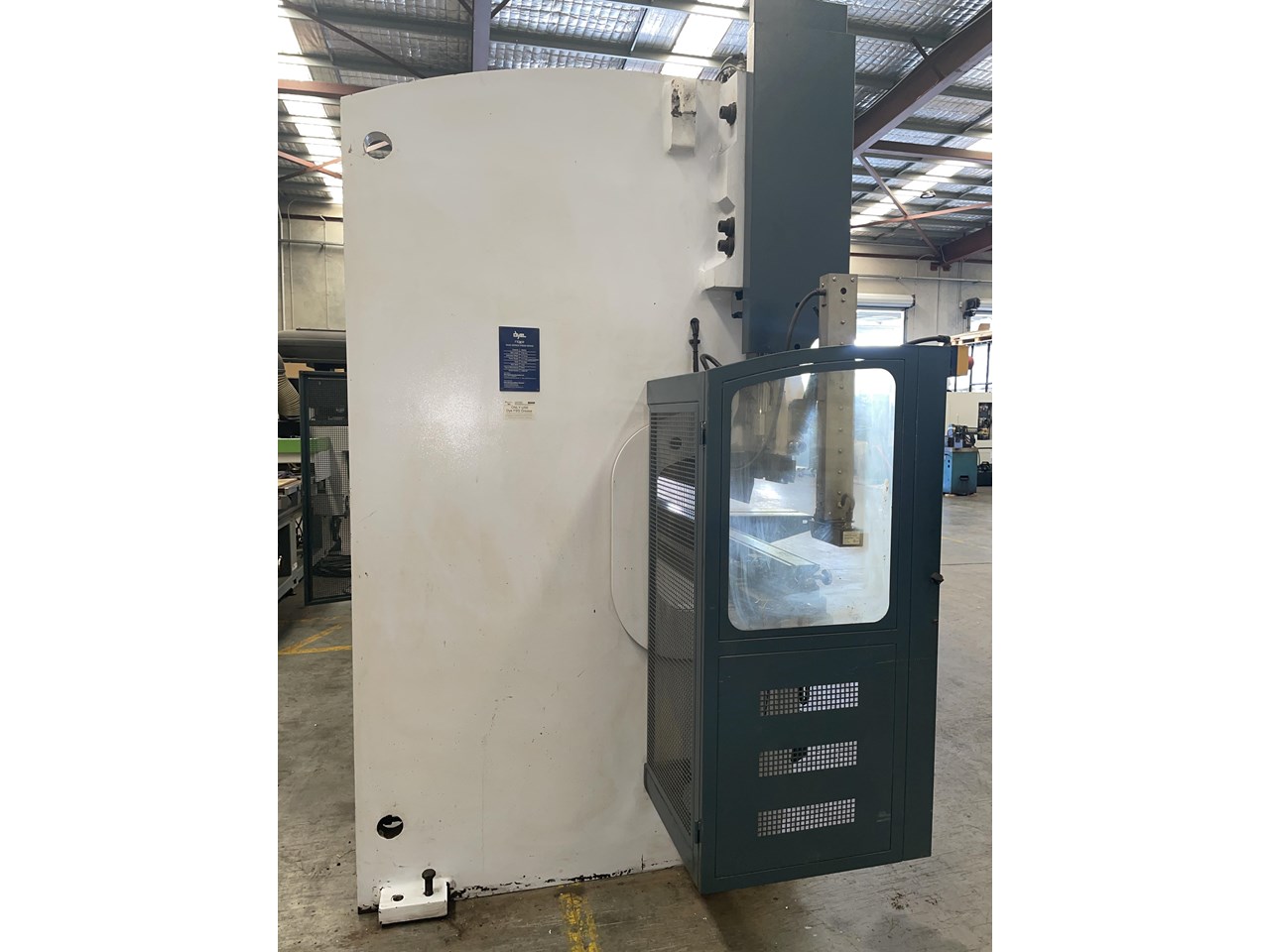

Lasersafe PCSS guard system, interlocked throat guards & rear interlocked gate.
Drop forged cylinders with high performance European hydraulics
High quality linear glass encoders with a resolution of .005mm
C frame encoder mounting to compensate for side frame deflection
Hard chromed pistons
Quiet internal gear pump ensures low noise
Heat treated stress relieved heavy duty steel frame
Dye ADS Hydraulic Crowning System automatically calculated and set by the controller

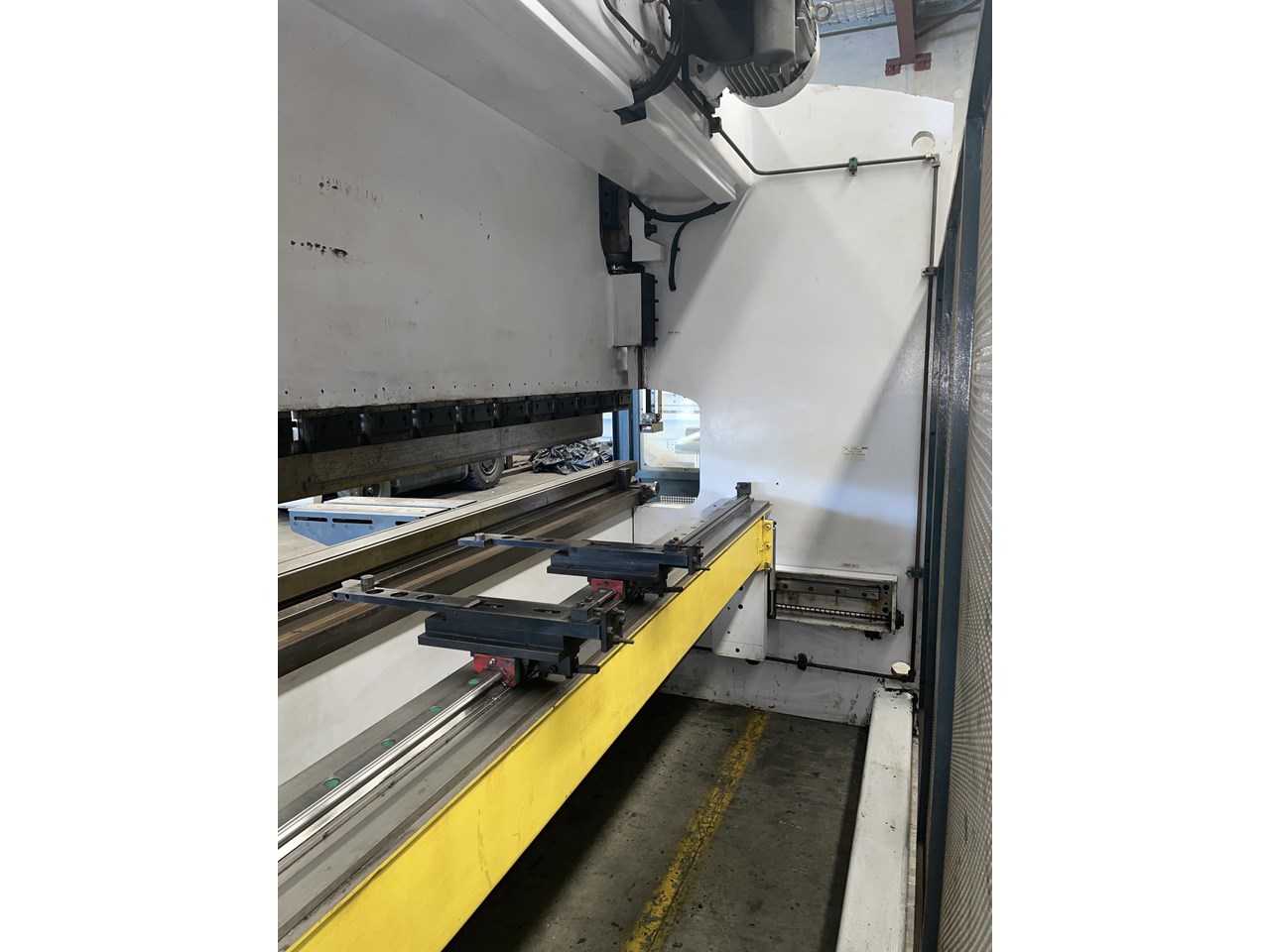

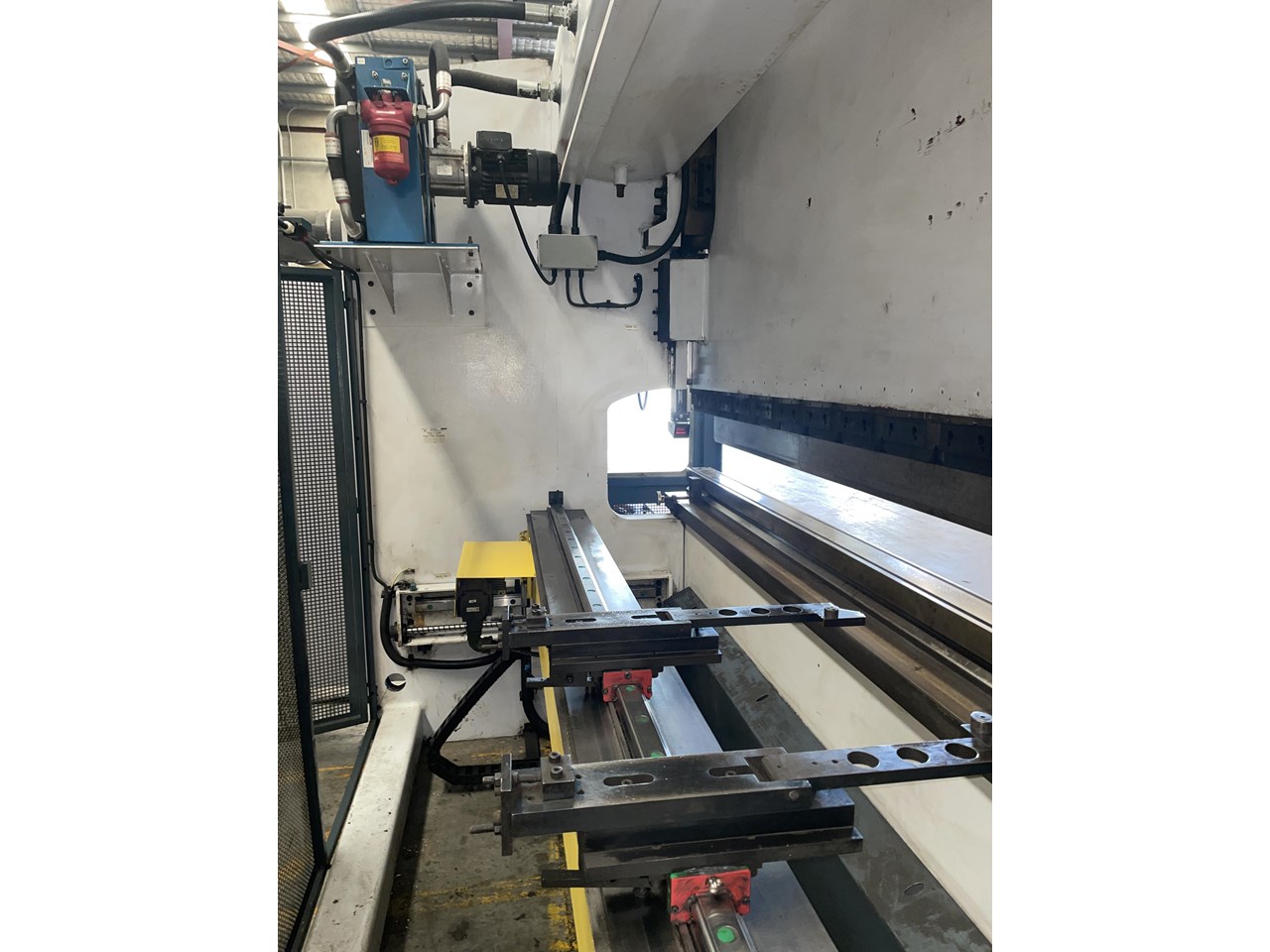

Heavy duty linear bearings on back gauge X and R runners
Throat 410mm
Quick release top tool clamping system
Open Height 520mm
Stroke 215mm
X axis travel 500mm, approximately 850mm using rear stops
R axis 200mm travel

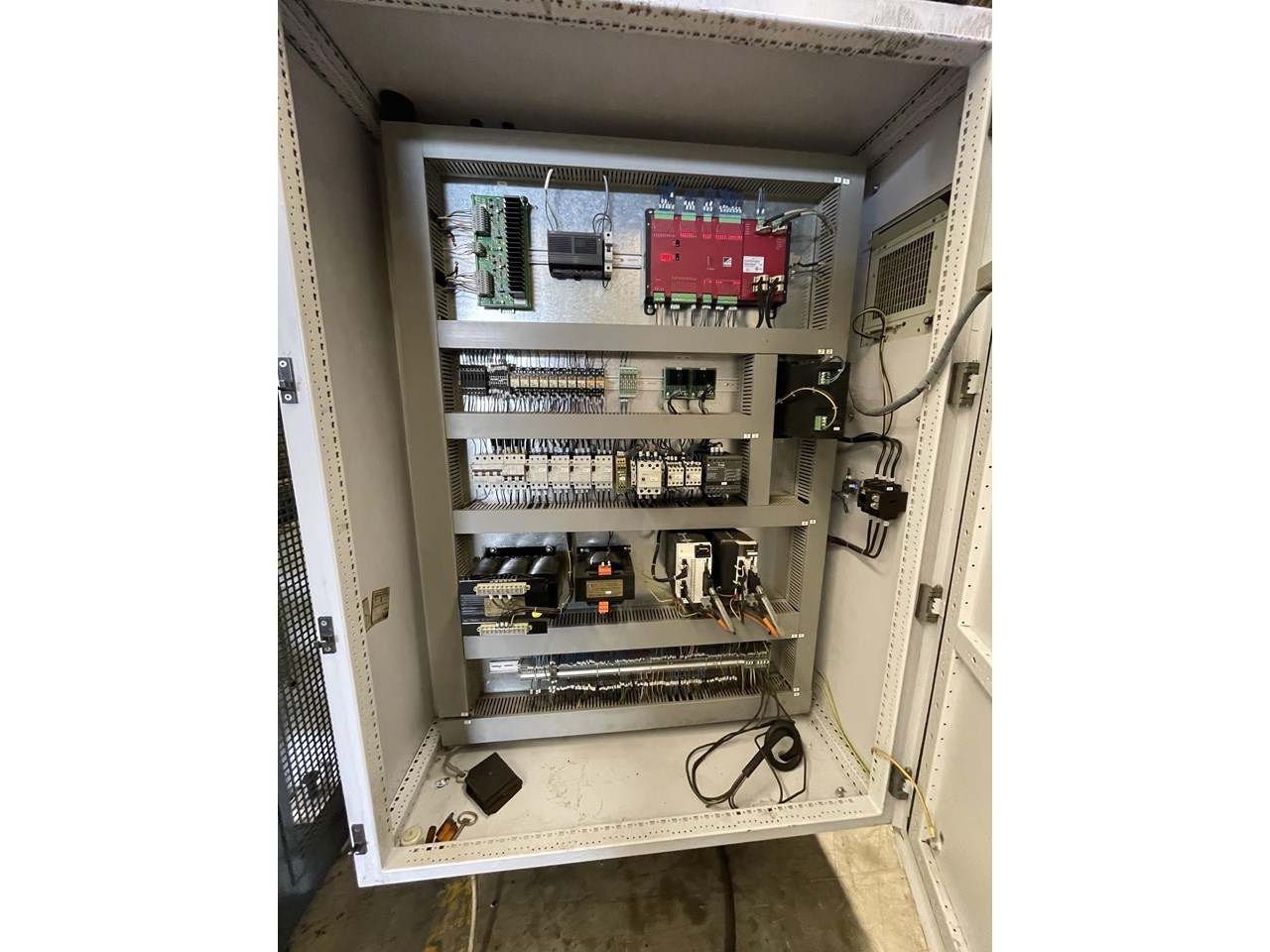

Air conditioned electrical cabinet
Oil cooler for hydraulic oil fitted
UPS fitted for controller protection fitted

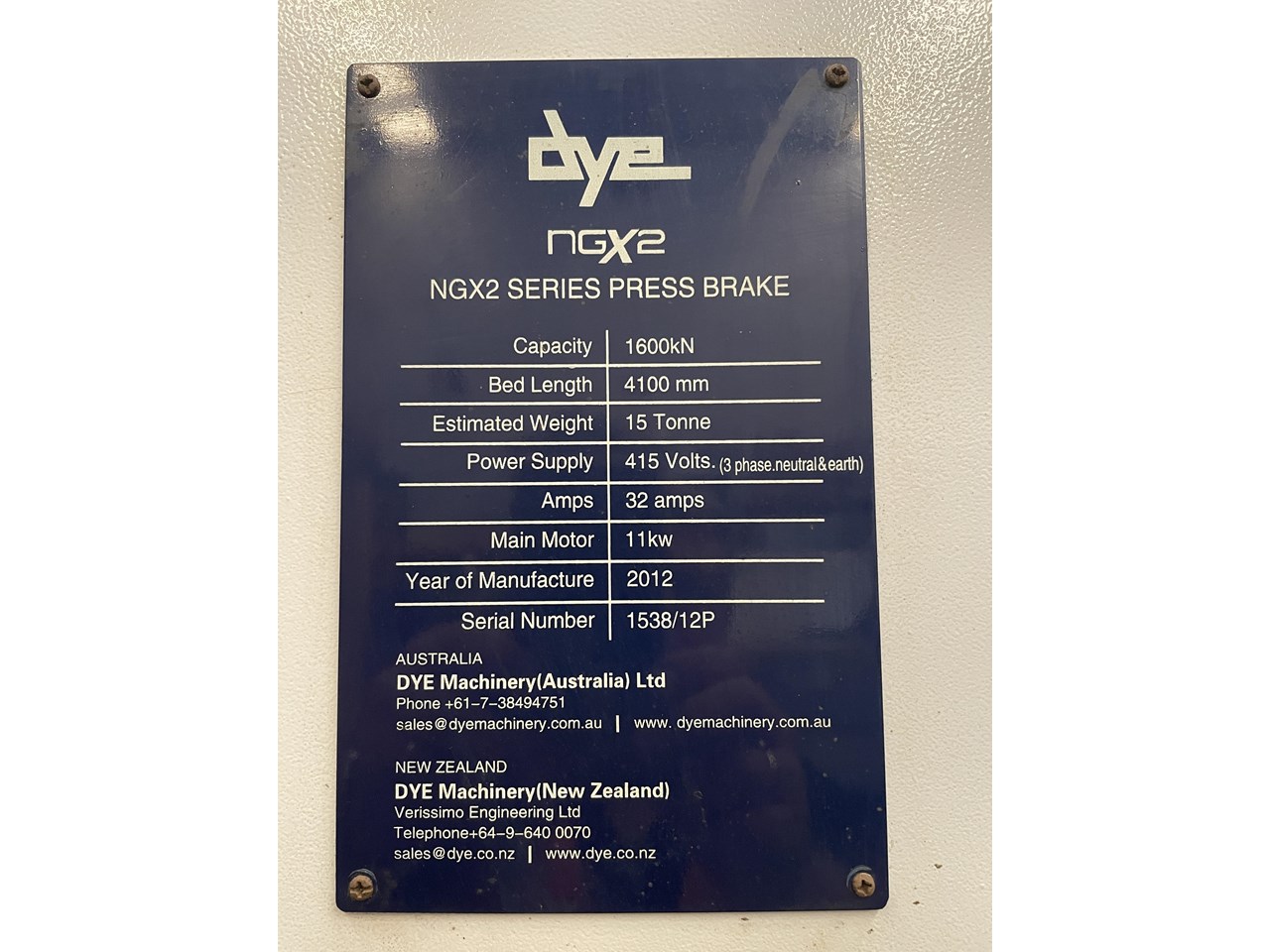

Weight approx. 15000kg
