2025 HOEFLON TC1 TRANSPORT CARRIER

The Hoeflon TC1 Transport Carrier is the ultimate compact material handling solution designed for effortless transport, precision control, and maximum versatility. Compact yet powerful, the TC1 can pass through standard doorways, manoeuvre in tight spaces, and tackle steep slopes with ease, making it ideal for both indoor and outdoor applications.

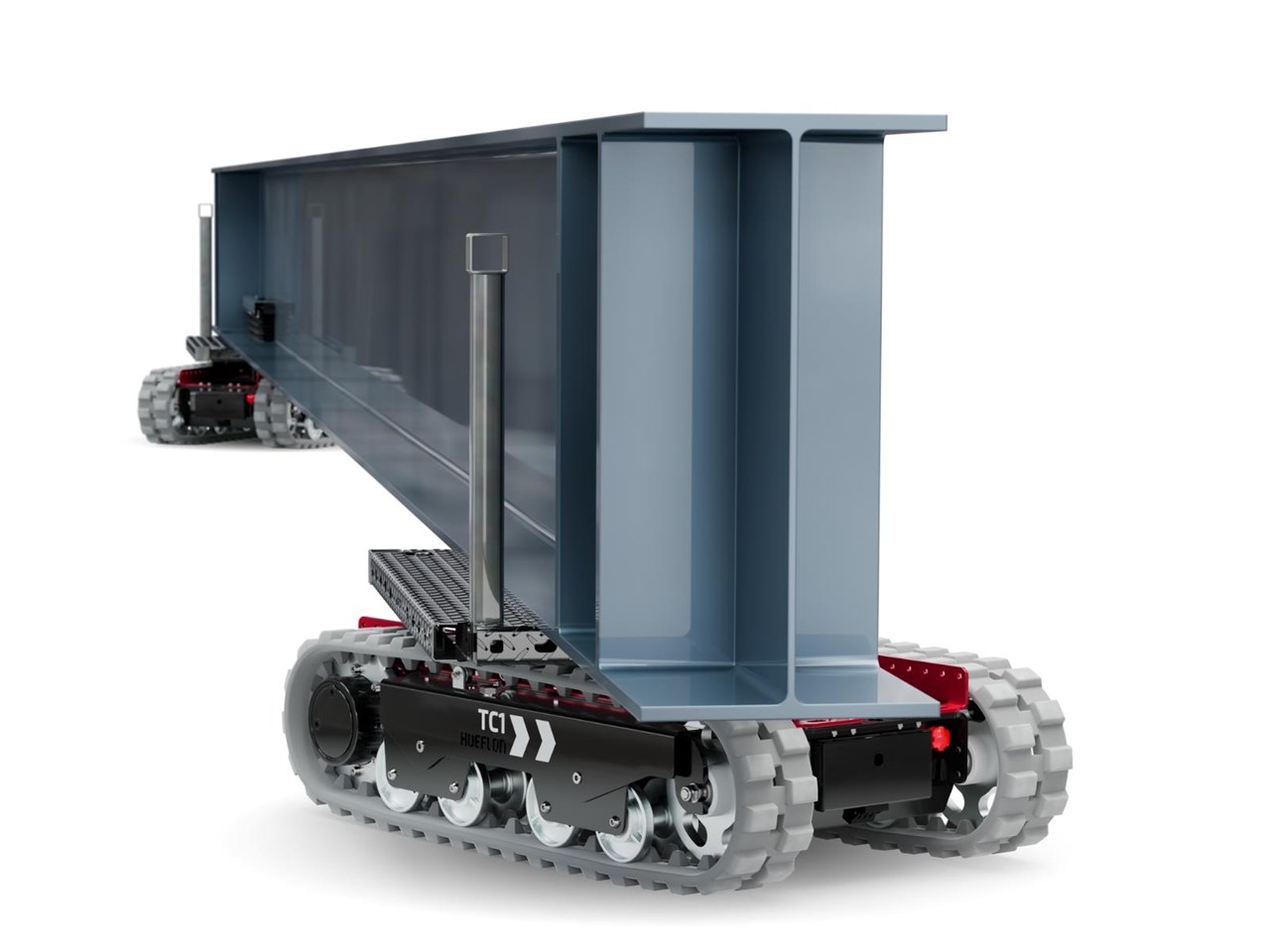

Engineered with a low centre of gravity and rotating platform, the TC1 offers smooth, controlled movement even when fully loaded. Its precise steering and stable tracked base make it the perfect partner for Hoeflon spider cranes and compact cranes, ensuring seamless load handling on every site.

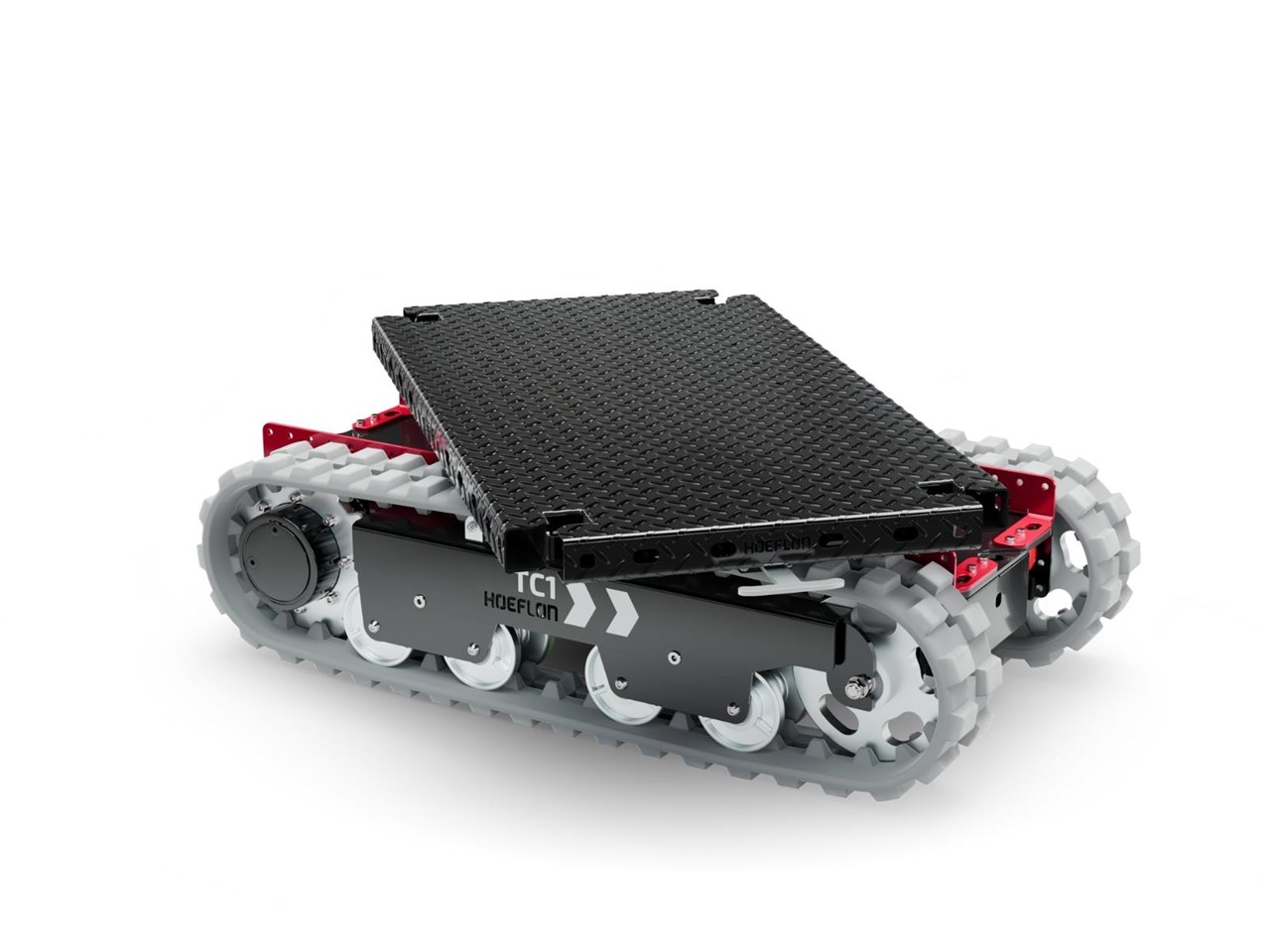

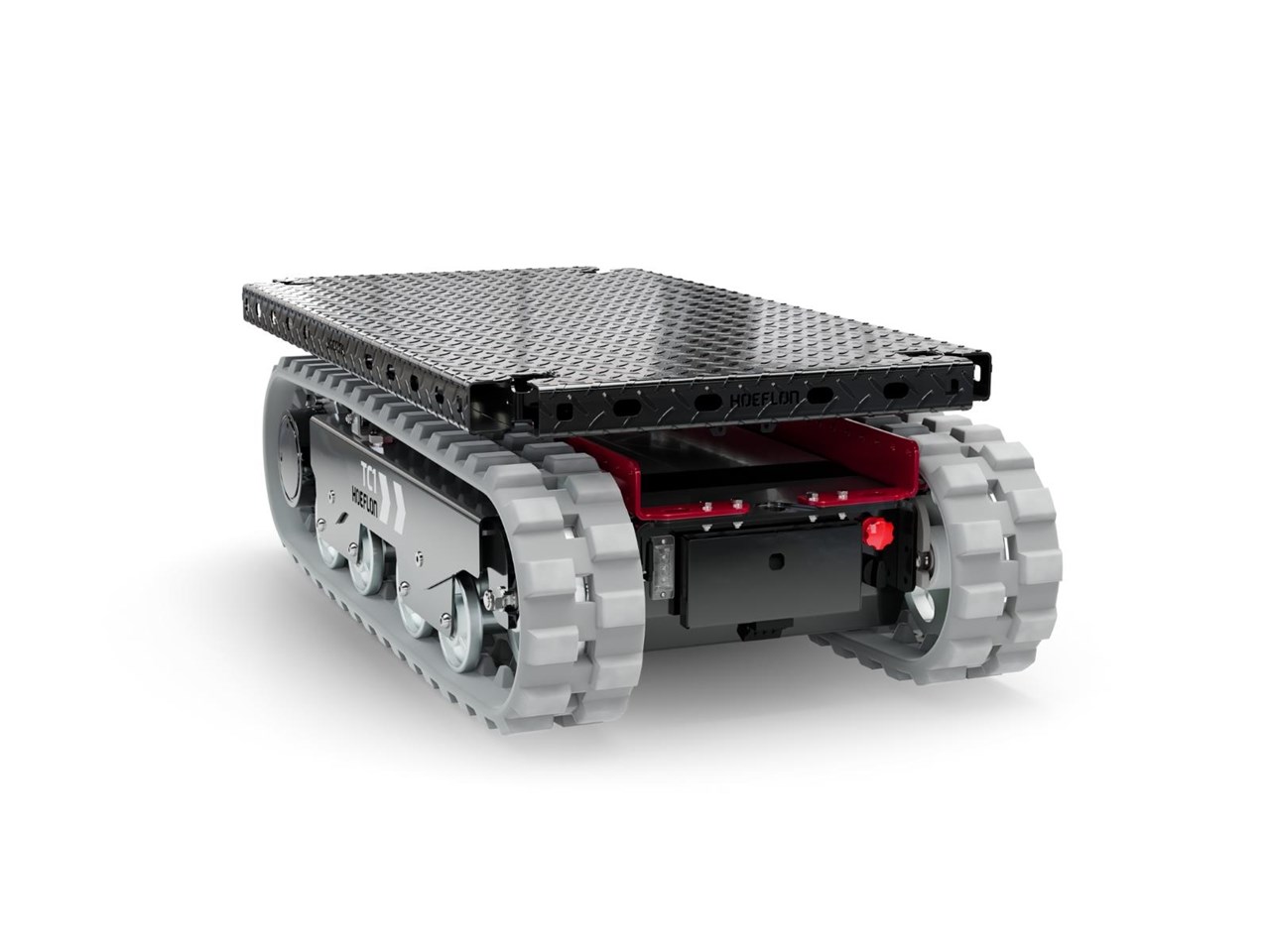

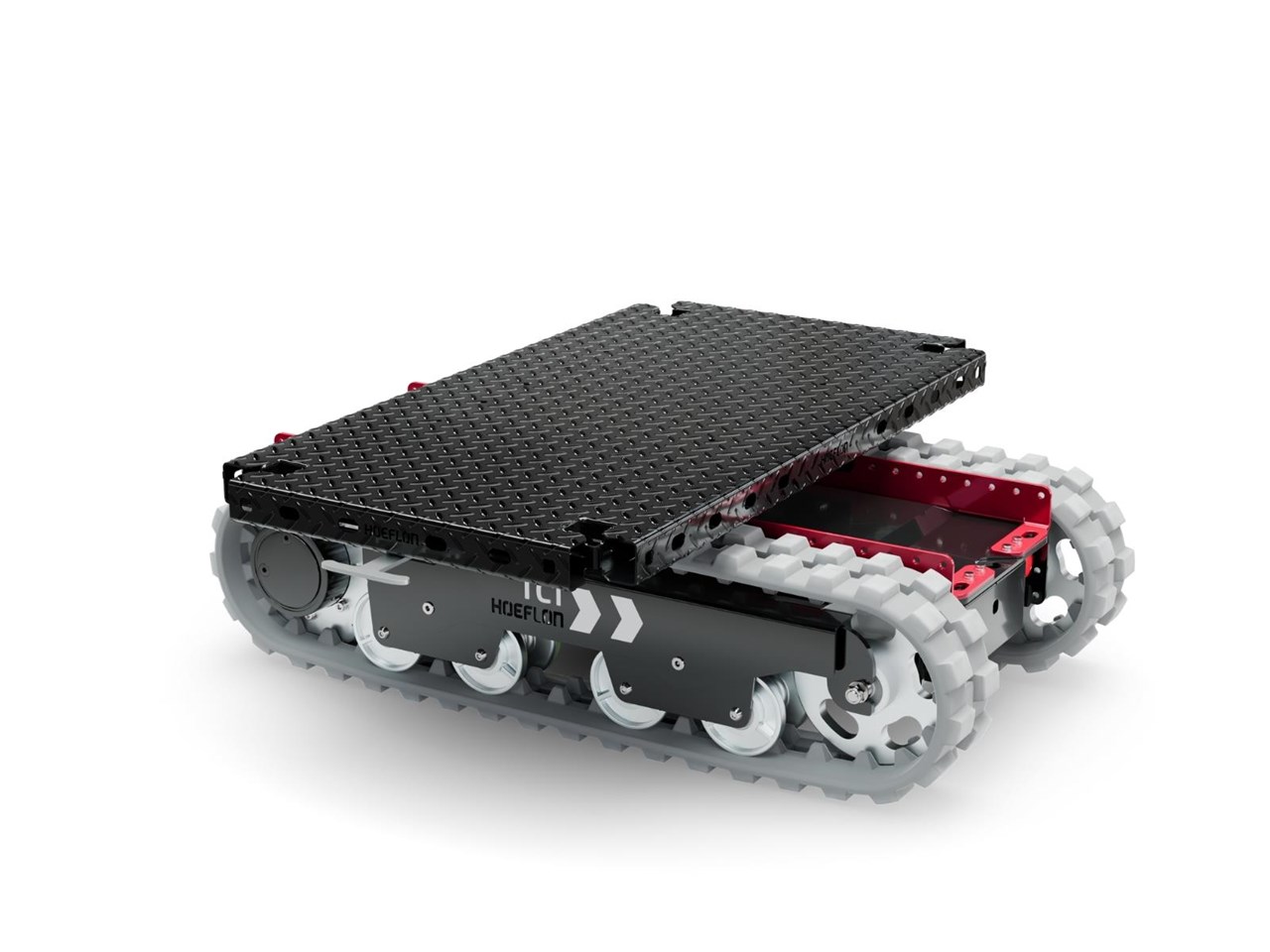

Platform
Lightweight yet strong, the platform version weighs only 370 kg and carries up to 1,000 kg. With a total height of just 420 mm, its compact and highly efficient.

Turntable
Offering a 360° endless rotation (with optional 45° restriction), this 400 kg model also carries up to 1,000 kg. Ideal for precise positioning of heavy loads.

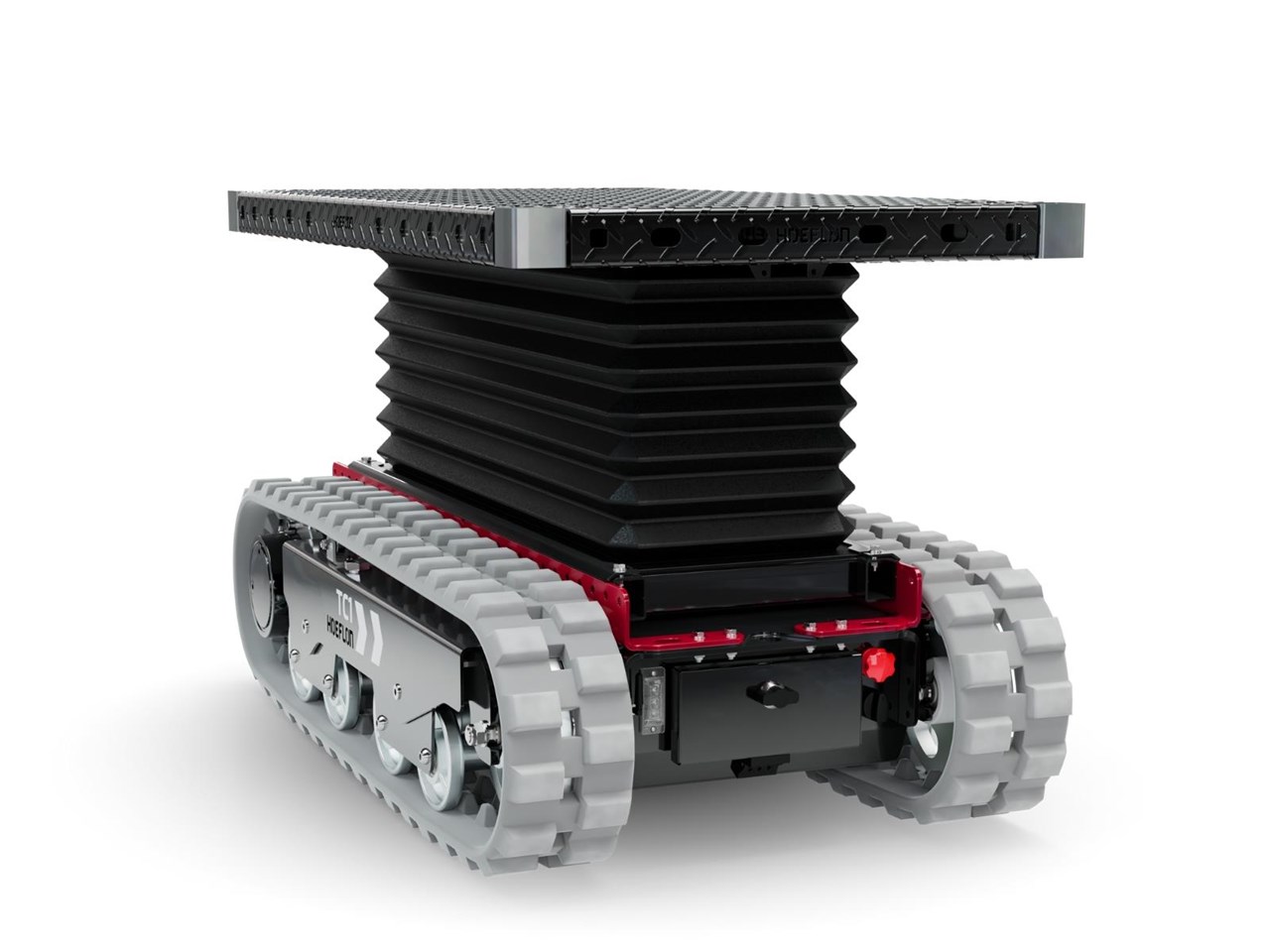

Lifting shears
Adds vertical reach with a lifting height of 300 mm, total height ranging from 440 mm to 740 mm, and a weight of 430465 kg.
Whatever your load or layout, the Hoeflon TC1 Transport Carrier delivers unmatched flexibility, control, and reliability a true powerhouse in compact transport technology.

SPECIFICATIONS:

o Max. speed: 6 km/h
o Own weight: 325 kg
o Height: 335 mm
o Width: 700 mm
o Length: 1,300 mm
o Controls: Remote RC6
o Battery charging time: 4h, 85 mm
o Ground clearance: 85 mm
o Range: 8 km
o Max. slope angle unloaded forward: 45 degrees
o Max slope angle unloaded sideways: 40 degrees
o Modular rail capacity: 1,000 kg
o Drive straight: 1 joystick
o Track width: 150 mm
o To steer: 1 joystick
o Traction from standstill: 1100daN/kg
