2025 HOEFLON C10E

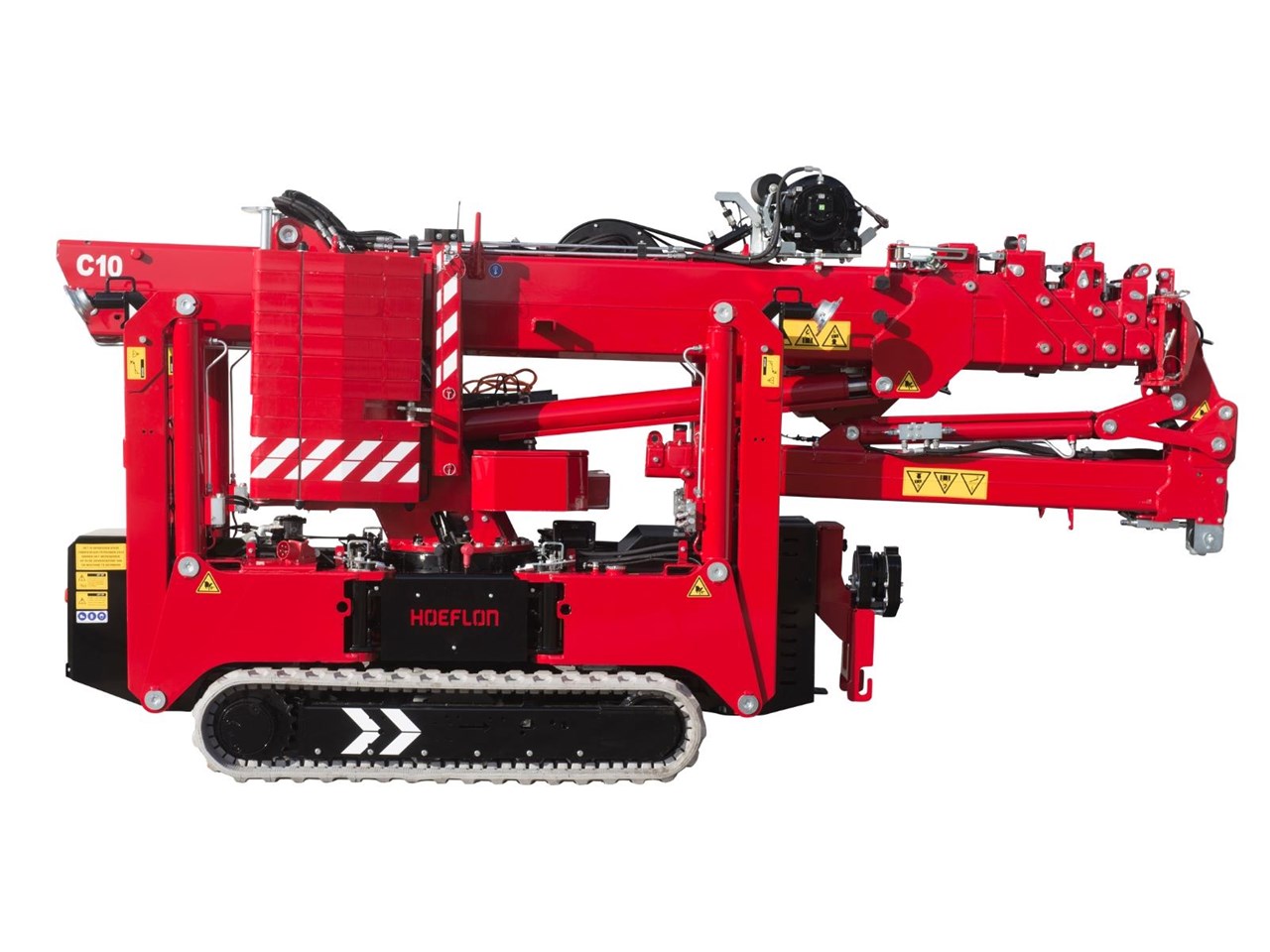

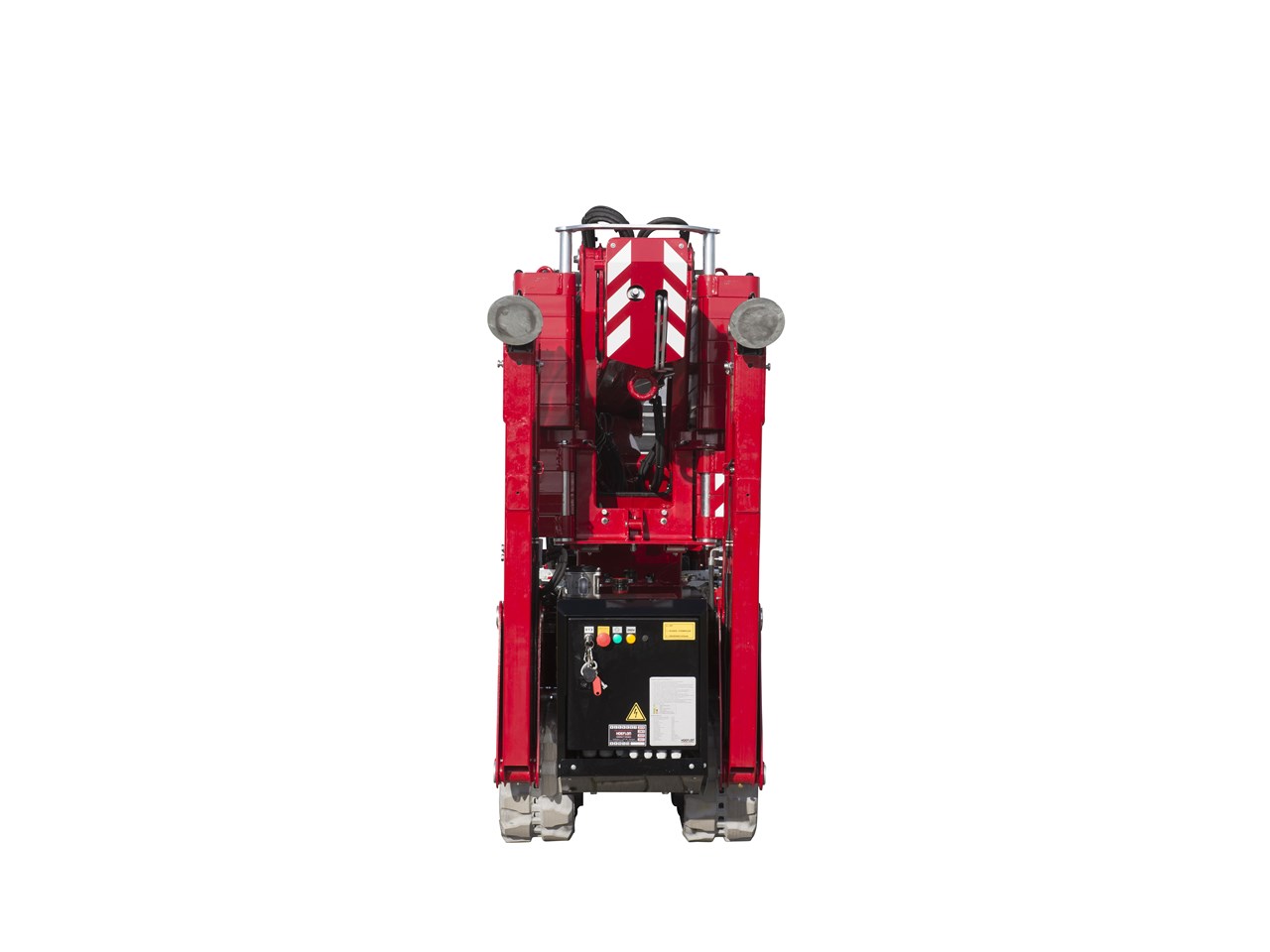

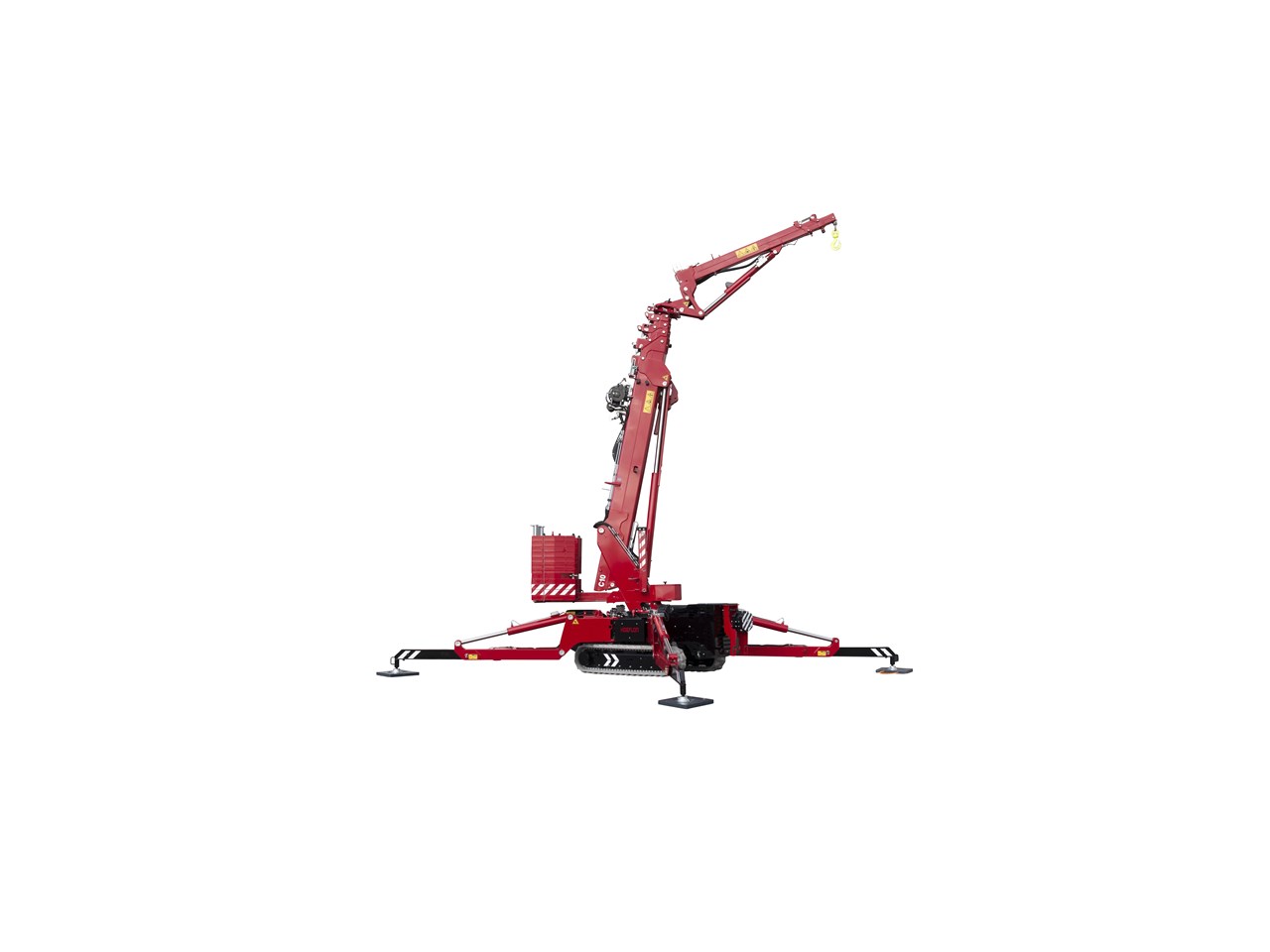

Meet the Hoeflon C10e spider crane the mighty 4-tonne compact crane that redefines lifting power in tight spaces. Despite its small footprint, the C10e delivers exceptional strength, agility, and versatility, making it ideal for both indoor and outdoor lifting applications.

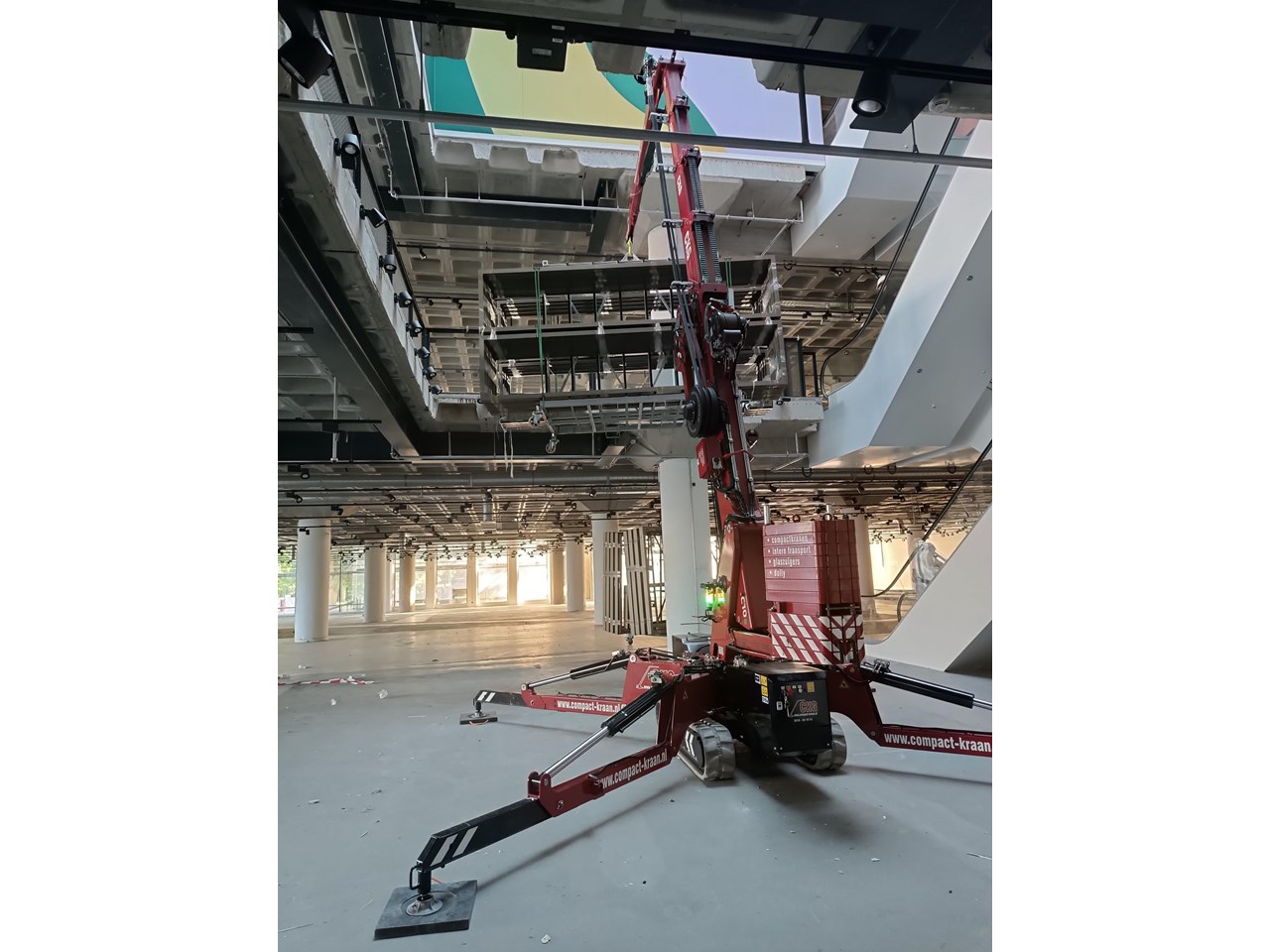

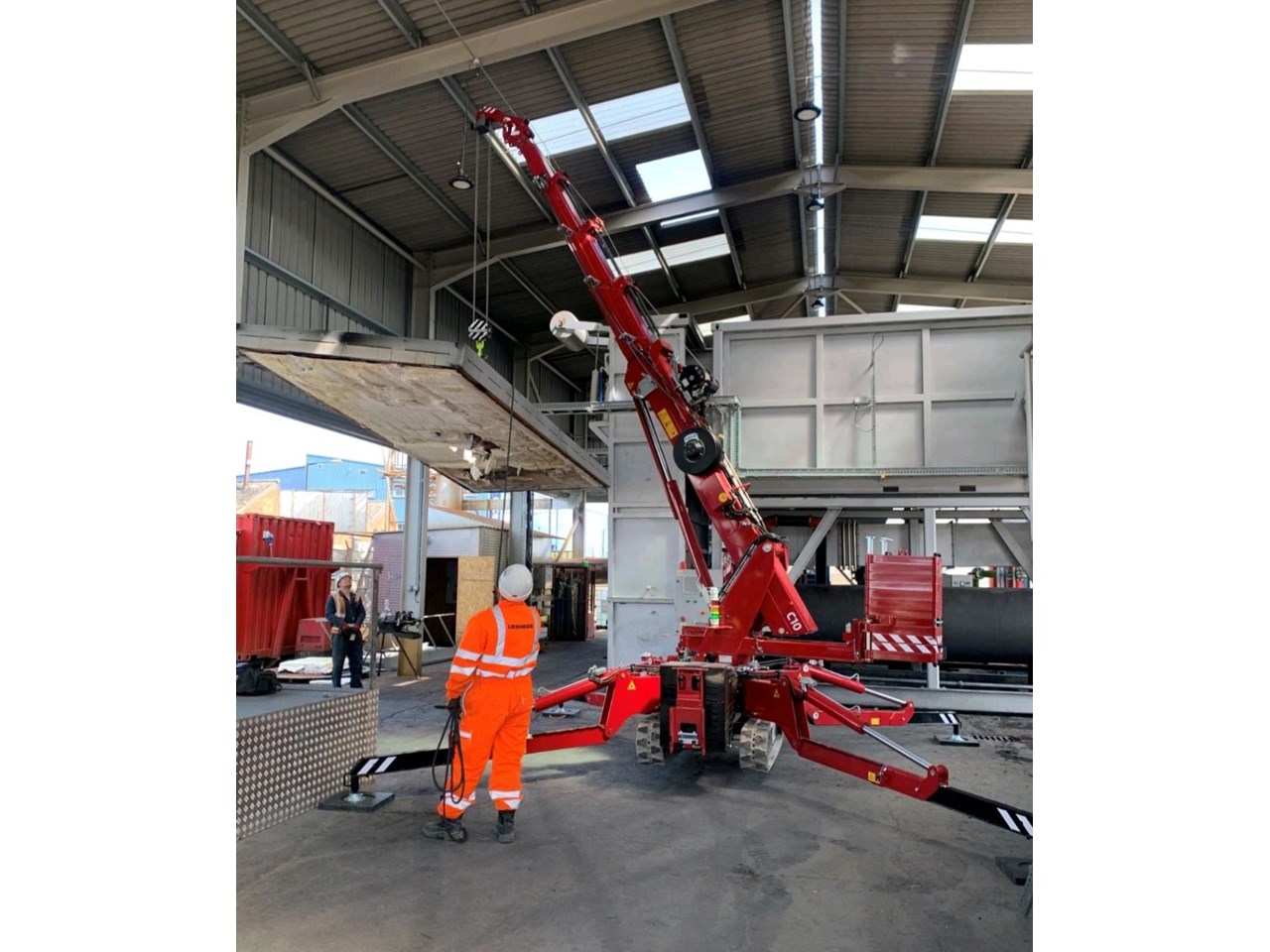

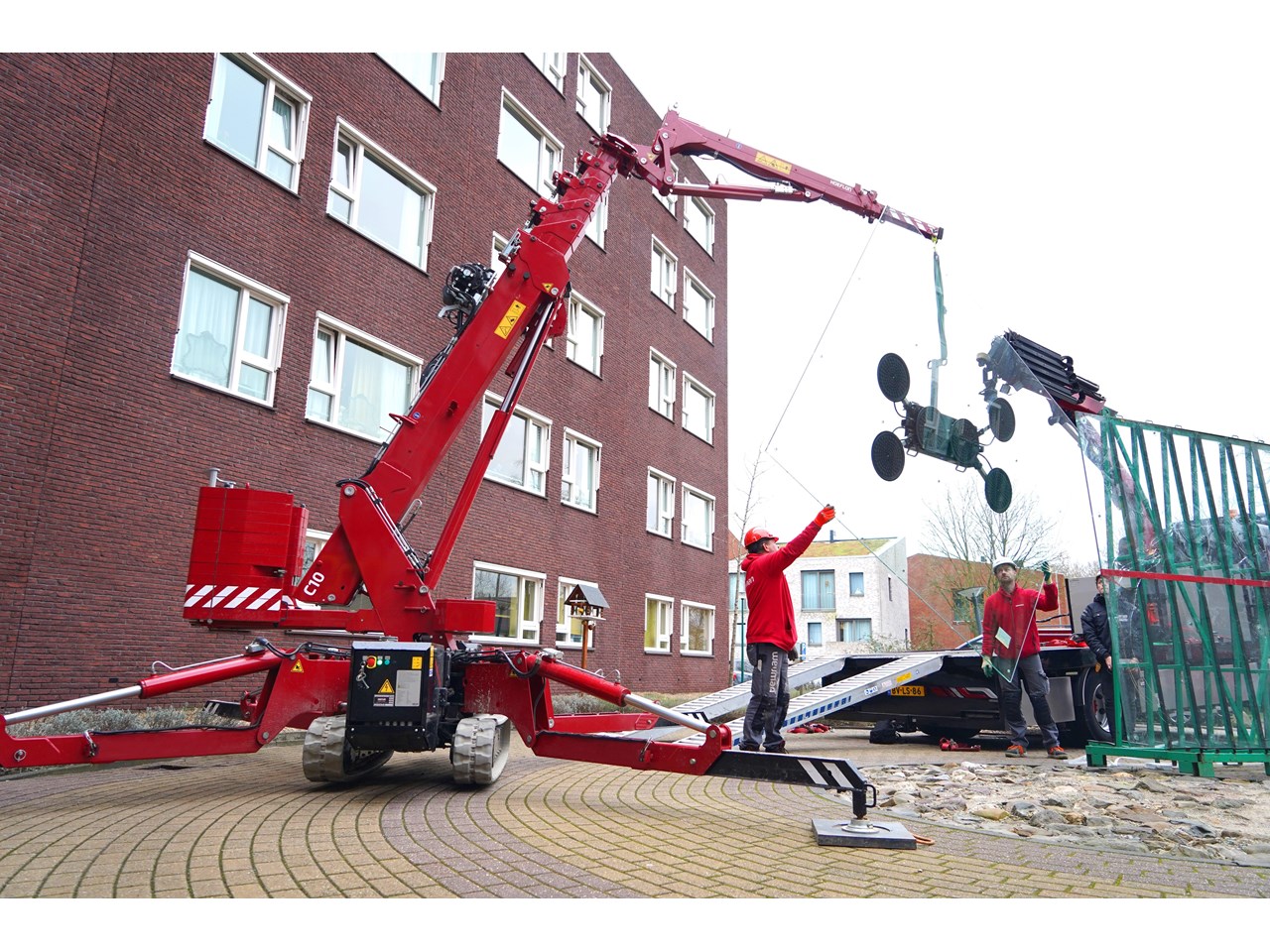

With a maximum lifting capacity of 4,000 kg, this electric mini crane combines efficiency with eco-friendly performance. Its compact size allows it to manoeuvre through narrow passages with ease whether its hoisting a swimming pool into a backyard or positioning precision equipment inside a factory.

SPECIFICATIONS:

o Capacity: 4,000 kg
o Capacity at max. outreach: 209 kg
o Winch capacity: 4,000 kg
o Lifting height incl. jib: 22 metres

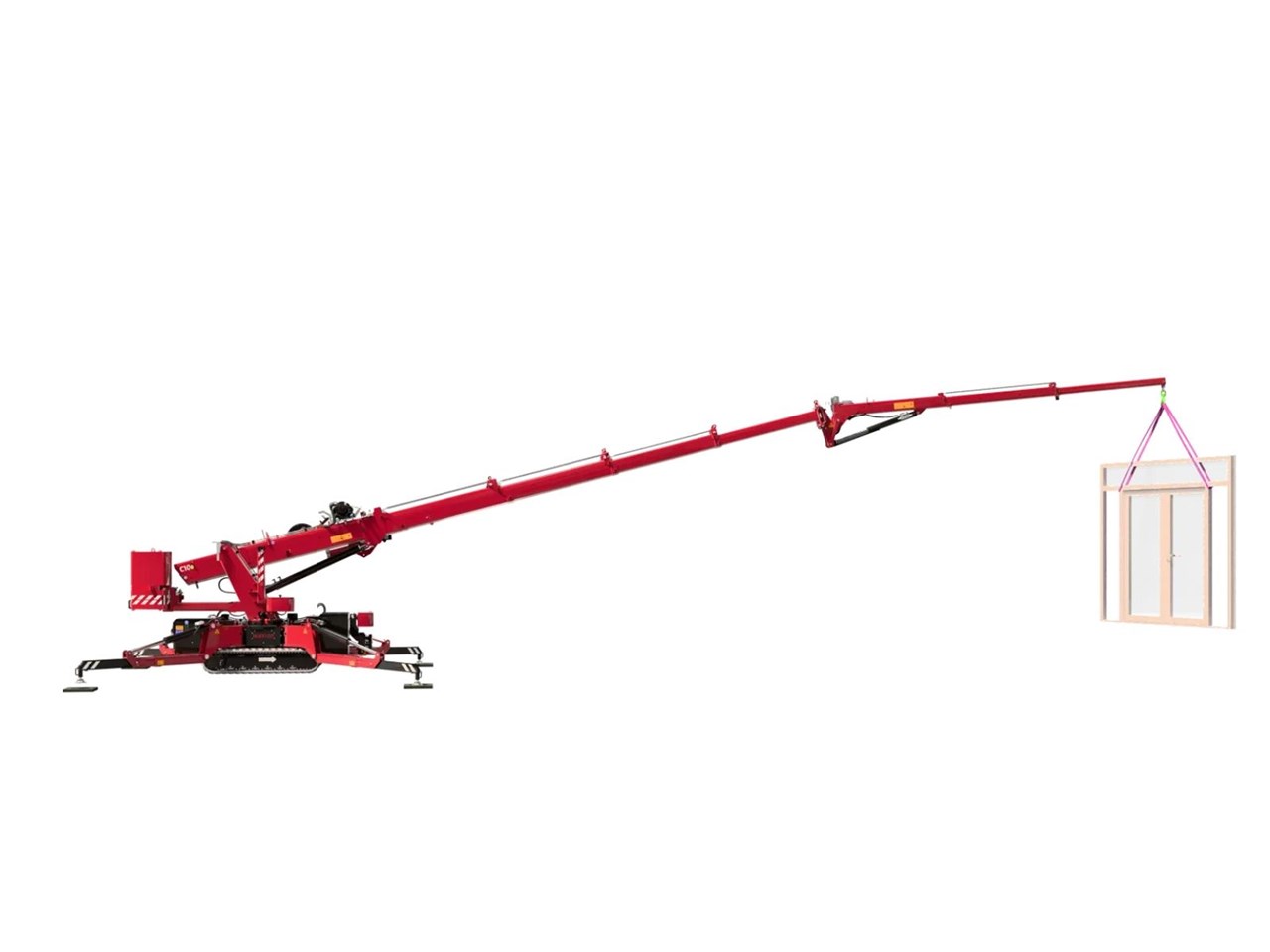

o Max. outreach incl. jib: 19.8 metres
o Jib length: 5 metres
o Boom outreach: 19 m and without options 13.7 m
o Boom angle: -5 to 83 degrees
o Incline angle: 20 degrees
o Slewing range: Endless
o Dimensions L x W x H: 3.93m x 0.8m x 1.97m
o Dimensions incl. options: 4,15m x 0,8m x 2,07m
o Total weight incl. options: 4 700 kg
o Total weight excl. options: 3,260 kg
o Ground pressure: 0.72 kg/cm2
o Charging options: 230 V
