HARTFORD LG-1000AP

LG-1000AP CNC Vertical Machining Centre

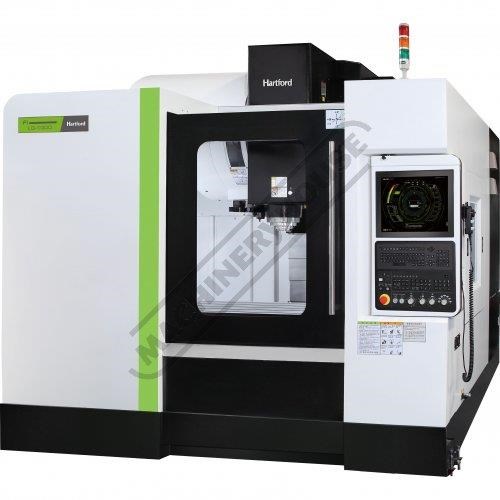

HARTFORD LG-1000AP CNC Vertical Machining Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M8795

Basic Specifications
- 1000, 510, 630mm X, Y, Z travels
- 1150 x 510mm table size
- 700kg table load capacity
- 30, 30, 24m/min X, Y, Z rapid feed rates
- 100 - 730mm spindle to table
- 10,000 rpm spindle speed
- 11kW spindle power
- 70Nm spindle torque
- BT40 spindle taper
- High precision wide span linear guide ways

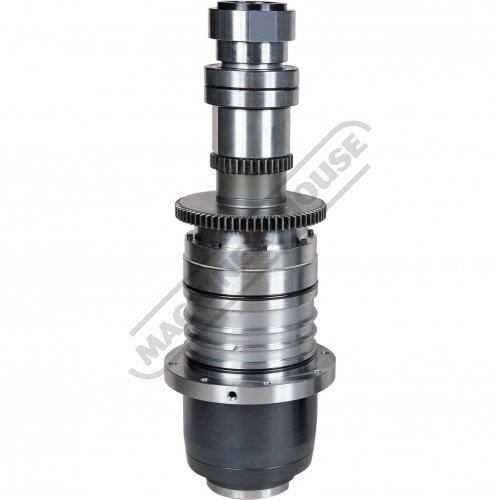

Main Spindle
- 10,000 rpm heavy duty spindle
- 11kW spindle motor
- Air blast through spindle

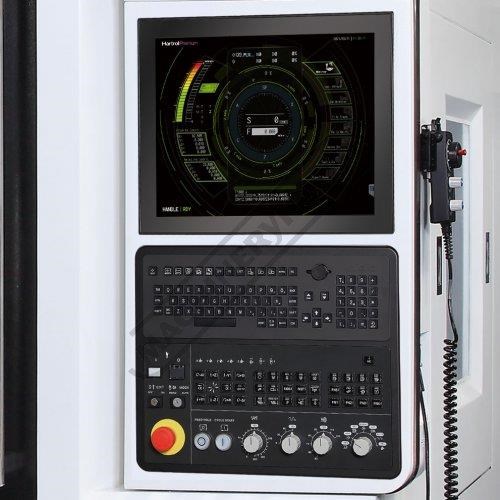

CNC Control
- Hartrol Premium 3 Control
- Hartcam 2.5 Conversational Software
- 15" Touch Screen Colour LCD
- Rigid-synchronised tapping
- Helical interpolation
- High Speed Machining Function
- Ethernet Interface
- USB Port
- RS232 Interface
- Hartrol Enhanced CNC Software
- Spindle Load Monitoring
- Advanced Tool Register
- Advanced Workpiece Co-ordinate System

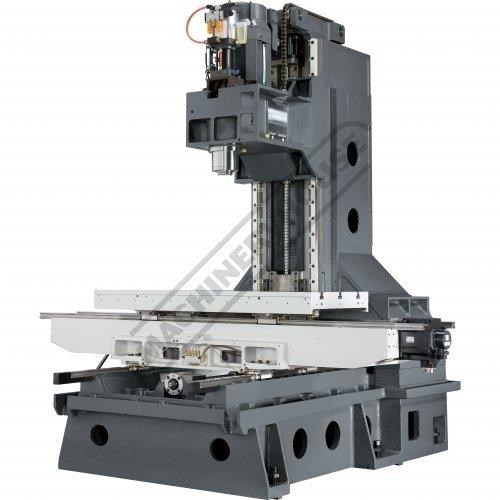

Axis Motors & Drives
- Mitsubishi servo drive amplifiers
- Mitsubishi high torque direct coupled AC digital servo motors
- Mitsubishi absolute position encoders (No Axes limit switches required)
- High precision, wide span linear guide ways
- Fully supported table eliminating overhang
- Large diameter pretensioned precision reciprocating ballscrews
- Automatic lubrication equipment

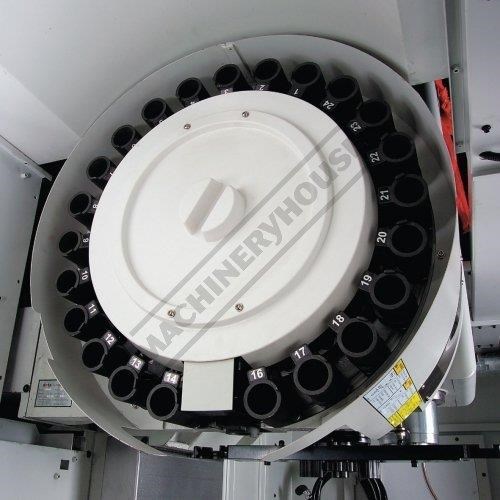

Tool Changer
- High-speed arm type automatic tool changer
- 24 tool bi-directional magazine
- Side mount fully enclosed tool magazine

Coolant System
- Flood coolant
- High pressure through spindle coolant 20 bar
- Fully enclosed chip & coolant shield
- Coolant Gun

Electrical
- Door safety interlock switch
- Heat exchanger for electrical cabinet
- Line filter
- Transformer

Swarf Removal
- Base chip flushing
- Screw type external chip conveyor

Operation
- Remote MPG (Portable Hand Wheel)
- Control panel with > 90° swivel
- 3 tier operation patrol lamp
- Work light
- Machine operating & maintenance manuals
- Controller manuals on CD
- Electrical schematics
- Tool box

Automation
- Control prepared to accept Rotary Table - 4th Axis

Specifications:
ORDER CODE: M8795
MODEL: LG1000AP
X Travel (mm): 1000
Y Travel (mm): 510
Z Travel (mm): 630
Table Size (mm): 1150 x 510
Table Size (mm): ~
Table Capacity (kg): 700
Spindle - Table (mm): 100 - 730
Spindle Taper: BT40
Spindle Speed (rpm): 10,000
Spindle Motor (kW): 11
Rapid Traverse (m/min): 30 / 30 / 24
Guideways: LMG
Tool Arm Type (No.): 24
Control: Hartrol Premium 3
Programming: Hartcam Conversational
Programming: ~
