Features

Title	HARTFORD 5A-40R
Type	Engineering - Fabrication
Sub Type	Machining Centres CNC
Make	HARTFORD
Model	5A-40R
Sale Price	POA
Listing Type	New
Stock Number	825754
RefCode	TA1267103

Description

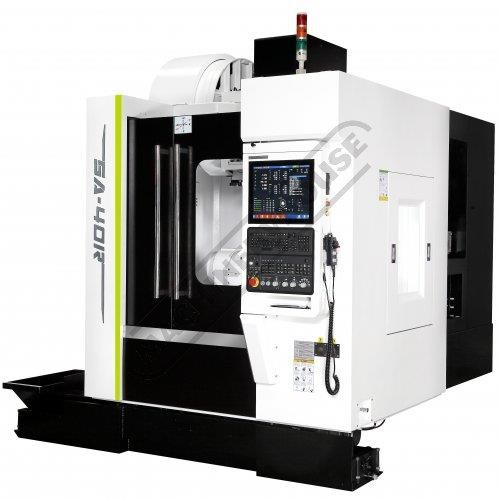

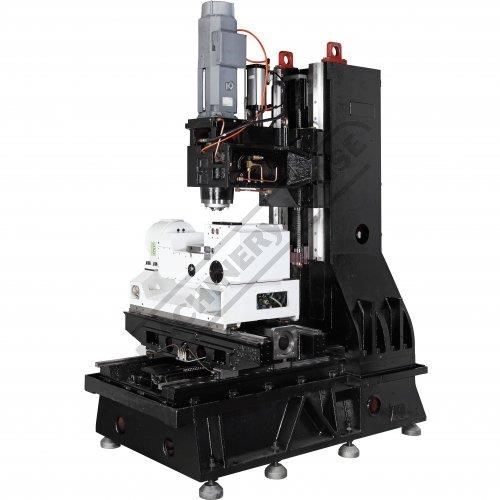

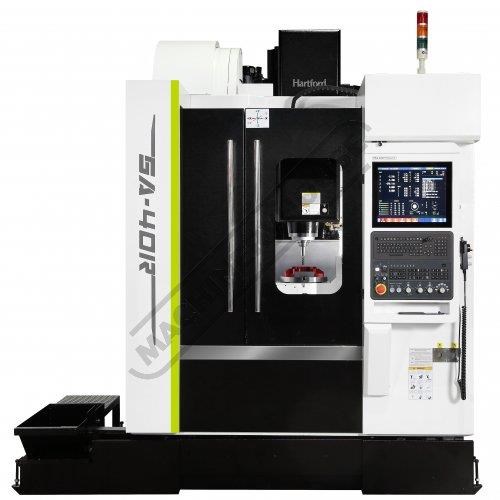

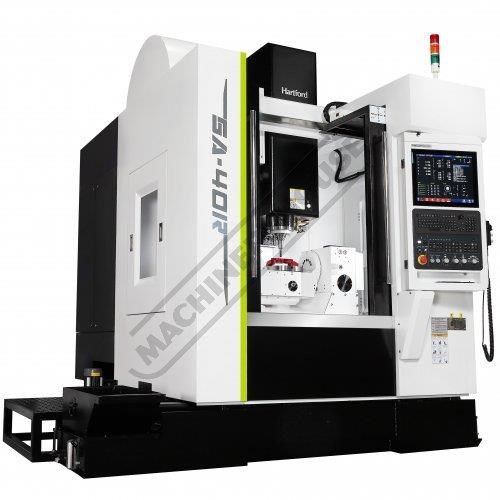

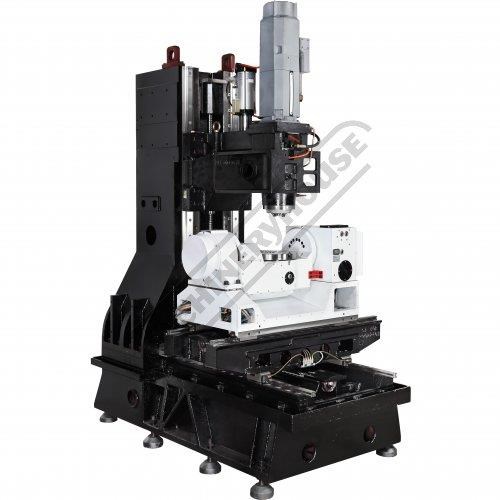

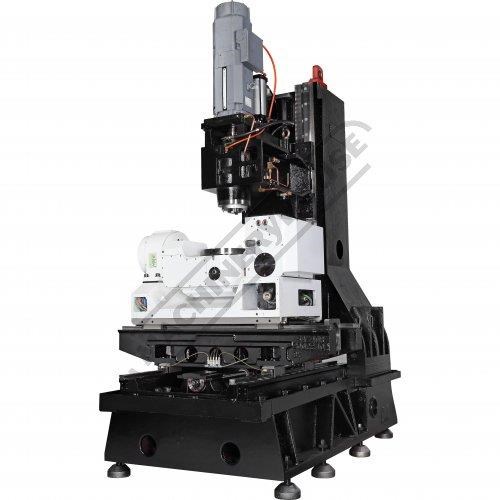

5A-40R CNC 5 Sided Machining Centre

HARTFORD 5A-40R CNC 5 Sided Machining Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M8830

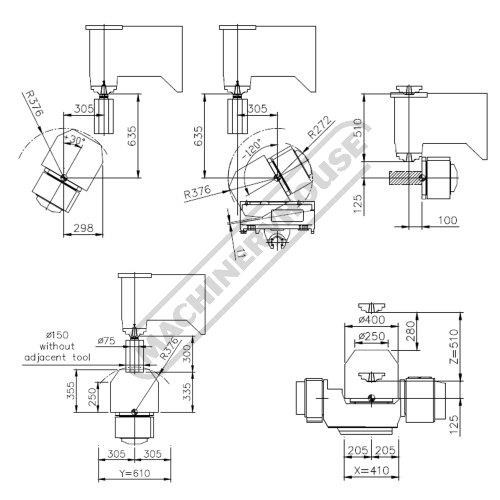

-410, 610,510mm X, Y, Z travels
- +30 / -120° A Axis travel
- 360° C Axis travel
- Ø360mm table size
- 200/100kg table load capacity
- 36,36,30m/min X, Y, Z rapid feed rates
- 12,000 rpm spindle speed
- 11kW spindle power
- BT40 spindle taper
- 24 Tools ATC

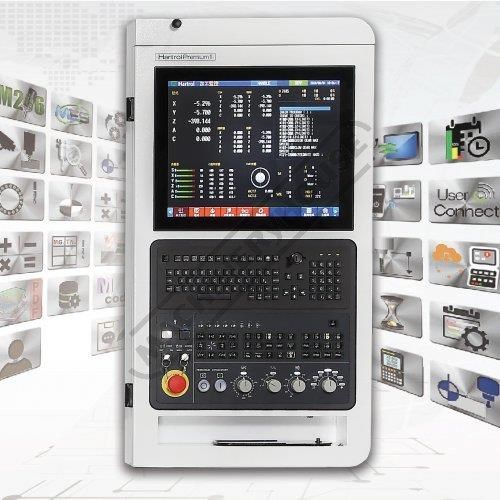

CNC Control
- Hartrol Premium 1 Control
- Hartcam 2.5 Conversational Software
- 19" Touch Screen Colour LCD
- Data Server
- On board SSD
- Rigid-synchronised tapping
- Helical interpolation
- High Speed Machining Function
- Ethernet Interface
- USB Port
- Hartrol Enhanced CNC Software
- Spindle Load Monitoring
- Advanced Tool Register
- Advanced Workpiece Co-ordinate System

Features:
12000rpm direct drive spindle
Chip Conveyor
20 Bar Through Spindle Coolant System
Renishaw OPM60 Probing system
Renishaw OTS Tool setting
Fully Enclosed Guarding with Door Interlocks
Operator Training
In House Service and Support Australia Wide

Specifications:
ORDER CODE: M8830
MODEL: 5A-40R 4+1
X Travel (mm): 410
Y Travel (mm): 610
Z Travel (mm): 510
A Travel (deg): +30 / -120
B Travel (deg): ~
C Travel (deg): 360
Table Size (mm): Ø320mm
MAX Workpiece Height (mm): ~
Table Capacity (kg): 200 - Horizontal
100 - Tilting
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle Taper: BT40
Spindle Speed (rpm): 12,000
Spindle Motor (kW): 11
Rapid Traverse (m/min): X=36, Y=36, Z=30
Guideways: ~
Tool Change: ~
Control: ~
Control: Hartrol Premium 1 Control
Control: ~
Control: ~
Control: ~

To Purchase Online Please Visit The Machineryhouse Website & Search For 'M8830'
