Contact Seller
Features
| Title | HAFCO METALMASTER Z3050X16 |
| Type | Engineering - Fabrication |
| Sub Type | Radial Arm Drill |
| Make | HAFCO METALMASTER |
| Model | Z3050X16 |
| Sale Price | $21,750 GST Exclusive |
| Listing Type | New |
| Stock Number | 61184 |
| RefCode | TA1280509 |
Description

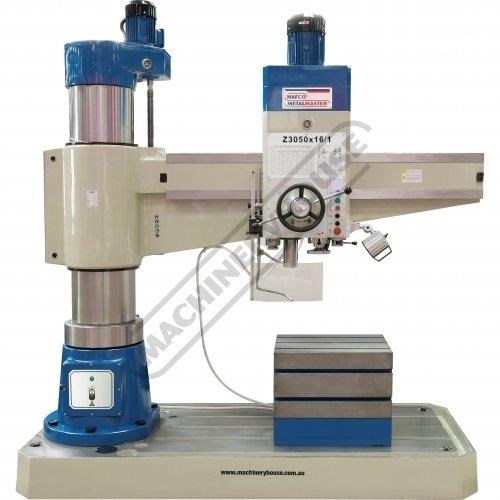

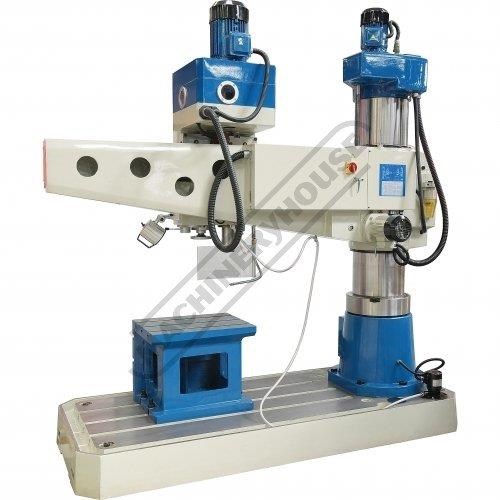

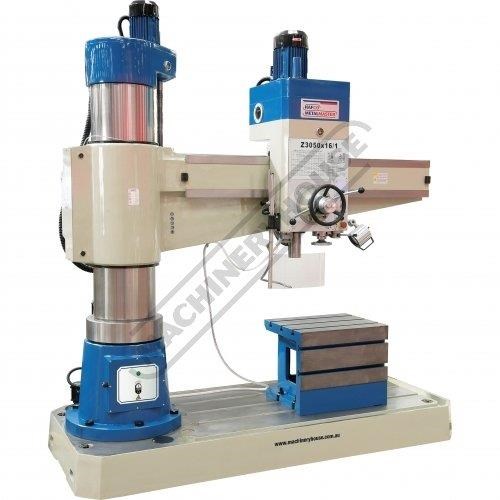

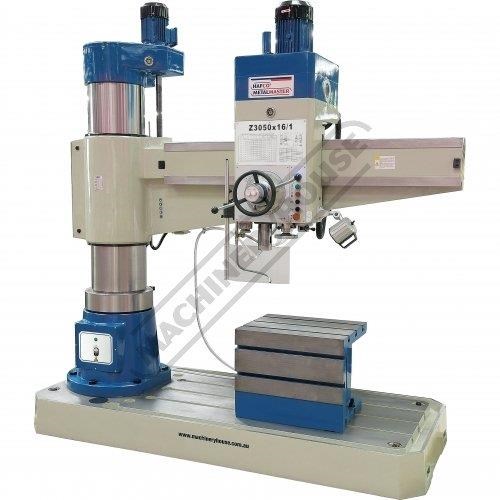

Z3050x16 Radial Arm Drill Ø50mm Drilling Capacity 350 - 1600mm Spindle To Column
HAFCO-METALMASTER Z3050x16 Radial Arm Drill Ø50mm Drilling Capacity 350 - 1600mm Spindle To Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D166
When you need to drill big, heavy and awkward shape parts, no matter what manufacturing or engineering industry you are in, you just cannot go past the enormous Hafco Metalmaster Z3050x16 Radial Arm Drill to accomplish those tasks. This machine boasts a whopping 5 morse taper that can accept a Ø50mm taper shank twist drill directly into the spindle. Another impressive dimension is the substantial 1600mm maximum reach out from the column edge to the spindle centre, and offers superior scope to handle many jobs with this machine.
What sets this drill apart from most others on the market is that it has a great range of 16 speed from 25 to 2000rpm, and 16 automatic spindle feed rates from 0.04 to 3.2mm/rev providing ample room to fine tune the machine to suit any drilling job. The user-friendly hydraulic push button control system simultaneously operates the column & head clamp to securely lock in the required position. To simplify the operation further the spindle speeds & feeds are also hydraulically engaged by a lever control mounted directly under the head, enabling the operator to swiftly activate the machine.
Features:

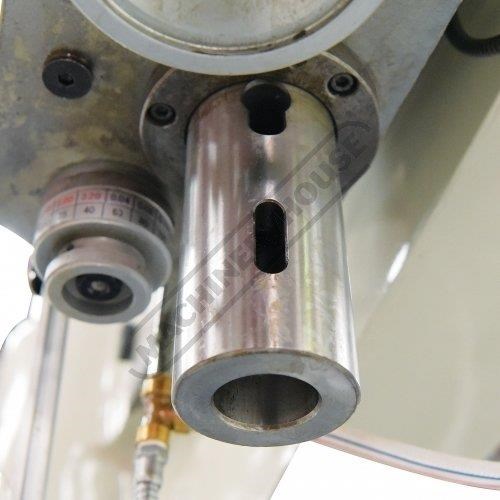

5MT spindle with 50mm drilling capacity

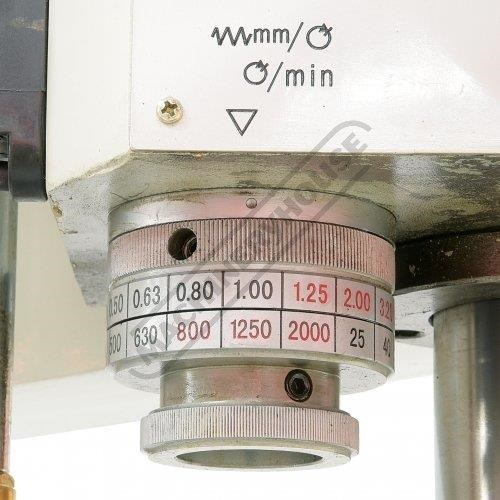

16 x spindle speeds: 25 ~ 2000rpm
16 x automatic spindle feeds: 0.04 ~ 3.2 (mm/rev)

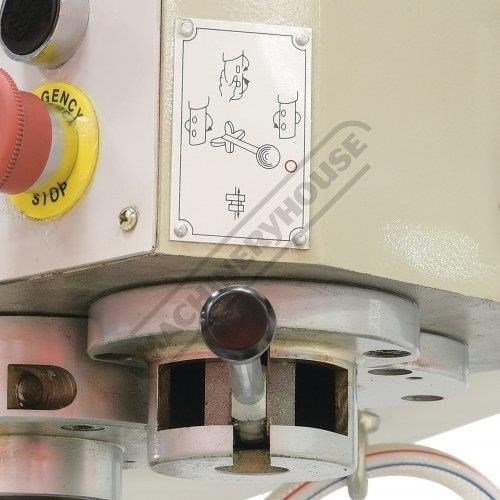

Hydraulic column & head clamp ensures fixed tool positioning
Hardened & ground spindle speed gears for smooth operation

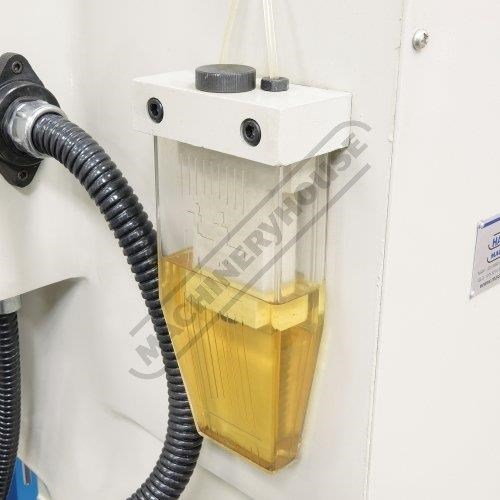

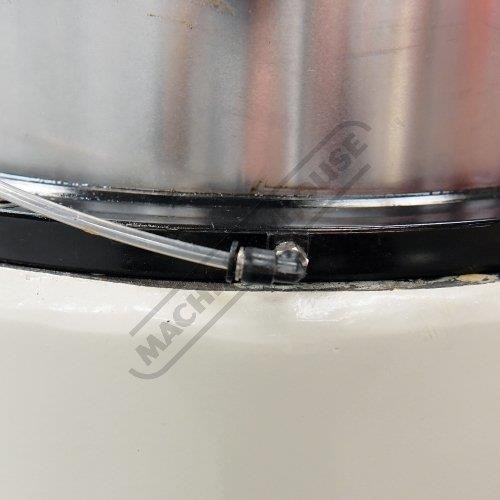

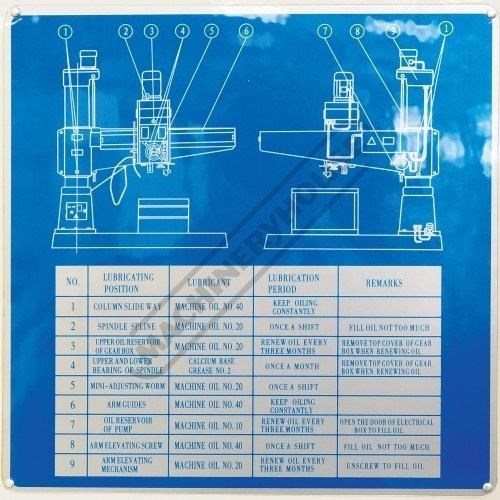

Automatic oil lubrication system for vertical column

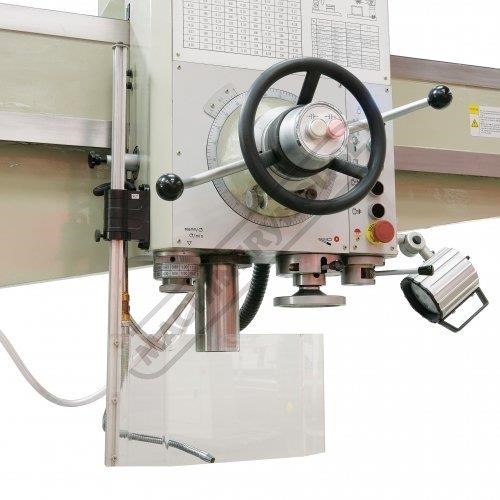

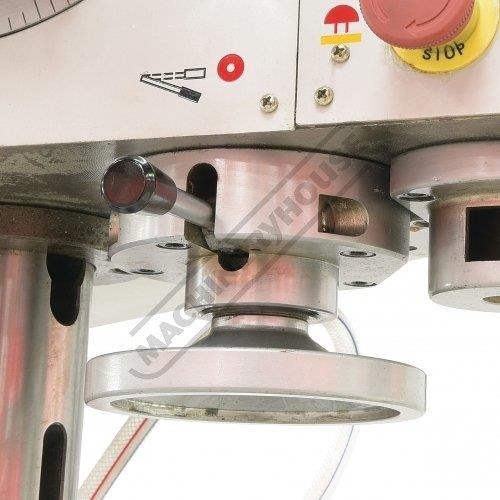

Unique hydraulic operated feed & spindle drive system

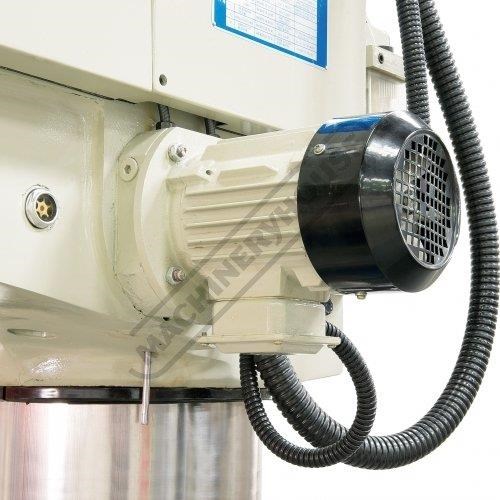

Arm height adjusted via vertical leadscrew & heavy duty induction motor
High quality fine grain cast iron with ribbing ensures extremely low vibration

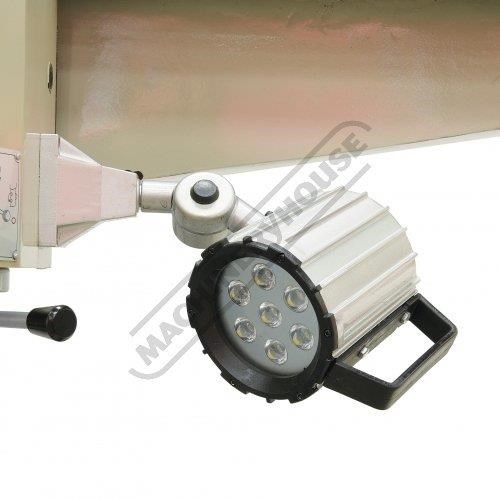

LED work light mounted underneath arm providing direct light on workpiece

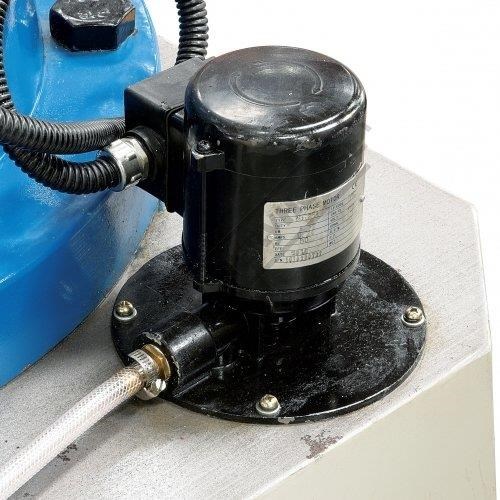

Coolant pump system with flexible hose
Includes:

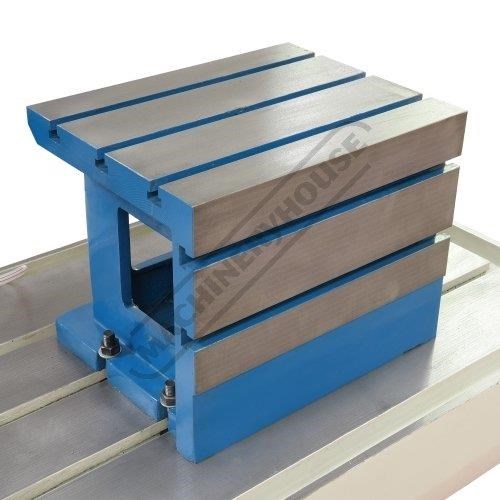

- Box table
- Drill chuck & arbor
- 5-4 4-3 & 3-2 morse taper sleeves
- Coolant pump
- Auto oil lubricator on column
- LED Work light
- Safety chuck guard
Specifications:
ORDER CODE: D166
MODEL: Z3050x16
Drill Capacity (mm): Ø50
Thread Tapping Capacity: M36
Spindle Taper (MT): 5
Spindle Travel (mm): 315
Quill Diameter (mm): 80
Spindle To Column (min-max) (mm): 350 - 1600
Spindle To Box Table (max) (mm): 750
Spindle To Base (max) (mm): 1250
Table Type: Square
Box Table Size (LxWxH) (mm): 620 x 500 x 500
T-slot Size (mm): 20
Automatic Quill Feed (mm/rev): 16 (0.04-3.2)
Work Light: Yes
Coolant System: Yes
Spindle Speed Steps (No.): 16
Spindle Speed Range (rpm): 25 - 2000
Motor Power (kW / hp): 4 / 5.3
Motor Voltage (V): 415
Nett Weight (kg): 4000
To Purchase Online Please Visit The Machineryhouse Website & Search For 'D166'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
