Features
| Title | HAFCO METALMASTER RAD-900 |
| Type | Engineering - Fabrication |
| Sub Type | Radial Arm Drill |
| Make | HAFCO METALMASTER |
| Model | RAD-900 |
| Sale Price | $16,990 GST Exclusive |
| Listing Type | New |
| Stock Number | 6975 |
| RefCode | TA1280532 |
Description

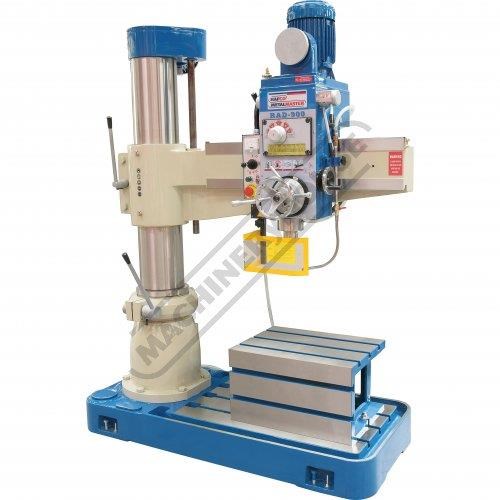

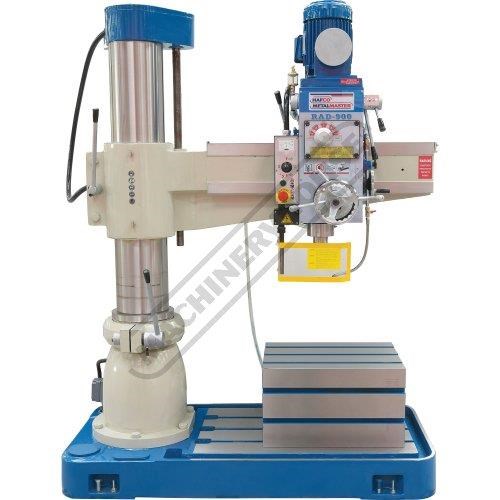

RAD-900 Radial Arm Drill Ø38mm Drilling Capacity 290 - 920mm Spindle To Column
HAFCO-METALMASTER RAD-900 Radial Arm Drill Ø38mm Drilling Capacity 290 - 920mm Spindle To Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D165

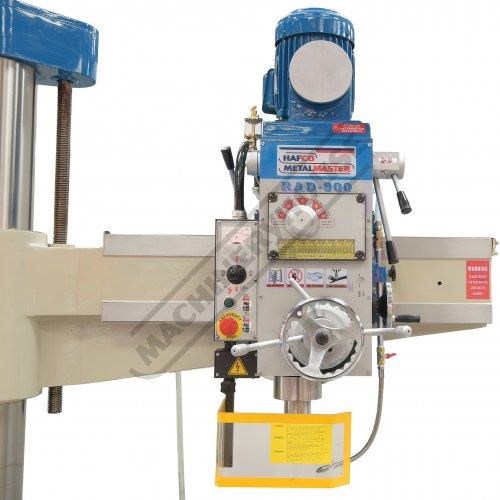

The RAD-900 Radial Arm Drill made in one of our precision top quality factories located in Taiwan, and has proven to be a very popular & favourable machine in the Tool & Die manufacturing industry. The machine base top surface and box table have been ground finished to perfection offering superior parallelism & squareness to achieve the highest of accuracy that is required by the professional tool maker. This machine also has an auto power feed system, with 3 speeds to select from and are relevant to revs per minute, coolant system with flexible hose & nozzle, this drill is known for its quiet & smooth operation for the past 20 years.
The user-friendly unique 4-way joystick control operates the spindle speed direction and the rise and lowering of the head. The machine is also fitted with an amp load metre providing direct and instant load feedback on your current drilling job. The front control panel has a very helpful drilling chart with suggested speeds to use on the different material types with the corresponding drill bit size, this is a general guide from where to begin as each job must be adjusted individually.
Features:
Precision Taiwanese manufactured radial drilling machines

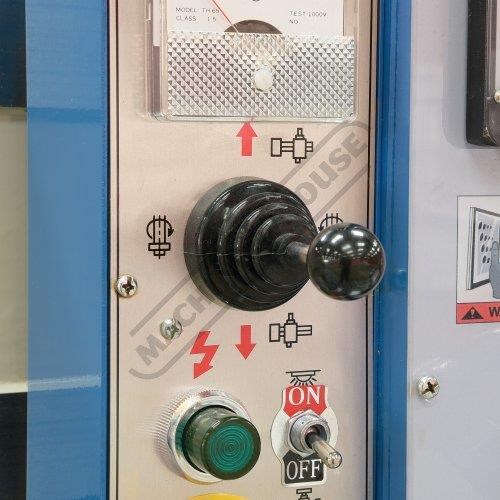

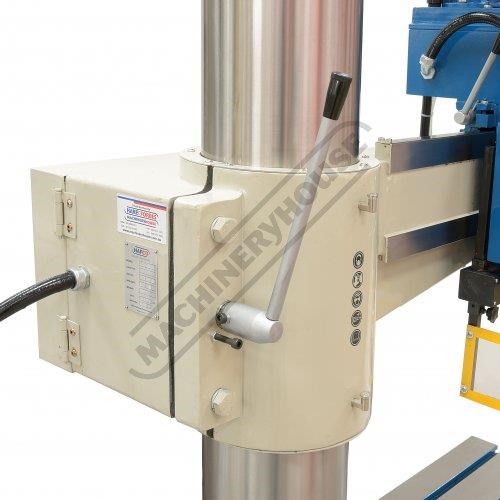

4-way joystick control for motorised arm rise/fall & forward/reverse spindle direction

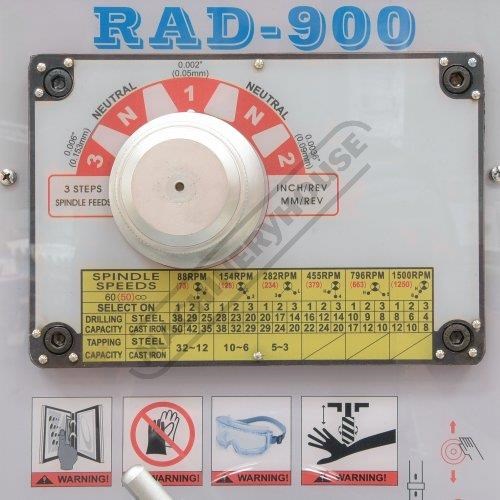

3 Speed auto down-feed: 0.05 0.09 0.15(mm/rev)

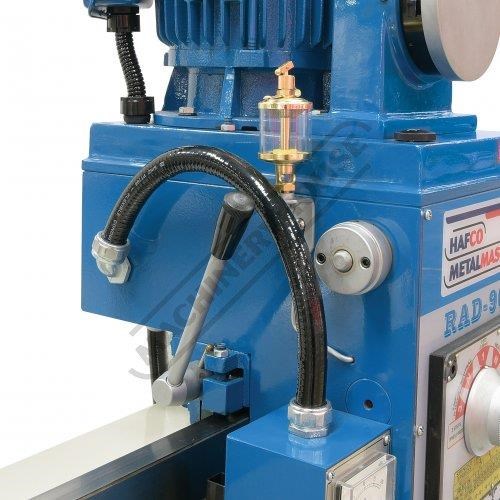

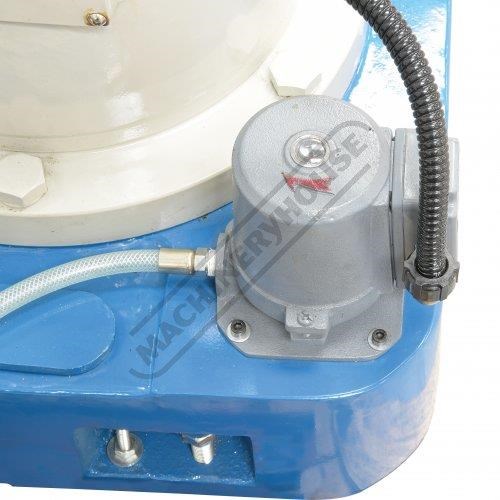

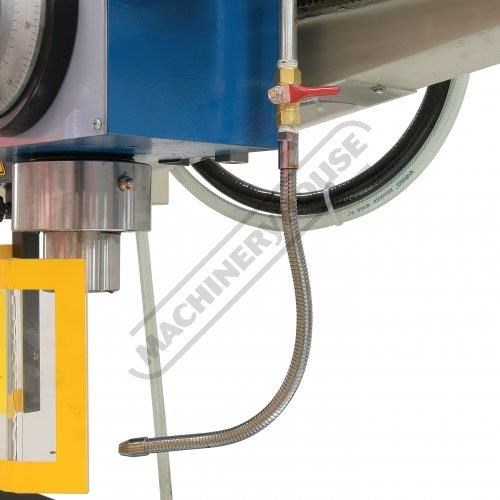

Coolant pump system with flexible hose

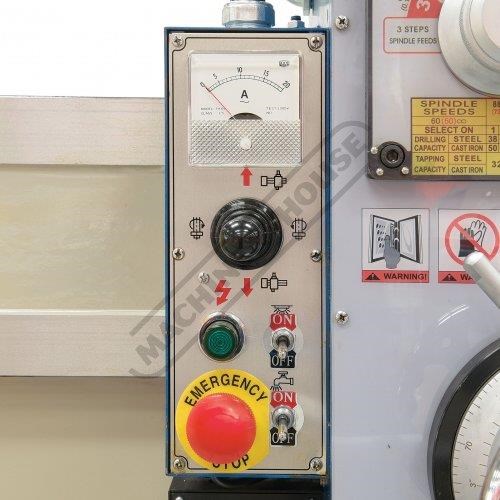

Amp meter providing direct reading of spindle load during operation
Work light mounted underneath arm providing direct light on work piece

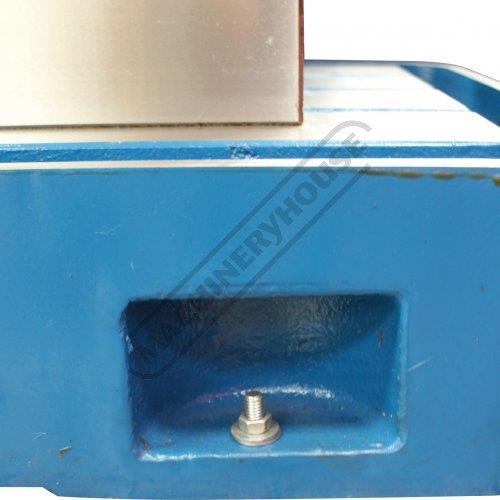

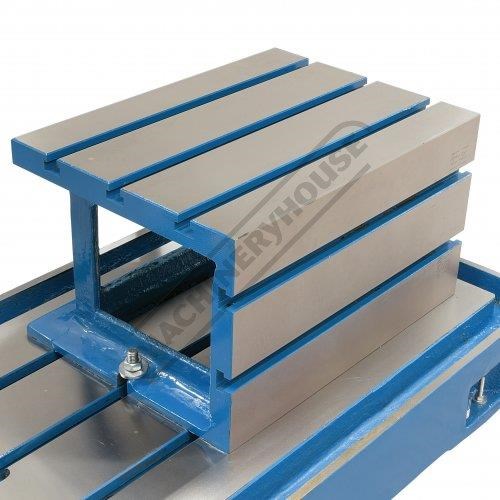

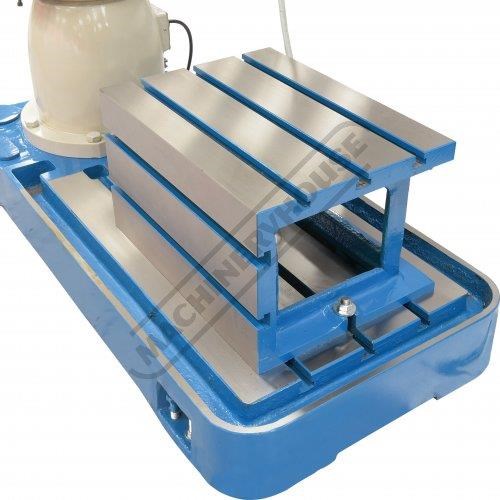

Heavy duty tee-slotted work table

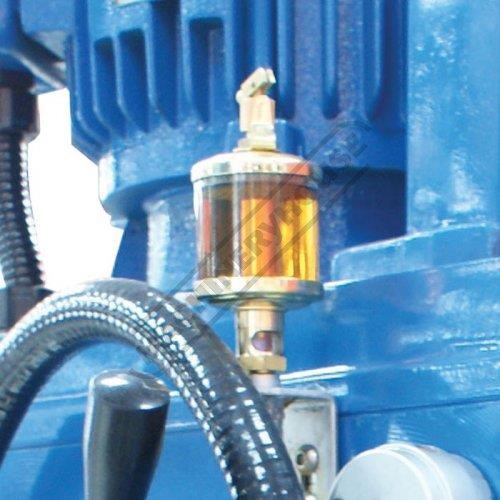

Oil-bath lubricated gear drive

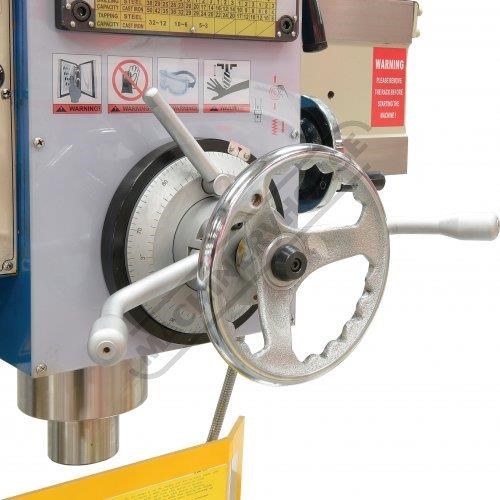

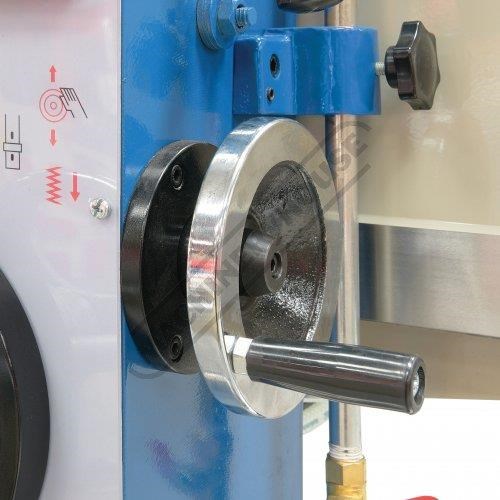

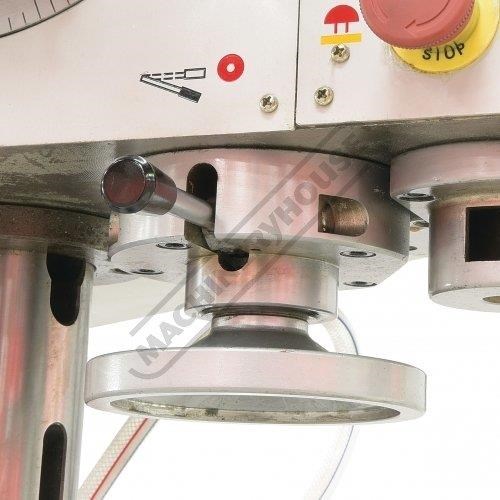

Micro down feed hand wheel for quill

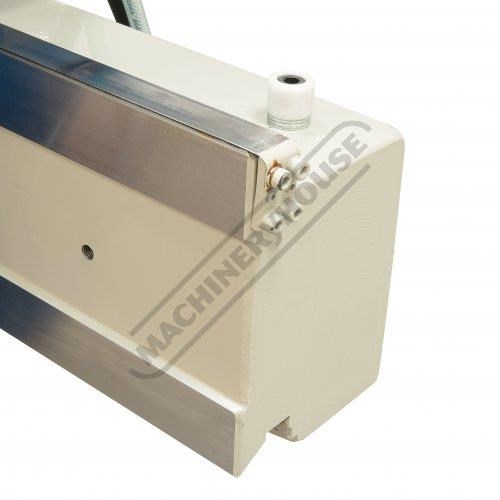

Wear strip on arm ensuring greater wear resistance whilst maintaining head rigidity
Quiet and smooth operation
Reliability - sold for over 20 years
Manufactured in Taiwan
Specifications:
ORDER CODE: D165
MODEL: RAD-900
Drill Capacity (mm): Ø38
Thread Tapping Capacity: M20
Spindle Taper (MT): 4
Spindle Travel (mm): 200
Quill Diameter (mm): 70
Spindle To Column (min-max) (mm): 290 - 910
Spindle To Box Table (max) (mm): 785
Spindle To Base (max) (mm): 1110
Table Type: Square
Box Table Size (LxWxH) (mm): 550 x 405 x 315
T-slot Size (mm): 20
Automatic Quill Feed (mm/rev): (0.05, 0.09, 0.15)
Work Light: Yes
Coolant System: Yes
Spindle Speed Steps (No.): 6
Spindle Speed Range (rpm): 88 - 1500
Motor Power (kW / hp): 1.5 / 2
Motor Voltage (V): 415
Nett Weight (kg): 1270
To Purchase Online Please Visit The Machineryhouse Website & Search For 'D165'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
