DOOSAN PUMA 2100 2600 3100

PUMA 2100 2600 3100 CNC Turning Centres Series Details

DN SOLUTIONS PUMA 2100 2600 3100 CNC Turning Centres Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8001

Features:
Turret Tool Holder Set

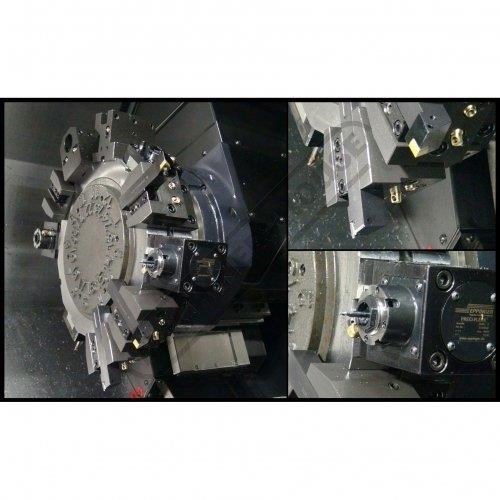

Eppinger BMT Live Tooling (C & Y Axis Models)
Hydraulic Chucks
Hard and Soft Jaws
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide



Specifications:
ORDER CODE: I8001
MODEL: PUMA 2100/2600/3100
Swing (mm): 680~850
Max Turning Diameter (mm): 376-525
Turning Length (mm): 520-3125
Chuck Diameter (mm): 210/380
Bar Diameter Capacity (mm): 65~102
Tool Stations (No.): 10/12/24
Spindle Speed (rpm): 2800~4500
Spindle Motor (kW): 18-30
Guideways: Box Guide Way
Control: Doosan Fanuc I Series
Programming: EZI Guide I Conversational
C Axes Resolution (deg): Optional
Milling Speed (rpm): Optional
Milling Collets: Optional
Sub Chuck Diameter (mm): Optional
Y Axis Travel (mm): Optional


To Purchase Online Please Visit The Machineryhouse Website & Search For 'I8001'
