Contact Seller
Features
| Title | BRAMLEY TBRD |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BRAMLEY |
| Model | TBRD |
| Sale Price | $700 GST Exclusive |
| Listing Type | New |
| Stock Number | 105343 |
| RefCode | TA1266929 |
Description

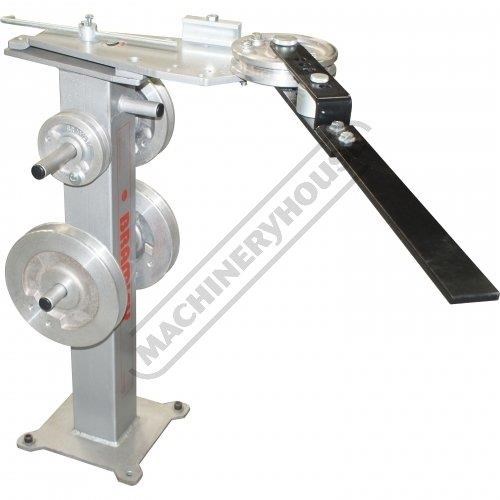

TBRD Manual Tube Bender - Round Ø12.7 - Ø28.57mm Round Tube Capacity, 12.7 - 25.4mm Square Tube Capa
BRAMLEY TBRD Manual Tube Bender - Round Ø12.7 - Ø28.57mm Round Tube Capacity, 12.7 - 25.4mm Square Tube Capacity Includes Ø12.7, Ø15.87, Ø19.05, Ø22.22, Ø25.4 Round Tube Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T051
For bending thin wall tube up to 90° in one operation.

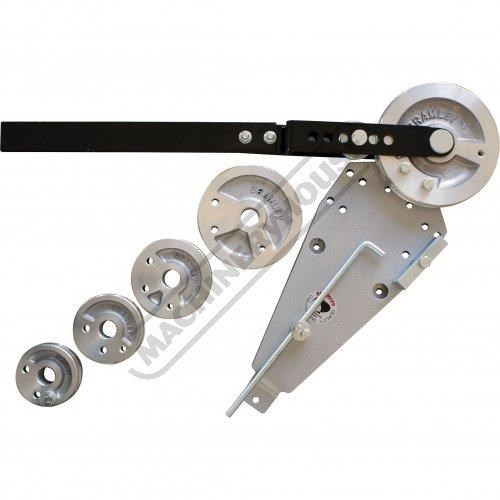

Supplied with 5 sets of Round Tube Formers & Follow Rollers ranging from Ø12.7 - Ø25.4mm OD
Features:
Suitable for 1.6mm wall thickness in mild steel
Now with lightweight aluminium alloy formers
Optional square formers can fit onto the round tube bender (& vice-versa)

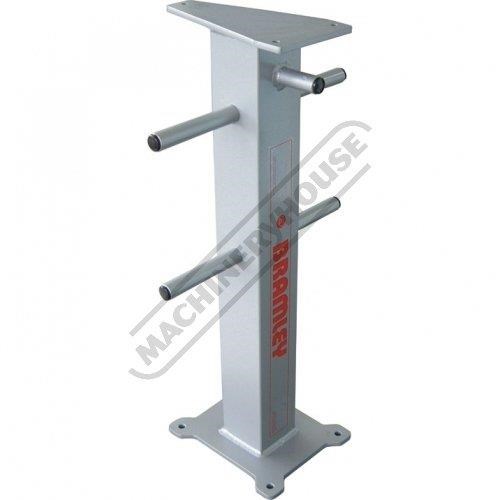

Optional stand - incorporates storage pegs for formers
Includes:
- Aluminium Round Tube Formers:
- Ø12.70mm OD x 50mm Centreline radius
- Ø15.87mm OD x 56mm Centreline radius
- Ø19.05mm OD x 65mm Centreline radius
- Ø22.22mm OD x 85mm Centreline radius
- Ø25.40mm OD x 100mm Centre line radius
- Material length stop
Specifications:
ORDER CODE: T051
MODEL: TBRD
Material (Type): Tube
Material Section (Type): Round
Machine (Type): Manual
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ~
Round Tube Range (OD) - Mild Steel (inch / mm): Ø12.7 - Ø28.57
Square Tube Range (inch / mm): 12.7 - 25.4
Tube Wall Thickness - Mild Steel (inch / mm): 1.6
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): 12.7, 15.87, 19.05,
Tube Formers Included (inch / mm): 22.22, 25.4 OD Round
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 90º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 19
To Purchase Online Please Visit The Machineryhouse Website & Search For 'T051'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
BRAMLEY TBRD Manual Tube Bender - Round Ø12.7 - Ø28.57mm Round Tube Capacity, 12.7 - 25.4mm Square Tube Capacity Includes Ø12.7, Ø15.87, Ø19.05, Ø22.22, Ø25.4 Round Tube Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T051
For bending thin wall tube up to 90° in one operation.
Supplied with 5 sets of Round Tube Formers & Follow Rollers ranging from Ø12.7 - Ø25.4mm OD
Features:
Suitable for 1.6mm wall thickness in mild steel
Now with lightweight aluminium alloy formers
Optional square formers can fit onto the round tube bender (& vice-versa)
Optional stand - incorporates storage pegs for formers
Includes:
- Aluminium Round Tube Formers:
- Ø12.70mm OD x 50mm Centreline radius
- Ø15.87mm OD x 56mm Centreline radius
- Ø19.05mm OD x 65mm Centreline radius
- Ø22.22mm OD x 85mm Centreline radius
- Ø25.40mm OD x 100mm Centre line radius
- Material length stop
Specifications:
ORDER CODE: T051
MODEL: TBRD
Material (Type): Tube
Material Section (Type): Round
Machine (Type): Manual
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ~
Round Tube Range (OD) - Mild Steel (inch / mm): Ø12.7 - Ø28.57
Square Tube Range (inch / mm): 12.7 - 25.4
Tube Wall Thickness - Mild Steel (inch / mm): 1.6
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): 12.7, 15.87, 19.05,
Tube Formers Included (inch / mm): 22.22, 25.4 OD Round
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 90º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 19
To Purchase Online Please Visit The Machineryhouse Website & Search For 'T051'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
