Contact Seller
Features
| Title | BRAMLEY PB-2 |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BRAMLEY |
| Model | PB-2 |
| Sale Price | $1,408 GST Exclusive |
| Listing Type | New |
| Stock Number | 105300 |
| RefCode | TA1266926 |
Description

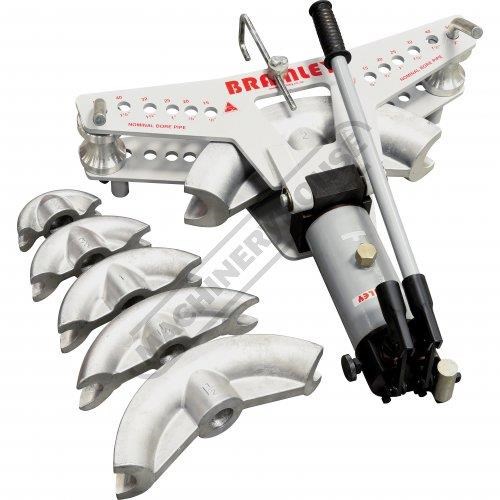

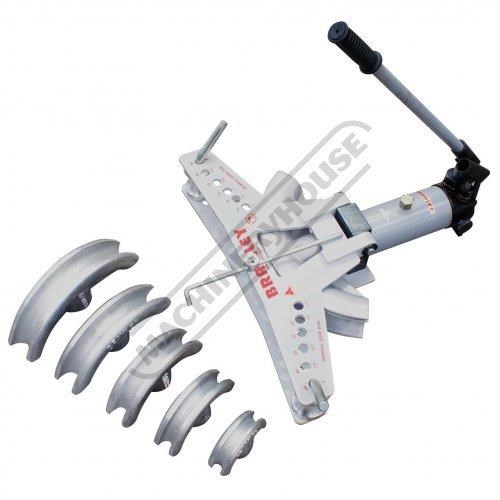

PB-2 Hydraulic Pipe Bender - 2 Stage Pump Ø1/2 - Ø2`` NB Pipe Capacity Includes Ø1/2``, Ø3/4``, Ø1``, Ø1
BRAMLEY PB-2 Hydraulic Pipe Bender - 2 Stage Pump Ø1/2 - Ø2`` NB Pipe Capacity Includes Ø1/2``, Ø3/4``, Ø1``, Ø1-1/4``, Ø1-1/2``, Ø2`` Cast Aluminium Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P075
Features:
6 cast aluminium alloy pipe formers to suit (Ø1/2`` Ø3/4`` Ø1`` Ø1-1/4`` Ø1-1/2`` Ø2`` water pipe)
Light weight aluminium alloy formers with large angle of arc to support pipe during bending. This results in a bend of superior quality
Cross section of formers is of ``elliptical`` form to minimise flattening of bend
Solid fabrication flip top frame for easy pipe & former replacement

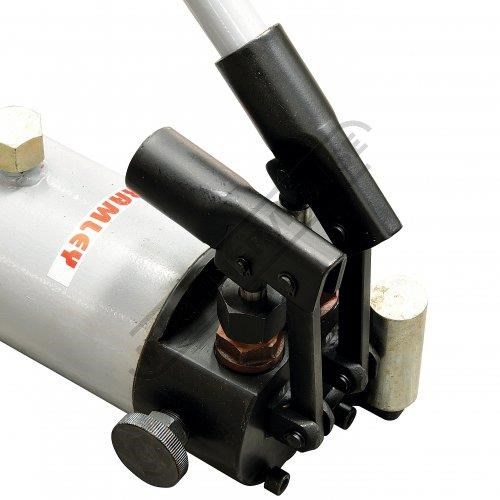

Hydraulic ram now with 2 stage pump & a spring return ram
Flip top frame for easy pipe placement & removal and changing of former size
Spring return ram retracts ram when bend is complete

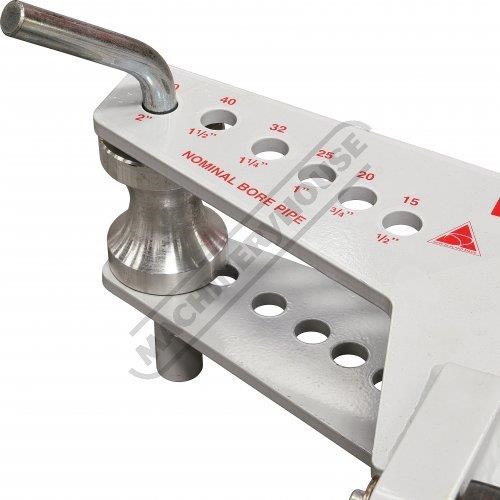

Quick & easy to adjust guide pins to suit pipe

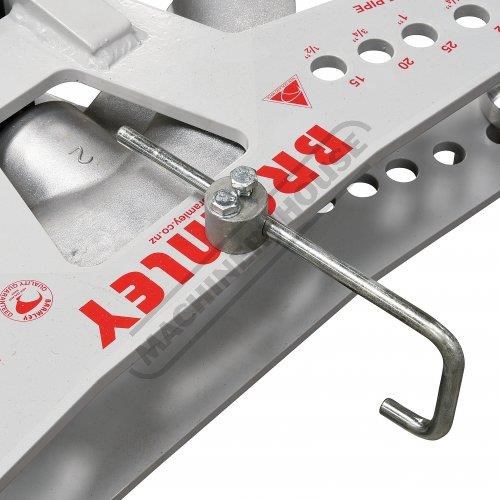

Bending angle measuring stop allows repeat bending with ease
Bend pipe up to a maximum of 90º

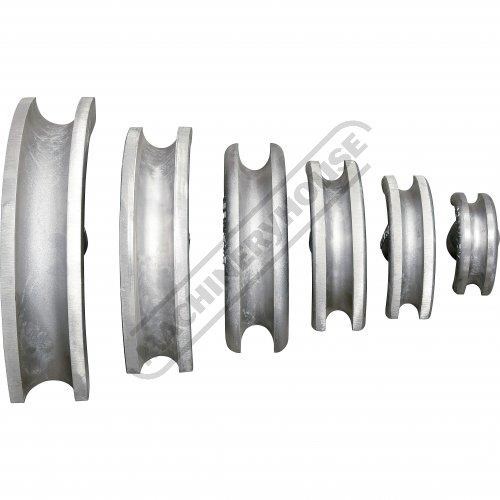

Complete with six pipe formers (1/2" - 2" N.B) two bobbins (support rollers) & pins
The ram spigot hole on BRAMLEY formers is 38mm. This can be bushed to suit smaller ram diameters
Includes:

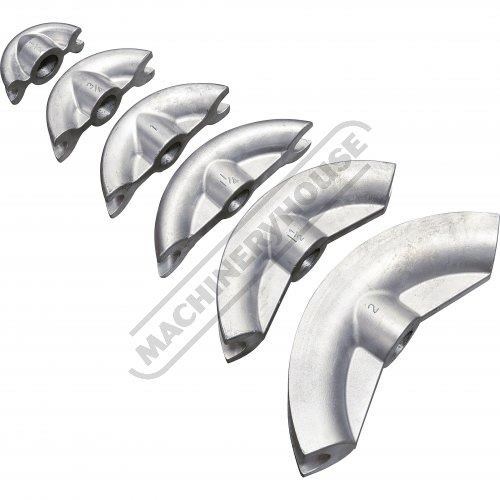

- Cast Aluminium Pipe Formers:
- Ø1/2`` has 75mm centreline radius radius
- Ø3/4`` has 105mm centreline radius
- Ø1`` has 140mm centreline radius
- Ø1-1/4`` has 175mm centreline radius
- Ø1-1/2`` has 200mm centreline radius
- Ø2`` has 240mm centreline radius
Specifications:
ORDER CODE: P075
MODEL: PB-2
Material (Type): Pipe
Material Section (Type): Round
Machine (Type): Manual Hydraulic
Hydraulic Jack Size (Tonne): 12
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2`` - Ø2``
Round Tube Range (OD) - Mild Steel (inch / mm): ~
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2``, 3/4``, 1``, 1-1/4``,
Pipe Formers Included (inch / mm): 1-1/2``, 2``
Spigot Size on Ram (inch / mm): 38
Angle Capacity (deg): ~
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 65
To Purchase Online Please Visit The Machineryhouse Website & Search For 'P075'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
