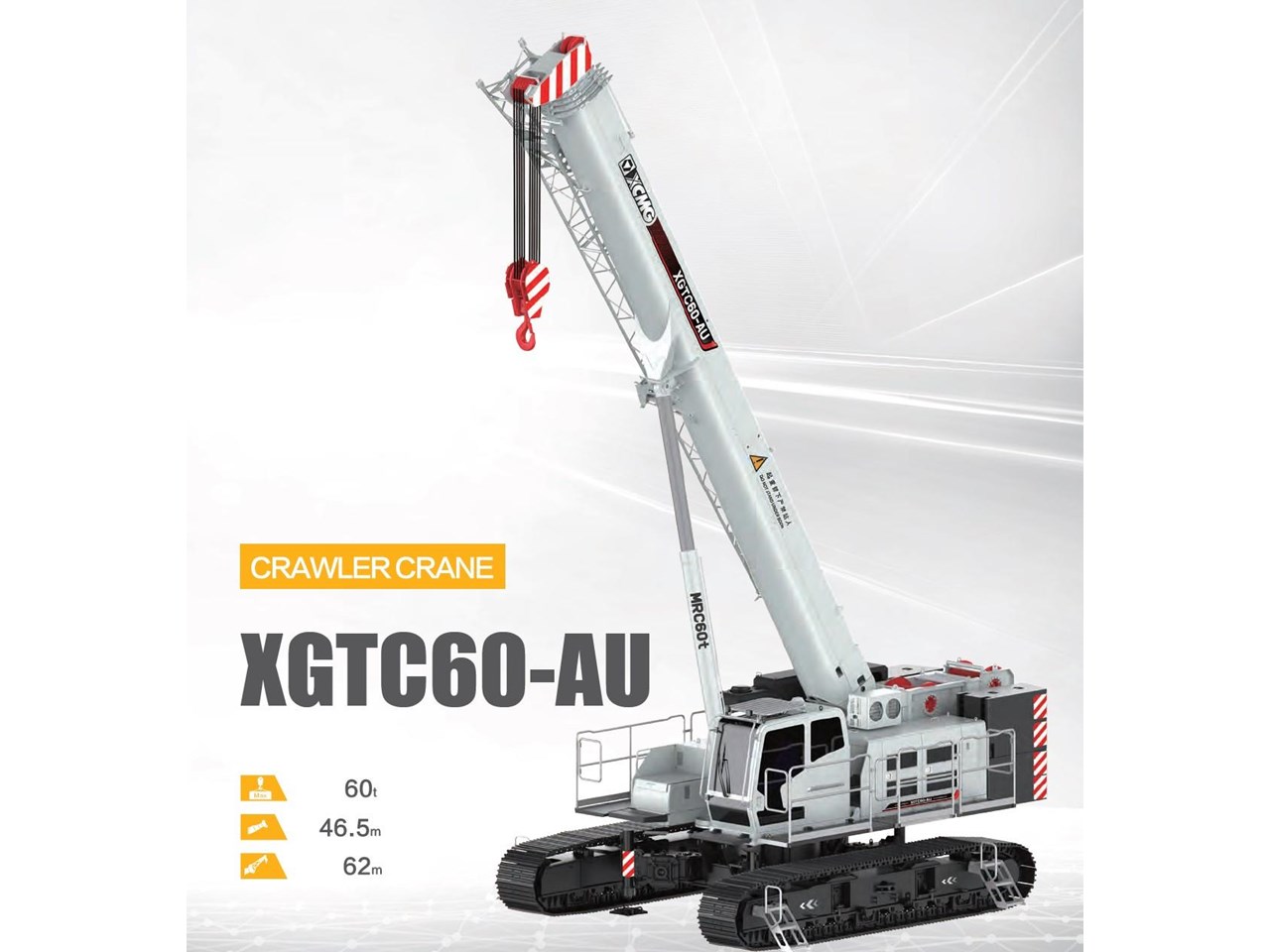

XCMG XGTC60 - AU TELESCOPIC CRAWLER CRANE

Engine

Cummins B6.7 diesel, EU Stage V compliant

Rated power: 209 kW @ 2200 rpm

Compact, lightweight, high power output

Low fuel and oil consumption, low emissions

Built for tough telescopic crawler crane conditions

Fuel tank capacity: 440 L

Hydraulic System

Dual variable-pump, load-sensing electro-hydraulic system

Proportional electro-hydraulic control for smooth, precise movements

Special slewing buffer circuit for soft start/stop and fine lifting

Key components from top international brands for high reliability

Control & Electrical System

WIKA (Hirschmann) integrated control system

Covers engine, safety, pilot control, LMI, and auxiliary functions

Features include boom extension/retraction, virtual wall, and optional remote management

CAN-bus system with full sensor monitoring for easier diagnostics

Heavy-duty connectors and spring-loaded terminals for easier maintenance

Operators Cab

Steel frame with armored glass

Spacious, comfortable, adjustable seat

Ergonomic controls and instruments

Air-conditioning (heating & cooling), sound system, CCTV monitoring

Tilting cab for improved visibility during operation

Slewing System

Front-mounted slewing system driven by hydraulic motor

Hydraulic buffering and free-sliding for safe, smooth operation

Reducer with normally-closed disc brake for reliability and easy servicing

Single-row four-point contact ball slewing bearing for stable 360° rotation

Turntable

High-strength welded steel structure

Excellent bending and torsional resistance

Large internal space for easy maintenance

Houses major components: cab, main & auxiliary winches, engine

Connected to undercarriage via slewing bearing
