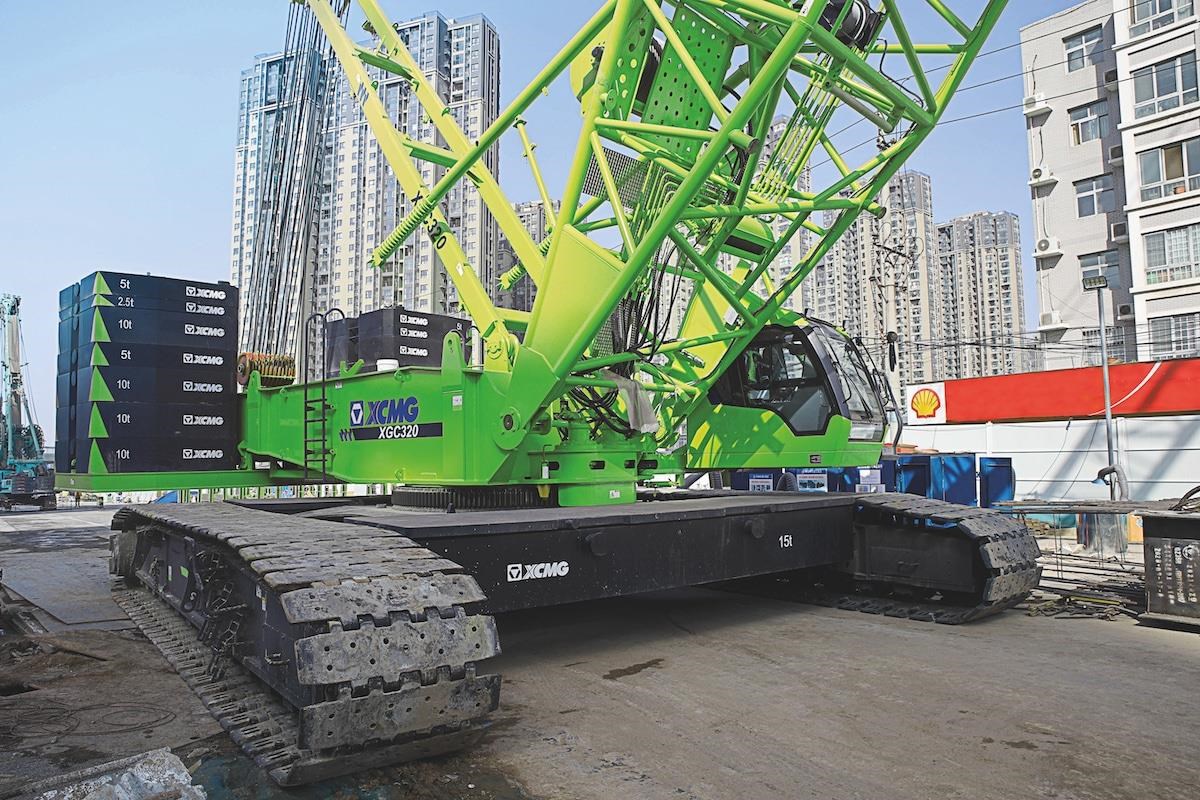

XCMG XGC320 LATTICE CRAWLER CRANE

XCMG XGC 320 Product Overview
The XCMG XGC 320 is a 320-tonne class heavy-duty lattice boom crawler crane designed for major infrastructure, mining, energy, and industrial construction projects. It delivers exceptional lifting capacity, long reach, and outstanding stability, making it ideal for demanding heavy-lift applications.

Boom & Jib Configurations
Main Boom (HB)
Recommended boom length: 22 m 64 m
Maximum standard boom length: 88 m
Optional extended boom: up to 94 m (custom)
High-strength four-chord lattice boom design

Tower Jib (HW)
Recommended length: 24 m 42 m
Maximum standard length: 60 m
Optional extension: up to 66 m (custom)

Light-Duty Boom (LB)
Boom and tower jib combination
Maximum light-duty boom length: 107.5 m
Suitable for long-reach, moderate-load lifts

Fixed Jib (HF)
Recommended length: 7 m
Maximum length: 16 m

TBM Jib (HBF)
Recommended length: 7 m
Maximum length: 10 m
Two-hook operation, interchangeable with fixed jib sections

Lifting Performance
Maximum rated lifting capacity: 320 tonnes
Maximum lifting moment: 1,870 t·m
Up to 15 operating modes across multiple boom and jib configurations

Counterweights
Car-body counterweight: 40 t
Turntable counterweight: up to 125 t
Modular slabs for optimised lifting charts

Engine & Systems
Engine: Weichai WP10 series
Rated power: 247 kW @ 1,900 rpm
Advanced hydraulic proportional control system
PLC-controlled electrical system with CAN-bus
Comprehensive safety systems including LMI and cameras
