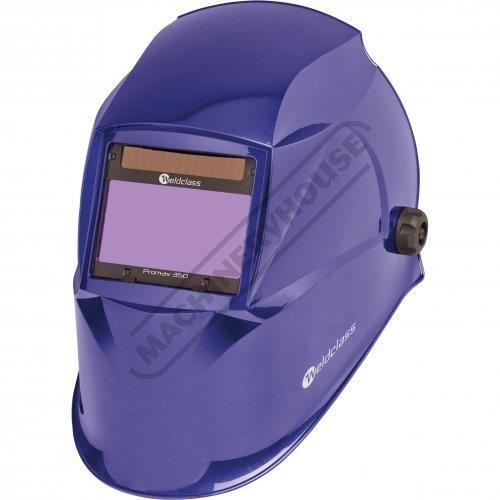

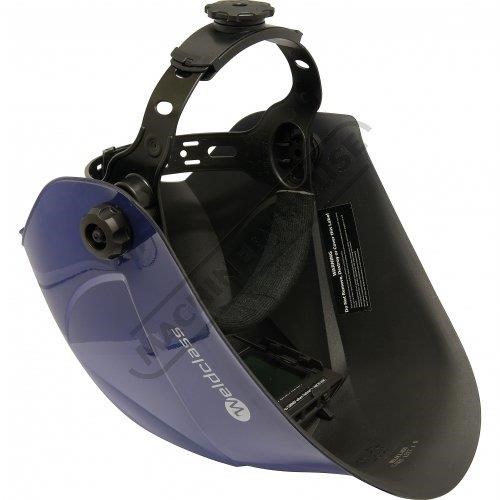

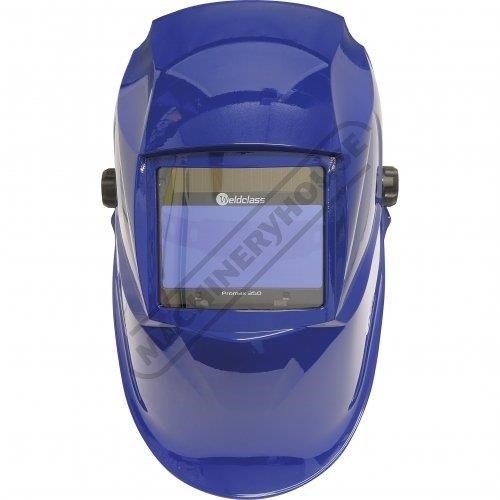

WELDCLASS PROMAX 350

PROMAX 350 Auto Darken Welding Helmet - 9~13 Shade Suits Mig, Tig, Arc & Includes Grinding Function

WELDCLASS PROMAX 350 Auto Darken Welding Helmet - 9~13 Shade Suits Mig, Tig, Arc & Includes Grinding Function Includes Enhanced Colour Recognition
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W002

Our most popular auto-darkening welding helmet. Offered with a leading 7-year warranty, the PROMAX 350 electronic welding helmet is suitable for MIG, Stick & TIG welding. Stand-out features include; 4 sensors for reliable switching & a generous viewing area, larger than many other helmets in this class. Variable Dual-Shade 5-8/9-13, Sensitivity & Delay Adjustments, Grind-Mode switch, replaceable battery, magnification lens holder & more. Comfortable, very lightweight & superior optics.

Features:
KEY FEATURES:
7-Year Warranty**
Enjoy a Generous Viewing Area (100 x 53mm) with Ultra-Clear Vision
Dual Shade Range 5-8 / 9-13 plus grind mode to cover a wide range of welding processes
4 Arc Sensors for reliable arc detection & switching
Lightweight Comfortable & Easy to use

APPLICATION INFO:
Light to Medium Fabrication Rural Maintenance etc
MIG welding
Stick welding
TIG welding down to 30 amps
Grinding
Plasma Cutting
Air-Arc Gouging

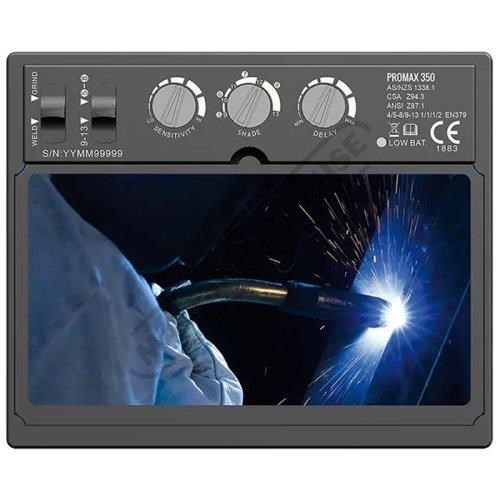

FUNCTIONS:
Welding mode: Variable shade 5-8 / 9-13
Grind mode: Locks lens to light mode (shade 4)
Delay: Adjustable 0.1-1.0s (switching time from dark back to light after welding arc stops)
Sensitivity: Adjustable low-high

OTHER FEATURES:
Viewing area: 100 x 53mm
High-Impact tested and rated to Australian standard AS1337.1
Auto-darkening lens complies with AS1338.1
'Hinge & Lock' Lens Retainer System = Easy cover lens replacement Seals tightly against spatter to prevent damage to electronic lens
Magnification lens holder - takes standard magnification lenses
Reliable Power Source: Replaceable battery plus solar assist efficient electronics for low power consumption

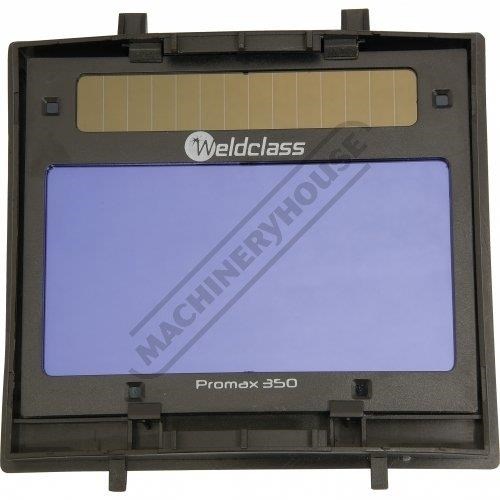

'Full Laminate' Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality and long service life. This is in contrast to cheaper lenses which are simply glued on the edge and over time are prone to contamination and failure.
Lightweight Durable and Shock Resistant shell
Auto-on & Auto-off = No buttons to press Hassle-Free operation

• Standard warranty 2 years with extended 7 year warranty available with registration after purchase (on auto darkening lens/cassette)

Includes:

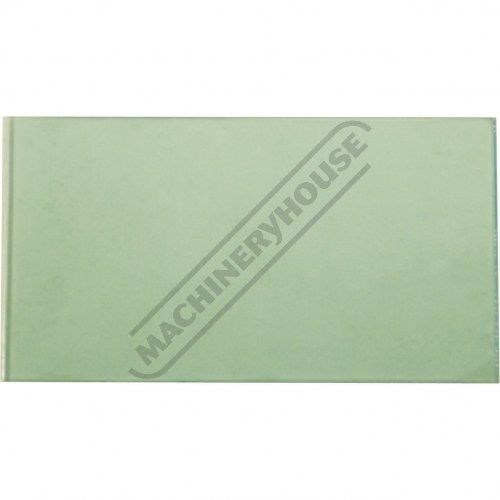

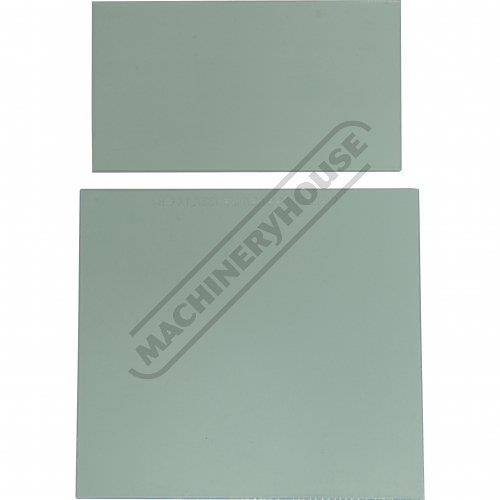

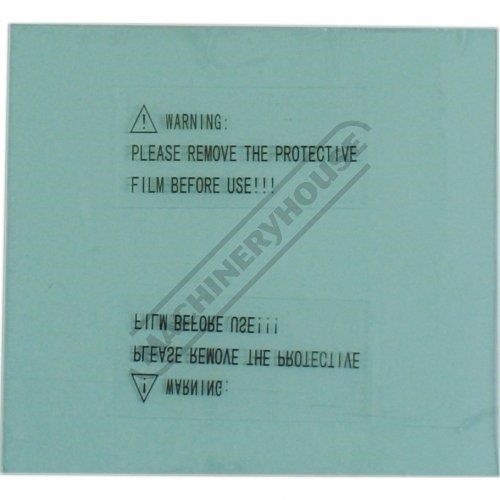

- 1 x Cover Lens - Inner 106mm x 59mm
- 1 x Cover Lens - Outer 115 x 104mm



Specifications:
ORDER CODE: W002
MODEL: PROMAX 350
Viewing Area (mm): 100 x 53
Cartridge Size (mm): ~
Arc Sensors (No.): 4
Light State: ~
Shade: 9 ~ 13
Shade Control: Internal Variable Shade
Power On/off: Fully Automatic
Sensitivity Control: Adjustable Dial, Low ~ High
Sensitivity Control: ~
UV/IR Protection: ~
Helmet Power Supply: Solar Cell, Battery Change
Helmet Power Supply: Required (1 x CR2032
Helmet Power Supply: lithium battery)
Respirator Power Supply: ~
Respirator Power Supply: ~
Switching Time Light To Dark: 1/30,000 (0.00003) seconds
Delay Time Dark To Light (Seconds) (sec): 0.1 ~ 1.0
Delay Time Dark To Light (Seconds) (sec): ~
TIG Rated Minimum (amp): 30
Grinding Function (Yes / No): Yes - ON/Off Switch
Inactive Shade (Grind/Off): Shade 4
Operating Temperature: -5ºC ~ +55ºC
Storing Temperature: -10ºC ~ +65ºC
Helmet Material: High Impact Nylon
Helmet Material: ~
Application Range: Stick, Mig, Tig, Arc Welding
Application Range: & Grinding
Application Range: ~
Standard: Lens: AS/NZS1338.1,
Standard: EN379, ANSI Z87.1,
Standard: CSA Z94.3
Standard: Shell: AS/NZS1337.1
Standard: High Impact EN 175 B,
Standard: ANSI Z87.1, CSA Z94.3
Total Weight (grams): 480
