VERTEX VK-5

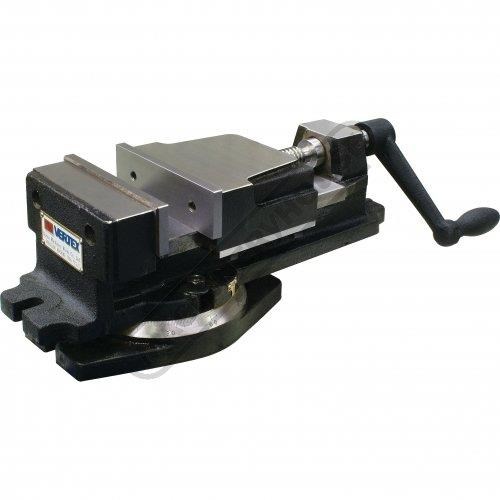

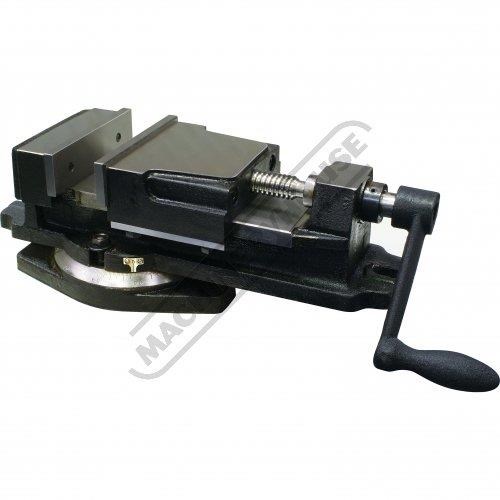

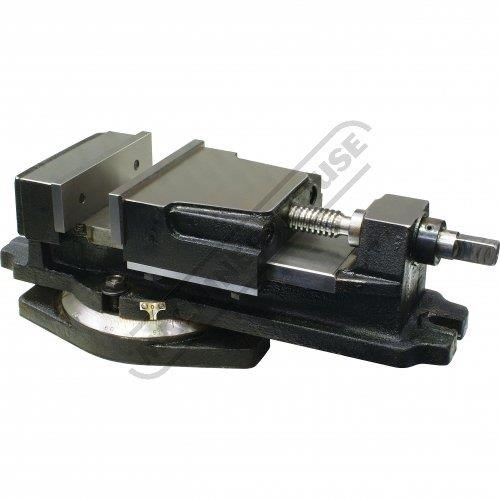

VK-5 Vertex K-Type Milling Vice 127mm Jaw Width 80mm Jaw Opening

VERTEX VK-5 Vertex K-Type Milling Vice 127mm Jaw Width 80mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V105

Features:
Jaws hardened and ground alloy steel
All working surfaces such as top and bottom of bed jaw plates and base are precision ground square and parallel
Bearing portion of the acme-threaded leadscrew is ground for accurate alignment
Graduated swivel base with large easy-to-read divisions


Specifications:
ORDER CODE: V105
MODEL: VK-5
E - Jaw Width (mm): 127
R - Jaw Opening (mm): 80
h1 - Jaw Depth (mm): 37
A (mm): 345
B (mm): 128
H (mm): 98
S (mm): 370
a (mm): 208
b (mm): 150
h2 (mm): 30
g1 (mm): 12
g2 (mm): 12
Nett Weight (kg): 18


To Purchase Online Please Visit The Machineryhouse Website & Search For 'V105'
