UNKNOWN RAZOR CUT 45 V2

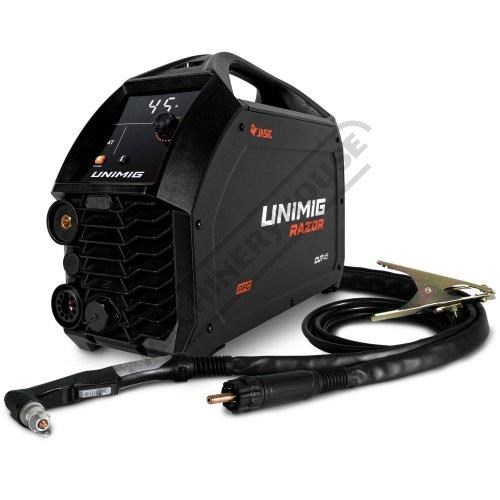

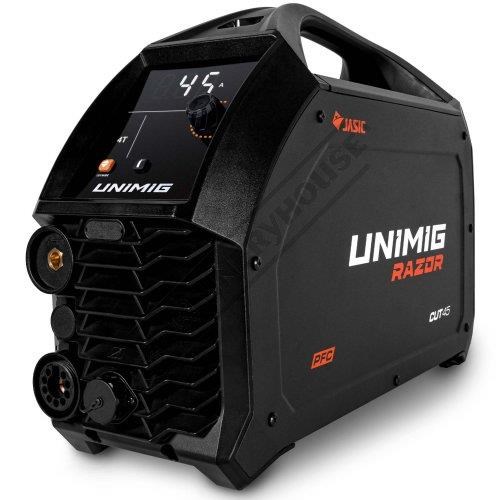

RAZOR CUT 45 V2 Plasma Cutter 45 Amps - 16mm Steel Capacity, 6 Metre Surecut SC80 Plasma Torch

UNIMIG WELDERS RAZOR CUT 45 V2 Plasma Cutter 45 Amps - 16mm Steel Capacity, 6 Metre Surecut SC80 Plasma Torch
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C4231

Latest IGBT Inverter Technology
Our state-of-the-art IGBT Inverter technology gives you get better performance, better efficiency, and better reliability, all with a significantly lighter power source than a transformer.

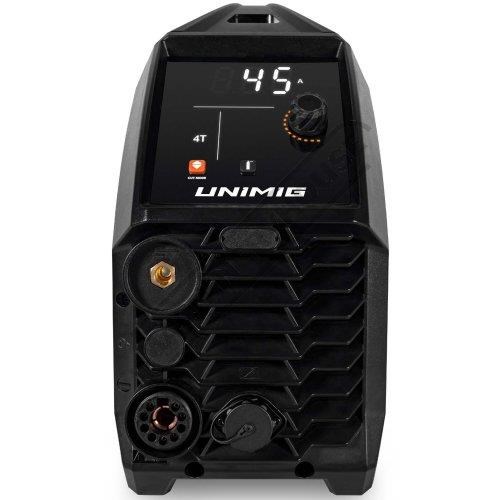

HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.

Power Factor Correction
PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.

Perforated Cut Mode
Now you can cut perforated metal without having to restart the arc between gaps. Simply switch into perforated cutting mode and slice through perforated metal with ease.

Pilot Arc Start
Pilot Arc Start lets you start the arc before contacting the workpiece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

2T/4T Trigger Modes
Designed for user preference and comfort, adjustable trigger modes allow you to either hold the trigger down throughout the cut, or use the trigger as a on/off switch by pulling to start and pulling to stop.

Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

Lightweight & Portable
Weighing just 10kg, the RAZOR CUT 45 is ready to go anywhere you need it.

CNC Connectivity
With an easy-access CNC connection on the front panel, you can plug in a CNC torch and use it with a CNC table.

Air Test
The Air Test feature lets you to test the air pressure before proceeding with cutting, to easily check you've set the optimal parameters.

Optional Air Compressor Module
The new air compressor module is designed to perfectly fit the RAZOR CUT 45. This sleek and compact unit eliminates the need for a bulky external air compressor, perfect for workshops where space is a premium or as a CNC companion. Despite its small size, there is no compromise on performance, maintaining a clean cut of 16mm and a severance cut of 25mm.

Features:
Latest IGBT Inverter Technology
CNC Connectivity
Power Factor Correction
2T/4T Trigger Modes
High quality SC80 Plasma torch
Industrial application
Tolerant to variable power supply
Suitable to cut all electrically conductive materials
Light weight and compact

Includes:
- Plasmacut 45 Power Source
- 4 Metre Earth lead
- 6 metre Surecut SC80 Plasma torch
- 15amp plug



Specifications:
ORDER CODE: C4231
MODEL: RAZOR™ CUT 45 V2
Part Number: ~
Cutting Capacity - Steel (mm): 16
Cutting Capacity - Aluminium (mm): ~
Voltage / Amperage (V / amp): 240 / 15
Recommended Plug (amp): 15
Duty Cycle: 25% @ 45 amp
Duty Cycle: ~
Current Range (amp): 20-45
Air Pressure Required (PSI): 75
Air Flow Capacity Required (L/min /Bar): 189 / 6
Recommended Generator KVA (kVA): ~
Dimensions (mm): 546 x 169 x 341
Nett Weight (kg): 10
