UNKNOWN 4000

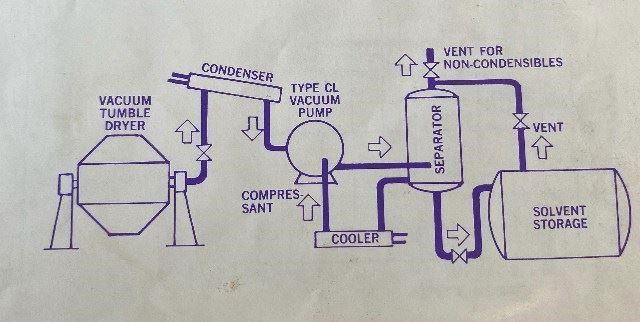

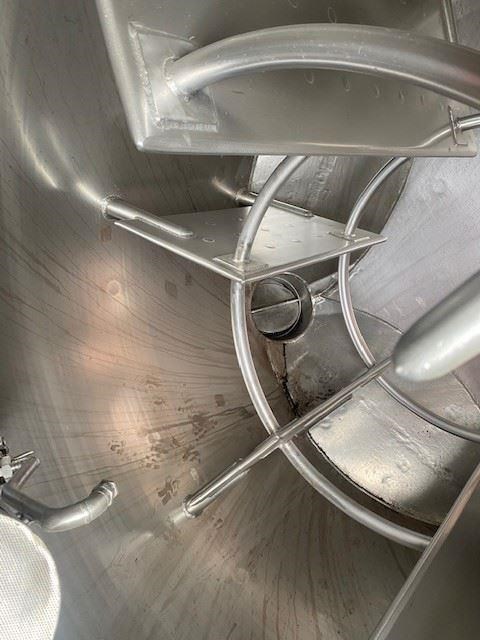

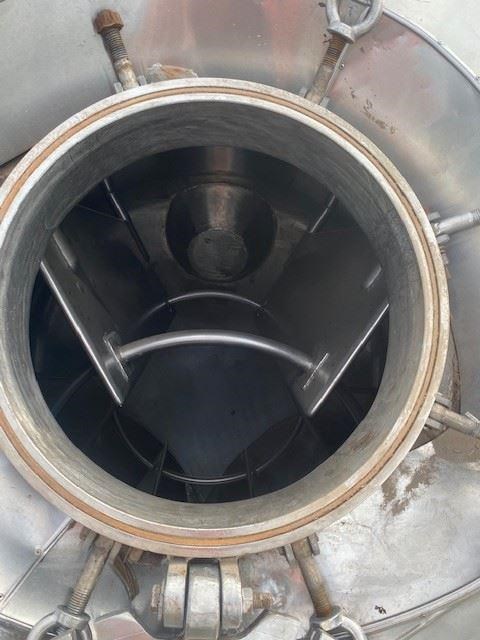

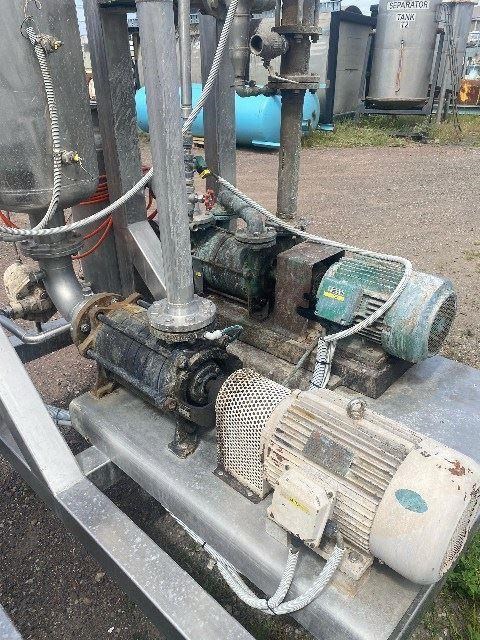

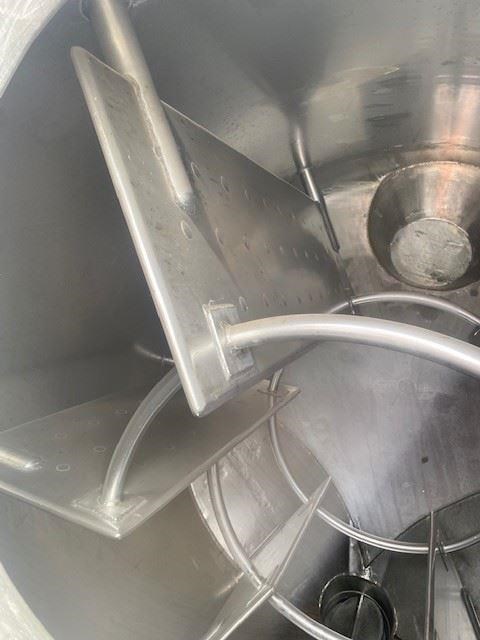

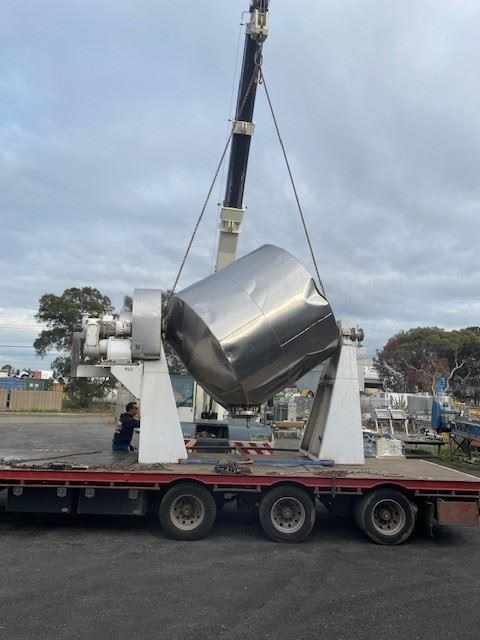

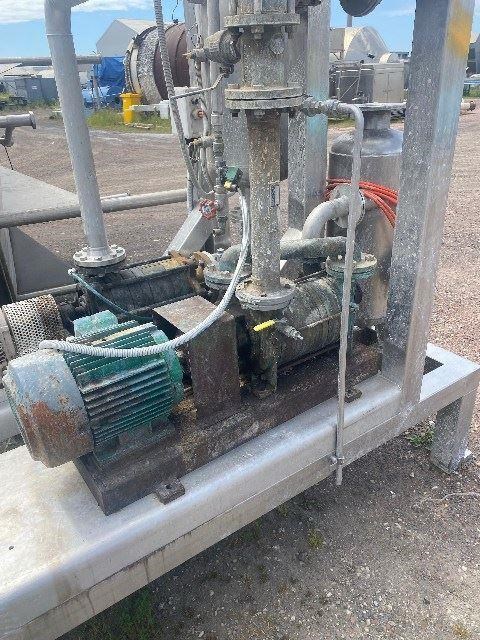

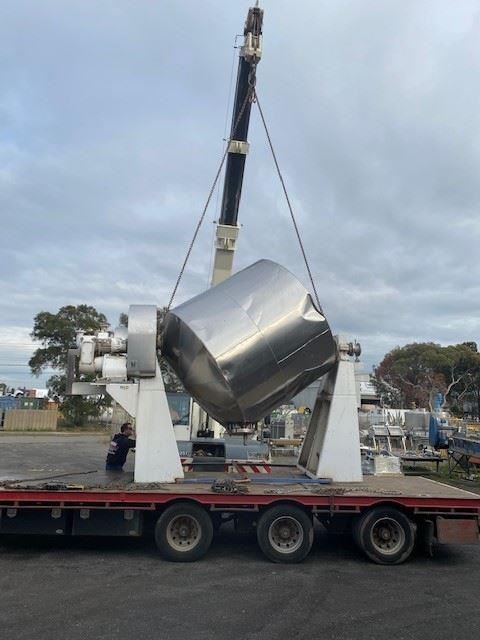

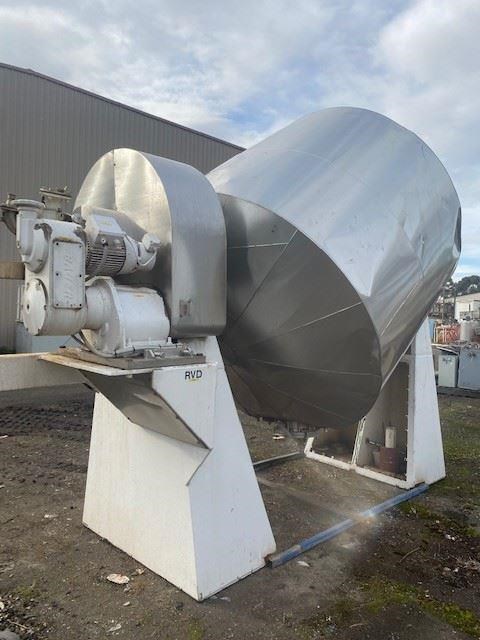

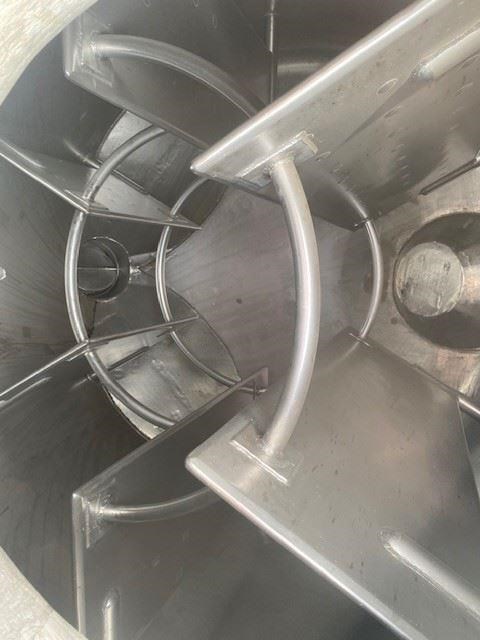

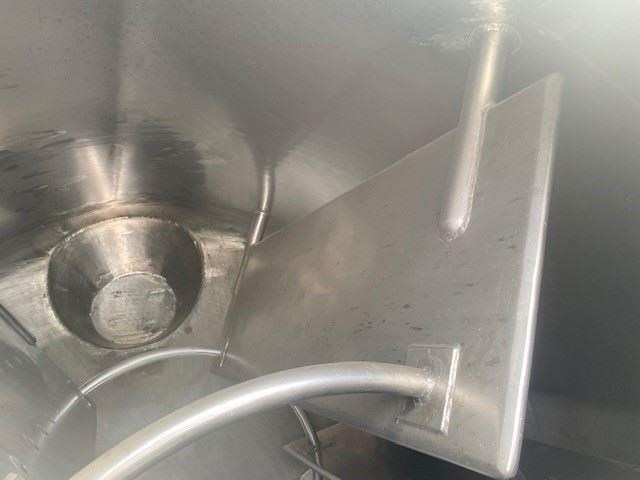

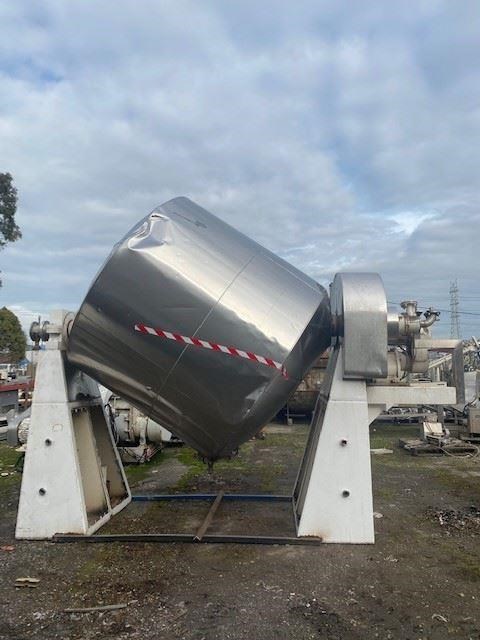

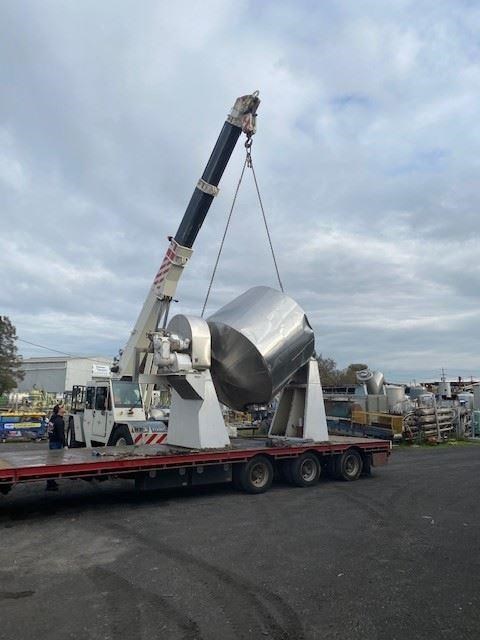

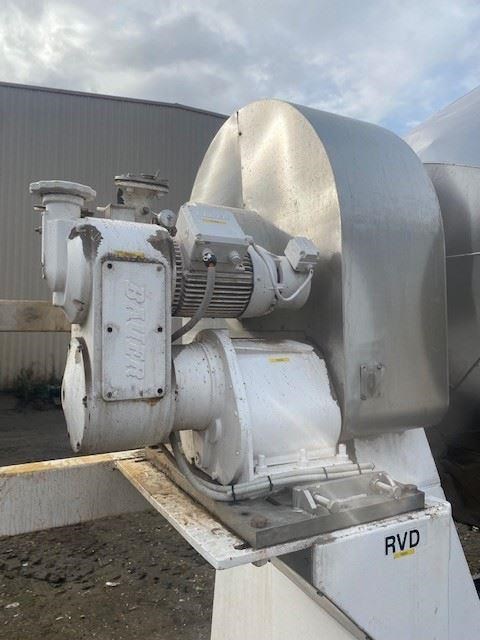

4000L stainless steel rotary cone vacuum dryer. Variable speed drive (415V) with brake , jacketed and insulated. Vacuum pump. 321 stainless steel, internal jacked paddles, full vacuum. Temp 200c. 2.5bar on JKT. 2bar main Tank. Rotary cylindrical vacuum dryers are designed for drying, mixing and condensing operations. The manufacturing specifications make these dryers especially suitable for processes where it is necessary to operate at high vacuum levels in combination with high heating temperatures, The skewed cylindrical form and the constant rotation ensure an efficient product mixing. The result is a uniform final blend in terms of both viscosity and residual humidity, which is greater than that achieved in continuous processes. In addition, vacuum drying means elimination of oxygen and so avoiding the creation of unwanted secondary compounds or of explosive mixtures with the extracted solvents. The action on the product is very delicate and light, so that mechanical shocks are avoided, limiting the creation of fine powders, as requested for this kind of production.
