Contact Seller
Features
| Title | TOOLMASTER TM-6025Q |
| Type | Engineering - Fabrication |
| Sub Type | Grinders |
| Make | TOOLMASTER |
| Model | TM-6025Q |
| Sale Price | $5,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 6984 |
| RefCode | TA1263783 |
Description

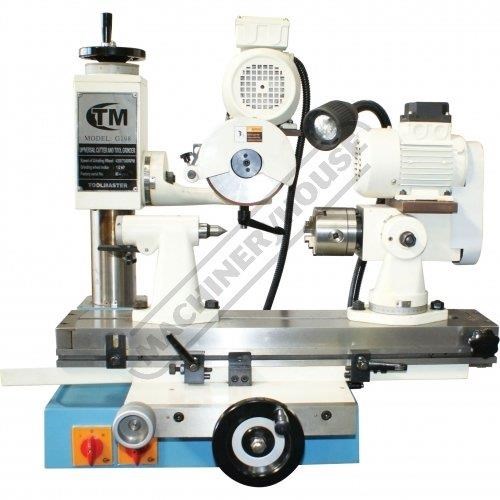

TM-6025Q Universal Tool & Cutter Grinder Ø250 x 350mm Grinding Capacity 2 Speed, 4200 & 7000rpm
TOOLMASTER TM-6025Q Universal Tool & Cutter Grinder Ø250 x 350mm Grinding Capacity 2 Speed, 4200 & 7000rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G198
The universal tool & cutter grinder is designed to sharpen various cutters. It also includes many accessories designed for specific functions. From these accessories the operator can set up the correct attachment according to the cutters that need to be sharpen. The machine is able to grind drilling bits, threading taps, end-milling and slot drilling cutters, face milling cutters, turning tools, circular slitting cutters.
The machines base is made of cast steel construction resulting in high stability during operation. The sliding table is mounted on precise linear ball rails that provide smooth and accurate movement.

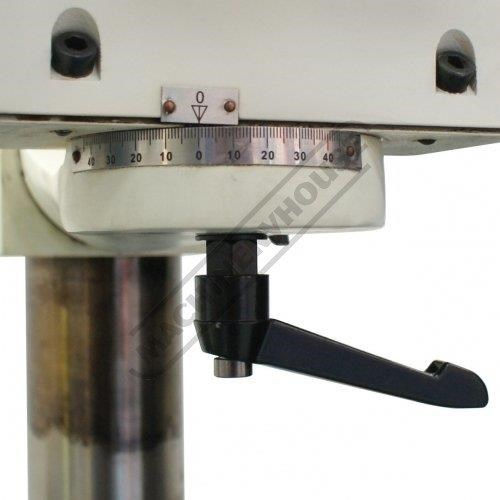

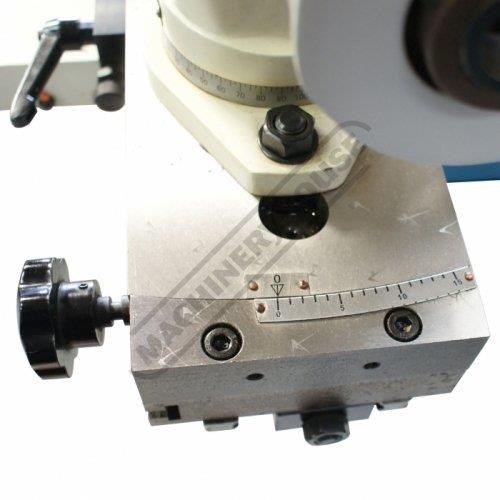

The grinding head support is made up of a double-rotating bracket, which allows the head to rotate in both the horizontal and vertical plane.
The head can rotate 360º in the horizontal plane allowing easy access of the grinding wheel to the work piece.

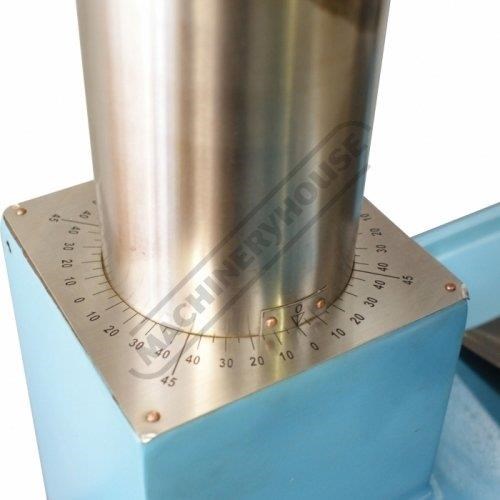

The column structure of the machine enables it to lower and raise the grinding wheel.

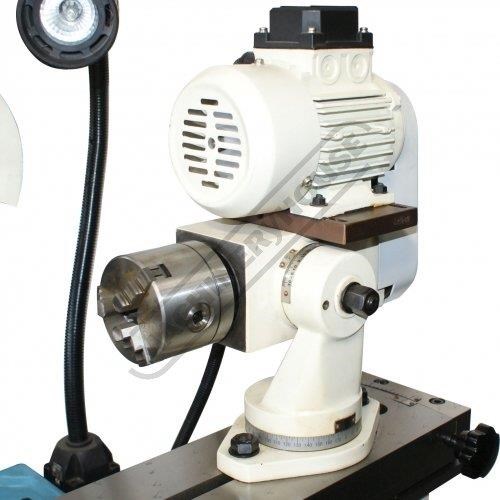

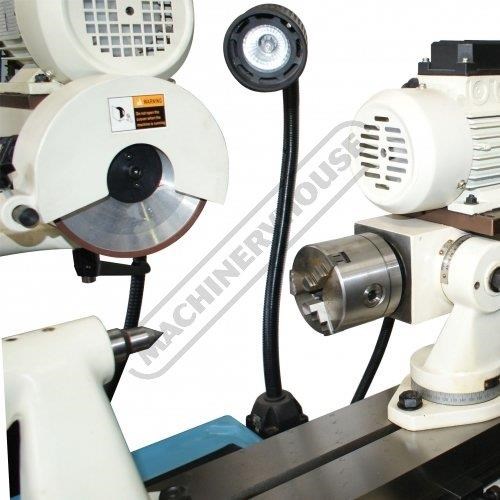

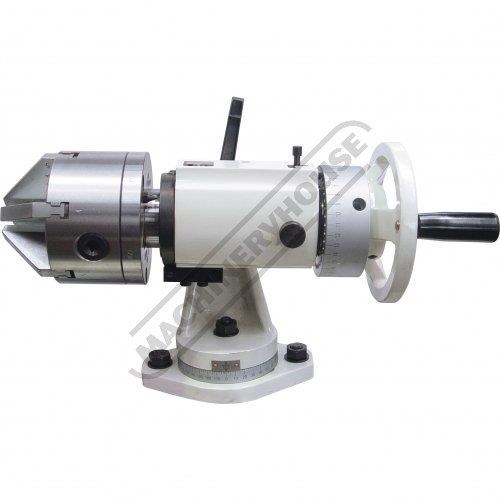

The motorised work-head allows for small cylindrical grinding between centres or if required single ended work mounted in the chuck.
For more information download the manual.
(To view the manual click on "Brochures & Downloads")
Features:
The operating table is mounted on a high-precision linear ball slide rail which ensures that the table is stable and easy to operate
The main head can rotate 360º
2 Speed grinding wheel 4200 & 7000rpm
Compact rigid design for precise and accurate operation

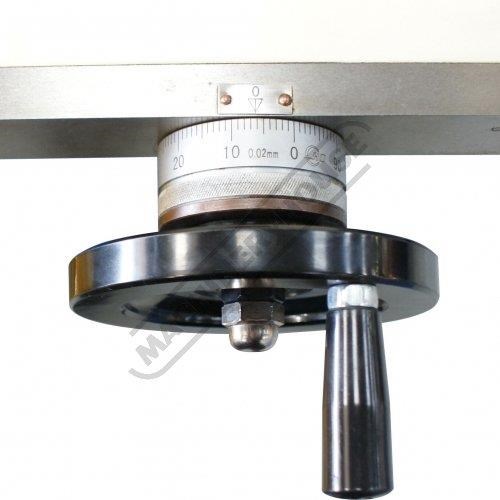

Large easy to read dials
Precision built with high grade castings

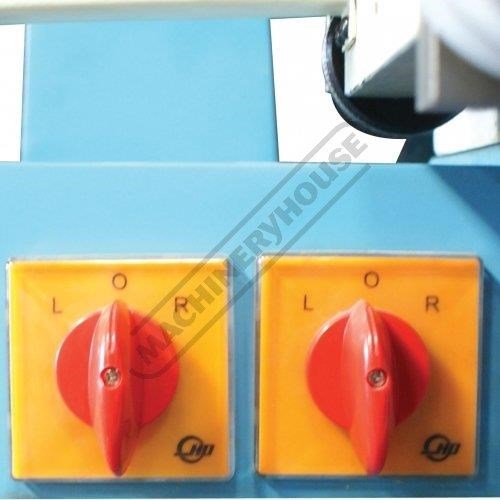

Forward/Reverse switch on both motors (240 Volt)
Quick and easy mounting of attachments
Adjustable limit stops on longitudinal travel

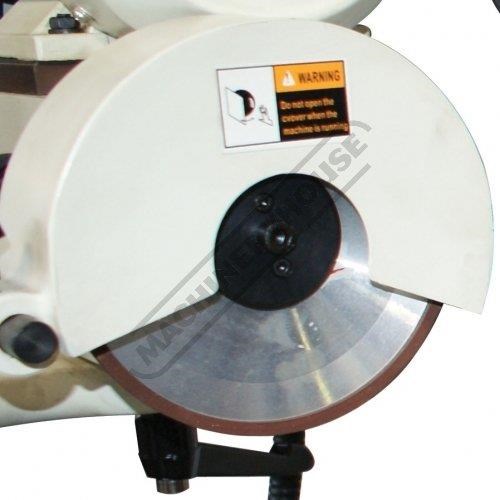

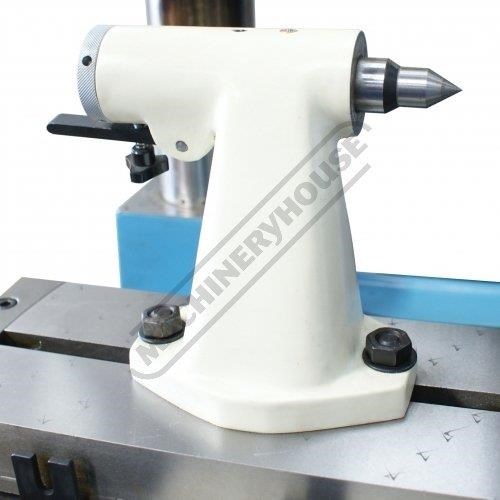

Includes motorised work head tailstock & diamond dish grinding wheel
Includes:

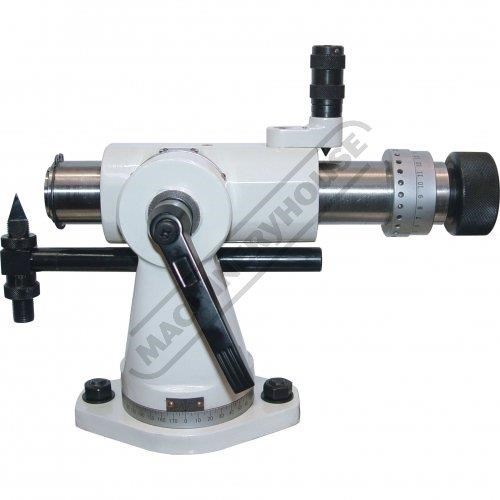

- End mill grinding attachment
- Drill grinding attachment

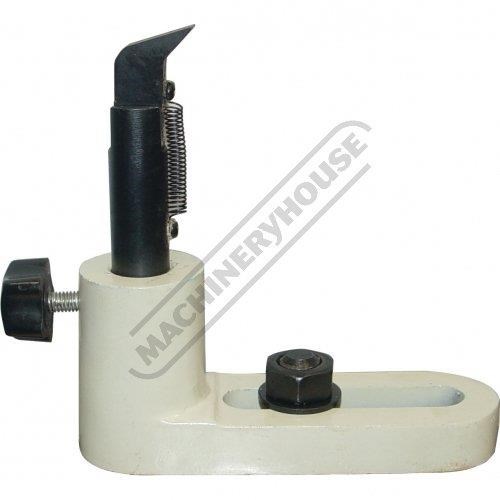

- Tool rest attachment

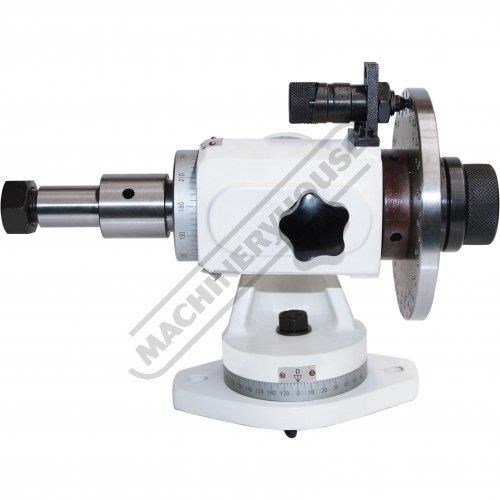

- 4MT Dividing attachment
- 22 27 32mm arbors

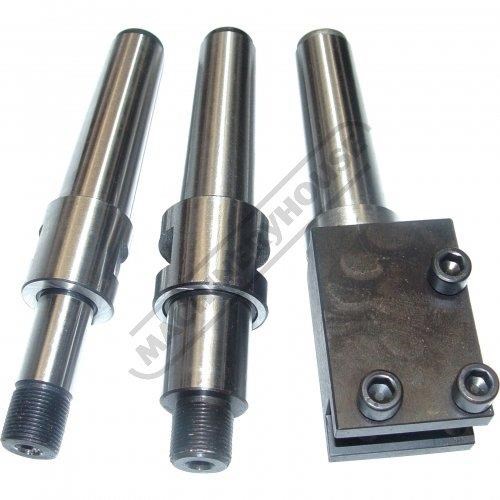

- 4MT arbors and lathe tool holders
- 5C collets 681012162025mm

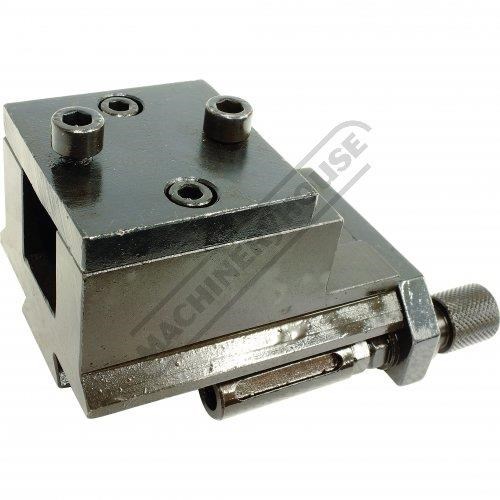

- Lathe tool grinding holder

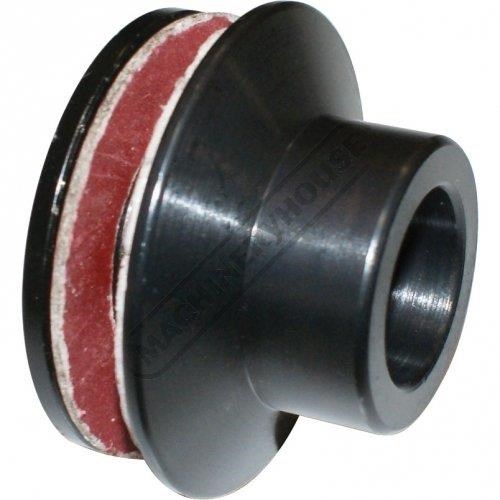

- 1 x Diamond dish grinding wheel (G1985)
Specifications:
ORDER CODE: G198
MODEL: TM-6025Q
Maximum Grinding Capacity Diameter (mm): 250
Longitudinal Travel X Axis (mm): 350
Cross Travel Y Axis (mm): 150
Vertical Head Travel Z Axis (mm): 140
Swivel Head Capacity (deg): 360
Grinding Wheel Speed (rpm): 4200 / 7000
Centre Height (mm): 135
Centre Distance (mm): 210
Spindle Head Taper (MT): 4
Table Size (mm): 680 x 130
Grinding Head Motor Power (kW / hp): 0.56 / 0.75
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 212
To Purchase Online Please Visit The Machineryhouse Website & Search For 'G198'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
TOOLMASTER TM-6025Q Universal Tool & Cutter Grinder Ø250 x 350mm Grinding Capacity 2 Speed, 4200 & 7000rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G198
The universal tool & cutter grinder is designed to sharpen various cutters. It also includes many accessories designed for specific functions. From these accessories the operator can set up the correct attachment according to the cutters that need to be sharpen. The machine is able to grind drilling bits, threading taps, end-milling and slot drilling cutters, face milling cutters, turning tools, circular slitting cutters.
The machines base is made of cast steel construction resulting in high stability during operation. The sliding table is mounted on precise linear ball rails that provide smooth and accurate movement.
The grinding head support is made up of a double-rotating bracket, which allows the head to rotate in both the horizontal and vertical plane.
The head can rotate 360º in the horizontal plane allowing easy access of the grinding wheel to the work piece.
The column structure of the machine enables it to lower and raise the grinding wheel.
The motorised work-head allows for small cylindrical grinding between centres or if required single ended work mounted in the chuck.
For more information download the manual.
(To view the manual click on "Brochures & Downloads")
Features:
The operating table is mounted on a high-precision linear ball slide rail which ensures that the table is stable and easy to operate
The main head can rotate 360º
2 Speed grinding wheel 4200 & 7000rpm
Compact rigid design for precise and accurate operation
Large easy to read dials
Precision built with high grade castings
Forward/Reverse switch on both motors (240 Volt)
Quick and easy mounting of attachments
Adjustable limit stops on longitudinal travel
Includes motorised work head tailstock & diamond dish grinding wheel
Includes:
- End mill grinding attachment
- Drill grinding attachment
- Tool rest attachment
- 4MT Dividing attachment
- 22 27 32mm arbors
- 4MT arbors and lathe tool holders
- 5C collets 681012162025mm
- Lathe tool grinding holder
- 1 x Diamond dish grinding wheel (G1985)
Specifications:
ORDER CODE: G198
MODEL: TM-6025Q
Maximum Grinding Capacity Diameter (mm): 250
Longitudinal Travel X Axis (mm): 350
Cross Travel Y Axis (mm): 150
Vertical Head Travel Z Axis (mm): 140
Swivel Head Capacity (deg): 360
Grinding Wheel Speed (rpm): 4200 / 7000
Centre Height (mm): 135
Centre Distance (mm): 210
Spindle Head Taper (MT): 4
Table Size (mm): 680 x 130
Grinding Head Motor Power (kW / hp): 0.56 / 0.75
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 212
To Purchase Online Please Visit The Machineryhouse Website & Search For 'G198'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
Related Listings
View More4
$790

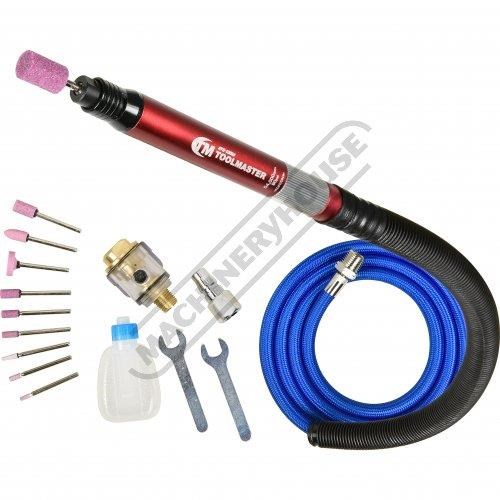

TOOLMASTER GRINDER PARTS & ACCESSORIES
- » Listing Type: New
Stores Australia Wide
4
$1,040

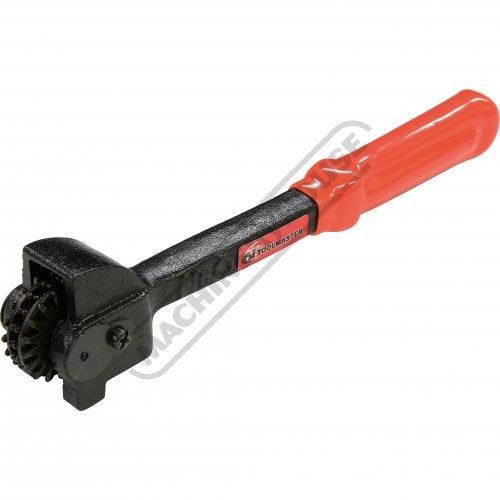

TOOLMASTER GRINDER PARTS & ACCESSORIES
