TOOLMASTER K72-200

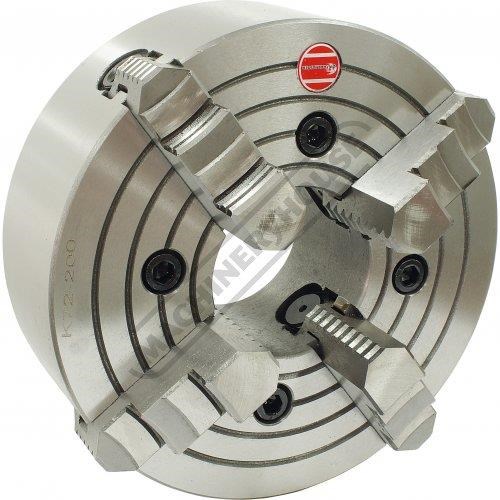

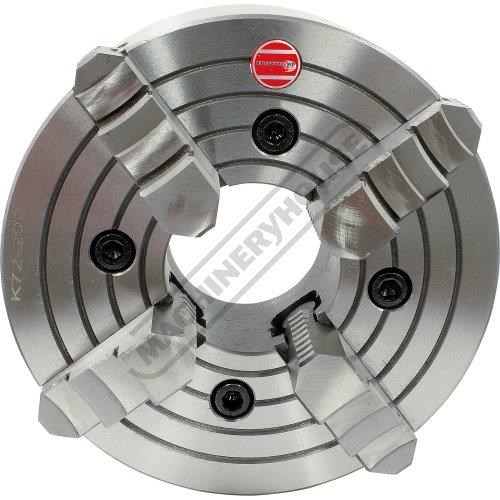

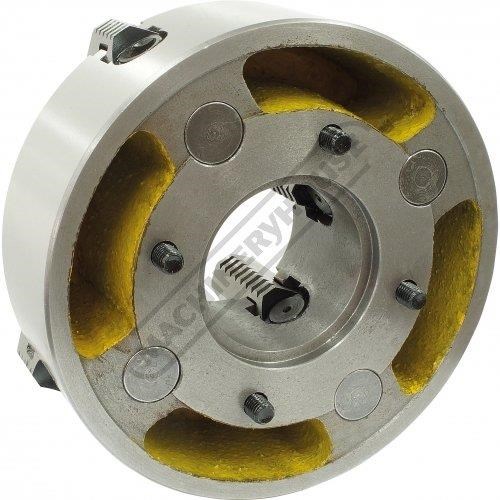

K72-200 4 Jaw Independent Lathe Chuck Ø200mm Back Plate Mount

TOOLMASTER K72-200 4 Jaw Independent Lathe Chuck Ø200mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C251

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features:
Front Mounting



Specifications:
ORDER CODE: C251
Chuck Size: Ø200
External Jaw Range (mm): 130 - 200
Internal Jaw Range (mm): 4 - 90
Speed (rpm): 2000
D1 (mm): 80
D2 (mm): 112
D3 (mm): 70
H1 (mm): 71
h (mm): 6
z-d (mm): 4 - M10
Nett Weight (kg): 15


To Purchase Online Please Visit The Machineryhouse Website & Search For 'C251'
