TOOLMASTER K11-160/D14

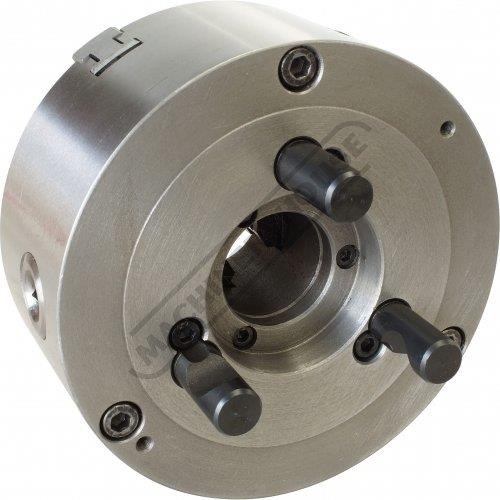

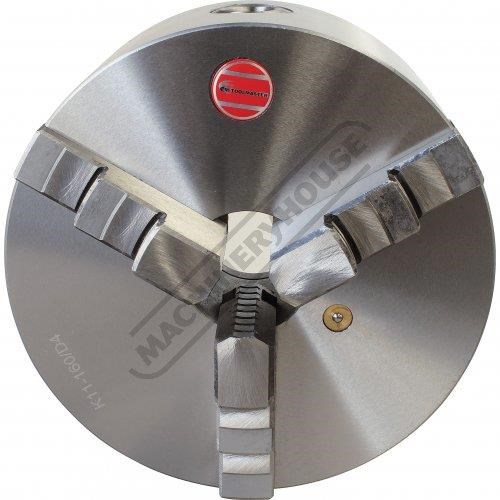

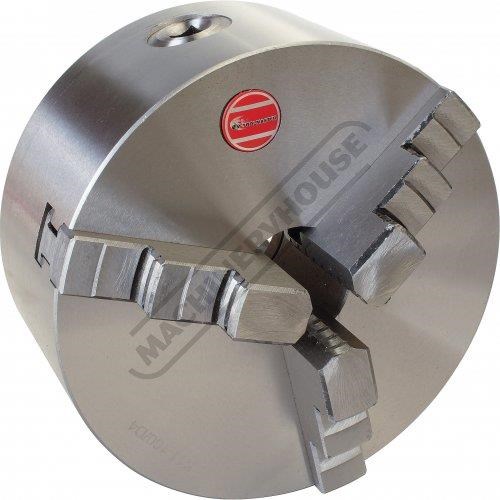

K11-160/D14 3 Jaw Self Centring Lathe Chuck Ø160mm D1-4 Camlock Mount

TOOLMASTER K11-160/D14 3 Jaw Self Centring Lathe Chuck Ø160mm D1-4 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C260

K11 SERIES Cast Iron Body
Standard GB/T 4346.2-2002

Features:
World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing
ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved

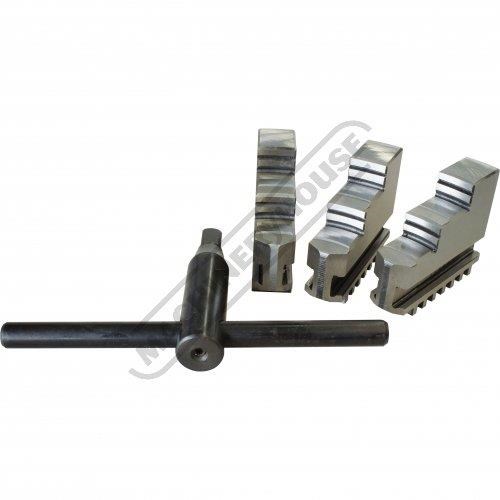

Each chuck is supplied with a set of inside and outside jaws and a chuck key

Includes:
- Outside jaws
- Inside jaws
- Chuck key



Specifications:
ORDER CODE: C260
Chuck Size (mm): Ø160
Camlock: D1-4
Outside Jaw (mm): 3 - 55
Inside Jaw (mm): 55 - 145
Speed (rpm): 2500
D1 (mm): 130
D2 (mm): 142
D3 (mm): 40
H (mm): 95
H1 (mm): 65
h (mm): 5
Nett Weight (kg): 9


To Purchase Online Please Visit The Machineryhouse Website & Search For 'C260'
