TOOLMASTER K11 SERIES

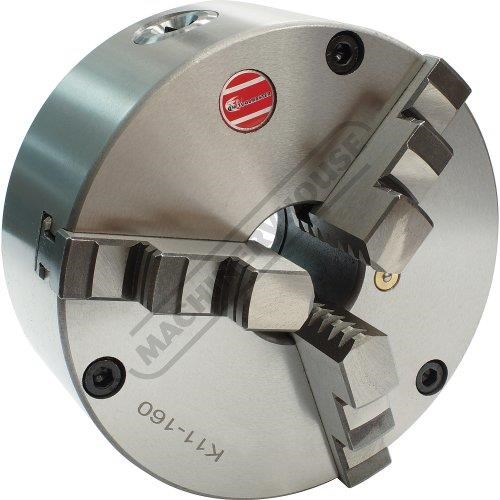

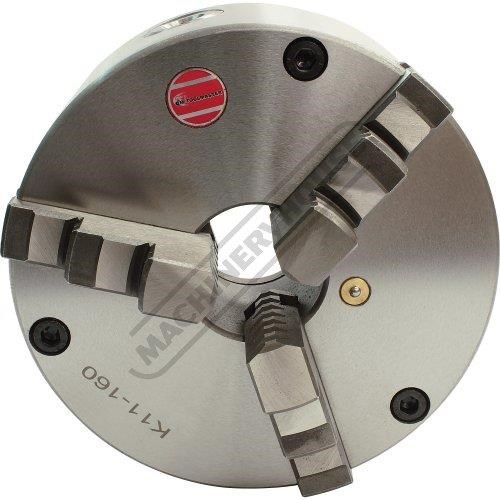

K11 SERIES 3 Jaw Self Centring Lathe Chuck Ø160mm Front Mount

TOOLMASTER K11 SERIES 3 Jaw Self Centring Lathe Chuck Ø160mm Front Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C2806

K11 Series front mount cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.

World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck.

Features:
Ideal for Rotary Tables or Dividing Heads

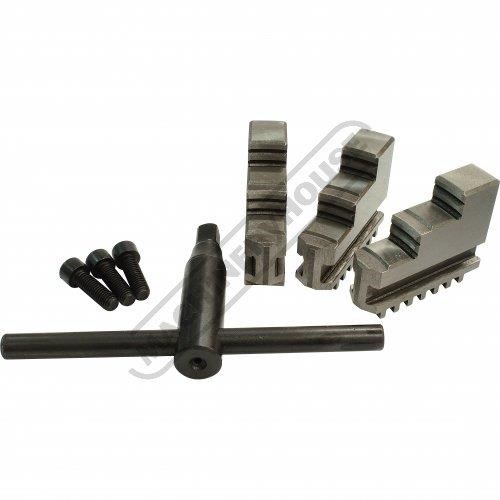

Includes:
- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key



Specifications:
ORDER CODE: C2806

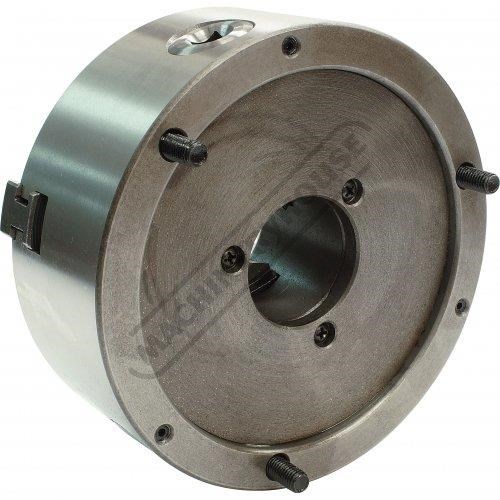

Mounting Type: Front Mount
Chuck Size (mm): Ø160
Outside Jaw (mm): 3 - 55
Inside Jaw (mm): 55 - 145
Speed (rpm): 2500
D1 (mm): 130
D2 (mm): 142
D3 (bore) (mm): 45
H (mm): 95
H1 (mm): 65
H2 (mm): ~
h (lowercase) (mm): 5
z-d (mm): 3 x M8
Nett Weight (kg): 6
